Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
RN102-0.3-02-12M CMC 12MH 300MA 2LN TH Schaffner EMC Inc.	2,445	2.05	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	12 mH @ 10 kHz	300mA	1.1Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.551 Dia x 0.551 W (14.00mm x 14.00mm)	0.366 (9.30mm)
RN102-0.6-02-4M4 CMC 4.4MH 600MA 2LN TH Schaffner EMC Inc.	3,541	2.05	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	4.4 mH @ 10 kHz	600mA	380mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.551 Dia x 0.551 W (14.00mm x 14.00mm)	0.366 (9.30mm)
RN102-1-02-3M0 CMC 3MH 1A 2LN TH Schaffner EMC Inc.	2,371	2.08	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	3 mH @ 10 kHz	1A	210mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.551 Dia x 0.551 W (14.00mm x 14.00mm)	0.366 (9.30mm)
RN102-1.5-02-1M6 CMC 1.6MH 1.5A 2LN TH Schaffner EMC Inc.	3,229	2.08	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	1.6 mH @ 10 kHz	1.5A	94mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.551 Dia x 0.551 W (14.00mm x 14.00mm)	0.366 (9.30mm)

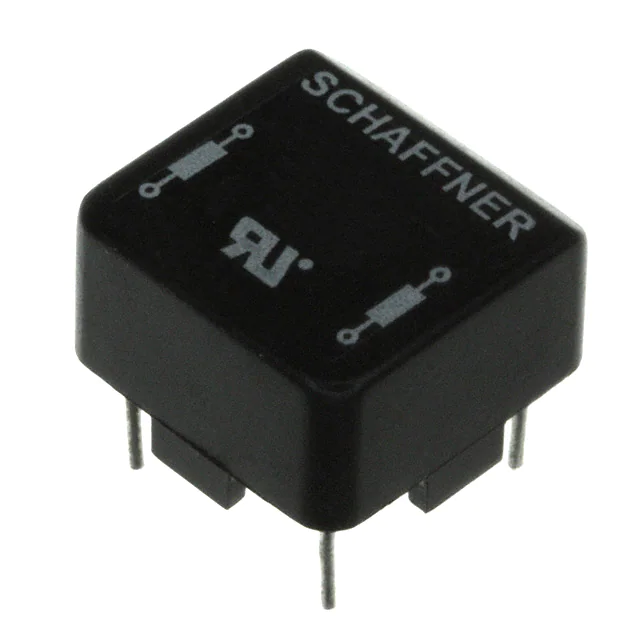

RN102-2-02-1M1 CMC 1.1MH 2A 2LN TH Schaffner EMC Inc.	2,336	2.11	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	1.1 mH @ 10 kHz	2A	70mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.551 Dia x 0.551 W (14.00mm x 14.00mm)	0.366 (9.30mm)
RN212-0.6-02-15M CMC 15MH 600MA 2LN TH Schaffner EMC Inc.	3,216	2.11	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	15 mH @ 10 kHz	600mA	490mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)
RN112-0.6-02-15M CMC 15MH 600MA 2LN TH Schaffner EMC Inc.	3,072	2.11	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	15 mH @ 10 kHz	600mA	490mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN112-1.2-02-6M8 CMC 6.8MH 1.2A 2LN TH Schaffner EMC Inc.	3,333	2.14	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	6.8 mH @ 10 kHz	1.2A	250mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN112-0.4-02-39M CMC 39MH 400MA 2LN TH Schaffner EMC Inc.	3,980	2.19	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	39 mH @ 10 kHz	400mA	1.5Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN212-4-02-0M7 CMC 700UH 4A 2LN TH Schaffner EMC Inc.	2,308	2.19	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	700 µH @ 10 kHz	4A	24mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)
RN112-4-02-0M7 CMC 700UH 4A 2LN TH Schaffner EMC Inc.	3,603	2.19	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	700 µH @ 10 kHz	4A	24mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN202-0.3-02-12M CMC 12MH 300MA 2LN TH Schaffner EMC Inc.	3,005	2.05	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	12 mH @ 10 kHz	300mA	1.1Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.346 W (18.20mm x 8.80mm)	0.543 (13.80mm)
RN202-0.6-02-4M4 CMC 4.4MH 600MA 2LN TH Schaffner EMC Inc.	3,180	2.05	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	4.4 mH @ 10 kHz	600mA	380mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.346 W (18.20mm x 8.80mm)	0.543 (13.80mm)

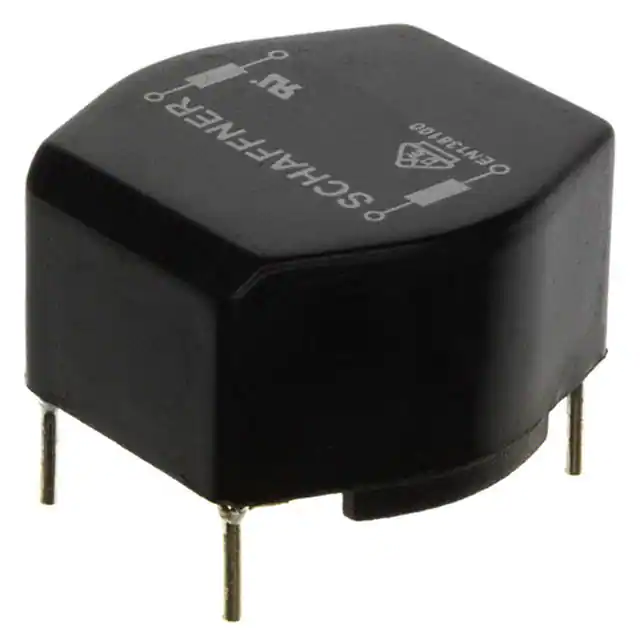

RN114-0.8-02-27M CMC 27MH 800MA 2LN TH Schaffner EMC Inc.	2,879	2.22	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	27 mH @ 10 kHz	800mA	500mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)

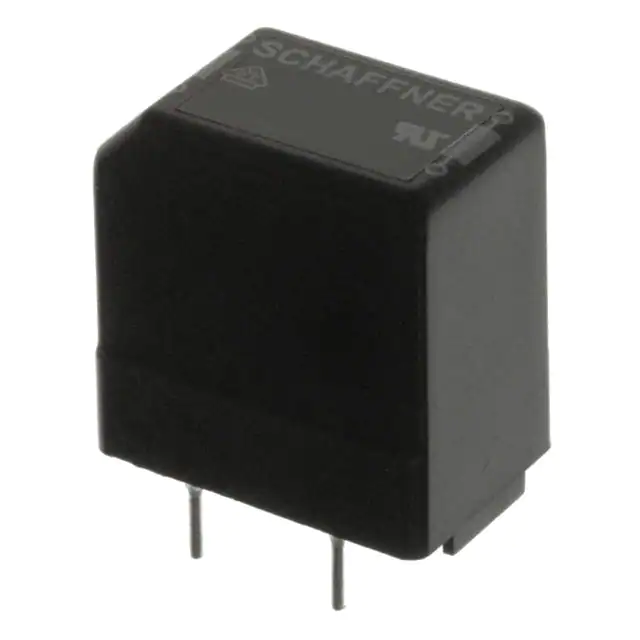

RN214-0.8-02-27M CMC 27MH 800MA 2LN TH Schaffner EMC Inc.	3,745	2.22	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	27 mH @ 10 kHz	800mA	500mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.996 (25.30mm)
RN114-2.5-02-3M3 CMC 3.3MH 2.5A 2LN TH Schaffner EMC Inc.	3,197	2.25	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	3.3 mH @ 10 kHz	2.5A	63mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
RN214-4-02-1M5 CMC 1.5MH 4A 2LN TH Schaffner EMC Inc.	2,051	2.31	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	1.5 mH @ 10 kHz	4A	34mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.996 (25.30mm)
RN214-2-02-4M2 CMC 4.2MH 2A 2LN TH Schaffner EMC Inc.	3,112	2.31	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	4.2 mH @ 10 kHz	2A	100mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.996 (25.30mm)

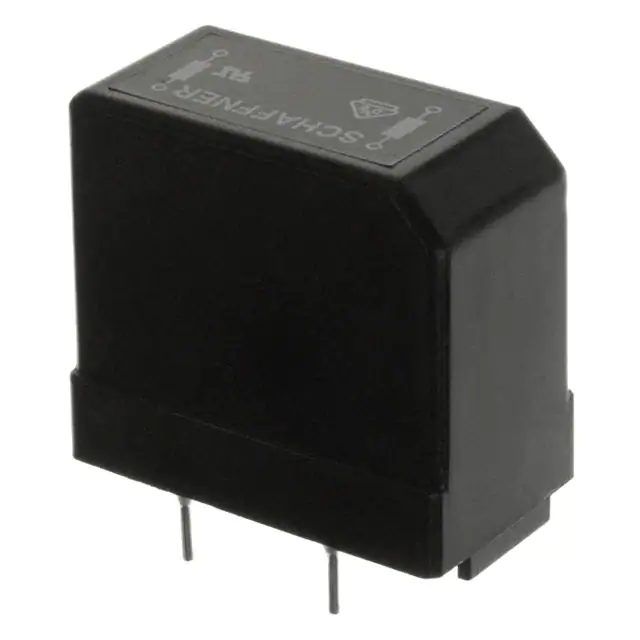

RN222-2.5-02-5M6 CMC 5.6MH 2.5A 2LN TH Schaffner EMC Inc.	2,292	2.89	- + FFQ	Datasheet	Tube	RN	Active	Power Line	2	-	5.6 mH @ 10 kHz	2.5A	110mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.165 (29.60mm)

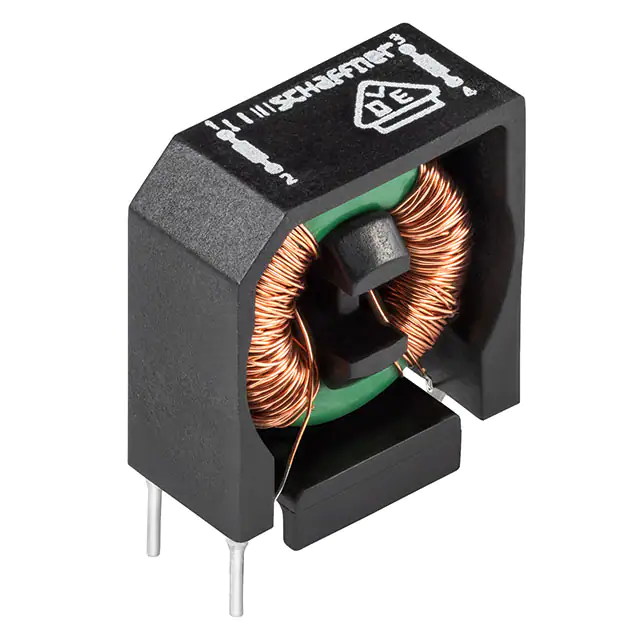

RC212-0.25-47M CMC 47MH 250MA 2LN TH Schaffner EMC Inc.	2,909	1.51	- + FFQ	Datasheet	Bulk	RC	Active	Power Line	2	-	47 mH @ 10 kHz	250mA	2.4Ohm	-	250V	-40°C ~ 125°C	-	VDE	-	Through Hole	0.602 L x 0.291 W (15.30mm x 7.40mm)	0.693 (17.60mm)
