Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

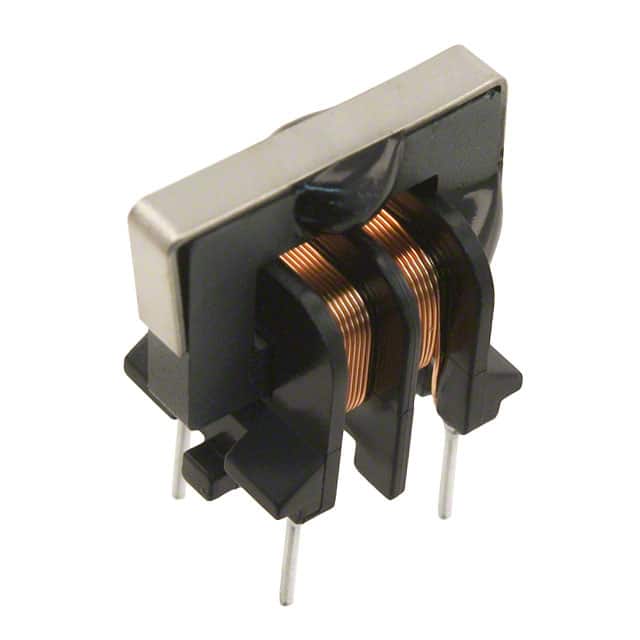

TLF9UA102W0R8K1 CMC 1MH 800MA 2LN TH Taiyo Yuden	2,695	0.85	- + FFQ	Datasheet	Bulk	TLF9	Obsolete	Power Line	2	-	1 mH @ 1 kHz	800mA	500mOhm	-	250V	-25°C ~ 105°C	-	-	-	Through Hole	0.669 L x 0.433 W (17.00mm x 11.00mm)	0.630 (16.00mm)

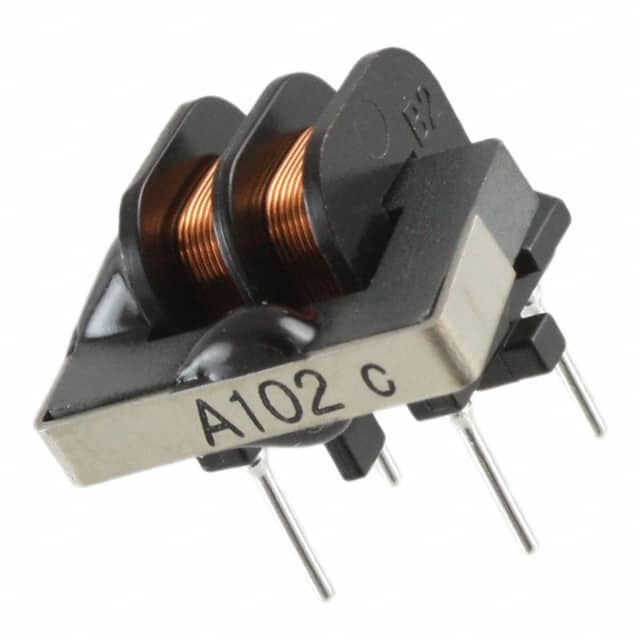

TLF9UAH102W0R8K1 CMC 1MH 800MA 2LN TH Taiyo Yuden	450	0.85	- + FFQ	Datasheet	Bulk	TLF9	Obsolete	Power Line	2	-	1 mH @ 1 kHz	800mA	500mOhm	-	250V	-25°C ~ 105°C	-	-	-	Through Hole	0.669 L x 0.591 W (17.00mm x 15.00mm)	0.472 (12.00mm)

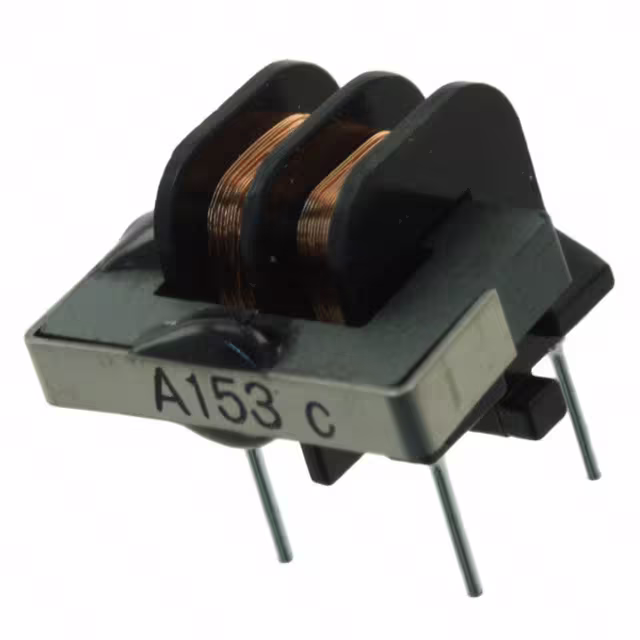

TLF9UAH153W0R2K1 CMC 200MA 2LN TH Taiyo Yuden	2,984	0.89	- + FFQ	Datasheet	Bulk	TLF9	Active	Power Line	2	-	-	200mA	5.5Ohm	-	250V	-25°C ~ 105°C	-	-	-	Through Hole	0.669 L x 0.591 W (17.00mm x 15.00mm)	0.472 (12.00mm)

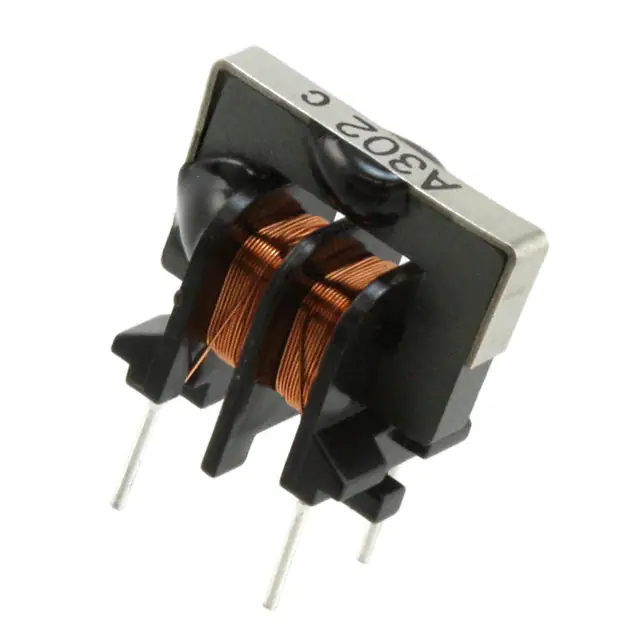

TLF9UA302WR42K1 CMC 3MH 420MA 2LN TH Taiyo Yuden	3,878	0.47	- + FFQ	Datasheet	Bulk	TLF9	Obsolete	Power Line	2	-	3 mH @ 1 kHz	420mA	1.5Ohm	-	250V	-25°C ~ 105°C	-	-	-	Through Hole	0.669 L x 0.433 W (17.00mm x 11.00mm)	0.630 (16.00mm)

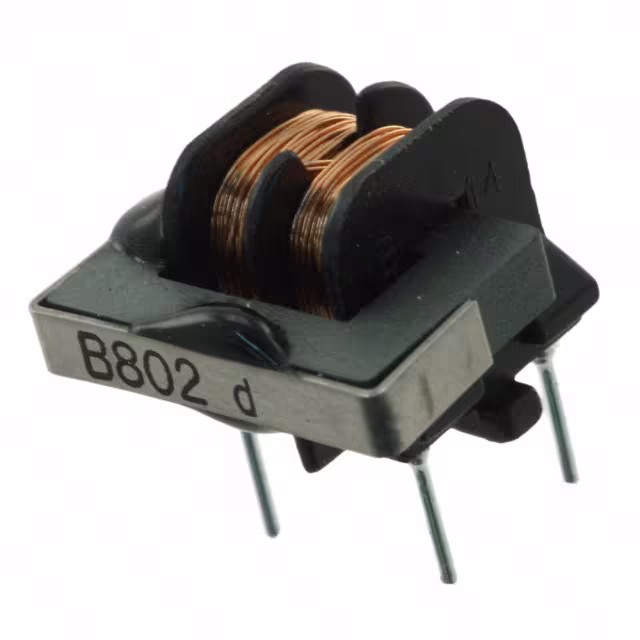

TLF9UBH802WK1 CMC 300MA 2LN 40KOHM TH Taiyo Yuden	3,892	0.47	- + FFQ	Datasheet	Bulk	TLF9	Obsolete	Signal Line	2	40 kOhms @ 700 kHz	-	300mA	3Ohm	50V	-	-25°C ~ 105°C	-	-	-	Through Hole	0.669 L x 0.591 W (17.00mm x 15.00mm)	0.472 (12.00mm)

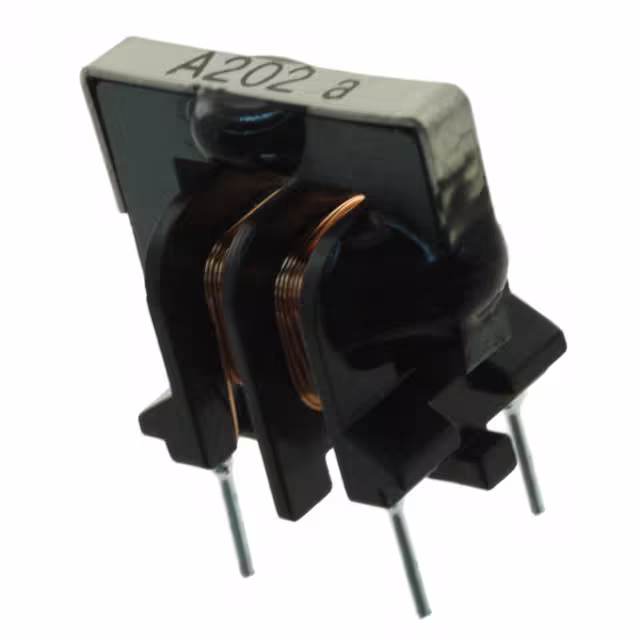

TLF9UA202WR54K1 CMC 2MH 540MA 2LN TH Taiyo Yuden	3,363	0.85	- + FFQ	Datasheet	Bulk	TLF9	Obsolete	Power Line	2	-	2 mH @ 1 kHz	540mA	1Ohm	-	250V	-25°C ~ 105°C	-	-	-	Through Hole	0.669 L x 0.433 W (17.00mm x 11.00mm)	0.630 (16.00mm)

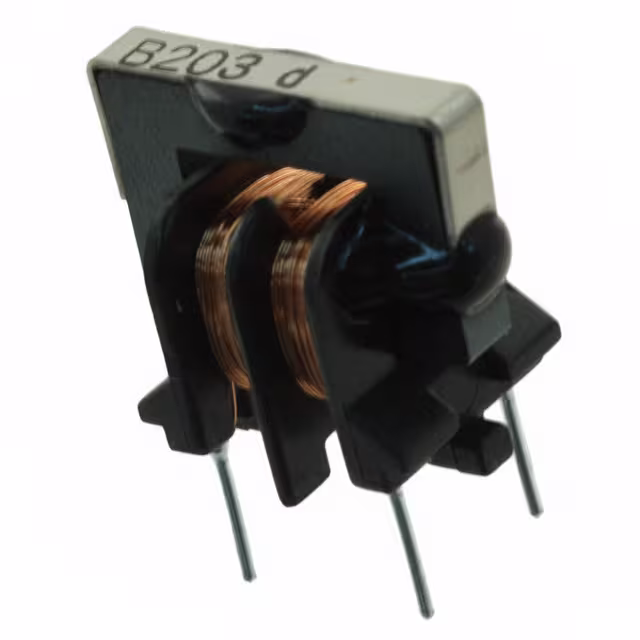

TLF9UB203WK1 CMC 180MA 2LN 150KOHM TH Taiyo Yuden	2,032	0.85	- + FFQ	Datasheet	Bulk	TLF9	Obsolete	Signal Line	2	150 kOhms @ 500 kHz	-	180mA	6.5Ohm	50V	-	-25°C ~ 105°C	-	-	-	Through Hole	0.669 L x 0.433 W (17.00mm x 11.00mm)	0.630 (16.00mm)
CM04RC08T CMC 500MA 3LN 1KOHM SMD Taiyo Yuden	3,855	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	CM04	Obsolete	Power, Signal Line	3	1 kOhms @ 200 MHz	-	500mA	200mOhm	50V	-	-25°C ~ 105°C	-	-	-	Surface Mount	0.209 L x 0.354 W (5.30mm x 9.00mm)	0.110 (2.80mm)
CM05RB01 CMC 2A 2LN 700 OHM TH Taiyo Yuden	3,739	0.00	- + FFQ	Datasheet	Bulk	CM05	Obsolete	Signal Line	2	700 Ohms @ 70 MHz	-	2A	50mOhm	50V	-	-25°C ~ 105°C	-	-	-	Through Hole	0.374 L x 0.217 W (9.50mm x 5.50mm)	0.394 (10.00mm)
CM05RB02 CMC 2LN TH Taiyo Yuden	3,130	0.00	- + FFQ	Datasheet	Bulk	CM05	Obsolete	Power Line	2	-	-	-	-	-	-	-25°C ~ 105°C	-	-	-	Through Hole	0.374 L x 0.217 W (9.50mm x 5.50mm)	0.394 (10.00mm)
CM05RB03 CMC 1.5A 2LN 1.4KOHM TH Taiyo Yuden	2,434	0.00	- + FFQ	Datasheet	Bulk	CM05	Obsolete	Power, Signal Line	2	1.4 kOhms @ 100 MHz	-	1.5A	60mOhm	50V	-	-25°C ~ 105°C	-	-	-	Through Hole	0.374 L x 0.217 W (9.50mm x 5.50mm)	0.394 (10.00mm)
CM08RA17 CMC 2.4A 2LN 2KOHM TH Taiyo Yuden	2,779	0.00	- + FFQ	Datasheet	Bulk	CM08	Obsolete	Signal Line	2	2 kOhms @ 80 MHz	-	2.4A	40mOhm	50V	-	-25°C ~ 105°C	-	-	-	Through Hole	0.433 L x 0.236 W (11.00mm x 6.00mm)	0.433 (11.00mm)
CM08RA20 CMC 5.5A 2LN 500 OHM TH Taiyo Yuden	2,595	0.00	- + FFQ	Datasheet	Bulk	CM08	Obsolete	Signal Line	2	500 Ohms @ 200 MHz	-	5.5A	20mOhm	50V	-	-25°C ~ 105°C	-	-	-	Through Hole	0.433 L x 0.236 W (11.00mm x 6.00mm)	0.433 (11.00mm)
CM08RB01 CMC 2A 2LN 2.5KOHM TH Taiyo Yuden	2,636	0.00	- + FFQ	Datasheet	Bulk	CM08	Obsolete	Signal Line	2	2.5 kOhms @ 30 MHz	-	2A	40mOhm	50V	-	-25°C ~ 105°C	-	-	-	Through Hole	0.512 L x 0.374 W (13.00mm x 9.50mm)	0.571 (14.50mm)
CM08RB02 CMC 2.4A 2LN 2KOHM TH Taiyo Yuden	3,397	0.00	- + FFQ	Datasheet	Bulk	CM08	Obsolete	Signal Line	2	2 kOhms @ 50 MHz	-	2.4A	40mOhm	50V	-	-25°C ~ 105°C	-	-	-	Through Hole	0.512 L x 0.374 W (13.00mm x 9.50mm)	0.571 (14.50mm)
CM08RB03 CMC 2A 4LN 1KOHM TH Taiyo Yuden	3,075	0.00	- + FFQ	Datasheet	Bulk	CM08	Obsolete	Power, Signal Line	4	1 kOhms @ 50 MHz	-	2A	50mOhm	50V	-	-25°C ~ 105°C	-	-	-	Through Hole	0.512 L x 0.374 W (13.00mm x 9.50mm)	0.571 (14.50mm)
CM08RB04 CMC 3A 2LN 2KOHM TH Taiyo Yuden	3,183	0.00	- + FFQ	Datasheet	Bulk	CM08	Obsolete	Signal Line	2	2 kOhms @ 70 MHz	-	3A	40mOhm	50V	-	-25°C ~ 105°C	-	-	-	Through Hole	0.512 L x 0.374 W (13.00mm x 9.50mm)	0.571 (14.50mm)
CM08RB05 CMC 4A 2LN 450 OHM TH Taiyo Yuden	2,690	0.00	- + FFQ	Datasheet	Bulk	CM08	Obsolete	Signal Line	2	450 Ohms @ 100 MHz	-	4A	20mOhm	50V	-	-25°C ~ 105°C	-	-	-	Through Hole	0.512 L x 0.374 W (13.00mm x 9.50mm)	0.571 (14.50mm)
TLF12UA102W2R0 CMC 2A 2LN TH Taiyo Yuden	3,903	0.00	- + FFQ		Bulk	TLF12	Obsolete	Power, Signal Line	2	-	-	2A	-	-	-	-25°C ~ 110°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.906 (23.00mm)
TLF12UA103W0R7 CMC 700MA 2LN TH Taiyo Yuden	3,443	0.00	- + FFQ		Bulk	TLF12	Obsolete	Power, Signal Line	2	-	-	700mA	-	-	-	-25°C ~ 110°C	-	-	-	Through Hole	0.866 L x 0.669 W (22.00mm x 17.00mm)	0.906 (23.00mm)
