Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

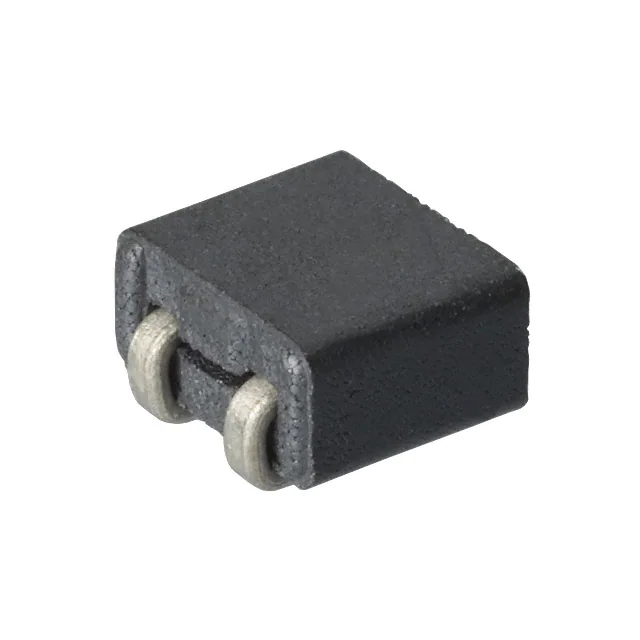

CM2021Y330R-10 CMC 15A 2LN 33 OHM SMD Laird-Signal Integrity Products	2,667	1.00	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM	Active	Power Line	2	33 Ohms @ 100 MHz	-	15A	0.75mOhm	280V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.231 L x 0.220 W (5.88mm x 5.60mm)	0.150 (3.80mm)

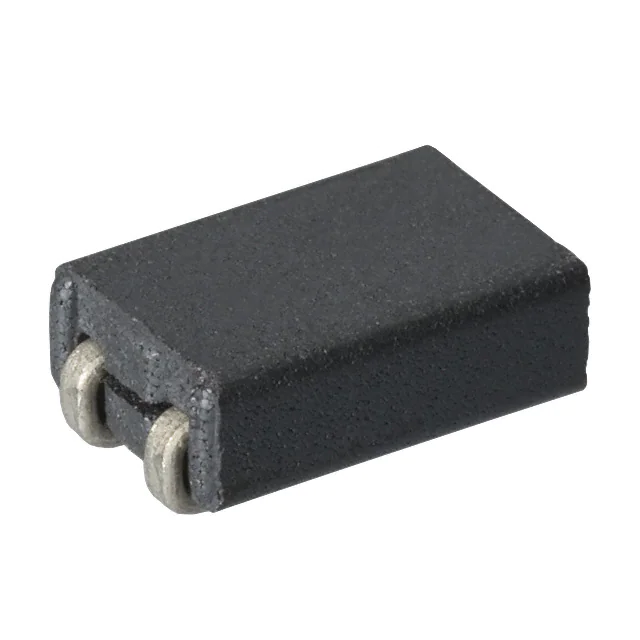

CM3421Y600R-10 CMC 15A 2LN 60 OHM SMD Laird-Signal Integrity Products	3,251	0.96	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM	Active	Power Line	2	60 Ohms @ 100 MHz	-	15A	0.75mOhm	140V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.376 L x 0.220 W (9.55mm x 5.60mm)	0.150 (3.80mm)

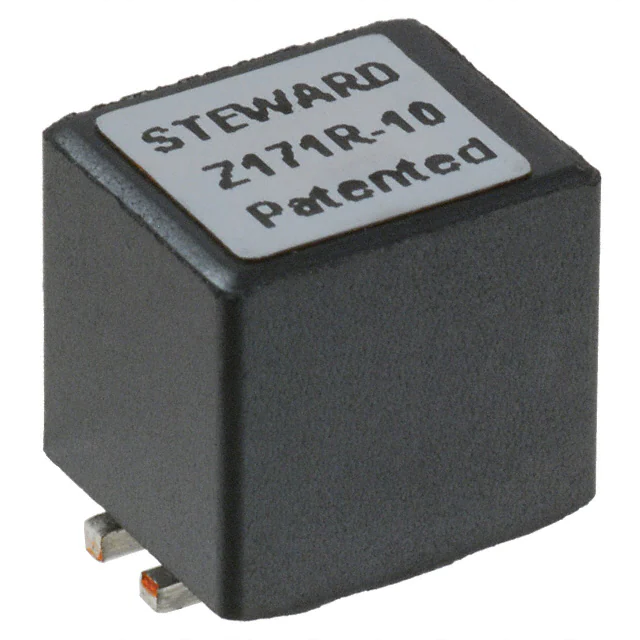

CM3440Z171R-10 CMC 20A 2LN 170 OHM SMD Laird-Signal Integrity Products	2,843	3.36	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM3440	Active	Power Line	2	170 Ohms @ 100 MHz	-	20A	1mOhm	100V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.335 L x 0.395 W (8.51mm x 10.00mm)	0.367 (9.32mm)
CM0805D900R-10 CMC 400MA 2LN 90 OHM SMD Laird-Signal Integrity Products	3,881	2.35	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CF0805	Active	Signal Line	2	90 Ohms @ 100 MHz	-	400mA	300mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.079 L x 0.047 W (2.00mm x 1.20mm)	0.047 (1.20mm)
CM0805A371R-10 CMC 100MA 2LN 370 OHM SMD Laird-Signal Integrity Products	3,129	2.61	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM0805	Active	Signal Line	2	370 Ohms @ 100 MHz	-	100mA	500mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.079 L x 0.047 W (2.00mm x 1.20mm)	0.047 (1.20mm)

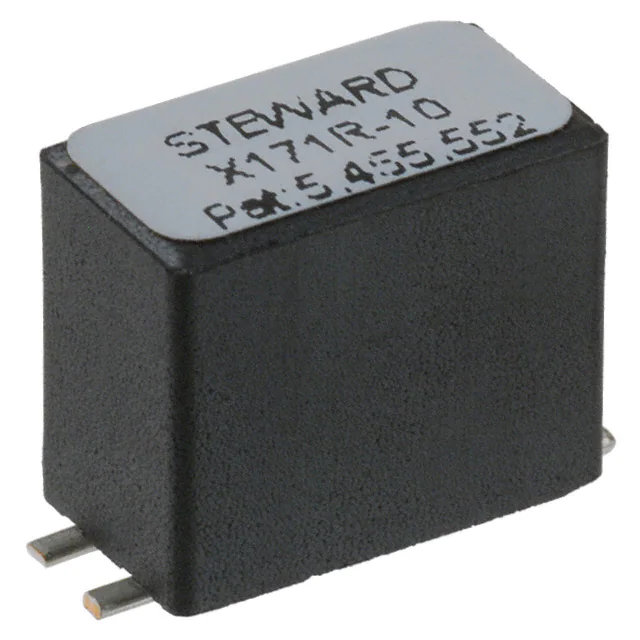

CM2545X171R-10 CMC 10A 2LN 170 OHM SMD Laird-Signal Integrity Products	2,165	2.55	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM	Active	Power Line	2	170 Ohms @ 100 MHz	-	10A	10mOhm	285V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.448 L x 0.248 W (11.38mm x 6.30mm)	0.400 (10.16mm)
CM2722R800R-10 CMC 5A 4LN 80 OHM SMD Laird-Signal Integrity Products	2,329	3.17	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM	Active	Power Line	4	80 Ohms @ 100 MHz	-	5A	20mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.275 L x 0.265 W (6.99mm x 6.73mm)	0.197 (5.00mm)

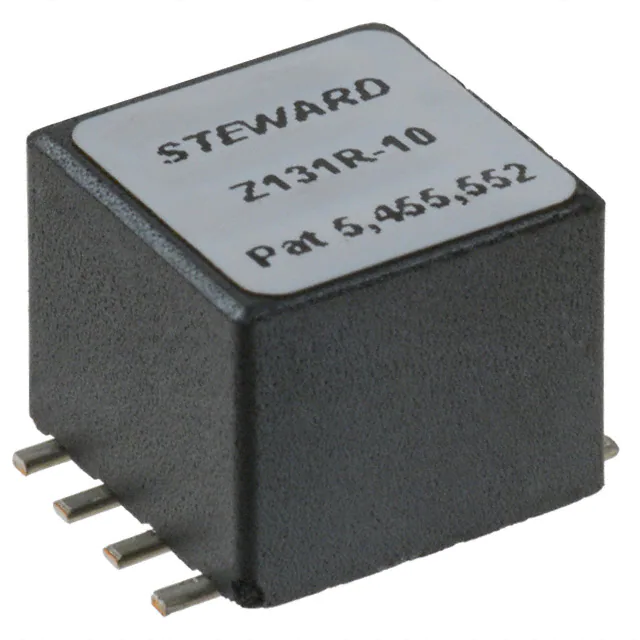

CM4545Z131R-10 CMC 10A 4LN 130 OHM SMD Laird-Signal Integrity Products	2,137	3.02	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM	Active	Power Line	4	130 Ohms @ 100 MHz	-	10A	10mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.555 L x 0.448 W (14.10mm x 11.38mm)	0.400 (10.16mm)

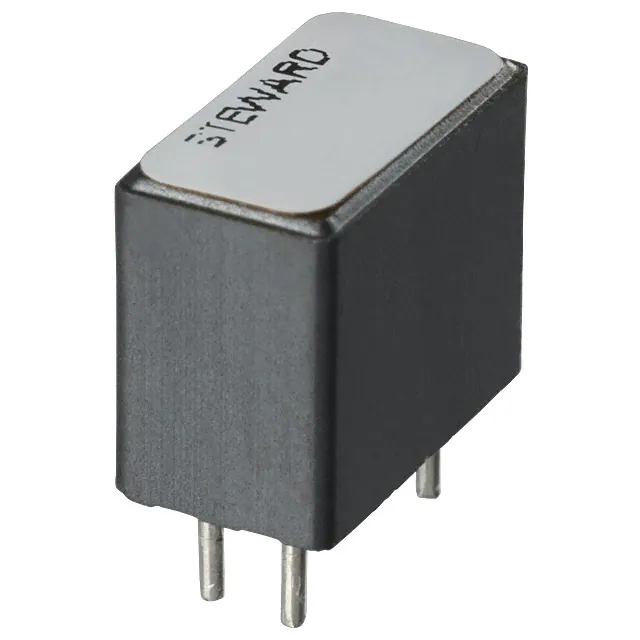

CM2545X171B-10 CMC 10A 2LN 170 OHM TH Laird-Signal Integrity Products	2,340	2.39	- + FFQ	Datasheet	Bulk	CM	Active	Power Line	2	170 Ohms @ 100 MHz	-	10A	10mOhm	340V	-	-40°C ~ 125°C	-	-	-	Through Hole	0.448 L x 0.248 W (11.38mm x 6.30mm)	0.374 (9.50mm)

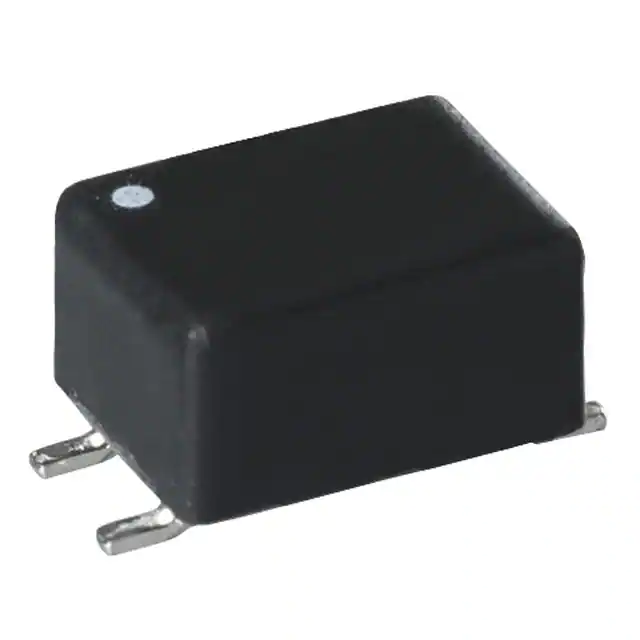

CC2824E513R-10 CMC 51UH 800MA 2LN 3.8KOHM SMD Laird-Signal Integrity Products	3,588	4.85	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CC2824	Active	Signal Line	2	3.8 kOhms @ 50 MHz	51 µH @ 100 kHz	800mA	300mOhm	80V	42V	-40°C ~ 125°C	-	-	-	Surface Mount	0.295 L x 0.217 W (7.50mm x 5.50mm)	0.150 (3.80mm)

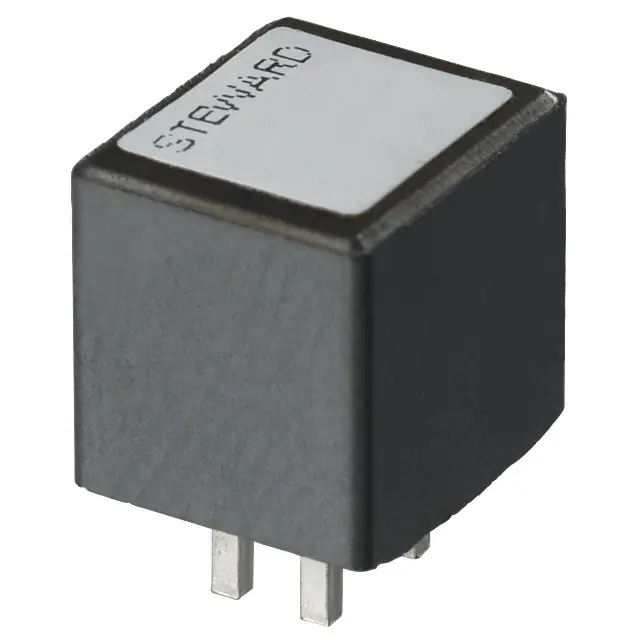

CM3440Z171B-10 CMC 20A 2LN 170 OHM TH Laird-Signal Integrity Products	3,200	2.93	- + FFQ	Datasheet	Bulk	CM	Active	Power Line	2	170 Ohms @ 100 MHz	-	20A	1mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.395 L x 0.335 W (10.03mm x 8.51mm)	0.508 (12.90mm)

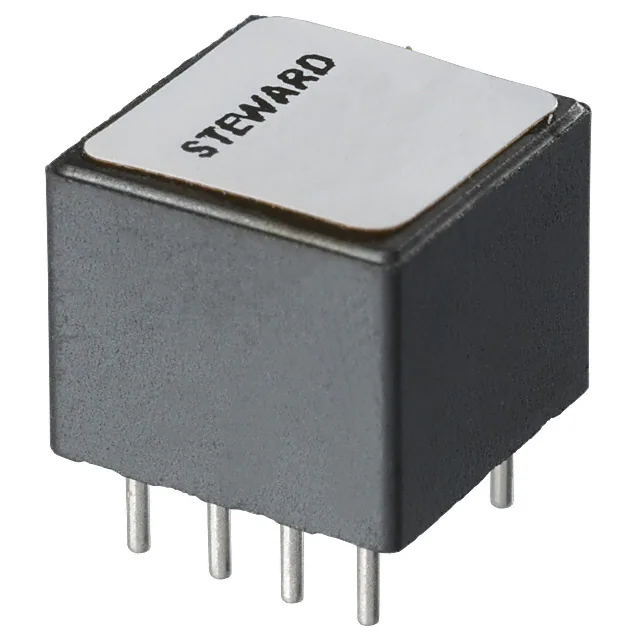

CM4545Z131B-10 CMC 10A 4LN 130 OHM TH Laird-Signal Integrity Products	2,461	3.18	- + FFQ	Datasheet	Bulk	CM	Active	Power Line	4	130 Ohms @ 100 MHz	-	10A	10mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.448 L x 0.448 W (11.38mm x 11.38mm)	0.374 (9.50mm)

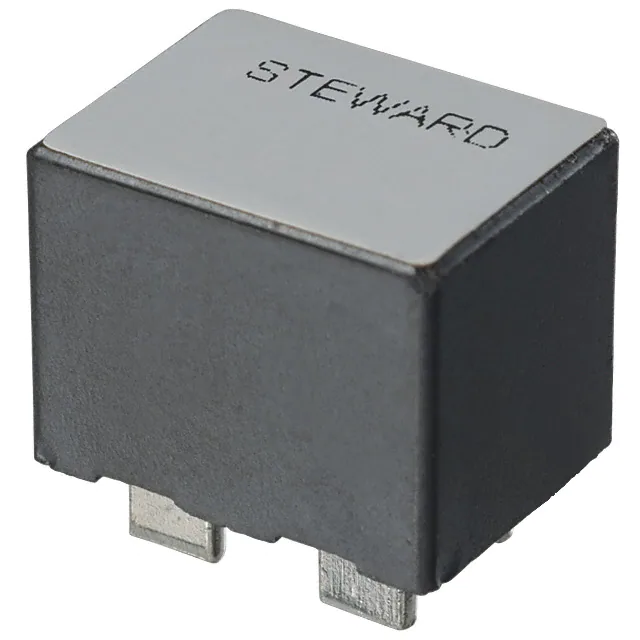

CM5441Z101B-10 CMC 75A 2LN 100 OHM TH Laird-Signal Integrity Products	2,908	3.79	- + FFQ	Datasheet	Bulk	CM	Active	Power Line	2	100 Ohms @ 100 MHz	-	75A	0.3mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.540 L x 0.410 W (13.72mm x 10.41mm)	0.424 (10.77mm)
CC2824J502R-10 CMC 5UH 1.2A 2LN 400 OHM SMD Laird-Signal Integrity Products	2,850	7.60	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CC2824	Active	Signal Line	2	400 Ohms @ 500 MHz	5 µH @ 100 kHz	1.2A	100mOhm	80V	42V	-40°C ~ 125°C	-	-	-	Surface Mount	0.295 L x 0.217 W (7.50mm x 5.50mm)	0.150 (3.80mm)

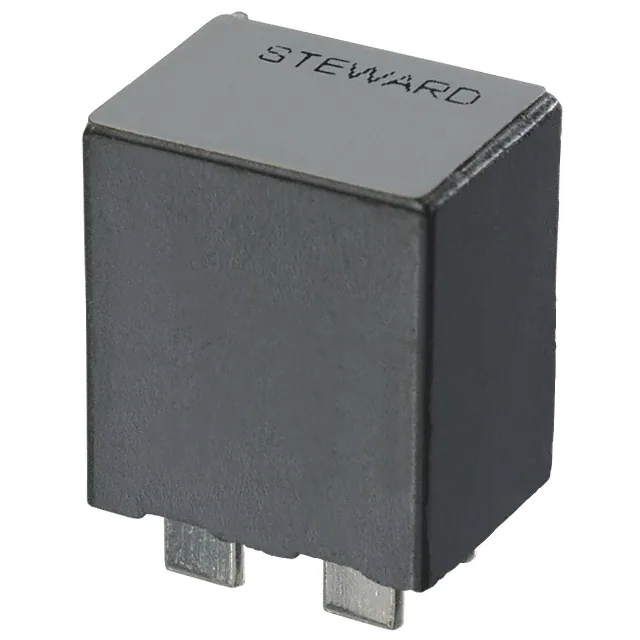

CM5441Z161B-10 CMC 75A 2LN 160 OHM TH Laird-Signal Integrity Products	2,186	4.54	- + FFQ	Datasheet	Tray	CM5441	Active	Power Line	2	160 Ohms @ 100 MHz	-	75A	0.3mOhm	340V	-	-40°C ~ 125°C	-	-	-	Through Hole	0.540 L x 0.410 W (13.72mm x 10.41mm)	0.600 (15.24mm)

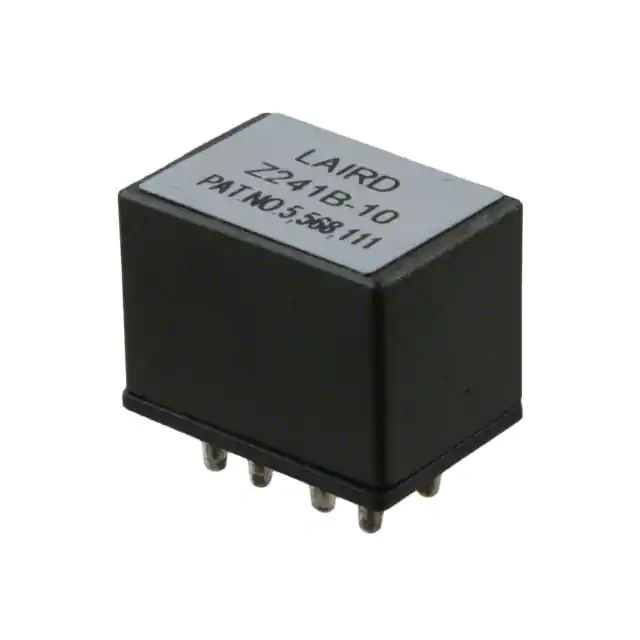

CM5740Z241B-10 CMC 20A 4LN 100 OHM TH Laird-Signal Integrity Products	2,899	8.03	- + FFQ	Datasheet	Bulk	CM	Active	Power, Signal Line	4	100 Ohms @ 100 MHz	-	20A	1.3mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.570 L x 0.395 W (14.48mm x 10.03mm)	0.424 (10.77mm)

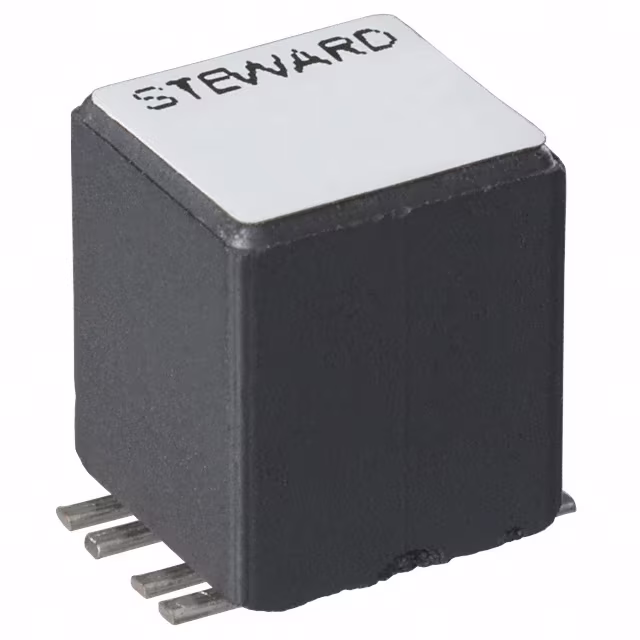

CM3032V201R-10 CMC 8A 4LN 200 OHM SMD Laird-Signal Integrity Products	3,289	3.43	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM	Active	Power Line	4	200 Ohms @ 100 MHz	-	8A	10mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.430 L x 0.300 W (10.92mm x 7.62mm)	0.397 (10.08mm)

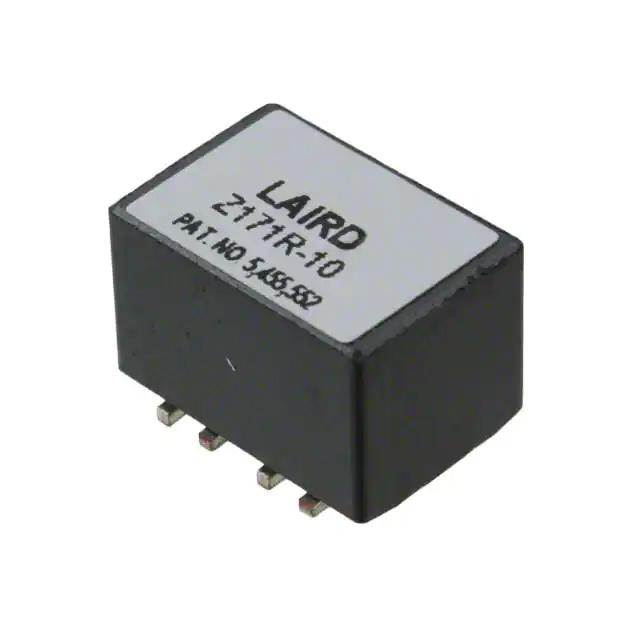

CM5740Z171R-10 CMC 20A 4LN 170 OHM SMD Laird-Signal Integrity Products	3,560	3.93	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM	Active	Power Line	4	170 Ohms @ 100 MHz	-	20A	1mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.570 L x 0.435 W (14.48mm x 11.05mm)	0.413 (10.49mm)

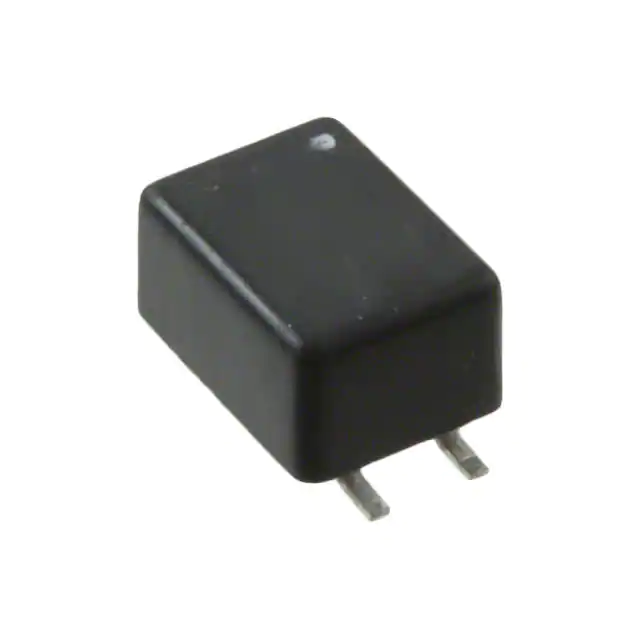

CM2824E352R-10 CMC 800MA 2LN 3.5KOHM SMD Laird-Signal Integrity Products	3,523	4.85	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM2824	Active	Signal Line	2	3.5 kOhms @ 100 MHz	-	800mA	300mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.295 L x 0.217 W (7.50mm x 5.50mm)	0.150 (3.80mm)

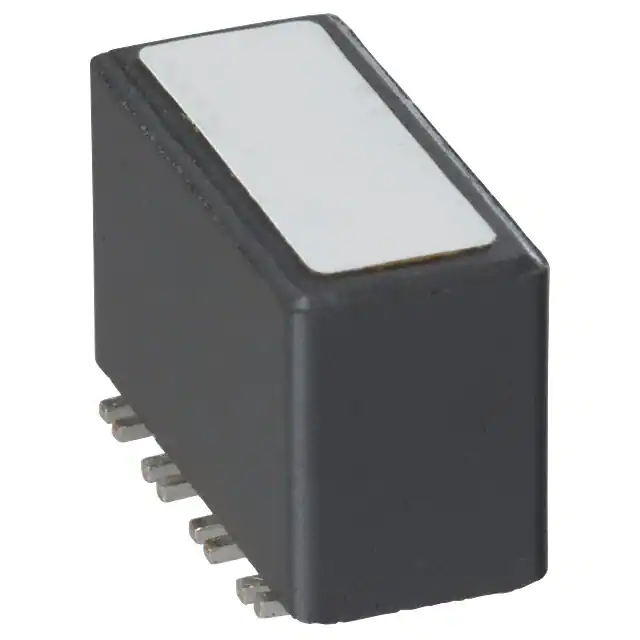

CM5022R151R-10 CMC 5A 8LN 150 OHM SMD Laird-Signal Integrity Products	3,609	4.54	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM	Active	Power Line	8	150 Ohms @ 100 MHz	-	5A	20mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.495 L x 0.265 W (12.57mm x 6.73mm)	0.331 (8.40mm)
