| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Package / Case | Capacitance @ Vr, F | Supplier Device Package | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature - Junction | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCS215AJHRTLLDIODE SCHOTTKY 650V 15A TO263AB |
2,313 | 8.48 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Not For New Designs | Surface Mount | 550pF @ 1V, 1MHz | 0 ns | 300 µA @ 600 V | 650 V | 15A (DC) | 175°C (Max) | 1.55 V @ 15 A | ||
|
SCS320AHGC9SHORTER RECOVERY TIME, ENABLING |
1,935 | 8.90 |
FFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1000pF @ 1V, 1MHz | 0 ns | 100 µA @ 650 V | 650 V | 20A (DC) | 175°C (Max) | - | |||
|
RB168MM-40TRDIODE SCHOTTKY 40V 1A PMDU |
3,000 | 0.44 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 550 nA @ 40 V | 40 V | 1A | 150°C (Max) | 650 mV @ 1 A | |||
|

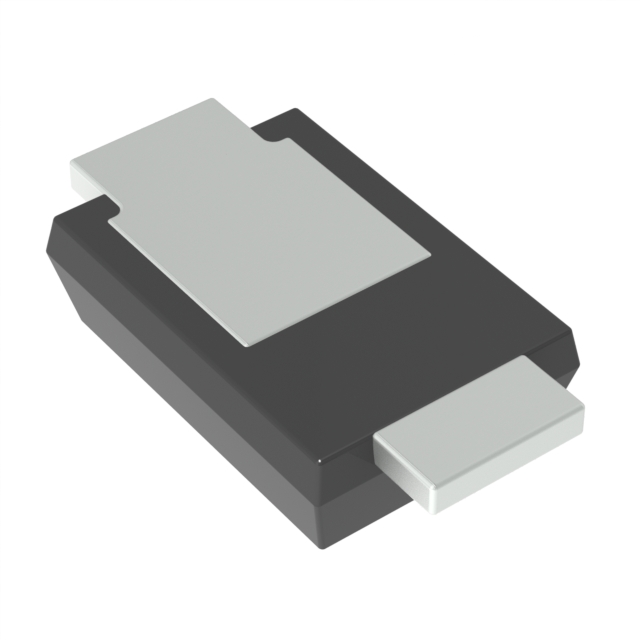

RB168VYM150FHTRSCHOTTKY BARRIER DIODE (AEC-Q101 |
14,716 | 0.53 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | 4.8 ns | 1 µA @ 150 V | 150 V | 1A | 150°C (Max) | 890 mV @ 1 A | ||
|
RFN2LAM4STFTRRFN2LAM4STF IS THE HIGH RELIABIL |
3,000 | 0.50 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 1 µA @ 400 V | 400 V | 1.5A | 150°C (Max) | 1.2 V @ 1.5 A | ||
|
RB510SM-40T2RRB510SM-40 IS LOW VF |
13,500 | 0.21 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 2 µA @ 40 V | 40 V | 100mA | 150°C (Max) | 480 mV @ 10 mA | |||
|
|
RB088LAM100TFTRAUTOMOTIVE SCHOTTKY BARRIER DIOD |
3,000 | 0.63 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 3 µA @ 100 V | 100 V | 5A | 150°C (Max) | - | ||
|
|
RB051MM-2YTRDIODE SCHOTTKY 20V 3A PMDU |
3,000 | 0.52 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 900 µA @ 20 V | 20 V | 3A | 125°C (Max) | 460 mV @ 3 A | |||
|
|
RB081LAM-20TRDIODE SCHOTTKY 20V 5A PMDTM |
3,000 | 0.43 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 700 µA @ 20 V | 20 V | 5A | 125°C (Max) | 450 mV @ 5 A | |||
|
|
RB080LAM-30TRDIODE SCHOTTKY 30V 5A PMDTM |
3,000 | 0.43 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 150 µA @ 30 V | 30 V | 5A | 150°C (Max) | 510 mV @ 5 A | |||
|
|
RB058LAM150TFTRAUTOMOTIVE SCHOTTKY BARRIER DIOD |
3,480 | 0.53 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 3 µA @ 150 V | 150 V | 3A | 150°C (Max) | - | ||
|
|
RB168MM-60TFTRRB168MM-60TF IS THE HIGH RELIABI |
3,000 | 0.44 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1.5 µA @ 60 V | 60 V | 1A | 150°C (Max) | 680 mV @ 1 A | ||
|

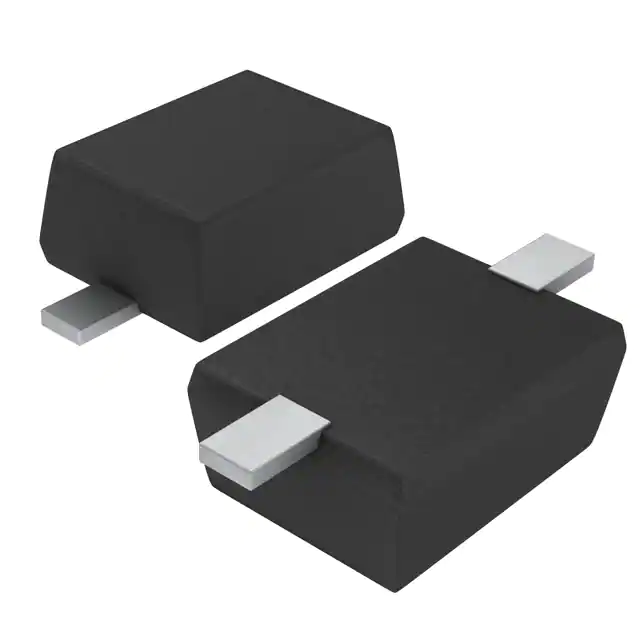

RB530VM-30TE-17DIODE SCHOTTKY 30V 100MA UMD2 |
55,043 | 0.30 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 nA @ 10 V | 30 V | 100mA | 150°C (Max) | 450 mV @ 10 mA | |||
|
|
RFN1LAM7STFTRAUTOMOTIVE FAST RECOVERY DIODE ( |
24,714 | 0.55 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 80 ns | 1 µA @ 700 V | 700 V | 800mA | 150°C (Max) | 1.5 V @ 800 mA | ||
|
|
RB050LAM-30TRRB050LAM-30 IS A SCHOTTKY BARRIE |
3,000 | 0.64 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 150 µA @ 30 V | 30 V | 3A | 150°C (Max) | 450 mV @ 3 A | |||
|

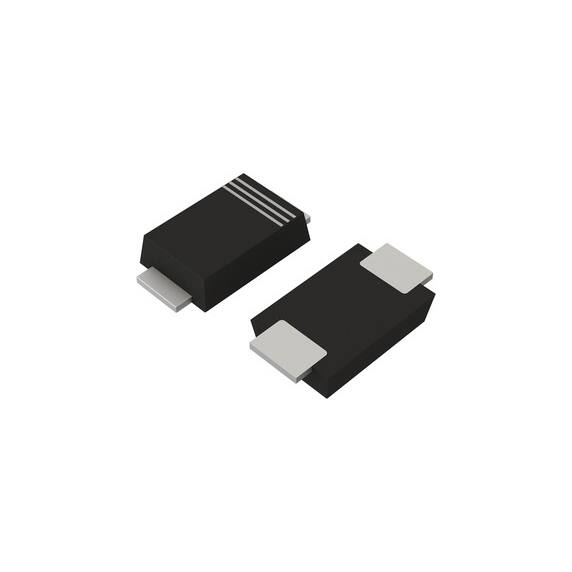

RB088LAM-60TRSUPER LOW IR, 60V, 5A, SOD-128, |
3,000 | 0.56 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 4 µA @ 60 V | 60 V | 5A | 150°C | 710 mV @ 5 A | |||
|
RB088LAM150TRSUPER LOW IR, 150V, 5A, SOD-128, |
2,976 | 0.58 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 3 µA @ 150 V | 150 V | 5A | 150°C | 900 mV @ 5 A | |||
|

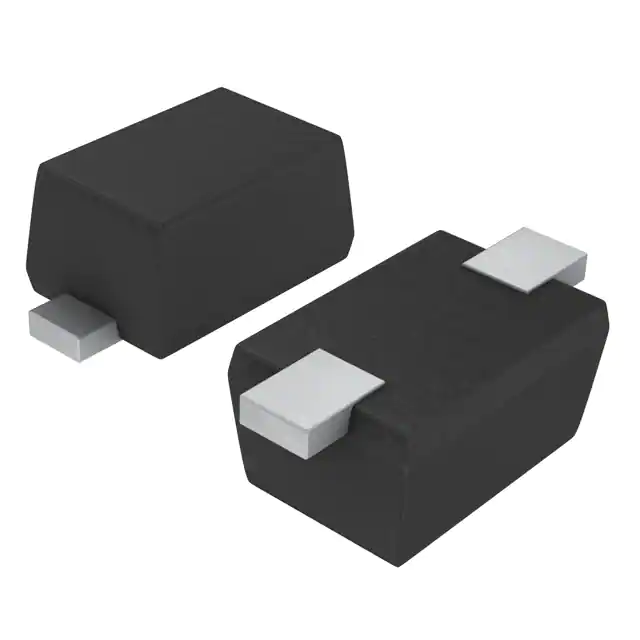

RB521SM-40T2RDIODE SCHOTTKY 40V 200MA EMD2 |
8,000 | 0.36 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 90 µA @ 40 V | 40 V | 200mA | 150°C (Max) | 540 mV @ 200 mA | |||
|
|
RSX501LAM20TRDIODE SCHOTTKY 20V 5A PMDTM |
3,000 | 0.47 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 20 V | 20 V | 5A | 150°C (Max) | 390 mV @ 3 A | |||
|
|
RFN1LAM6STFTRRFN1LAM6STF IS THE HIGH RELIABIL |
3,000 | 0.47 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 1 µA @ 600 V | 600 V | 800mA | 150°C (Max) | 1.45 V @ 800 mA |
