| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG15S-D20-HHB9STEP MOTOR PM GEARED BIPOLAR 15V |
296 | 36.72 |
FFQ |
Datasheet |
Bulk | PG | Active | Permanent Magnet Gear Motor | Bipolar | 15VDC | 100 mA | 2048 | 0.176° | - | 21.2 / 150 | Round - 0.591 Dia (15.00mm) | - | 0.118 (3.00mm) | 0.354 (9.00mm) | 0.787 (20.00mm) | Wire Leads | - | 10 Ohms |
|
PG20L-D20-HHC0STEP MOTOR PM GEARED BIPOLAR 10V |
344 | 36.89 |
FFQ |
Datasheet |
Bulk | PG | Active | Permanent Magnet Gear Motor | Bipolar | 10VDC | 350 mA | 1818 | 0.198° | - | - | Round - 0.787 Dia (20.00mm) | - | 0.157 (4.00mm) | 0.394 (10.00mm) | 0.984 (25.00mm) | Wire Leads | - | 10 Ohms |
|
PG25L-D24-HHC1STEP MOTOR PM GEARED BIPOLAR 24V |
3,019 | 36.96 |
FFQ |
Datasheet |
Bulk | PG | Active | Permanent Magnet Gear Motor | Bipolar | 24VDC | 250 mA | 727 | 0.495° | - | 63.7 / 450 | Round - 0.984 Dia (25.00mm) | - | 0.197 (5.00mm) | 0.394 (10.00mm) | 1.378 (35.00mm) | Wire Leads | - | 28 Ohms |
|
PG35S-D48-HHC2STEP MOTOR PM GEARED BIPOLAR 24V |
912 | 37.34 |
FFQ |
Datasheet |
Bulk | PG | Active | Permanent Magnet Gear Motor | Bipolar | 24VDC | 250 mA | 1698 | 0.212° | - | 99.1 / 700 | Round - 1.378 Dia (35.00mm) | - | 0.197 (5.00mm) | 0.709 (18.00mm) | 1.650 (42.00mm) | Wire Leads | - | 28 Ohms |
|
SMC10-F20-HHD9STEPPER MOTOR PM BIPOLAR 5V |
158 | 39.10 |
FFQ |
Datasheet |
Bulk | - | Active | Permanent Magnet | Bipolar | 5VDC | - | 20 | 18° | - | - | Round - 0.394 Dia (10.00mm) | - | 0.059 (1.50mm) | 0.197 (5.00mm) | 0.551 (14.00mm) | Through Hole | -10°C ~ 50°C | 21.5 Ohms |
|
PM35S-048-HHC6STEPPER MOTOR PM BIPOLAR 24V |
164 | 37.14 |
FFQ |
Datasheet |
Bulk | PM | Active | Permanent Magnet | Bipolar | 24VDC | 600 mA | 48 | 7.5° | - | 6.94 / 49 | Round - 1.378 Dia (35.00mm) | - | 0.118 (3.00mm) | 0.394 (10.00mm) | 1.650 (42.00mm) | Wire Leads | - | 5.5 Ohms |
|
PM35L-048-HHC7STEPPER MOTOR PM BIPOLAR 24V |
232 | 37.26 |
FFQ |
Datasheet |
Bulk | PM | Active | Permanent Magnet | Bipolar | 24VDC | 600 mA | 48 | 7.5° | - | 6.94 / 49 | Round - 1.378 Dia (35.00mm) | - | 0.118 (3.00mm) | 0.394 (10.00mm) | 1.650 (42.00mm) | Wire Leads | - | 5.5 Ohms |
|
17PM-K053-00VSSTEP MOTOR HYBRID UNIPOLAR 24V |
127 | 50.39 |
FFQ |
Datasheet |
Bulk | 17PM | Active | Hybrid | Unipolar | 24VDC | 850 mA | 200 | 1.8° | ±5% | 24.08 / 170 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.984 (25.00mm) | 1.220 (31.00mm) | Wire Leads | -10°C ~ 50°C | 4.2 Ohms |
|
23KM-K267-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
108 | 64.63 |
FFQ |
Datasheet |
Bulk | 23KM | Active | Hybrid | Unipolar | 24VDC | 900 mA | 200 | 1.8° | ±5% | 67.98 / 480 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 5.8 Ohms |
|
23KM-K748-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
2,654 | 83.55 |
FFQ |
Datasheet |
Bulk | 23KM | Active | Hybrid | Unipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 198.28 / 1400 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 2.3 Ohms |
|
34KM-K122-99WSTEP MOTOR HYBRID DUAL SHAFT 24V |
103 | 185.77 |
FFQ |
Datasheet |
Bulk | 34KM | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.9 A | 200 | 1.8° | ±5% | 679.82 / 4800 | Square - 3.347 x 3.347 (85.00mm x 85.00mm) | 34 | 0.551 (14.00mm) | 1.457 (37.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 3.9 Ohms |
|
PM25S-048-HHC4STEPPER MOTOR PM BIPOLAR 24V |
2,501 | 33.66 |
FFQ |
Datasheet |
Bulk | PM | Active | Permanent Magnet | Bipolar | 24VDC | 600 mA | 48 | 7.5° | - | 3.5 / 25 | Round - 0.984 Dia (25.00mm) | - | 0.079 (2.00mm) | 0.394 (10.00mm) | 1.260 (32.00mm) | Wire Leads | - | 16 Ohms |
|
SM8-F20-HHE0STEPPER MOTOR PM BIPOLAR 5V |
2,698 | 39.10 |
FFQ |
Datasheet |
Bulk | - | Active | Permanent Magnet | Bipolar | 5VDC | - | 20 | 18° | - | - | Round - 0.315 Dia (8.00mm) | - | 0.039 (1.00mm) | - | 0.433 (11.00mm) | Through Hole | -10°C ~ 50°C | 21 Ohms |
|
23KM-K049-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
3,354 | 71.95 |
FFQ |
Datasheet |
Bulk | 23KM | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 127.47 / 900 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 1.7 Ohms |
|

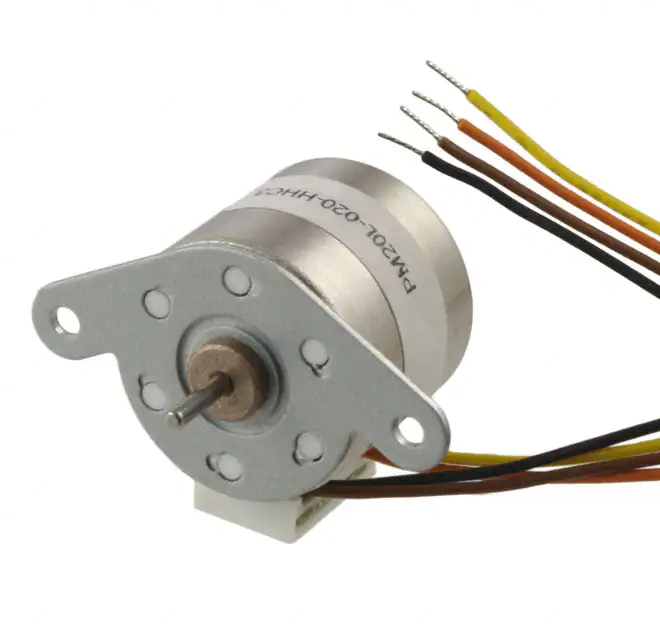

PM20L-020-HHC3STEPPER MOTOR PM BIPOLAR 24V |
3,855 | 33.65 |
FFQ |
Datasheet |
Bulk | PM | Active | Permanent Magnet | Bipolar | 24VDC | 400 mA | 20 | 18° | - | 2.1 / 15 | Round - 0.787 Dia (20.00mm) | - | 0.059 (1.50mm) | 0.315 (8.00mm) | 1.100 (28.00mm) | Wire Leads | - | 13 Ohms |
|

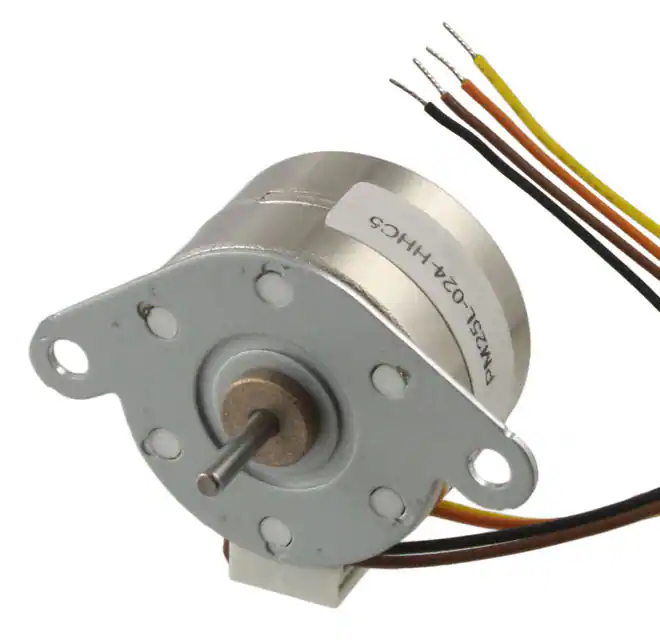

PM25L-024-HHC5STEPPER MOTOR PM BIPOLAR 24V |
3,010 | 33.70 |
FFQ |
Datasheet |
Bulk | PM | Active | Permanent Magnet | Bipolar | 24VDC | 600 mA | 24 | 15° | - | 3.7 / 26 | Round - 0.984 Dia (25.00mm) | - | 0.079 (2.00mm) | 0.394 (10.00mm) | 1.260 (32.00mm) | Wire Leads | - | 8 Ohms |
|

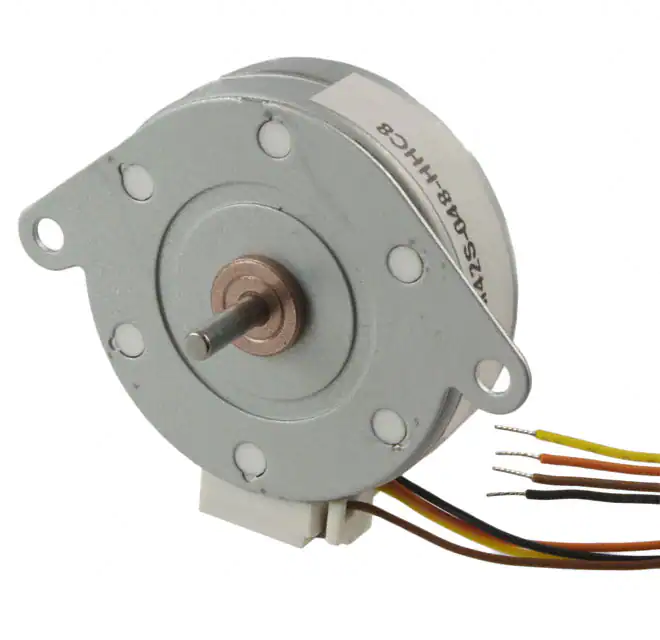

PM42S-048-HHC8STEPPER MOTOR PM BIPOLAR 24V |
2,721 | 37.30 |
FFQ |
Datasheet |
Bulk | PM | Active | Permanent Magnet | Bipolar | 24VDC | 600 mA | 48 | 7.5° | - | 9.3 / 66 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.472 (12.00mm) | 1.950 (49.48mm) | Wire Leads | - | 8 Ohms |
|
SMS6-F20-HHE2STEPPER MOTOR PM BIPOLAR 3V |
3,431 | 39.10 |
FFQ |
Datasheet |
Bulk | - | Active | Permanent Magnet | Bipolar | 3VDC | - | 20 | 18° | - | - | Round - 0.236 Dia (6.00mm) | - | 0.031 (0.80mm) | - | - | Through Hole | -10°C ~ 50°C | 20 Ohms |
|
PM55L-048-HHD0STEPPER MOTOR PM BIPOLAR 24V |
3,741 | 45.52 |
FFQ |
Datasheet |
Bulk | PM | Active | Permanent Magnet | Bipolar | 24VDC | 600 mA | 48 | 7.5° | - | 23.4 / 167 | Round - 2.160 Dia (55.00mm) | - | 0.157 (4.00mm) | 0.591 (15.00mm) | 2.560 (65.00mm) | Wire Leads | - | 5.5 Ohms |
|
17PM-K858-00VSSTEP MOTOR HYBRID UNIPOLAR 24V |
2,697 | 51.29 |
FFQ |
Datasheet |
Bulk | 17PM | Active | Hybrid | Unipolar | 24VDC | 750 mA | 200 | 1.8° | ±5% | 38.24 / 270 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.984 (25.00mm) | 1.220 (31.00mm) | Wire Leads | -10°C ~ 50°C | 7.4 Ohms |
