Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
SCF19XV-120-1R2A007JV CMC 0.6MH, 12A, 3.99MOHM KEMET	2,397	10.01	- + RFQ	Datasheet	Tray	SCF-XV	Active	Power Line	2	-	600 µH @ 100 kHz	12A	3.99mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.181 L x 0.744 W (30.00mm x 18.90mm)	1.122 (28.50mm)

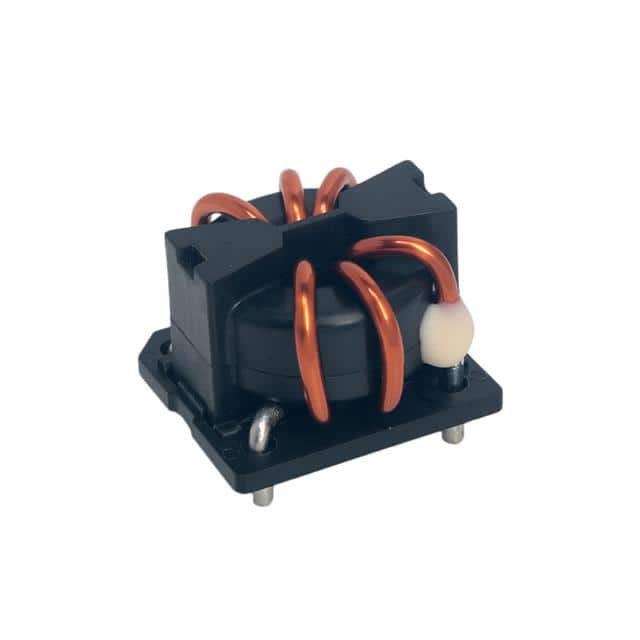

SCF19XV-100-1R1A009JH CMC 1MH, 10A, 6.23MOHM KEMET	2,033	10.01	- + RFQ	Datasheet	Tray	SCF-XV	Active	Power Line	2	-	1 mH @ 100 kHz	10A	6.23mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.181 L x 1.083 W (30.00mm x 27.50mm)	0.783 (19.90mm)
SCF19XV-300-1R9A003JH CMC 0.11MH, 30A, 0.767MOHM KEMET	2,200	10.01	- + RFQ	Datasheet	Tray	SCF-XV	Active	Power Line	2	-	110 µH @ 100 kHz	30A	0.767mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.181 L x 1.083 W (30.00mm x 27.50mm)	0.783 (19.90mm)
SCF19XV-220-1R6A004JH CMC 0.2MH, 22A, 1.43MOHM KEMET	2,635	10.01	- + RFQ	Datasheet	Tray	SCF-XV	Active	Power Line	2	-	200 µH @ 100 kHz	22A	1.43mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.181 L x 1.083 W (30.00mm x 27.50mm)	0.783 (19.90mm)
SCF19XV-150-1R3A006JH CMC 0.44MH, 15A, 3.01MOHM KEMET	2,898	10.01	- + RFQ	Datasheet	Tray	SCF-XV	Active	Power Line	2	-	440 µH @ 100 kHz	15A	3.01mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.181 L x 1.083 W (30.00mm x 27.50mm)	0.783 (19.90mm)
SCF19XV-190-1R5A005JH CMC 0.3MH, 19A, 1.95MOHM KEMET	3,892	10.01	- + RFQ	Datasheet	Tray	SCF-XV	Active	Power Line	2	-	300 µH @ 100 kHz	19A	1.95mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.181 L x 1.083 W (30.00mm x 27.50mm)	0.783 (19.90mm)
SCF19XV-120-1R2A007JH CMC 0.6MH, 12A, 4.19MOHM KEMET	2,763	10.01	- + RFQ	Datasheet	Tray	SCF-XV	Active	Power Line	2	-	600 µH @ 100 kHz	12A	4.19mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.181 L x 1.083 W (30.00mm x 27.50mm)	0.783 (19.90mm)
HHBC20-1R7A0097V CMC 97UH 12A 2LN TH KEMET	2,142	11.39	- + RFQ	Datasheet	Bulk	HHBC	Active	-	2	-	97 µH @ 100 kHz	12A	16mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	-	-

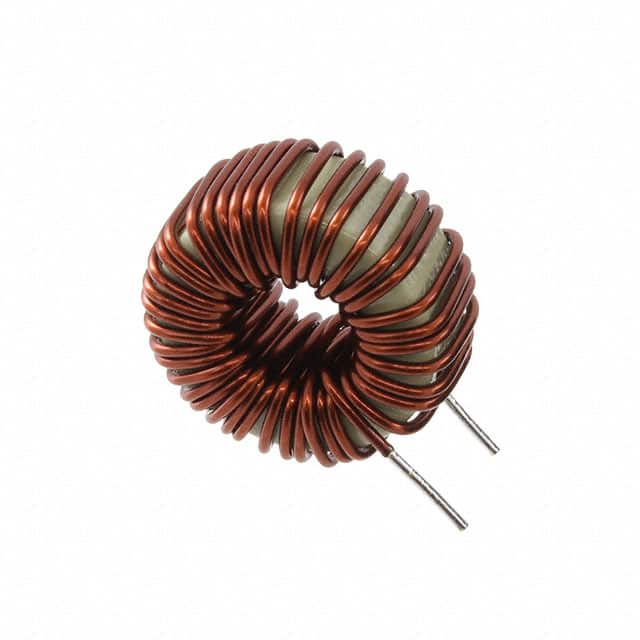

PHBC14-1R2A0120V CMC 120UH 8A 2LN TH KEMET	2,202	11.60	- + RFQ	Datasheet	Bulk	PHBC	Active	-	2	-	120 µH @ 100 kHz	8A	-	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.339 Dia (34.00mm)	1.339 (34.00mm)

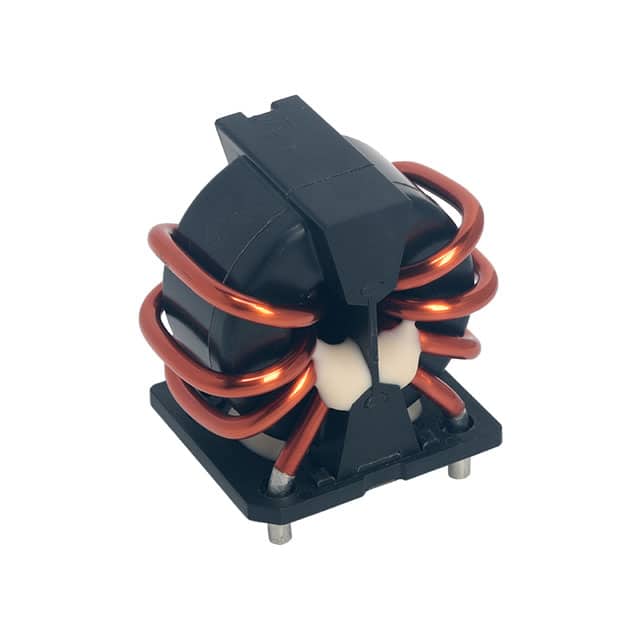

SCT25XV-150-1R6A010JV CMC 0.8MH, 15A, 4.62MOHM KEMET	2,331	12.12	- + RFQ	Datasheet	Tray	SCT-XV	Active	Power Line	2	-	800 µH @ 100 kHz	15A	4.62mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.516 L x 1.043 W (38.50mm x 26.50mm)	1.378 (35.00mm)
SCT25XV-190-1R8A008JV CMC 0.51MH, 19A, 2.98MOHM KEMET	2,583	12.12	- + RFQ	Datasheet	Tray	SCT-XV	Active	Power Line	2	-	510 µH @ 100 kHz	19A	2.98mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.516 L x 1.043 W (38.50mm x 26.50mm)	1.378 (35.00mm)
SCT25XV-310-2R3A004JV CMC 0.13MH, 31A, 0.95MOHM KEMET	3,922	12.12	- + RFQ	Datasheet	Tray	SCT-XV	Active	Power Line	2	-	130 µH @ 100 kHz	31A	0.95mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.516 L x 1.043 W (38.50mm x 26.50mm)	1.378 (35.00mm)
SCT25XV-130-1R5A012JV CMC 1.15MH, 13A, 6.33MOHM KEMET	3,863	12.12	- + RFQ	Datasheet	Tray	SCT-XV	Active	Power Line	2	-	1.15 mH @ 100 kHz	13A	6.33mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.516 L x 1.043 W (38.50mm x 26.50mm)	1.378 (35.00mm)
SCT25XV-170-1R7A009JV CMC 0.65MH, 17A, 3.71MOHM KEMET	3,545	12.12	- + RFQ	Datasheet	Tray	SCT-XV	Active	Power Line	2	-	650 µH @ 100 kHz	17A	3.71mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.516 L x 1.043 W (38.50mm x 26.50mm)	1.378 (35.00mm)
SCT25XV-240-2R0A006JV CMC 0.29MH, 24A, 1.84MOHM KEMET	2,138	12.12	- + RFQ	Datasheet	Tray	SCT-XV	Active	Power Line	2	-	290 µH @ 100 kHz	24A	1.84mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.516 L x 1.043 W (38.50mm x 26.50mm)	1.378 (35.00mm)
SCT25XV-070-1R1A022JV CMC 3.89MH, 7A, 20.83MOHM KEMET	2,054	12.12	- + RFQ	Datasheet	Tray	SCT-XV	Active	Power Line	2	-	3.89 mH @ 100 kHz	7A	20.83mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.516 L x 1.043 W (38.50mm x 26.50mm)	1.378 (35.00mm)
SCT25XV-220-1R9A007JV CMC 0.39MH, 22A, 2.35MOHM KEMET	3,856	12.12	- + RFQ	Datasheet	Tray	SCT-XV	Active	Power Line	2	-	390 µH @ 100 kHz	22A	2.35mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.516 L x 1.043 W (38.50mm x 26.50mm)	1.378 (35.00mm)
SCT25XV-280-2R1A005JV CMC 0.2MH, 28A, 1.39MOHM KEMET	3,118	12.12	- + RFQ	Datasheet	Tray	SCT-XV	Active	Power Line	2	-	200 µH @ 100 kHz	28A	1.39mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.516 L x 1.043 W (38.50mm x 26.50mm)	1.378 (35.00mm)
SCT25XV-050-1R0A027JV CMC 5.86MH, 5A, 30.59MOHM KEMET	3,392	12.12	- + RFQ	Datasheet	Tray	SCT-XV	Active	Power Line	2	-	5.86 mH @ 100 kHz	5A	30.59mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.516 L x 1.043 W (38.50mm x 26.50mm)	1.378 (35.00mm)
SCT25XV-110-1R4A013JV CMC 1.35MH, 11A, 7.72MOHM KEMET	3,800	12.12	- + RFQ	Datasheet	Tray	SCT-XV	Active	Power Line	2	-	1.35 mH @ 100 kHz	11A	7.72mOhm	1000V (1kV)	1000V (1kV)	-40°C ~ 150°C	AEC-Q200	-	-	Through Hole	1.516 L x 1.043 W (38.50mm x 26.50mm)	1.378 (35.00mm)
