Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

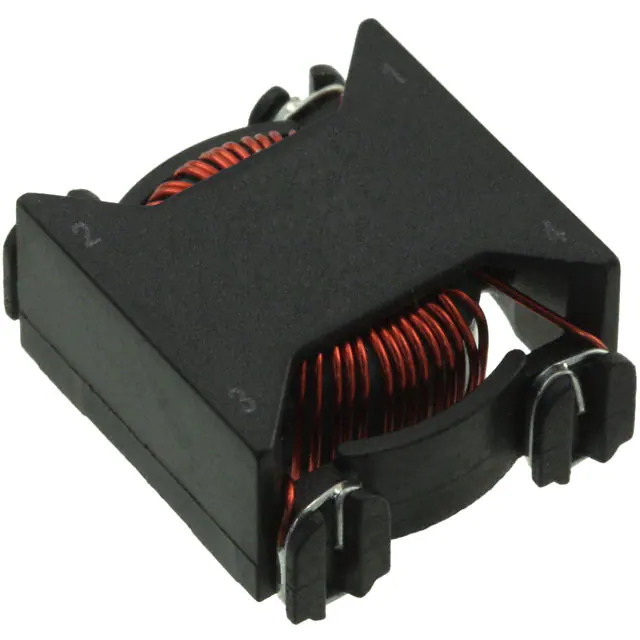

PE-53912NLT CMC 2.5A 2LN SMD Pulse Electronics Power	200	2.13	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Power Line	2	-	-	2.5A	80mOhm	-	250V	-40°C ~ 130°C	-	-	-	Surface Mount	0.770 L x 0.670 W (19.56mm x 17.02mm)	0.390 (9.90mm)

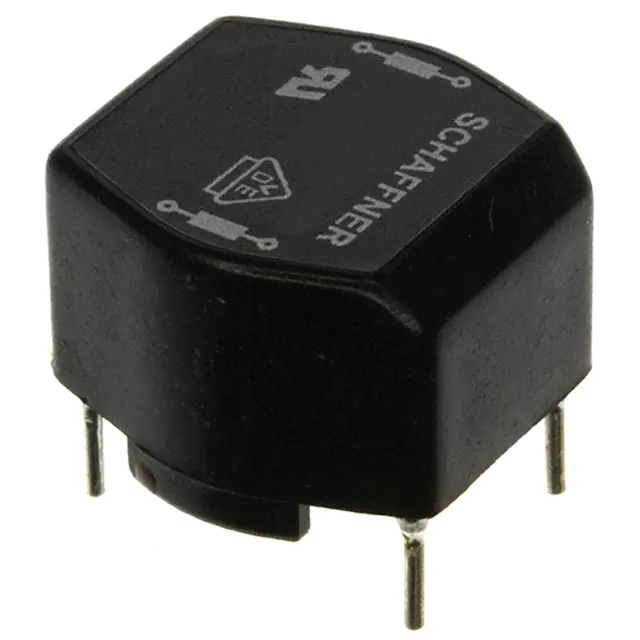

RN112-1.2-02-6M8 CMC 6.8MH 1.2A 2LN TH Schaffner EMC Inc.	3,333	2.14	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	6.8 mH @ 10 kHz	1.2A	250mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)

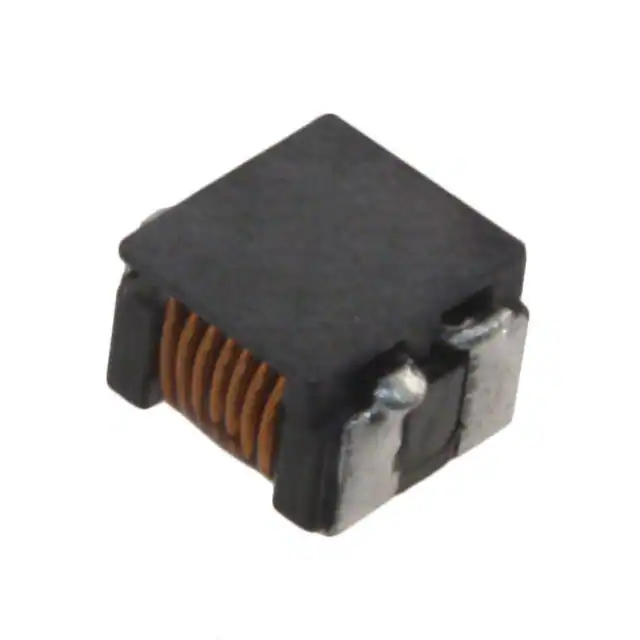

CPFC6D36NP-100M06 CMC 2.5A 2LN 600 OHM SMD Sumida America Components Inc.	3,535	4.28	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CPFC	Active	Power Line	2	600 Ohms @ 100 MHz	-	2.5A	20mOhm	-	-	-20°C ~ 100°C	-	-	-	Surface Mount	0.244 L x 0.209 W (6.20mm x 5.30mm)	0.150 (3.80mm)

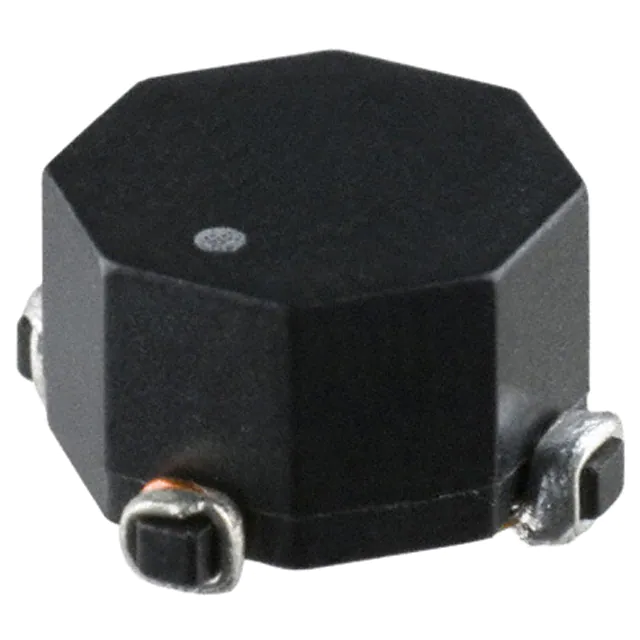

CMS2-1-R CMC 25UH 5.35A 2LN SMD Eaton - Electronics Division	949	4.19	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	25 µH @ 100 kHz	5.35A	5mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.350 L x 0.350 W (8.90mm x 8.90mm)	0.236 (6.00mm)

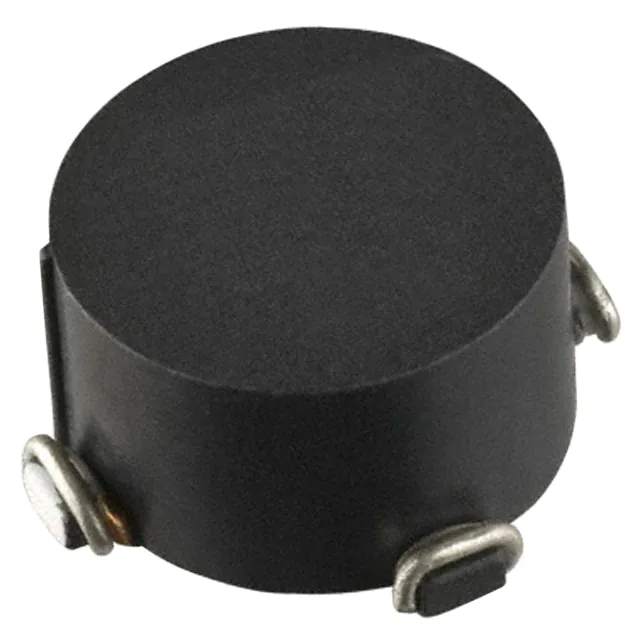

PM3700-30-RC CMC 750UH 5.5A 2LN SMD Bourns Inc.	3,677	3.36	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PM3700	Active	-	2	-	750 µH @ 1 kHz	5.5A	12mOhm	-	-	-55°C ~ 125°C	-	-	-	Surface Mount	0.850 L x 0.850 W (21.60mm x 21.60mm)	0.450 (11.43mm)
PM3700-20-RC CMC 500UH 6A 2LN SMD Bourns Inc.	3,779	3.36	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PM3700	Active	-	2	-	500 µH @ 1 kHz	6A	10mOhm	-	-	-55°C ~ 125°C	-	-	-	Surface Mount	0.850 L x 0.850 W (21.60mm x 21.60mm)	0.450 (11.43mm)
PE-53913NLT CMC 1A 2LN SMD Pulse Electronics Power	3,863	3.37	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	-	-	1A	450mOhm	-	250V	-40°C ~ 130°C	-	-	-	Surface Mount	0.645 L x 0.560 W (16.38mm x 14.22mm)	0.350 (8.89mm)
RN112-0.4-02-39M CMC 39MH 400MA 2LN TH Schaffner EMC Inc.	3,980	2.19	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	39 mH @ 10 kHz	400mA	1.5Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)

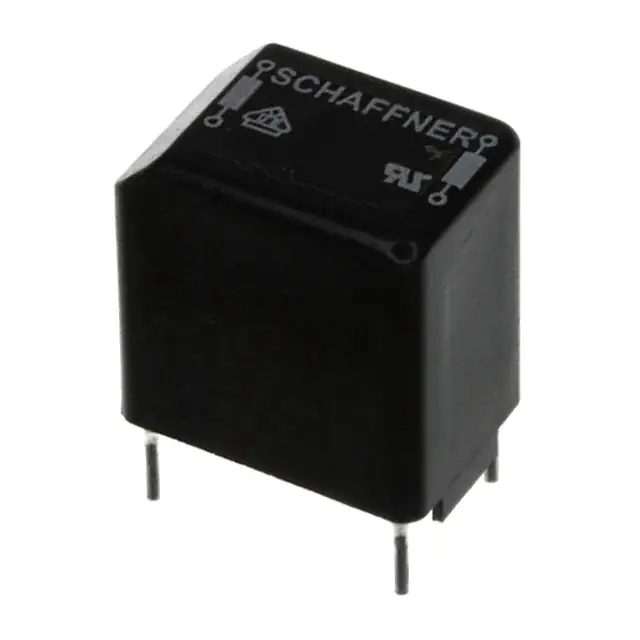

RN212-4-02-0M7 CMC 700UH 4A 2LN TH Schaffner EMC Inc.	2,308	2.19	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	700 µH @ 10 kHz	4A	24mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)
RN112-4-02-0M7 CMC 700UH 4A 2LN TH Schaffner EMC Inc.	3,603	2.19	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	700 µH @ 10 kHz	4A	24mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)

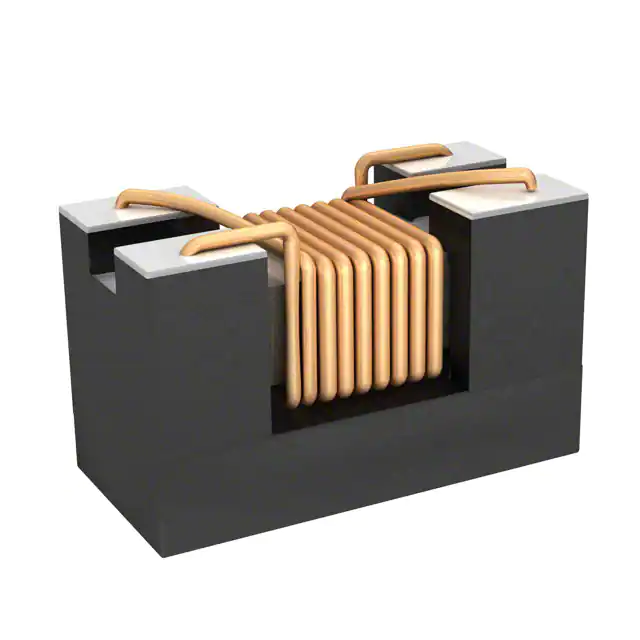

744232161 CMC 340MA 2LN 160 OHM SMD Würth Elektronik	3,089	1.31	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-CNSW	Active	Signal Line	2	160 Ohms @ 100 MHz	-	340mA	400mOhm	50V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.083 (2.10mm)

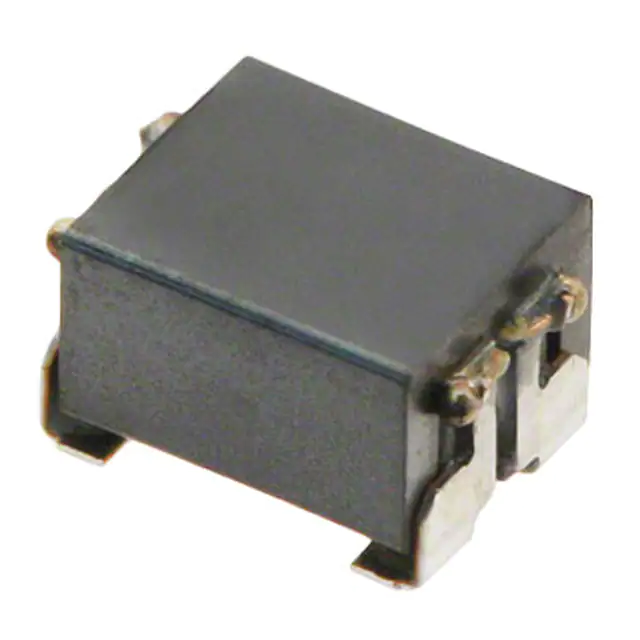

B82789C0223N002 CMC 22UH 250MA 2LN SMD AEC-Q200 EPCOS - TDK Electronics	2,639	1.93	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82789	Active	Signal Line	2	-	22 µH @ 100 kHz	250mA	580mOhm	80V	42V	-55°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.205 L x 0.126 W (5.20mm x 3.20mm)	0.118 (3.00mm)

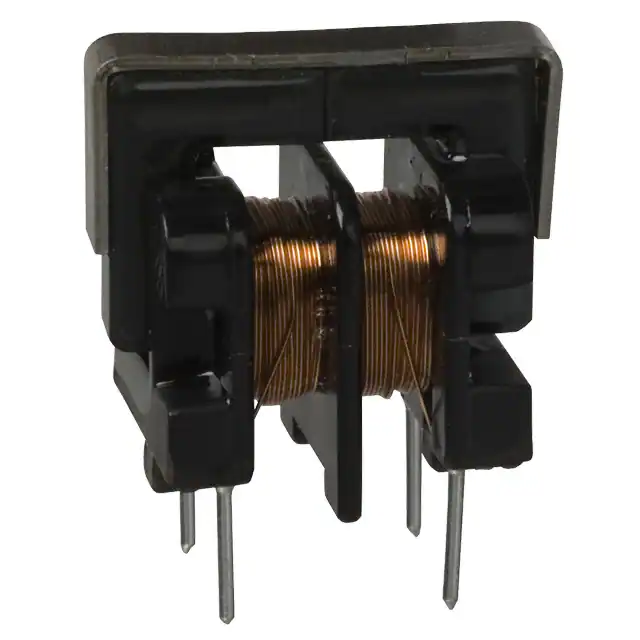

UU9LFNP-B103 CMC 10MH 200MA 2LN TH Sumida America Components Inc.	3,926	0.92	- + RFQ	Datasheet	Bulk	UU	Active	Power Line	2	-	10 mH @ 1 kHz	200mA	4Ohm	-	-	-	-	-	-	Through Hole	0.650 L x 0.433 W (16.50mm x 11.00mm)	0.650 (16.50mm)

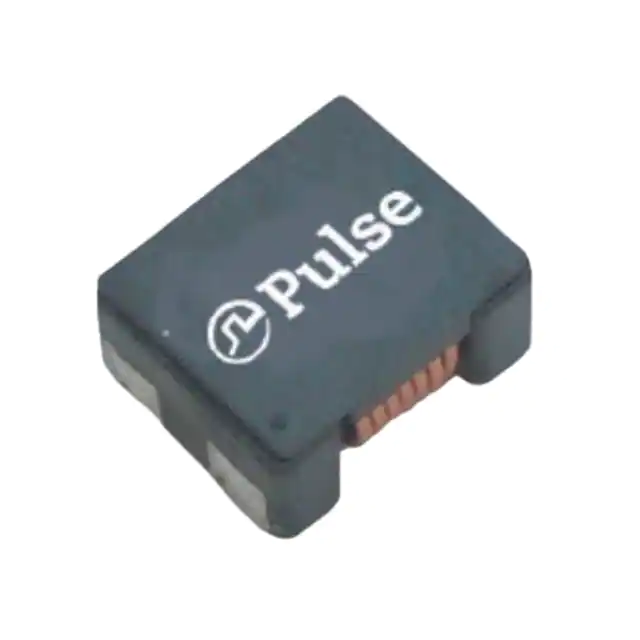

PA4339.102NLT CMC 8UH 3A 2LN 1.02KOHM SMD Pulse Electronics Power	3,713	2.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PA4339	Active	-	2	1.02 kOhms @ 100 MHz	8 µH @ 100 kHz	3A	17mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.276 L x 0.236 W (7.00mm x 6.00mm)	0.150 (3.80mm)

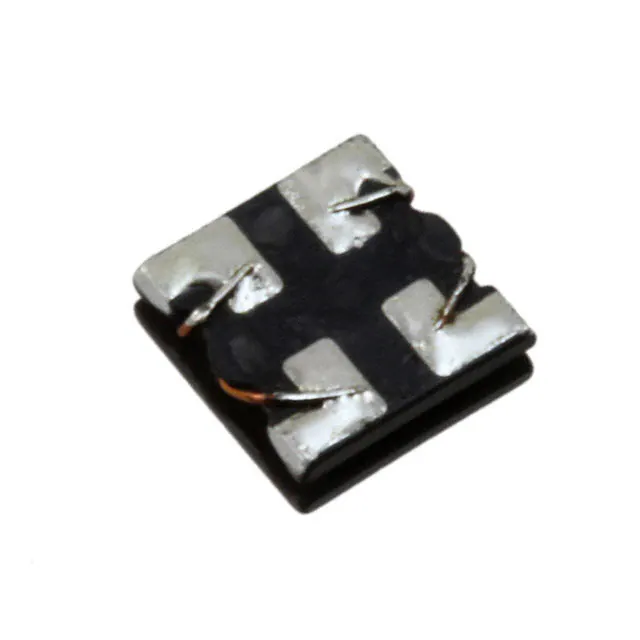

DLW44SN172SK2L CMC 1.5A 2LN 1.7KOHM SMD Murata Electronics	2,788	2.02	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DLW44	Not For New Designs	Power Line	2	1.7 kOhms @ 100 MHz	-	1.5A	84mOhm	60V	-	-40°C ~ 105°C	-	-	-	Surface Mount	0.157 Dia x 0.157 W (4.00mm x 4.00mm)	0.059 (1.50mm)
T8112NLT CMC 1MH 700MA 2LN 900 OHM SMD Pulse Electronics Network	2,802	3.26	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Signal Line	2	900 Ohms @ 100 MHz	1 mH @ 100 kHz	700mA	300mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.350 L x 0.248 W (8.90mm x 6.30mm)	0.161 (4.10mm)

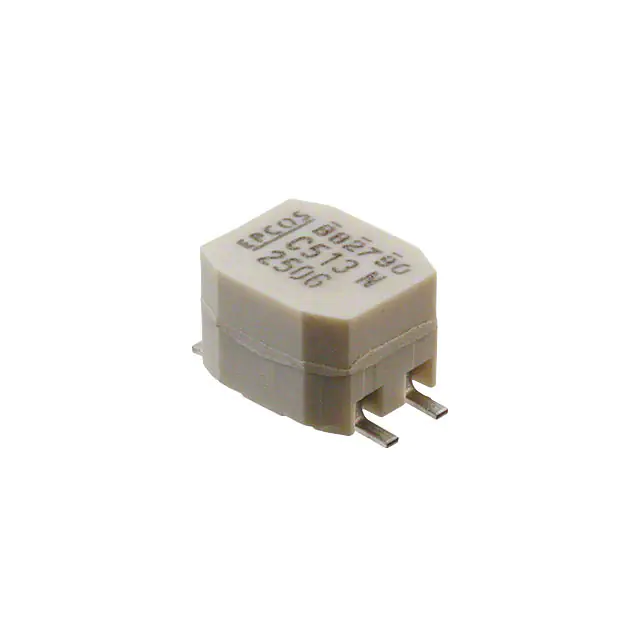

B82790C0513N201 CMC 51UH 500MA 2LN SMD AEC-Q200 EPCOS - TDK Electronics	3,644	3.27	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82790	Not For New Designs	Signal Line	2	-	51 µH @ 100 kHz	500mA	140mOhm (Typ)	80V	42V	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.280 L x 0.236 W (7.10mm x 6.00mm)	0.205 (5.20mm)

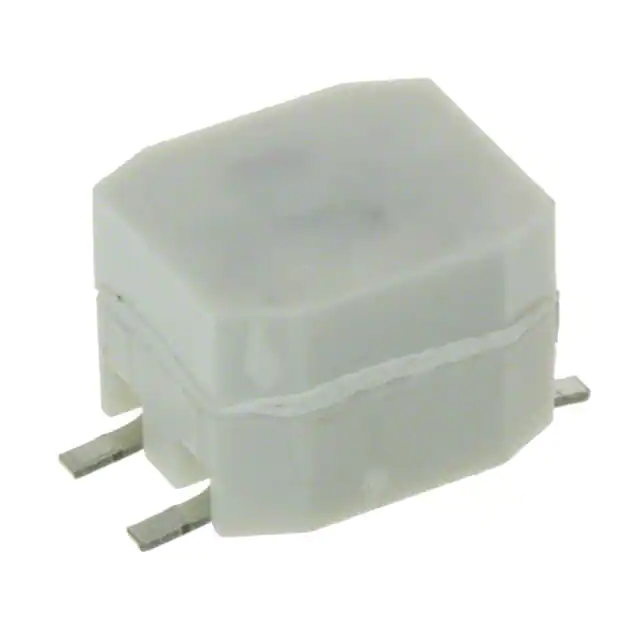

B82790S0253N201 CMC 25UH 500MA 2LN SMD AEC-Q200 EPCOS - TDK Electronics	3,814	3.27	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82790	Not For New Designs	Signal Line	2	-	25 µH @ 100 kHz	500mA	110mOhm (Typ)	80V	42V	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.280 L x 0.236 W (7.10mm x 6.00mm)	0.205 (5.20mm)

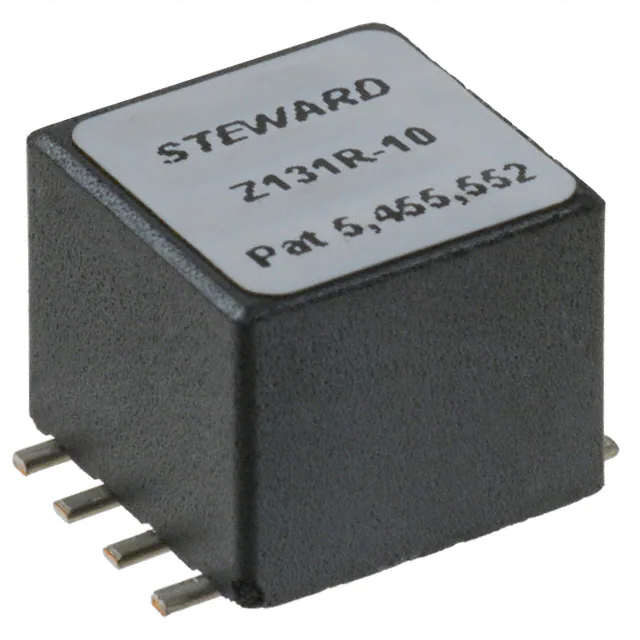

CM4545Z131R-10 CMC 10A 4LN 130 OHM SMD Laird-Signal Integrity Products	2,137	3.02	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM	Active	Power Line	4	130 Ohms @ 100 MHz	-	10A	10mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.555 L x 0.448 W (14.10mm x 11.38mm)	0.400 (10.16mm)

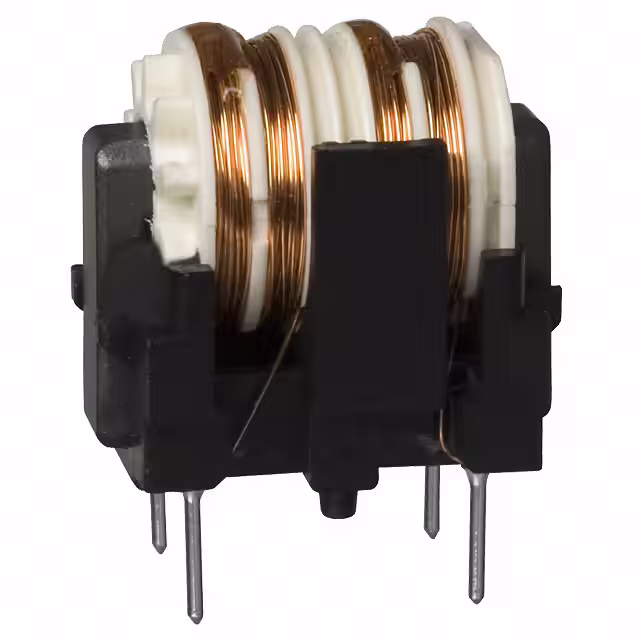

LF2020NP-222 CMC 2.2MH 1.3A 2LN TH Sumida America Components Inc.	3,242	1.77	- + RFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	2.2 mH @ 1 kHz	1.3A	240mOhm	-	-	-	-	-	-	Through Hole	0.827 L x 0.638 W (21.00mm x 16.20mm)	0.886 (22.50mm)
