| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

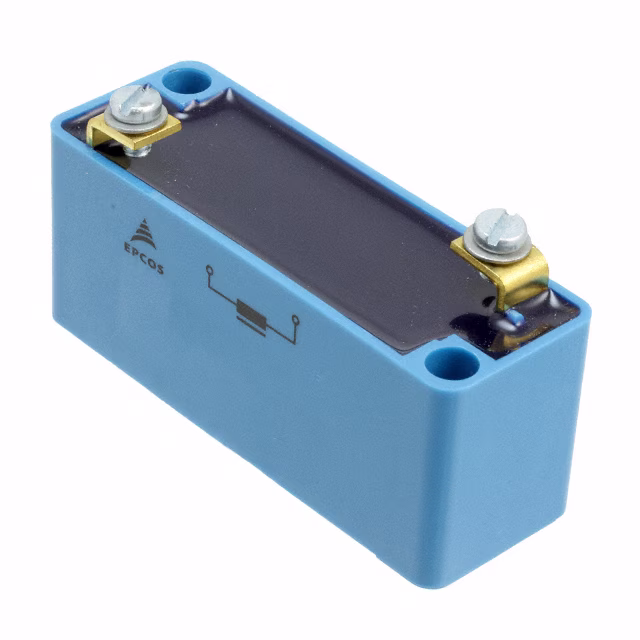

B82504WA16CMC 120UH 16A 2LN CHAS MNT |
2,758 | 0.00 |
RFQ |
Datasheet |
Tray | B82504 | Obsolete | Power Line | 2 | - | 120 µH @ 100 kHz | 16A | 19mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 3.071 L x 1.102 W (78.00mm x 28.00mm) | 1.457 (37.00mm) |
|
B82504WA2CMC 7.5MH 2A 2LN CHAS MNT |
2,220 | 0.00 |
RFQ |
Datasheet |
Tray | B82504 | Obsolete | Power Line | 2 | - | 7.5 mH @ 10 kHz | 2A | 1.3Ohm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 3.071 L x 1.102 W (78.00mm x 28.00mm) | 1.457 (37.00mm) |
|
|
B82504WA3CMC 2MH 4A 2LN CHAS MNT |
2,828 | 0.00 |
RFQ |
Datasheet |
Tray | B82504 | Obsolete | Power Line | 2 | - | 2 mH @ 10 kHz | 4A | 330mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 3.071 L x 1.102 W (78.00mm x 28.00mm) | 1.457 (37.00mm) |
|
|
B82504WA4CMC 600UH 6A 2LN CHAS MNT |
3,480 | 0.00 |
RFQ |
Datasheet |
Tray | B82504 | Obsolete | Power Line | 2 | - | 600 µH @ 100 kHz | 6A | 150mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 3.071 L x 1.102 W (78.00mm x 28.00mm) | 1.457 (37.00mm) |
|
|
B82504WA5CMC 200UH 10A 2LN CHAS MNT |
2,913 | 0.00 |
RFQ |
Datasheet |
Tray | B82504 | Obsolete | Power Line | 2 | - | 200 µH @ 100 kHz | 10A | 54mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 3.071 L x 1.102 W (78.00mm x 28.00mm) | 1.457 (37.00mm) |
|
|
B82504WA7CMC 65UH 25A 2LN CHAS MNT |
2,127 | 0.00 |
RFQ |
Datasheet |
Tray | B82504 | Obsolete | Power Line | 2 | - | 65 µH @ 100 kHz | 25A | 9mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 3.071 L x 1.102 W (78.00mm x 28.00mm) | 1.457 (37.00mm) |
|
|
B82505WA15CMC 290UH 16A 2LN CHAS MNT |
3,897 | 0.00 |
RFQ |
Datasheet |
Tray | B82505 | Obsolete | Power Line | 2 | - | 290 µH @ 100 kHz | 16A | 25mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 4.370 L x 0.945 W (111.00mm x 24.00mm) | 2.067 (52.50mm) |
|
|
B82505WA2CMC 5.6MH 4A 2LN CHAS MNT |
3,105 | 0.00 |
RFQ |
Datasheet |
Tray | B82505 | Obsolete | Power Line | 2 | - | 5.6 mH @ 10 kHz | 4A | 480mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 4.370 L x 0.945 W (111.00mm x 24.00mm) | 2.067 (52.50mm) |
|
|
B82505WA3CMC 2.2MH 6A 2LN CHAS MNT |
3,831 | 0.00 |
RFQ |
Datasheet |
Tray | B82505 | Obsolete | Power Line | 2 | - | 2.2 mH @ 10 kHz | 6A | 220mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 4.370 L x 0.945 W (111.00mm x 24.00mm) | 2.067 (52.50mm) |
|
|
B82505WA6CMC 150UH 25A 2LN CHAS MNT |
3,843 | 0.00 |
RFQ |
Datasheet |
Tray | B82505 | Obsolete | Power Line | 2 | - | 150 µH @ 100 kHz | 25A | 15mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 4.370 L x 0.945 W (111.00mm x 24.00mm) | 2.067 (52.50mm) |
|
|
B82505WA7CMC 56UH 40A 2LN CHAS MNT |
3,720 | 0.00 |
RFQ |
Datasheet |
Tray | B82505 | Obsolete | Power Line | 2 | - | 56 µH @ 100 kHz | 40A | 6mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 4.370 L x 0.945 W (111.00mm x 24.00mm) | 2.067 (52.50mm) |
|
|
B82505WA8CMC 1.2MH 8A 2LN CHAS MNT |
3,074 | 0.00 |
RFQ |
Datasheet |
Tray | B82505 | Obsolete | Power Line | 2 | - | 1.2 mH @ 10 kHz | 8A | 75mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 4.370 L x 0.945 W (111.00mm x 24.00mm) | 2.067 (52.50mm) |
|
|
B82506WA3CMC 5MH 6A 2LN CHAS MNT |
2,206 | 0.00 |
RFQ |
Datasheet |
Tray | B82506 | Obsolete | Power Line | 2 | - | 5 mH @ 10 kHz | 6A | 350mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 5.610 L x 1.260 W (142.50mm x 32.00mm) | 2.402 (61.00mm) |
|
|
B82506WA4CMC 2.5MH 10A 2LN CHAS MNT |
3,810 | 0.00 |
RFQ |
Datasheet |
Tray | B82506 | Obsolete | Power Line | 2 | - | 2.5 mH @ 10 kHz | 10A | 125mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 5.610 L x 1.260 W (142.50mm x 32.00mm) | 2.402 (61.00mm) |
|
|
B82506WA5CMC 1.5MH 16A 2LN CHAS MNT |
2,433 | 0.00 |
RFQ |
Datasheet |
Tray | B82506 | Obsolete | Power Line | 2 | - | 1.5 mH @ 10 kHz | 16A | 50mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 5.610 L x 1.260 W (142.50mm x 32.00mm) | 2.402 (61.00mm) |
|
|
B82506WA6CMC 500UH 25A 2LN CHAS MNT |
2,736 | 0.00 |
RFQ |
Datasheet |
Tray | B82506 | Obsolete | Power Line | 2 | - | 500 µH @ 100 kHz | 25A | 20mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 5.610 L x 1.260 W (142.50mm x 32.00mm) | 2.402 (61.00mm) |
|
|
B82506WA7CMC 200UH 40A 2LN CHAS MNT |
2,380 | 0.00 |
RFQ |
Datasheet |
Tray | B82506 | Obsolete | Power Line | 2 | - | 200 µH @ 100 kHz | 40A | 8mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 5.610 L x 1.260 W (142.50mm x 32.00mm) | 2.402 (61.00mm) |
|
|
B82506WA8CMC 80UH 60A 2LN CHAS MNT |
3,693 | 0.00 |
RFQ |
Datasheet |
Tray | B82506 | Obsolete | Power Line | 2 | - | 80 µH @ 100 kHz | 60A | 3.5mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 5.610 L x 1.260 W (142.50mm x 32.00mm) | 2.402 (61.00mm) |
|
|
B82506WA9CMC 15UH 95A 2LN CHAS MNT |
3,323 | 0.00 |
RFQ |
Datasheet |
Tray | B82506 | Obsolete | Power Line | 2 | - | 15 µH @ 100 kHz | 95A | 1.5mOhm (Typ) | 600V | 500V | - | - | - | - | Chassis Mount | 5.610 L x 1.260 W (142.50mm x 32.00mm) | 2.402 (61.00mm) |
|
|
B82522VC10CMC 330UH 2A 2LN TH |
3,535 | 0.00 |
RFQ |
Datasheet |
Tray | B82522 | Obsolete | Power Line | 2 | - | 330 µH @ 100 kHz | 2A | 300mOhm (Typ) | 600V | 500V | - | - | - | - | Through Hole | 1.969 L x 0.886 W (50.00mm x 22.50mm) | 0.512 (13.00mm) |
