Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
744272472 CMC 4.7MH 350MA 2LN 13KOHM SMD Würth Elektronik	2,927	3.35	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SL5	Active	Signal Line	2	13 kOhms @ 1 MHz	4.7 mH @ 100 kHz	350mA	720mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.394 L x 0.343 W (10.00mm x 8.70mm)	0.256 (6.50mm)
SN8D-400 CMC 80UH 2A 2LN TH KEMET	159	3.41	- + RFQ	Datasheet	Bulk	SN	Active	Power Line	2	-	80 µH @ 100 kHz	2A	72mOhm	-	-	-25°C ~ 105°C	-	-	-	Through Hole	0.630 Dia x 0.433 W (16.00mm x 11.00mm)	0.689 (17.50mm)
M-522CT CMC 200UH 1A 2LN 200 OHM SMD KEMET	2,978	3.46	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	M-500CT	Active	Signal Line	2	200 Ohms @ 20 MHz	200 µH @ 20 MHz	1A	-	50V	-	-25°C ~ 85°C	-	-	-	Surface Mount	0.197 L x 0.217 W (5.00mm x 5.50mm)	0.165 (4.20mm)
PAC6006.364NLT CMC 10A 2LN 1.6KOHM SMD Pulse Electronics Power	2,105	3.53	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	1.6 kOhms @ 5.5 MHz	-	10A	8mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.610 L x 0.531 W (15.50mm x 13.50mm)	0.531 (13.50mm)
ELF-21V008A CMC 800MA 2LN TH Panasonic Electronic Components	111	3.61	- + RFQ	Datasheet	Bulk	V	Obsolete	-	2	-	-	800mA	707mOhm (Typ)	-	-	-	-	-	-	Through Hole	1.142 L x 0.827 W (29.00mm x 21.00mm)	1.398 (35.50mm)

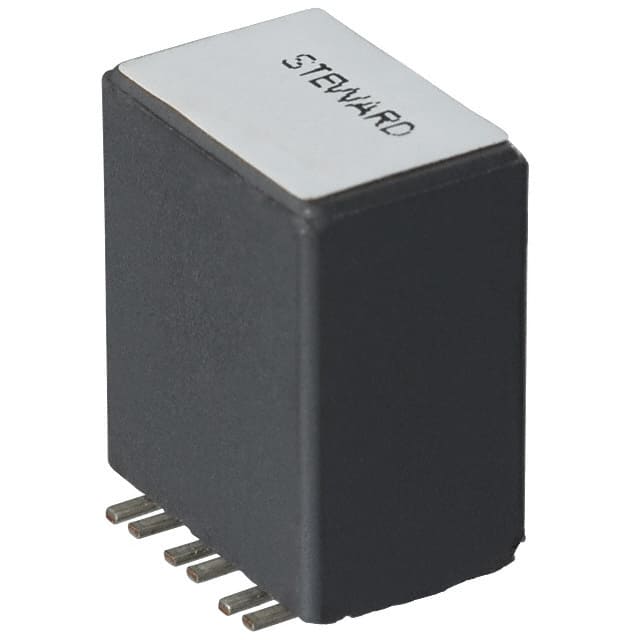

CM4732V301R-10 CMC 8A 6LN 300 OHM SMD Laird-Signal Integrity Products	341	5.81	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM4732	Active	Power Line	6	300 Ohms @ 100 MHz	-	8A	10mOhm	30V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.470 L x 0.320 W (11.94mm x 8.00mm)	0.570 (14.48mm)
744202 CMC 1MH 350MA 4LN SMD Würth Elektronik	579	3.68	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SL	Active	Signal Line	4	-	1 mH @ 100 kHz	350mA	-	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	-	0.238 (6.05mm)
744284102 CMC 1MH 300MA 2LN 160KOHM SMD Würth Elektronik	3,594	3.75	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SCC	Active	Power, Signal Line	2	160 kOhms @ 1 MHz	1 mH @ 100 kHz	300mA	2.5Ohm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.492 L x 0.492 W (12.50mm x 12.50mm)	0.413 (10.50mm)
M-524CT CMC 700UH 500MA 2LN 700 OHM SMD KEMET	857	3.78	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	M-500CT	Active	Signal Line	2	700 Ohms @ 10 MHz	700 µH @ 10 MHz	500mA	-	50V	-	-25°C ~ 85°C	-	-	-	Surface Mount	0.197 L x 0.217 W (5.00mm x 5.50mm)	0.165 (4.20mm)
SN5-300JB CMC 25UH 1A 2LN TH KEMET	185	3.78	- + RFQ	Datasheet	Bulk	SN	Active	Power Line	2	-	25 µH @ 100 kHz	1A	80mOhm	-	-	-25°C ~ 105°C	-	-	-	Through Hole	-	0.736 (18.70mm)

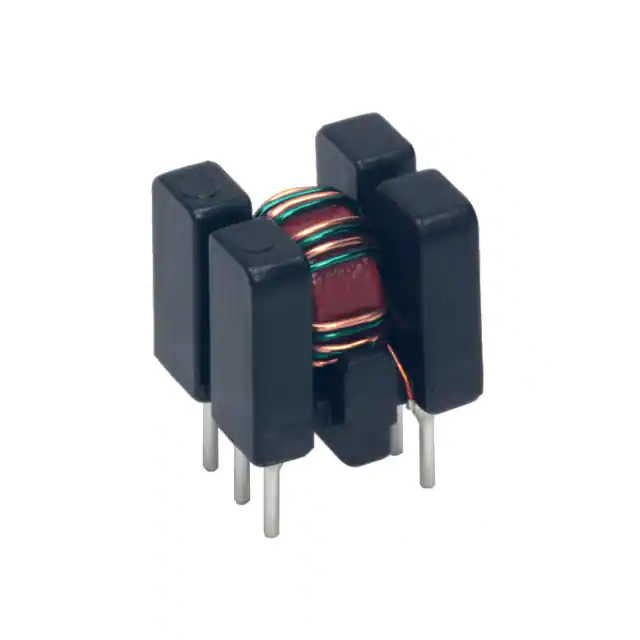

SH-132 CMC 2.4A 2LN TH KEMET	138	3.78	- + RFQ	Datasheet	Bulk	SH	Active	Power Line	2	-	-	2.4A	51mOhm	50V	-	-25°C ~ 60°C	-	-	-	Through Hole	0.394 L x 0.354 W (10.00mm x 9.00mm)	0.413 (10.50mm)
CC2824D225R-10 CMC 2.2MH 500MA 2LN 5.3KOHM SMD Laird-Signal Integrity Products	3,656	6.78	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CC	Active	Signal Line	2	5.3 kOhms @ 5 MHz	2.2 mH @ 10 kHz	500mA	520mOhm	80V	42V	-40°C ~ 125°C	-	-	-	Surface Mount	0.354 L x 0.217 W (9.00mm x 5.50mm)	0.193 (4.90mm)
CC2824E105R-10 CMC 1MH 700MA 2LN 4.25KOHM SMD Laird-Signal Integrity Products	3,495	5.67	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CC	Active	Signal Line	2	4.25 kOhms @ 7 MHz	1 mH @ 100 kHz	700mA	260mOhm	80V	42V	-40°C ~ 125°C	-	-	-	Surface Mount	0.354 L x 0.217 W (9.00mm x 5.50mm)	0.193 (4.90mm)

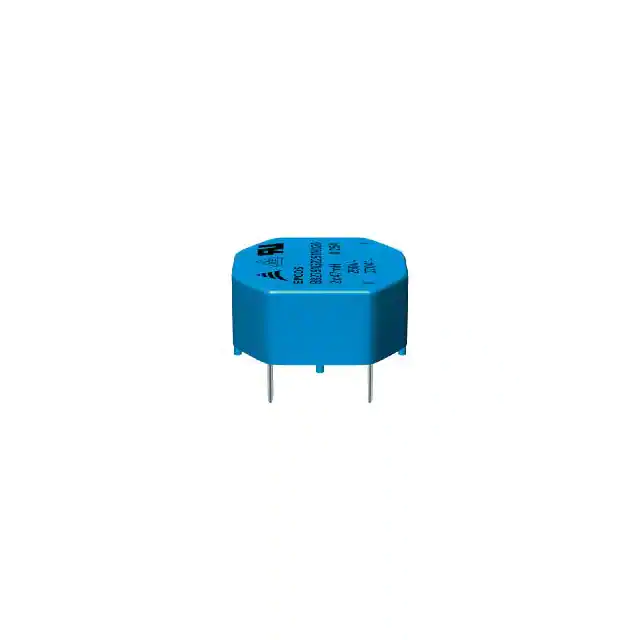

B82791G2701N001 CMC 4.7MH 700MA 2LN TH EPCOS - TDK Electronics	612	3.80	- + RFQ	Datasheet	Bulk	B82791	Active	Power Line	2	-	4.7 mH @ 10 kHz	700mA	440mOhm (Typ)	80V	42V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.689 L x 0.689 W (17.50mm x 17.50mm)	0.315 (8.00mm)
SN10-300J CMC 40UH 3A 2LN TH KEMET	196	3.83	- + RFQ	Datasheet	Bulk	SN	Active	Power Line	2	-	40 µH @ 100 kHz	3A	41mOhm	-	-	-25°C ~ 105°C	-	-	-	Through Hole	-	1.024 (26.00mm)

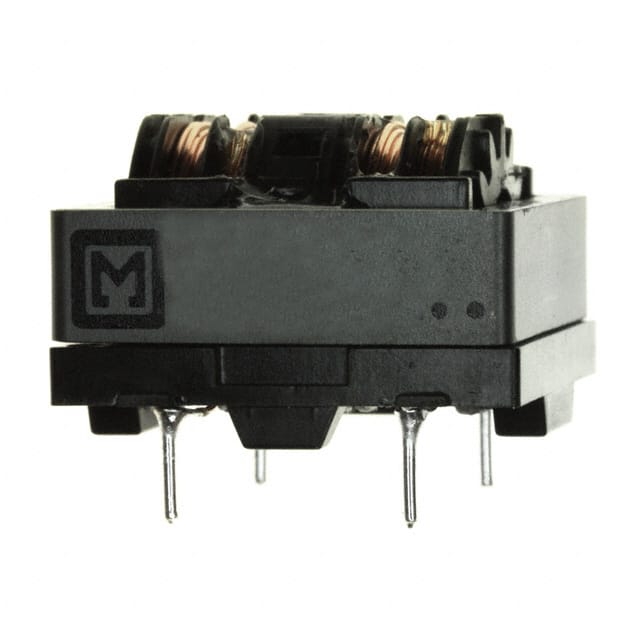

ELF-25C012F CMC 1.2A 2LN TH Panasonic Electronic Components	2,507	3.84	- + RFQ	Datasheet	Bulk	C	Obsolete	Power Line	2	-	-	1.2A	310mOhm (Typ)	-	250V	-20°C ~ 115°C	-	-	-	Through Hole	0.984 L x 0.984 W (25.00mm x 25.00mm)	0.689 (17.50mm)
TX8111NLT CMC 51UH 2LN SMD Pulse Electronics Network	2,052	3.89	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	-	51 µH @ 100 kHz	-	200mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.248 L x 0.260 W (6.30mm x 6.60mm)	0.161 (4.10mm)

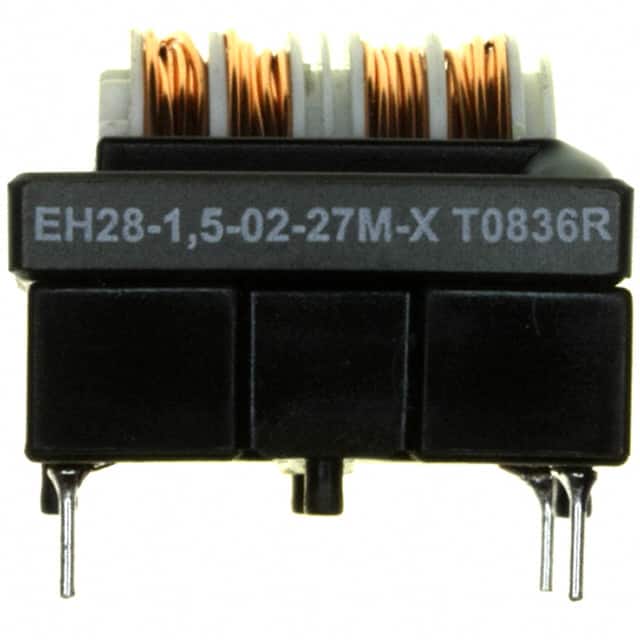

EH28-1.5-02-20M CMC 20MH 1.5A 2LN TH Schaffner EMC Inc.	264	3.89	- + RFQ	Datasheet	Tray	EH	Active	Power Line	2	-	20 mH @ 400 Hz	1.5A	282mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.102 L x 1.102 W (28.00mm x 28.00mm)	0.941 (23.90mm)
CMS2-6-R CMC 230UH 1.85A 2LN SMD Eaton - Electronics Division	654	3.94	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	230 µH @ 100 kHz	1.85A	44mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.350 L x 0.350 W (8.90mm x 8.90mm)	0.236 (6.00mm)
CMS2-14-R CMC 1.34MH 500MA 2LN SMD Eaton - Electronics Division	546	4.22	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	1.34 mH @ 100 kHz	500mA	620mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.350 L x 0.350 W (8.90mm x 8.90mm)	0.236 (6.00mm)
