Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E14/3.5/5/R-3C92-A63-P PLANAR E CORES Ferroxcube	2,184	0.38	- + RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)

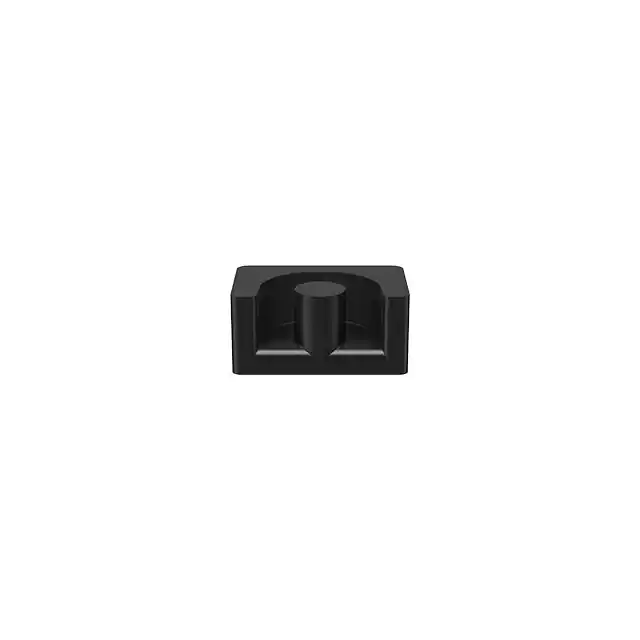

B65855A0000R049 FERRITE CORE EPCOS - TDK Electronics	3,301	0.38	- + RFQ	Datasheet	Box	-	Not For New Designs	EP	EP 5	N49	-	350 nH	-20%, +30%	Ungapped	880	1500	3.149	9.73	3.09	2.3	30	Uncoated	0.112 (2.85mm)
B64290P0037X046 FERRITE CORE TOROID 3.6UH T46 EPCOS - TDK Electronics	3,952	0.39	- + RFQ	Datasheet	Box	TC6.3/3.8/2.5	Active	Toroid	-	T46	0.249 (6.32mm)	3.6 µH	±30%	Ungapped	-	14000	4.97	15.21	3.06	-	46.5	Parylene	0.099 (2.52mm)
PLT18/10/2/S-3C96 PLANAR E CORES Ferroxcube	3,857	0.39	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 18 x 10 x 2	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.094 (2.40mm)
35T0625-00H FT,MNZN,EC 15.88X8.89X4.70-5000 Laird-Signal Integrity Products	3,427	0.39	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	35	0.631 (16.03mm)	2.73 µH	±20%	Ungapped	-	5000	2.31	36.8	15.96	-	-	Epoxy	0.191 (4.85mm)
5678110821 78 POT CORE SET Fair-Rite Products Corp.	3,565	0.39	- + RFQ	Datasheet	Bulk	-	Active	PS	-	78	0.437 (11.10mm)	-	±25%	Ungapped	-	2300	95	16.5	17.3	-	284	Uncoated	0.130 (3.30mm)
B66421G0500X187 FERRITE CORE EPCOS - TDK Electronics	3,545	0.39	- + RFQ	Datasheet	Box	-	Not For New Designs	EFD	EFD 25 x 13 x 9	N87	-	-	-	-	-	2200	0.98	57	58	57	3310	Uncoated	0.492 (12.50mm)
B66421G1000X187 FERRITE CORE EPCOS - TDK Electronics	3,028	0.39	- + RFQ	Datasheet	Box	-	Not For New Designs	EFD	EFD 25 x 13 x 9	N87	-	-	-	-	-	2200	0.98	57	58	57	3310	Uncoated	0.492 (12.50mm)
E25/13/7-3F36 E CORES Ferroxcube	2,504	0.39	- + RFQ	Datasheet	Bulk	-	Active	E	E 25 x 13 x 7	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
B65839A0063A087 FERRITE CORE EP 63NH N87 2PCS EPCOS - TDK Electronics	3,440	0.39	- + RFQ	Datasheet	Box	EP7	Active	EP	EP 7	N87	-	63 nH	±3%	Gapped	76	2200	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B66311A0100J087 FERRITE CORE EPCOS - TDK Electronics	3,684	0.39	- + RFQ		Box	E20/10/6	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
B62110A1012X001 FERRITE CORES EPCOS - TDK Electronics	2,102	0.39	- + RFQ		Box	TUB1.81/0.8/2	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
E14/3.5/5/R-3C90-G2000 PLANAR E CORES Ferroxcube	3,459	0.39	- + RFQ		Bulk	-	Active	E	E 14 x 3.5 x 5	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
E14/3.5/5/R-3C96-A100-P PLANAR E CORES Ferroxcube	2,988	0.39	- + RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
E14/3.5/5/R-3C96-A63-P PLANAR E CORES Ferroxcube	2,564	0.39	- + RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)

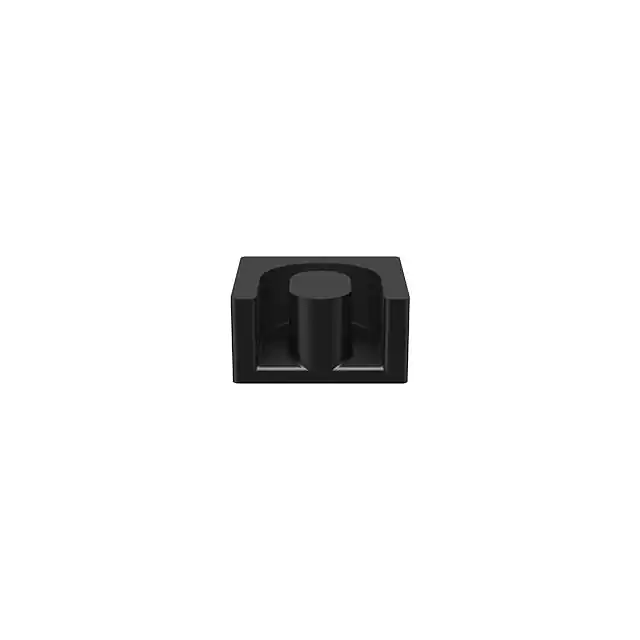

B65857A0000R045 FERRITE CORE EPX 2.5UH N45 2PCS EPCOS - TDK Electronics	3,856	0.39	- + RFQ	Datasheet	Box	B65857A	Not For New Designs	EPX	EPX 7 x 9	N45	-	2.5 µH	-20%, +30%	Ungapped	1820	3800	0.91	15.7	17.2	13.9	270	Uncoated	0.148 (3.75mm)

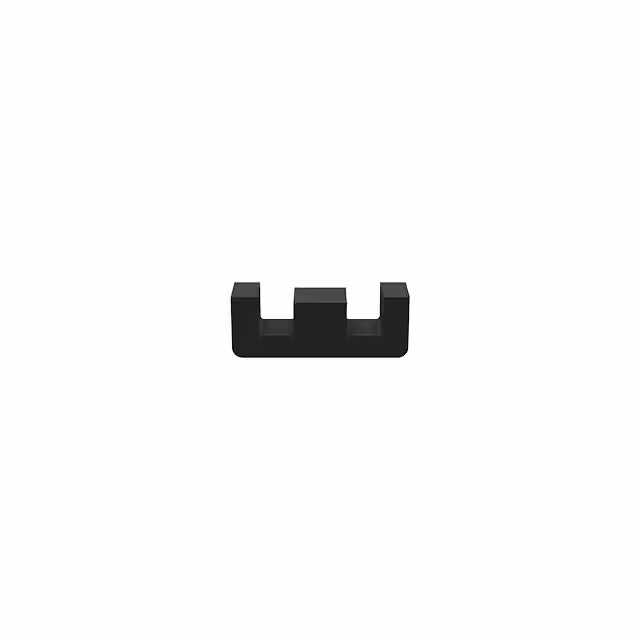

B66303G0000X138 FERRITE CORE E T38 1PC EPCOS - TDK Electronics	3,586	0.39	- + RFQ	Datasheet	Box	E5.3/2.7/2	Active	E	E5	T38	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.104 (2.65mm)
E14/3.5/5/R-3C95-A100-P PLANAR E CORES Ferroxcube	2,364	0.40	- + RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
E14/3.5/5/R-3C95-A63-P PLANAR E CORES Ferroxcube	3,060	0.40	- + RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)

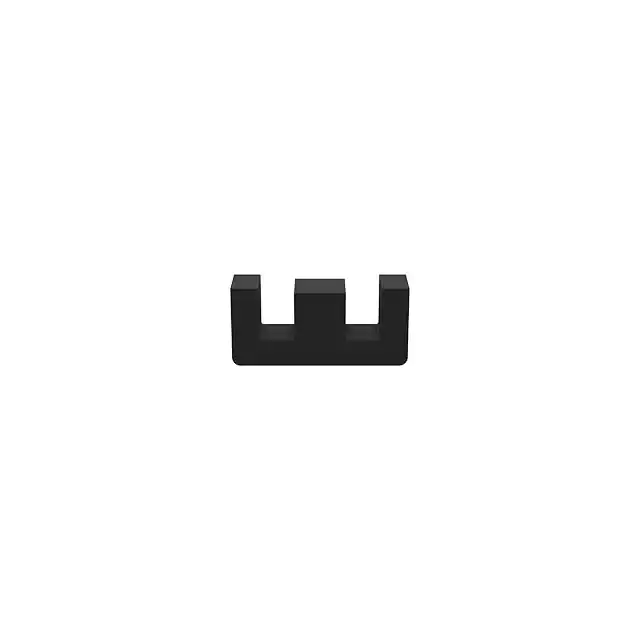

B66315G0000X130 FERRITE CORE E N30 1PC EPCOS - TDK Electronics	2,210	0.40	- + RFQ	Datasheet	Box	E25.4/10/7	Active	E	E 25.4 x 10 x 7	N30	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.384 (9.78mm)
