Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E38/8/25-3C97-A630-P PLANAR E CORES Ferroxcube	2,709	1.57	- + RFQ	Datasheet	Bulk	-	Active	E	E 38 x 8 x 25	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.325 (8.26mm)
E38/8/25-3F36-A630-E PLANAR E CORES Ferroxcube	2,949	1.57	- + RFQ	Datasheet	Bulk	-	Active	E	E 38 x 8 x 25	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.325 (8.26mm)
E38/8/25-3F36-A630-P PLANAR E CORES Ferroxcube	2,620	1.57	- + RFQ	Datasheet	Bulk	-	Active	E	E 38 x 8 x 25	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.325 (8.26mm)
PQ32/15-3C94 PQ CORES 2PC SET Ferroxcube	2,252	1.57	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 32 x 15	3C94	-	-	±25%	Ungapped	-	-	0.261	44.7	171	143	7640	Uncoated	0.591 (15.00mm)
RM10/ILP-3F4 RM CORES 2PC SET Ferroxcube	3,401	1.57	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 10	3F4	-	-	±25%	Ungapped	817	-	0.34	33.9	99.1	89.1	3360	Uncoated	0.512 (13.00mm)
B65807J0000R092 FERRITE CORE EPCOS - TDK Electronics	2,249	1.57	- + RFQ	Datasheet	Box	RM6	Active	RM	RM 6	N92	-	-	-	-	-	1500	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
B65517W0000R095 FERRITE CORE EPCOS - TDK Electronics	3,041	1.57	- + RFQ	Datasheet	Box	P9/5	Active	-	P 9 x 5	N95	0.366 (9.30mm)	-	-	-	-	3000	1.13	13.4	11.9	9.3	159	Uncoated	0.106 (2.70mm)
PLT43/28/4.1-3C96 PLANAR E CORES Ferroxcube	2,459	1.58	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 43 x 28 x 4.1	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)
B65811J0100A087 FERRITE CORE EPCOS - TDK Electronics	3,171	1.58	- + RFQ	Datasheet	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65811J0315A087 FERRITE CORE EPCOS - TDK Electronics	2,478	1.58	- + RFQ	Datasheet	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65811J0040A087 FERRITE CORE EPCOS - TDK Electronics	2,878	1.58	- + RFQ	Datasheet	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65811J0630J087 FERRITE CORE EPCOS - TDK Electronics	2,955	1.58	- + RFQ	Datasheet	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
RM10/I-3C91 RM CORES 2PC SET Ferroxcube	2,141	1.58	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 10 x 1	3C91	-	-	±25%	Ungapped	2020	-	0.462	44.6	96.6	89.1	4310	Uncoated	0.729 (18.60mm)
RM10/I-3C94 RM CORES 2PC SET Ferroxcube	3,842	1.58	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 10 x 1	3C94	-	-	±25%	Ungapped	1650	-	0.462	44.6	96.6	89.1	4310	Uncoated	0.729 (18.60mm)

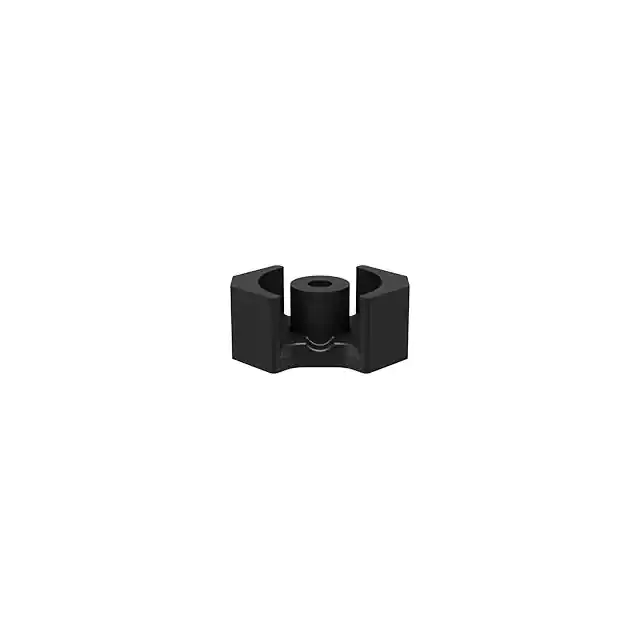

B65803A0063A048 FERRITE CORE RM 63NH N48 2PCS EPCOS - TDK Electronics	2,785	1.59	- + RFQ	Datasheet	Box	RM4	Active	RM	RM 4	N48	-	63 nH	±3%	Gapped	96	-	1.9	21	11	-	231	Uncoated	0.207 (5.25mm)
B65803J0100A048 FERRITE CORE EPCOS - TDK Electronics	2,399	1.59	- + RFQ	Datasheet	Box	RM4	Active	RM	RM 4	N48	-	-	-	Gapped	-	2300	1.7	22	13	11.3	286	Uncoated	0.413 (10.50mm)
B65803J0063A048 FERRITE CORE EPCOS - TDK Electronics	3,642	1.59	- + RFQ	Datasheet	Box	RM4	Active	RM	RM 4	N48	-	-	-	Gapped	-	2300	1.7	22	13	11.3	286	Uncoated	0.413 (10.50mm)

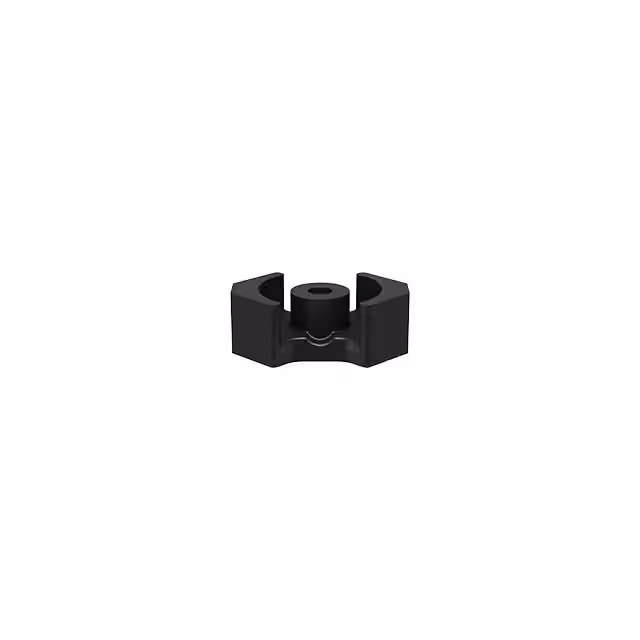

B65803N0063A048 FERRITE CORE RM 63NH N48 2PCS EPCOS - TDK Electronics	3,013	1.59	- + RFQ	Datasheet	Box	RM4	Active	RM	RM 4	N48	-	63 nH	±3%	Gapped	96	-	1.9	21	11	-	231	Uncoated	0.207 (5.25mm)
B65805N0400J048 FERRITE CORE EPCOS - TDK Electronics	2,136	1.59	- + RFQ	Datasheet	Box	RM5	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
E47/20/16-3C91-G500 E CORES Ferroxcube	3,644	1.60	- + RFQ	Datasheet	Bulk	-	Active	E	E 47 x 20 x 16	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.772 (19.60mm)
