| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

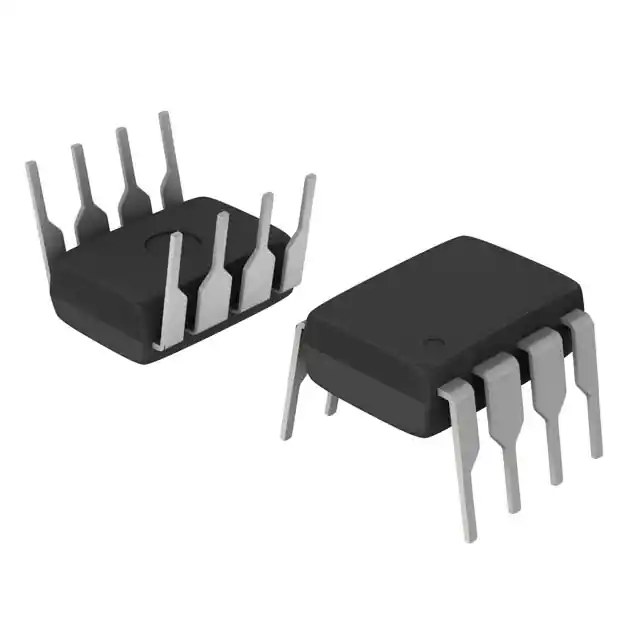

HCPL-2231-000EOPTOISO 3.75KV 2CH PSH PULL 8DIP |
3,324 | 6.83 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole |
|

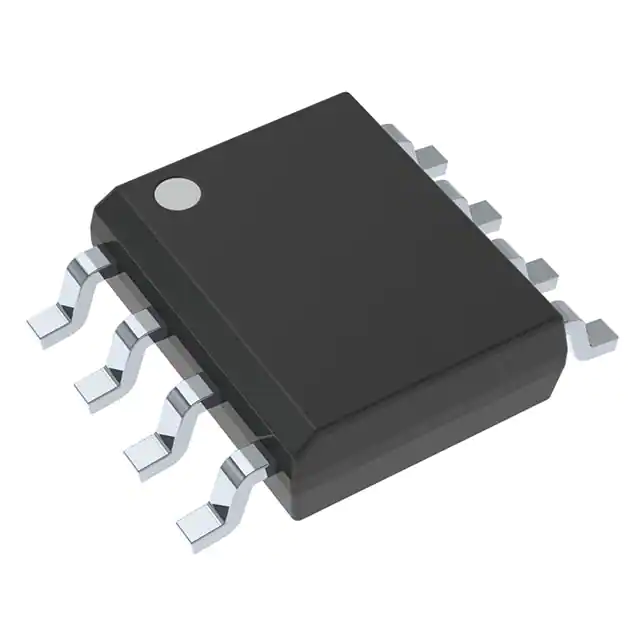

HCPL-0720-000EOPTOISO 3.75KV PUSH PULL 8SO |
3,447 | 7.04 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
ACPL-074L-000EOPTOISO 3.75KV 2CH PUSH PULL 8SO |
3,262 | 7.04 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 50ns, 50ns | 20ns, 25ns | 1.5V | 20mA | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|

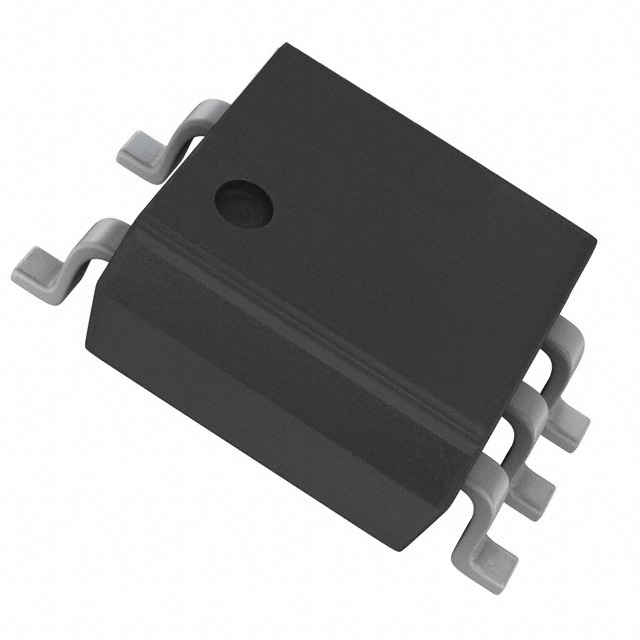

PS9113-AXOPTOISO 3.75KV OPN COLLECTOR 5SO |
3,970 | 7.05 |
RFQ |
Datasheet |
Strip | - | Not For New Designs | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | -40°C ~ 100°C | Surface Mount |
|

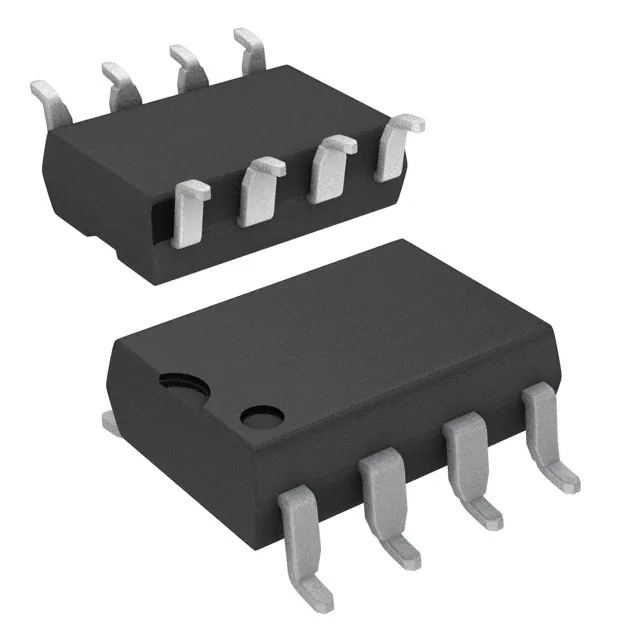

HCPL-2430-500EOPTOISO 3.75KV PUSH PULL 8DIP GW |
2,066 | 13.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-063A-000EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
2,416 | 7.29 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|

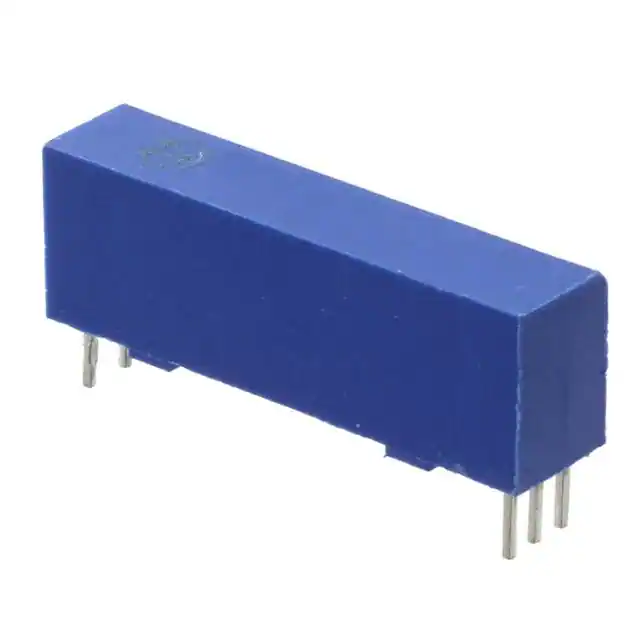

OPI1268OPTOISO 16KV OPEN COLLECTOR |
3,885 | 7.29 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 16000VDC | - | DC | Open Collector | 25 mA | 2Mbps | 200ns, 100ns | - | 1.3V | 30mA | 7V | -40°C ~ 100°C | Through Hole |
|
|
HCPL-0721-000EOPTOISO 3.75KV PUSH PULL 8SO |
2,175 | 7.39 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-0661-000EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
3,220 | 7.45 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|

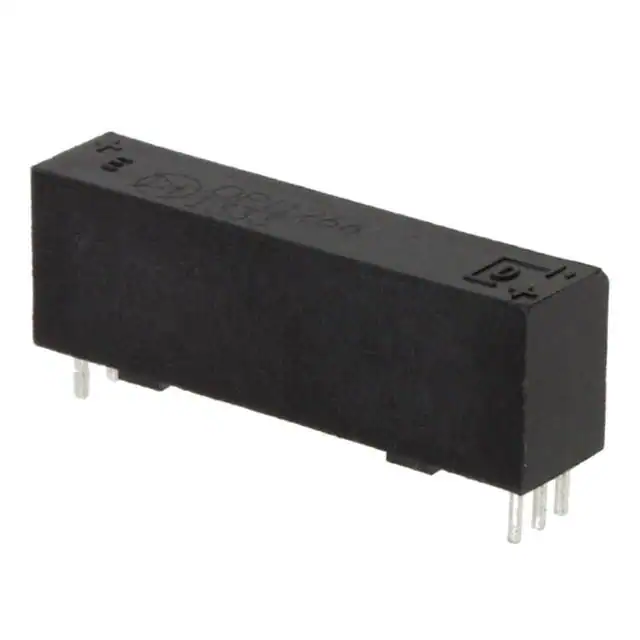

OPI1266OPTOISO 16KV OPEN COLLECTOR |
443 | 7.45 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 16000VDC | - | DC | Open Collector, Schottky Clamped | - | 500kbps | 800ns, 800ns | - | 1.2V | 50mA | 7V | -40°C ~ 70°C | Through Hole |
|
|
HCPL-2400-300EOPTOISO 3.75KV TRI-STATE 8DIP GW |
3,558 | 7.46 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Tri-State | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-2400-000EOPTOISO 3.75KV TRI-STATE 8DIP |
527 | 7.46 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Tri-State | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | -40°C ~ 85°C | Through Hole |
|
|
HCPL-2232-300EOPTOISO 3.75KV PUSH PULL 8DIP GW |
903 | 7.51 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-7710-000EOPTOISO 3.75KV PUSH PULL 8DIP |
3,576 | 7.60 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | 4.5V ~ 5.5V | -40°C ~ 100°C | Through Hole |
|
|
HCPL-2300-000EOPTOISO 3.75KV OPEN COLL 8DIP |
2,218 | 7.82 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 100V/µs | DC | Open Collector, Schottky Clamped | 25 mA | 5MBd | 160ns, 200ns | 40ns, 20ns | 1.3V | 5mA (Typ) | 4.75V ~ 5.25V | -40°C ~ 85°C | Through Hole |
|
|
HCPL-2300-300EOPTOISO 3.75KV OPEN COLL 8DIP GW |
112 | 7.90 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 100V/µs | DC | Open Collector, Schottky Clamped | 25 mA | 5MBd | 160ns, 200ns | 40ns, 20ns | 1.3V | 5mA (Typ) | 4.75V ~ 5.25V | -40°C ~ 85°C | Surface Mount |
|
|
OPI1268SOPTOISO 20KV OPEN COLLECTOR |
2,363 | 7.94 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 20000VDC | - | DC | Open Collector | 25 mA | 2Mbps | 100ns, 100ns | - | 1.4V | 30mA | 7V | -50°C ~ 100°C | Through Hole |
|
|
HCPL-0631OPTOISO 3.75KV 2CH OPEN COLL 8SO |
3,162 | 8.07 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-0630OPTOISO 3.75KV 2CH OPEN COLL 8SO |
226 | 8.07 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-0723-000EOPTOISO 3.75KV PUSH PULL 8SO |
2,720 | 9.39 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 50MBd | 22ns, 22ns | 8ns, 6ns | - | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
