Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	NumberofPositions	Pitch	OuterDimension	InnerDimension	ThermalCenterPad

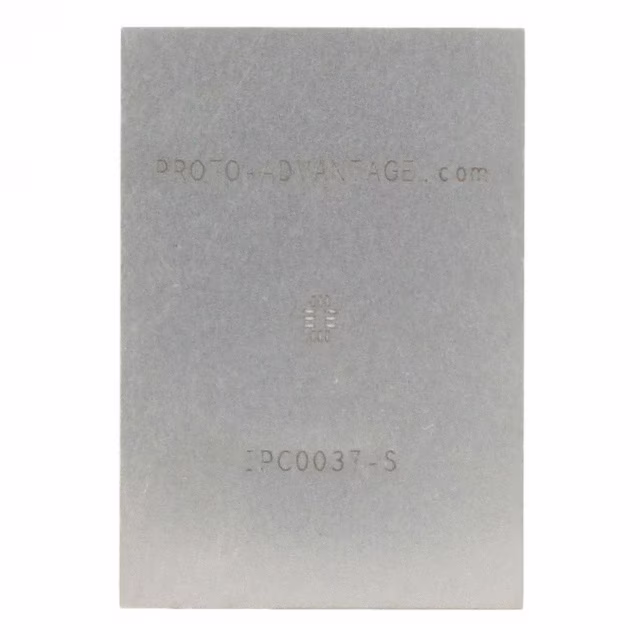

IPC0037-S QFN-12 STENCIL Chip Quik Inc.	3,357	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	12	0.016 (0.40mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.087 L x 0.055 W (2.20mm x 1.40mm)	-

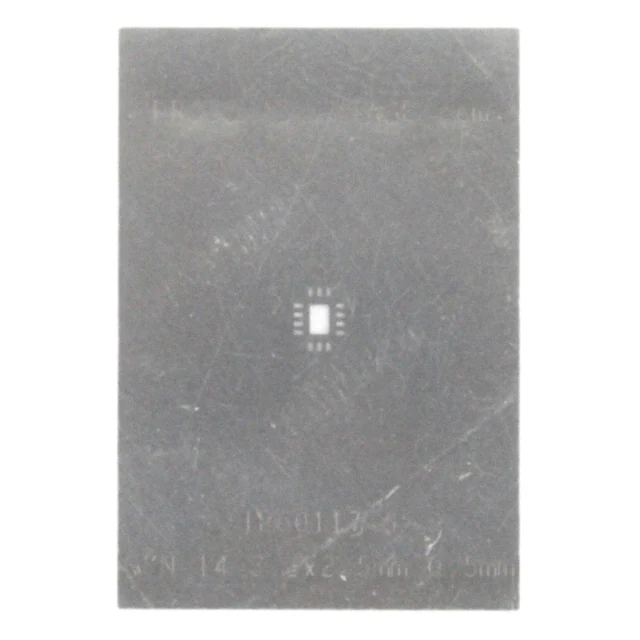

IPC0117-S QFN-14 STENCIL Chip Quik Inc.	3,942	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	14	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.083 L x 0.055 W (2.10mm x 1.40mm)

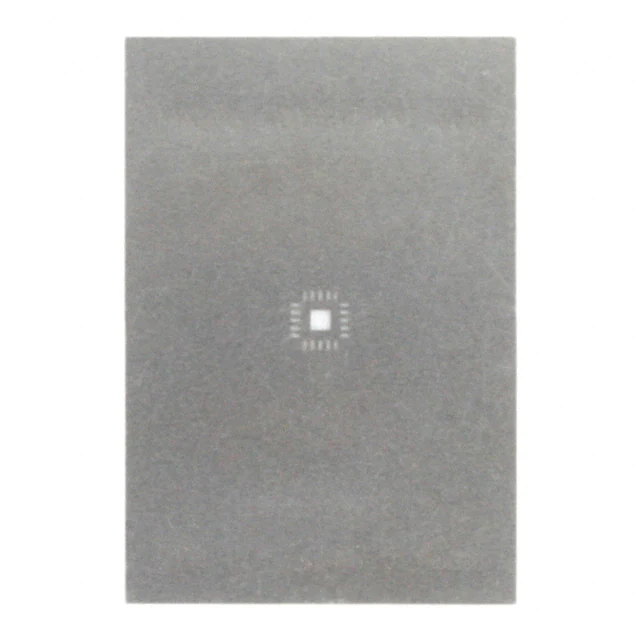

IPC0108-S QFN-20 STENCIL Chip Quik Inc.	3,639	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	20	0.018 (0.45mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.118 L x 0.118 W (3.00mm x 3.00mm)	0.061 L x 0.061 W (1.55mm x 1.55mm)

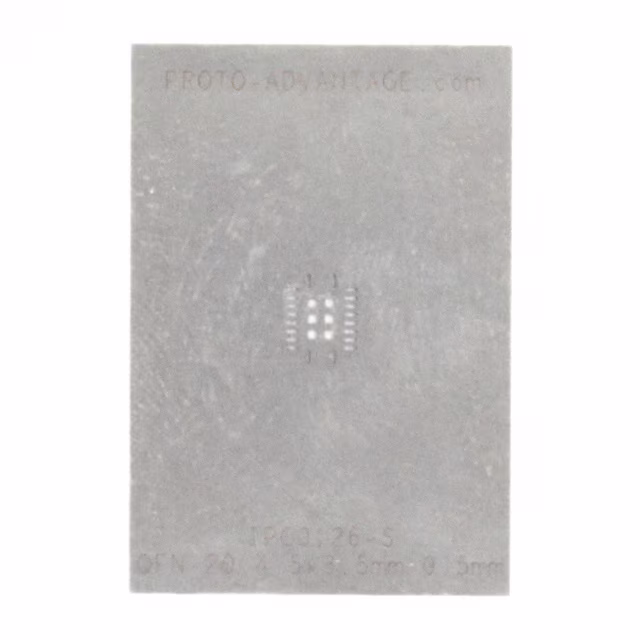

IPC0126-S QFN-20 STENCIL Chip Quik Inc.	2,369	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	20	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.177 L x 0.138 W (4.50mm x 3.50mm)	0.120 L x 0.081 W (3.05mm x 2.05mm)

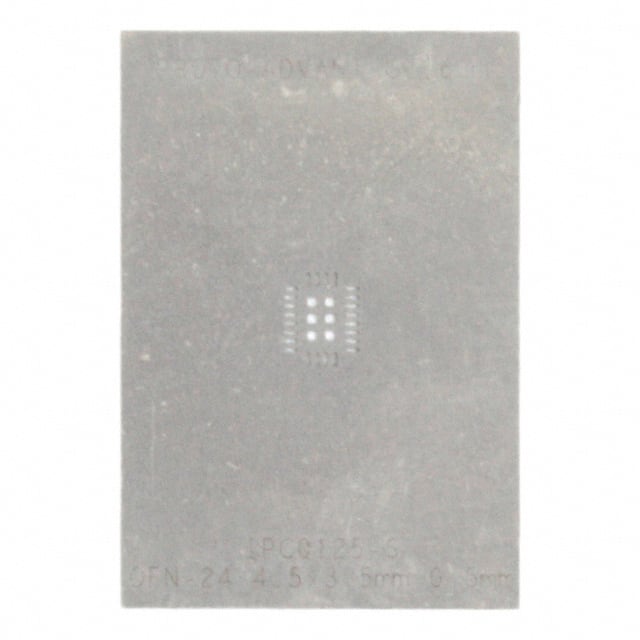

IPC0125-S QFN-24 STENCIL Chip Quik Inc.	2,928	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	24	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.177 L x 0.138 W (4.50mm x 3.50mm)	0.120 L x 0.081 W (3.05mm x 2.05mm)

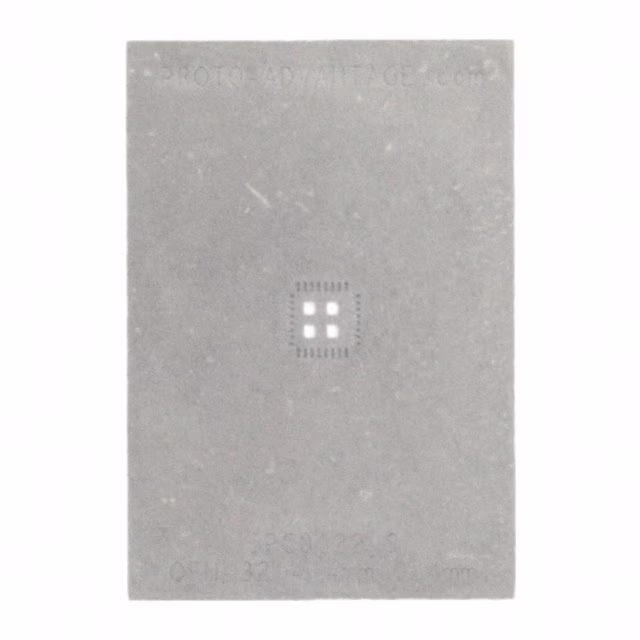

IPC0122-S QFN-32 STENCIL Chip Quik Inc.	3,535	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	32	0.016 (0.40mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.157 L x 0.157 W (4.00mm x 4.00mm)	0.110 L x 0.110 W (2.80mm x 2.80mm)

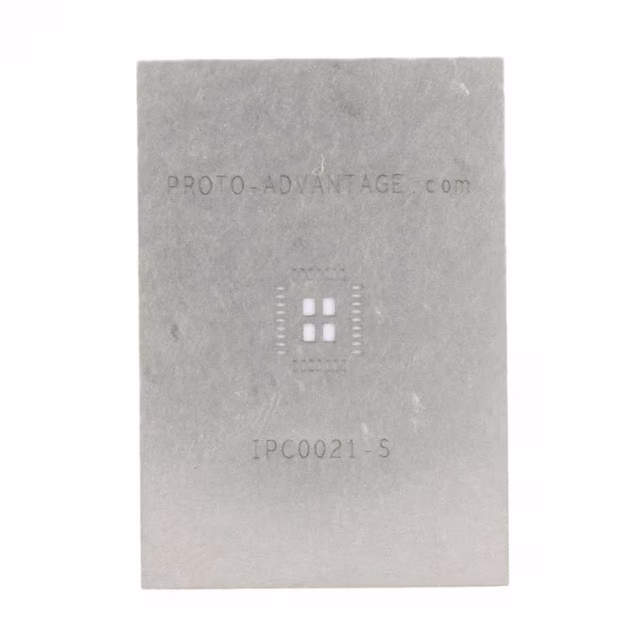

IPC0021-S QFN-32 STENCIL Chip Quik Inc.	2,890	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	32	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.236 L x 0.197 W (6.00mm x 5.00mm)	0.134 L x 0.098 W (3.40mm x 2.50mm)

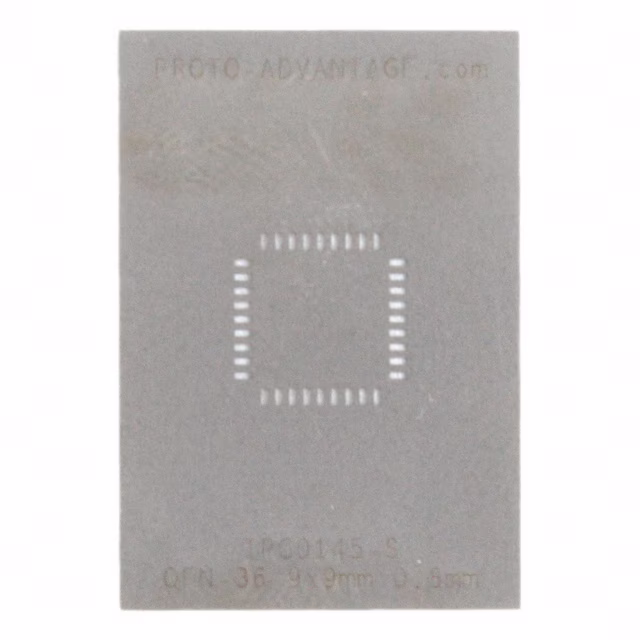

IPC0145-S QFN-36 STENCIL Chip Quik Inc.	3,846	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	36	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.354 L x 0.354 W (9.00mm x 9.00mm)	-

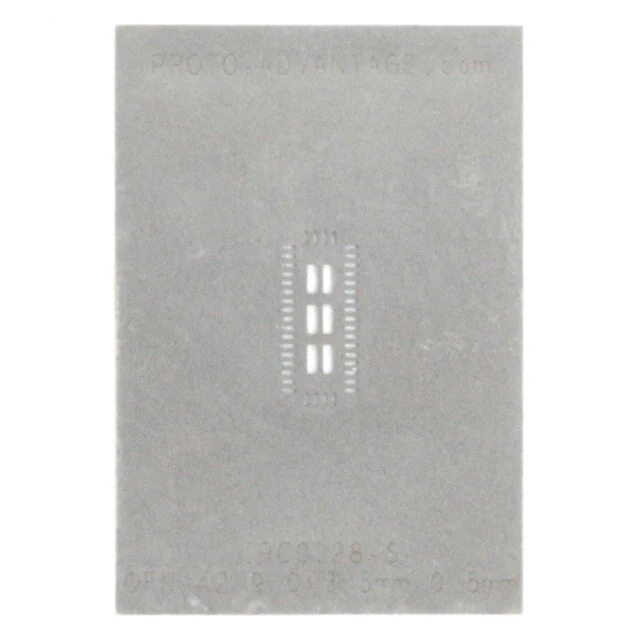

IPC0128-S QFN-42 STENCIL Chip Quik Inc.	2,557	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	42	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.354 L x 0.138 W (9.00mm x 3.50mm)	0.297 L x 0.081 W (7.55mm x 2.05mm)

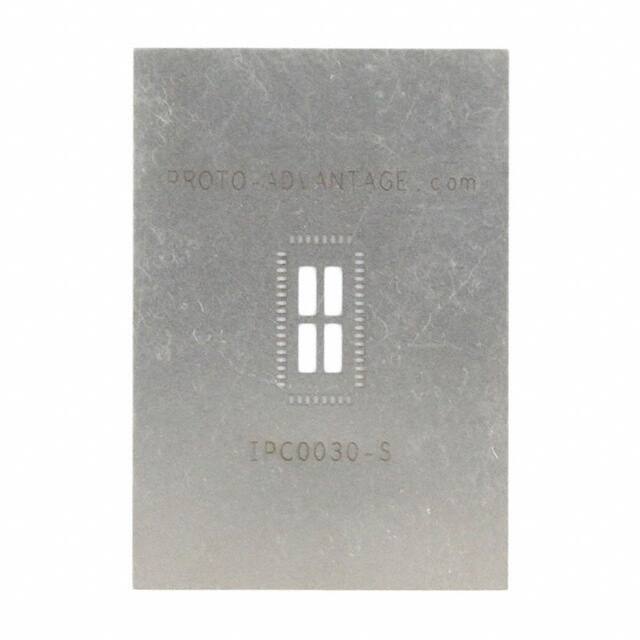

IPC0030-S QFN-50 STENCIL Chip Quik Inc.	3,250	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	50	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.394 L x 0.197 W (10.00mm x 5.00mm)	0.319 L x 0.130 W (8.10mm x 3.30mm)

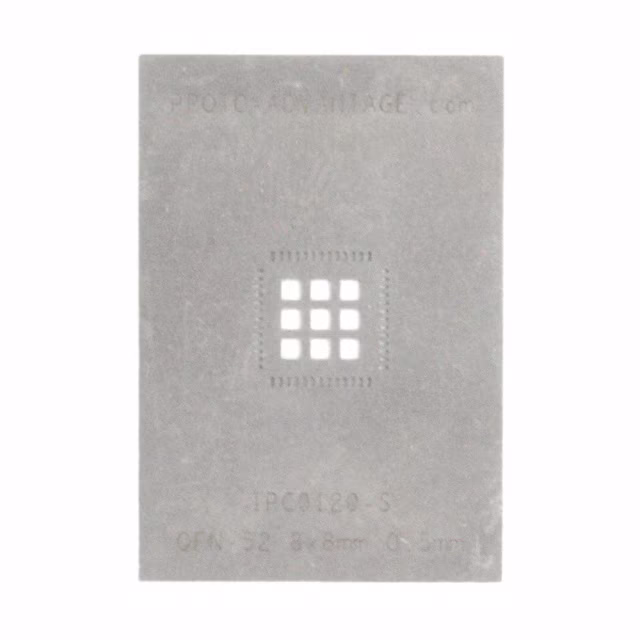

IPC0120-S QFN-52 STENCIL Chip Quik Inc.	2,577	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	52	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.315 L x 0.315 W (8.00mm x 8.00mm)	0.244 L x 0.244 W (6.20mm x 6.20mm)

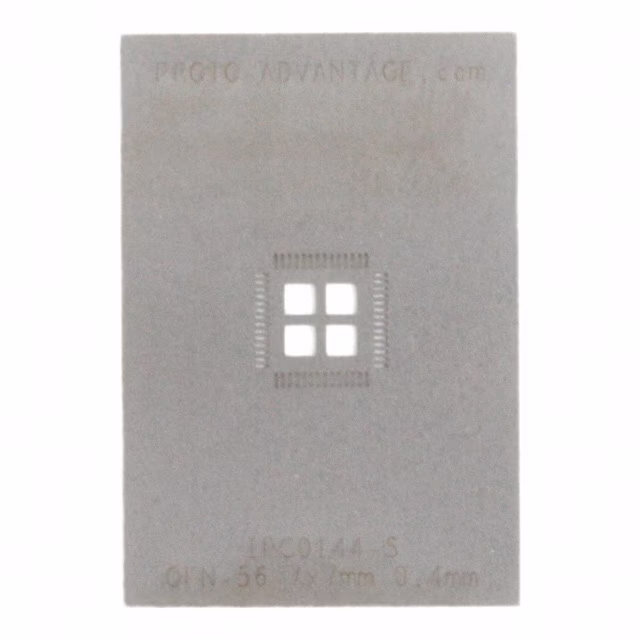

IPC0144-S QFN-56 STENCIL Chip Quik Inc.	3,135	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	56	0.016 (0.40mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.276 L x 0.276 W (7.00mm x 7.00mm)	0.204 L x 0.204 W (5.18mm x 5.18mm)

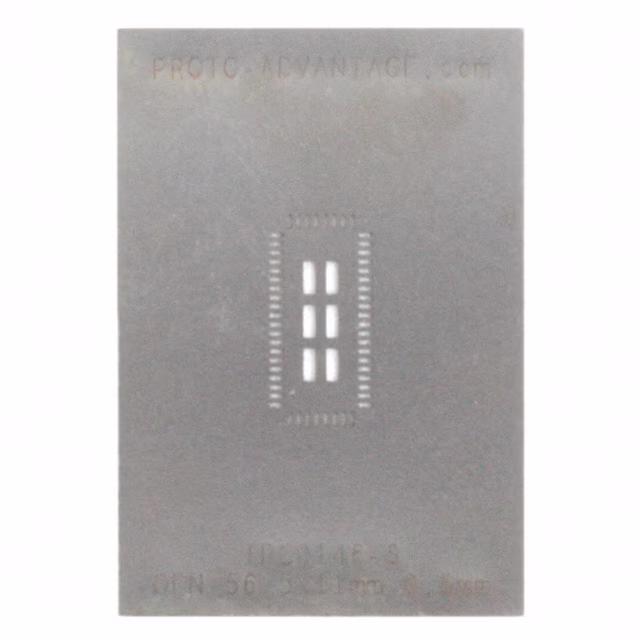

IPC0146-S QFN-56 STENCIL Chip Quik Inc.	3,947	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	56	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.433 L x 0.197 W (11.00mm x 5.00mm)	0.330 L x 0.096 W (8.38mm x 2.45mm)

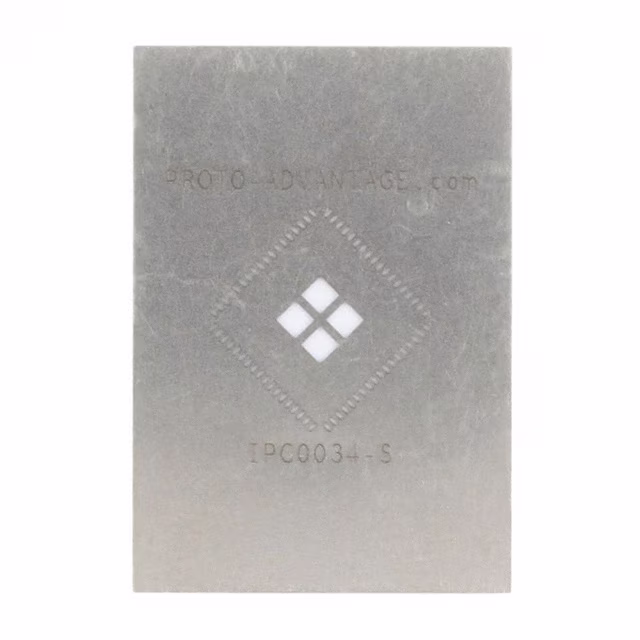

IPC0034-S QFN-72 STENCIL Chip Quik Inc.	2,327	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	72	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.185 L x 0.185 W (4.70mm x 4.70mm)

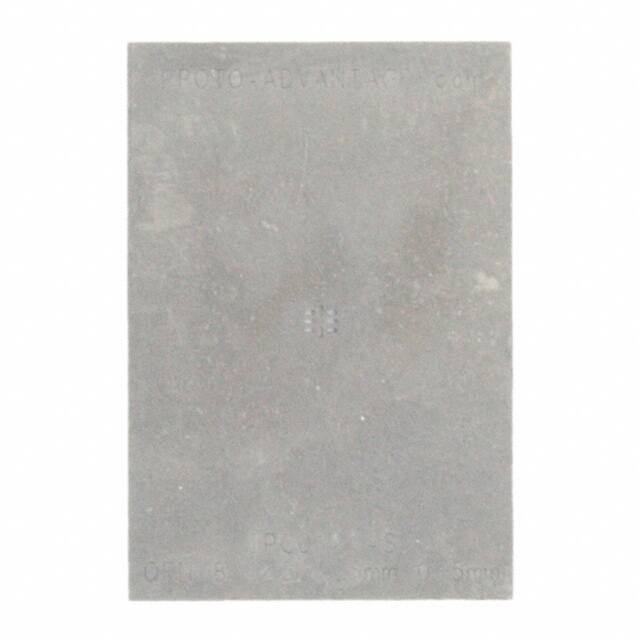

IPC0121-S QFN-8 STENCIL Chip Quik Inc.	3,793	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	8	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.059 L x 0.059 W (1.50mm x 1.50mm)	-

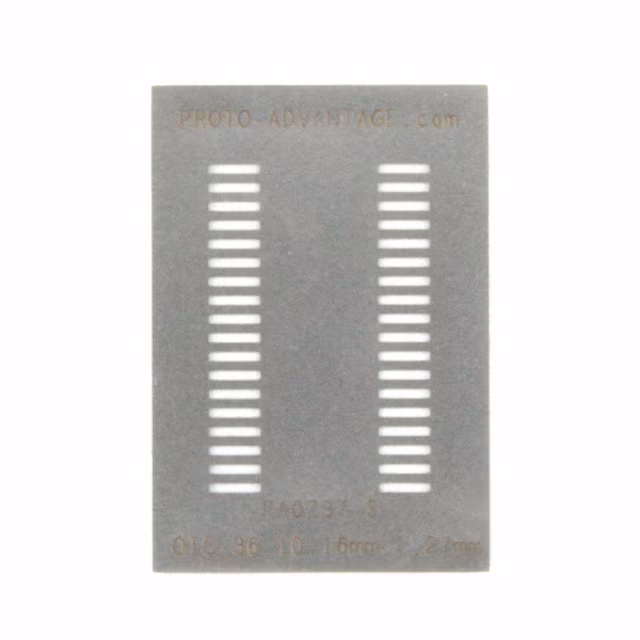

PA0237-S SOIC-36 STENCIL Chip Quik Inc.	3,985	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SOIC	36	0.050 (1.27mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

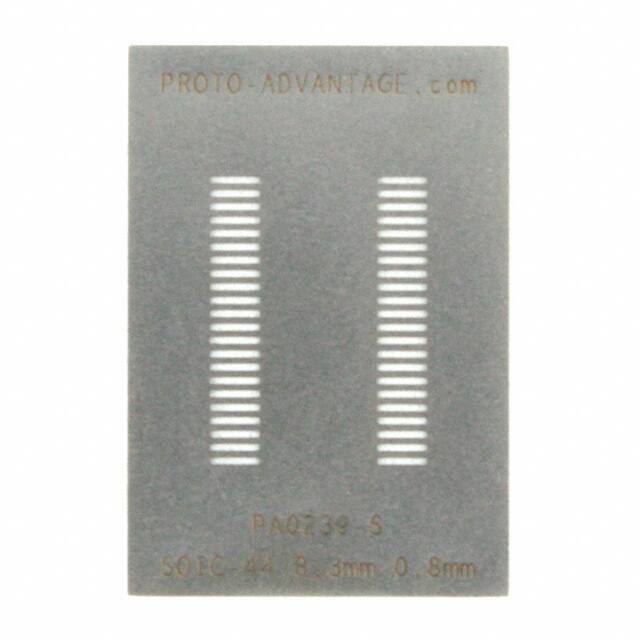

PA0239-S SOIC-44 STENCIL Chip Quik Inc.	2,546	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SOIC	44	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

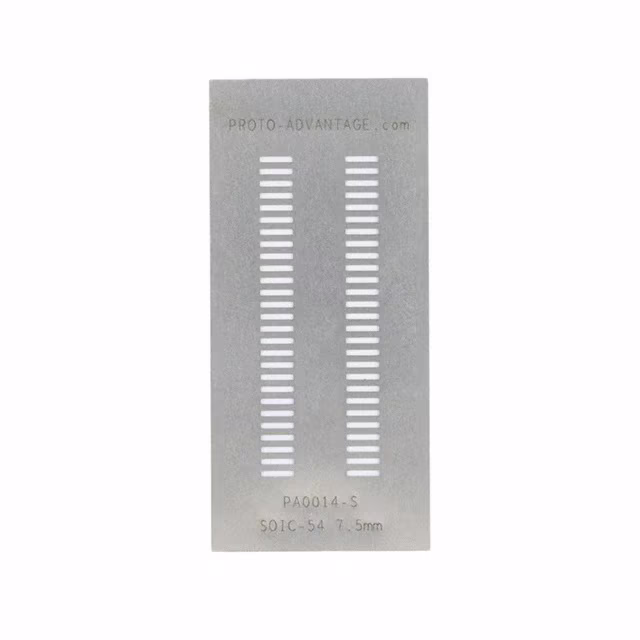

PA0014-S SOIC-54 STENCIL Chip Quik Inc.	2,773	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SOIC	54	0.050 (1.27mm)	1.950 L x 0.900 W (49.53mm x 22.86mm)	-	-

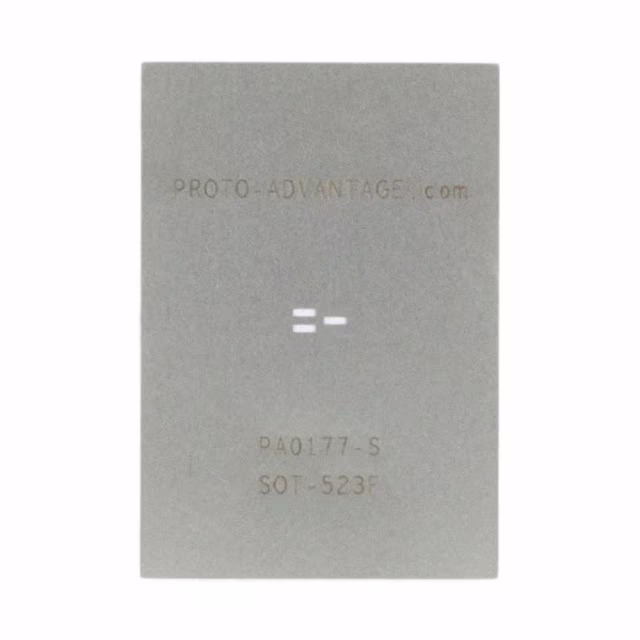

PA0177-S SOT-523F STENCIL Chip Quik Inc.	2,229	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SOT/SC	3	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.059 L x 0.039 W (1.50mm x 1.00mm)	-

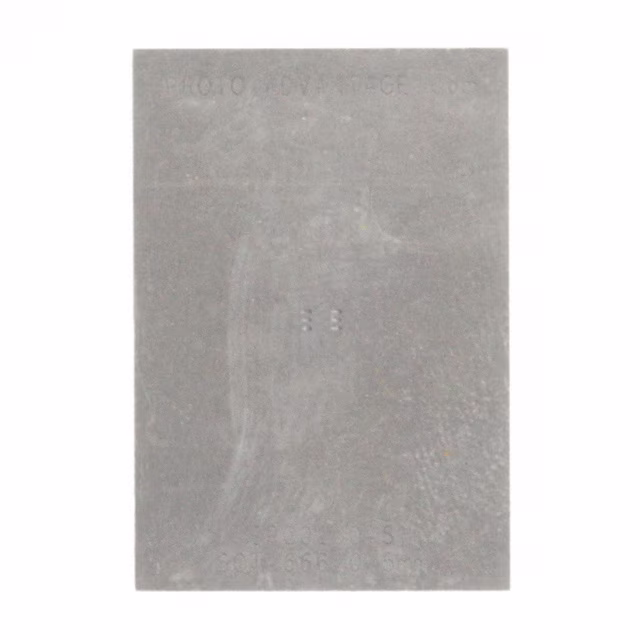

IPC0130-S SOT-666 STENCIL Chip Quik Inc.	2,827	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	SOT/SC	6	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.063 L x 0.047 W (1.60mm x 1.20mm)	-
