Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType

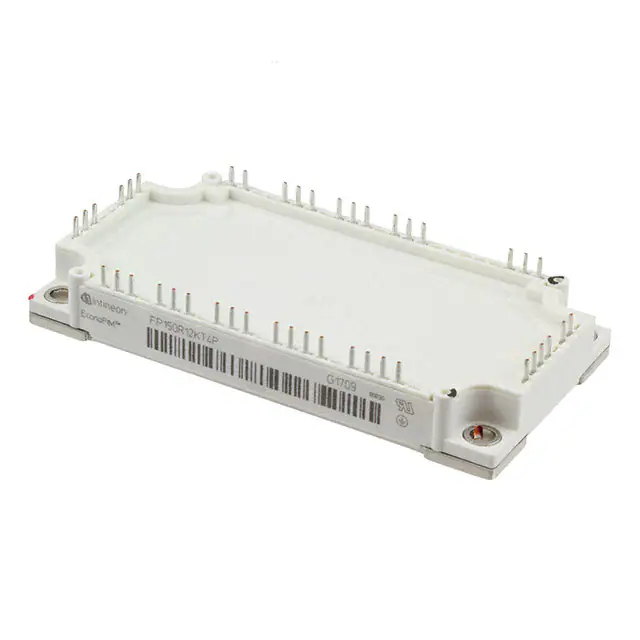

FP150R12KT4PBPSA1 IGBT MODULE 1200V 150A Infineon Technologies	3,849	348.42	- + RFQ	Datasheet	Tray	EconoPIM™ 3	Active	Trench Field Stop	Three Phase Inverter	1200 V	150 A	-	2.1V @ 15V, 150A	1 mA	9.35 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FP15R06W1E3BOMA1 IGBT MODULE 600V 22A 81W Infineon Technologies	2,310	39.15	- + RFQ	Datasheet	Tray	EasyPIM™	Active	Trench Field Stop	Three Phase Inverter	600 V	22 A	81 W	2V @ 15V, 15A	1 mA	830 pF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FS300R17OE4BOSA1 IGBT MOD 1700V 450A 1850W Infineon Technologies	3,817	718.92	- + RFQ	Datasheet	Tray	EconoPACK™+	Active	Trench Field Stop	Full Bridge	1700 V	450 A	1850 W	2.3V @ 15V, 300A	3 mA	24.5 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FS450R17OE4BOSA1 IGBT MOD 1700V 630A 2400W Infineon Technologies	3,429	976.27	- + RFQ	Datasheet	Tray	EconoPACK™+	Active	Trench Field Stop	Full Bridge	1700 V	630 A	2400 W	2.3V @ 15V, 450A	3 mA	36 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount

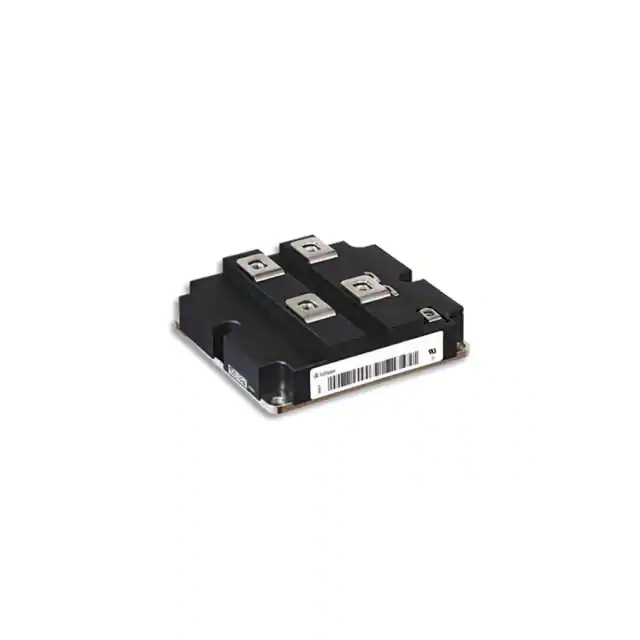

FZ1600R17KE3NOSA1 IGBT MOD 1700V 2300A 8950W Infineon Technologies	2,929	1133.48	- + RFQ	Datasheet	Tray	-	Not For New Designs	NPT	Three Phase Inverter	1700 V	2300 A	8950 W	2.45V @ 15V, 600A	5 mA	145 nF @ 25 V	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
FS500R17OE4DBOSA1 IGBT MOD 1700V 740A 3000W Infineon Technologies	2,359	1171.47	- + RFQ	Datasheet	Tray	EconoPACK™+	Active	Trench Field Stop	Three Phase Inverter	1700 V	740 A	3000 W	2.3V @ 15V, 500A	3 mA	40 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount

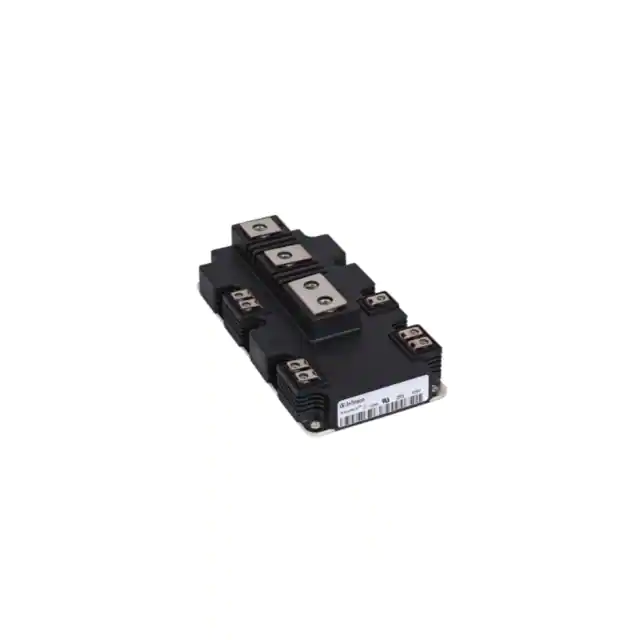

FF1200R12IE5BPSA1 IGBT MOD 1200V 2400A 20MW Infineon Technologies	3,306	1248.47	- + RFQ	Datasheet	Tray	PrimePACK™2	Active	Trench Field Stop	Half Bridge	1200 V	2400 A	20 mW	2.15V @ 15V, 1200A	5 mA	65.5 nF @ 25 V	Standard	Yes	-40°C ~ 175°C	Chassis Mount
DF100R07W1H5FPB54BPSA2 IGBT MOD 650V 40A 20MW Infineon Technologies	3,730	60.72	- + RFQ	Datasheet	Tray	EasyPACK™	Active	Trench Field Stop	2 Independent	650 V	40 A	20 mW	1.55V @ 15V, 25A	40 µA	2.8 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
DF100R07W1H5FPB53BPSA2 IGBT MOD 650V 40A 20MW Infineon Technologies	2,895	64.70	- + RFQ		Tray	EasyPACK™	Active	Trench Field Stop	2 Independent	650 V	40 A	20 mW	1.55V @ 15V, 25A	40 µA	2.8 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
APTGT50H60T3G IGBT MODULE 600V 80A 176W SP3 Microchip Technology	2,032	75.29	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge Inverter	600 V	80 A	176 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
F3L150R07W2E3B11BOMA1 IGBT MOD 650V 150A 335W Infineon Technologies	3,810	82.76	- + RFQ	Datasheet	Tray	EasyPACK™	Active	Trench Field Stop	Three Phase Inverter	650 V	150 A	335 W	1.9V @ 15V, 150A	1 mA	9.3 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
DF80R12W2H3FB11BPSA1 IGBT MOD 1200V 20A 20MW Infineon Technologies	3,946	84.93	- + RFQ	Datasheet	Tray	EconoPACK™ 2	Active	Trench Field Stop	Half Bridge	1200 V	20 A	20 mW	1.7V @ 15V, 20A	1 mA	2.35 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
F43L50R07W2H3FB11BPSA2 IGBT MOD 650V 50A 20MW Infineon Technologies	3,646	97.43	- + RFQ	Datasheet	Tray	EconoPACK™ 2	Active	Trench Field Stop	Three Phase Inverter	650 V	50 A	20 mW	1.8V @ 15V, 50A	1 mA	3.1 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

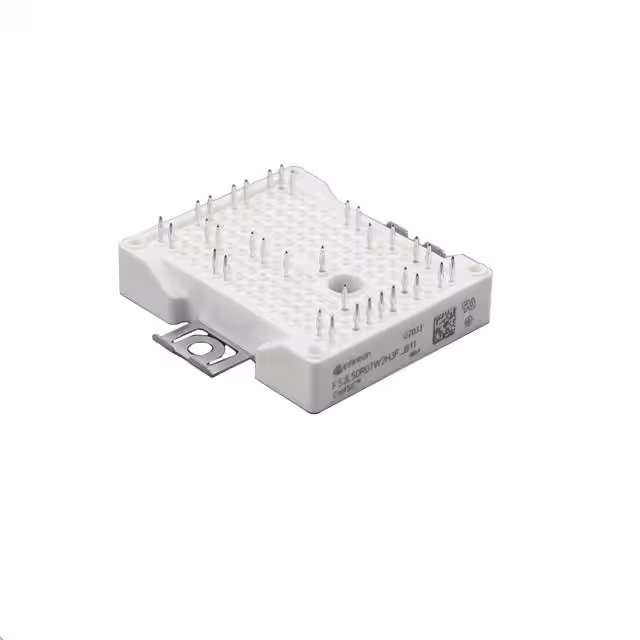

FS3L50R07W2H3FB11BPSA1 IGBT MOD 650V 50A 20MW Infineon Technologies	3,008	105.13	- + RFQ	Datasheet	Tray	EasyPACK™ 2B	Active	Trench Field Stop	Three Phase Inverter	650 V	50 A	20 mW	1.8V @ 15V, 50A	1 mA	3.1 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
F1225R12KT4GBOSA1 IGBT MOD 1200V 25A 160W Infineon Technologies	2,113	122.32	- + RFQ	Datasheet	Tray	EconoPACK™ 3	Active	Trench Field Stop	Three Phase Inverter	1200 V	25 A	160 W	2.15V @ 15V, 25A	1 mA	1.45 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount
FP40R12KT3GBOSA1 IGBT MOD 1200V 55A 210W Infineon Technologies	2,415	145.41	- + RFQ	Datasheet	Tray	-	Active	-	Three Phase Inverter	1200 V	55 A	210 W	2.3V @ 15V, 401A	5 mA	2.5 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
FP50R12KT3BOSA1 IGBT MOD 1200V 75A 280W Infineon Technologies	2,676	157.50	- + RFQ	Datasheet	Tray	-	Active	-	Three Phase Inverter	1200 V	75 A	280 W	2.15V @ 15V, 50A	5 mA	3.5 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount

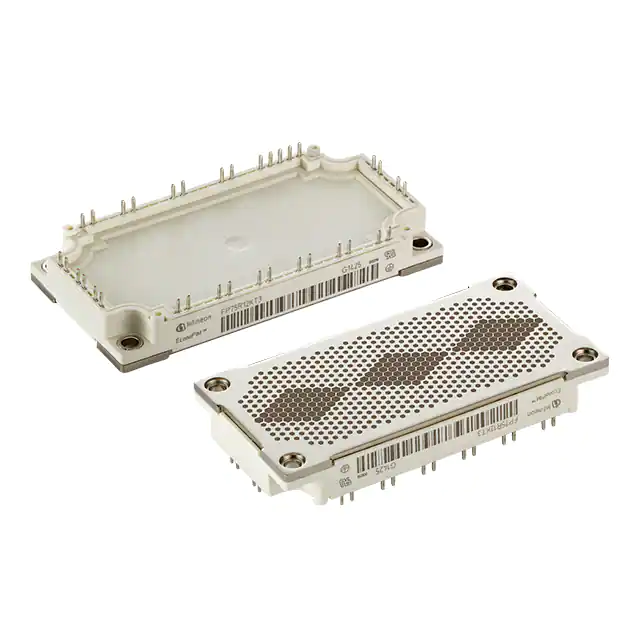

FP75R12KT3BOSA1 IGBT MOD 1200V 105A 355W Infineon Technologies	3,009	205.98	- + RFQ	Datasheet	Tray	EconoPIM™ 3	Active	Trench Field Stop	Three Phase Inverter	1200 V	105 A	355 W	2.15V @ 15V, 75A	1 mA	5.3 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
FS150R12PT4BOSA1 IGBT MOD 1200V 200A 680W Infineon Technologies	2,324	238.75	- + RFQ	Datasheet	Tray	EconoPACK™ 4	Active	Trench Field Stop	Three Phase Inverter	1200 V	200 A	680 W	2.15V @ 15V, 150A	1 mA	9.35 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FF300R17KE3HOSA1 IGBT MODULE 1700V 1450W Infineon Technologies	3,420	246.52	- + RFQ	Datasheet	Tray	C	Active	Trench Field Stop	2 Independent	1700 V	-	1450 W	2.45V @ 15V, 300A	3 mA	27 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
