| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT75SK120D1GIGBT MODULE 1200V 110A 357W D1 |
2,604 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Discontinued at Mosen | Trench Field Stop | Single | 1200 V | 110 A | 357 W | 2.1V @ 15V, 75A | 4 mA | 5.345 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTGT75SK120T1GIGBT MODULE 1200V 110A 357W SP1 |
2,445 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Trench Field Stop | Single | 1200 V | 110 A | 357 W | 2.1V @ 15V, 75A | 250 µA | 5.34 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTGT75SK170D1GIGBT MODULE 1700V 120A 520W D1 |
2,413 | 0.00 |
RFQ |
Bulk | - | Obsolete | Trench Field Stop | Single | 1700 V | 120 A | 520 W | 2.4V @ 15V, 75A | 5 mA | 6.5 nF @ 25 V | Standard | No | - | Chassis Mount | |
|
|
APTGT75SK60T1GIGBT MODULE 600V 100A 250W SP1 |
2,729 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Trench Field Stop | Single | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGT75TA60PGIGBT MODULE 600V 100A 250W SP6P |
2,406 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Trench Field Stop | Three Phase | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGV100H60BTPGIGBT MODULE 600V 150A 340W SP6P |
3,843 | 0.00 |
RFQ |
Bulk | - | Obsolete | NPT, Trench Field Stop | Boost Chopper, Full Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | - | Chassis Mount | |
|
|
APTGV100H60T3GIGBT MODULE 600V 150A 340W SP3 |
3,997 | 0.00 |
RFQ |
Bulk | - | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | - | Chassis Mount | |
|
|
APTGV15H120T3GIGBT MODULE 1200V 25A 115W SP3 |
2,456 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 1200 V | 25 A | 115 W | 2.1V @ 15V, 15A | 250 µA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTGV25H120BGIGBT MODULE 1200V 40A 156W SP4 |
2,287 | 0.00 |
RFQ |
Bulk | - | Obsolete | NPT, Trench Field Stop | Boost Chopper, Full Bridge | 1200 V | 40 A | 156 W | 2.1V @ 15V, 25A | 250 µA | 1.8 nF @ 25 V | Standard | No | - | Chassis Mount | |
|
|
APTGV25H120T3GIGBT MODULE 1200V 40A 156W SP3 |
2,068 | 0.00 |
RFQ |
Bulk | - | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 1200 V | 40 A | 156 W | 2.1V @ 15V, 25A | 250 µA | 1.8 nF @ 25 V | Standard | Yes | - | Chassis Mount | |
|
|
APTGV30H60T3GIGBT MODULE 600V 50A 90W SP3 |
3,480 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 600 V | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTGV50H120BTPGIGBT MODULE 1200V 75A 270W SP6P |
3,194 | 0.00 |
RFQ |
Bulk | - | Obsolete | NPT, Trench Field Stop | Boost Chopper, Full Bridge | 1200 V | 75 A | 270 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | - | Chassis Mount | |
|

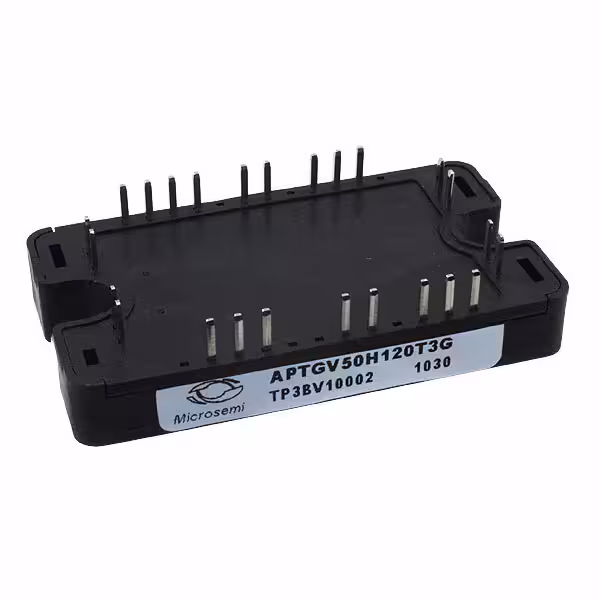

APTGV50H120T3GIGBT MODULE 1200V 75A 270W SP3 |
3,529 | 0.00 |
RFQ |
Bulk | - | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 1200 V | 75 A | 270 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | - | Chassis Mount | |
|
|
APTGV50H60BGIGBT MODULE 600V 80A 176W SP4 |
2,064 | 0.00 |
RFQ |
Bulk | - | Obsolete | NPT, Trench Field Stop | Boost Chopper, Full Bridge | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | No | - | Chassis Mount | |
|
|
APTGV50H60T3GIGBT MODULE 600V 80A 176W SP3 |
3,735 | 0.00 |
RFQ |
Bulk | - | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | - | Chassis Mount | |
|
|
APTGV75H60T3GIGBT MODULE 600V 100A 250W SP3 |
2,481 | 0.00 |
RFQ |
Bulk | - | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | - | Chassis Mount | |
|

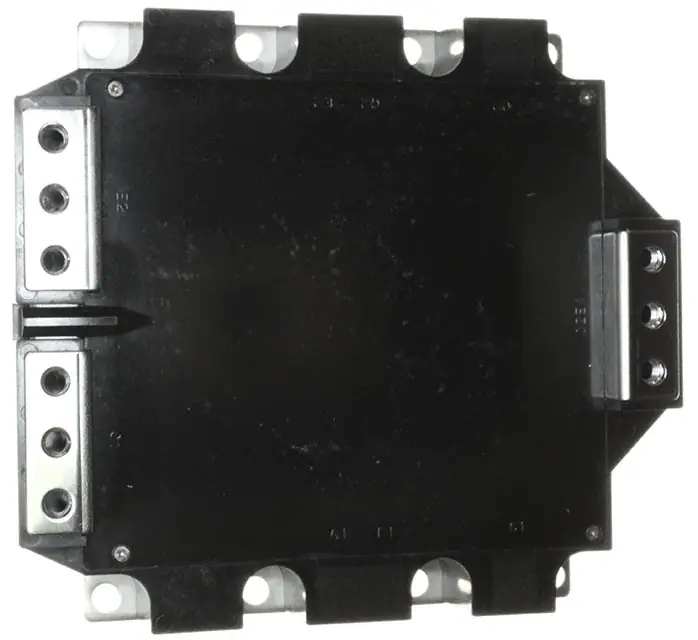

CM1000DU-34NFIGBT MOD 1700V 1000A 3900W |
2,440 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 1700 V | 1000 A | 3900 W | 2.8V @ 15V, 1000A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|

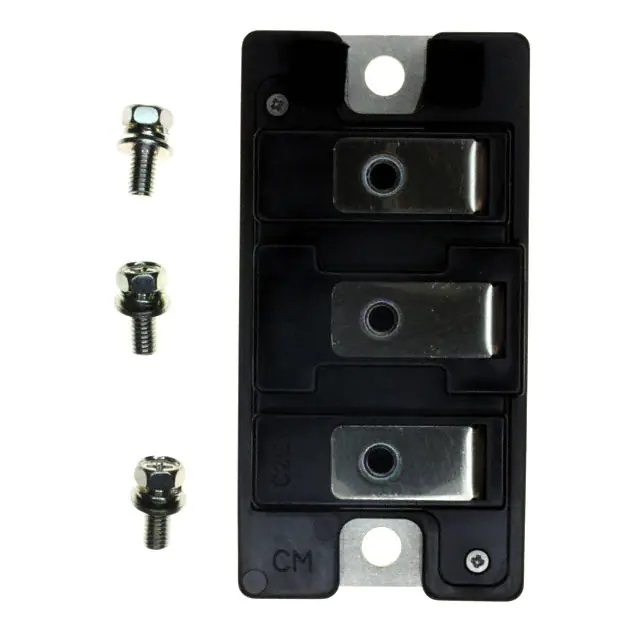

CM100DU-24NFHIGBT MOD 1200V 100A 560W |
2,514 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1200 V | 100 A | 560 W | 6.5V @ 15V, 100A | 1 mA | 16 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|

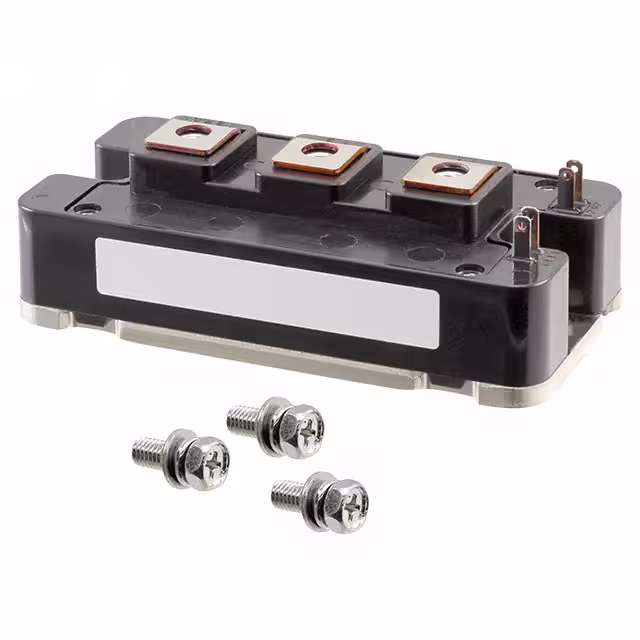

CM100DY-24AIGBT MOD 1200V 100A 672W |
3,251 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1200 V | 100 A | 672 W | 3V @ 15V, 100A | 1 mA | 17.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|

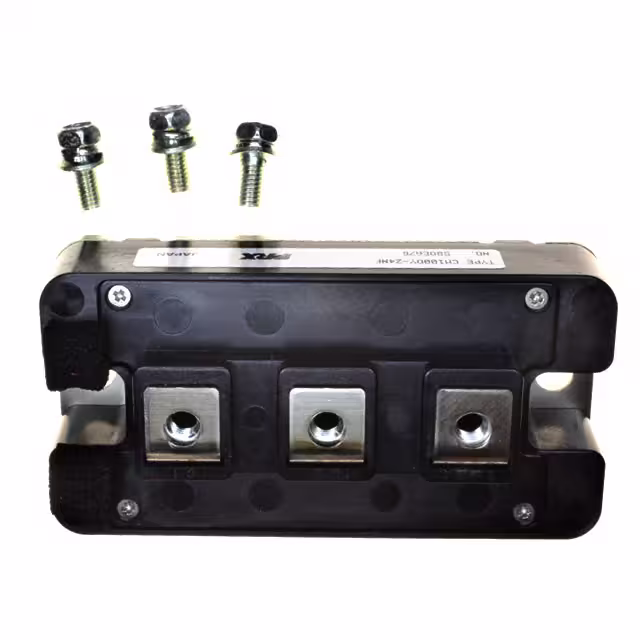

CM100DY-24NFIGBT MOD 1200V 100A 650W |
2,713 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1200 V | 100 A | 650 W | 2.5V @ 15V, 100A | 1 mA | 23 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
