Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
APTGT50H60T1G IGBT MODULE 600V 80A 176W SP1 Microchip Technology	2,886	66.04	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge Inverter	600 V	80 A	176 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FP10R12KE3BOMA1 MOD IGBT LOW PWR EASY2-1 Infineon Technologies	2,110	66.11	- + RFQ		Tray	-	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-
APTGLQ50VDA65T3G IGBT MODULE 650V 70A 175W SP3F Microchip Technology	3,890	66.15	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Dual Boost Chopper	650 V	70 A	175 W	2.3V @ 15V, 50A	50 µA	3.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGLQ50DDA65T3G IGBT MODULE 650V 70A 175W Microchip Technology	3,124	66.15	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Dual Boost Chopper	650 V	70 A	175 W	2.3V @ 15V, 50A	50 µA	3.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
MID145-12A3 IGBT MODULE 1200V 160A 700W Y4M5 IXYS	2,636	66.18	- + RFQ	Datasheet	Box	-	Active	NPT	Single	1200 V	160 A	700 W	2.7V @ 15V, 100A	6 mA	6.5 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT30A170T1G IGBT MODULE 1700V 45A 210W SP1 Microchip Technology	3,948	66.48	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	1700 V	45 A	210 W	2.4V @ 15V, 30A	250 µA	2.5 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FP10R12YT3B4BOMA1 MOD IGBT LOW PWR EASY2-1 Infineon Technologies	2,367	66.59	- + RFQ		Tray	-	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-
MIXA30W1200TED IGBT MODULE 1200V 43A 150W E2 IXYS	3,990	66.83	- + RFQ	Datasheet	Box	-	Active	PT	Three Phase Inverter with Brake	1200 V	43 A	150 W	2.1V @ 15V, 25A	2.1 mA	-	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
A2C25S12M3 IGBT MOD 1200V 25A 197W ACEPACK2 STMicroelectronics	3,483	67.12	- + RFQ		Tray	-	Active	Trench Field Stop	Three Phase Inverter with Brake	1200 V	25 A	197 W	2.45V @ 15V, 25A	100 µA	1.55 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
A2C25S12M3-F IGBT MOD 1200V 25A 197W ACEPACK2 STMicroelectronics	3,122	68.61	- + RFQ		Tray	-	Active	Trench Field Stop	Three Phase Inverter with Brake	1200 V	25 A	197 W	2.45V @ 15V, 25A	100 µA	1.55 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGTQ100A65T1G IGBT MODULE 650V 100A 250W SP1 Microchip Technology	2,850	69.20	- + RFQ	Datasheet	Bulk	-	Active	-	Half Bridge	650 V	100 A	250 W	2.2V @ 15V, 100A	100 µA	6 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FS3L50R07W2H3B11BPSA1 IGBT MODULE 650V 75A 215W Infineon Technologies	2,282	69.75	- + RFQ	Datasheet	Tray	EasyPACK™	Active	Trench Field Stop	Three Phase Inverter	650 V	75 A	215 W	1.8V @ 15V, 50A	1 mA	3.1 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
DF150R12RT4HOSA1 IGBT MOD 1200V 150A 790W Infineon Technologies	3,700	51.01	- + RFQ	Datasheet	Bulk,Bulk	-	Active	Trench Field Stop	Single Chopper	1200 V	150 A	790 W	2.15V @ 15V, 150A	1 mA	9.3 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount
DF120R12W2H3B27BOMA1 IGBT MOD 1200V 50A 180W Infineon Technologies	731	51.28	- + RFQ	Datasheet	Bulk,Bulk	-	Active	-	Three Phase Inverter	1200 V	50 A	180 W	2.4V @ 15V, 40A	1 mA	2.35 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP15R12KT3BOSA1 IGBT MOD 1200V 18A 83.5W Infineon Technologies	2,884	70.54	- + RFQ	Datasheet	Bulk	-	Discontinued at Mosen	-	Three Phase Inverter	1200 V	18 A	83.5 W	2.45V @ 15V, 10A	5 mA	600 pF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
BSM10GD120DN2E3224BOSA1 IGBT MODULE 1200V 15A 80W Infineon Technologies	2,859	70.68	- + RFQ		Tray	-	Last Time Buy	-	Full Bridge	1200 V	15 A	80 W	3.2V @ 15V, 10A	400 µA	530 pF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount

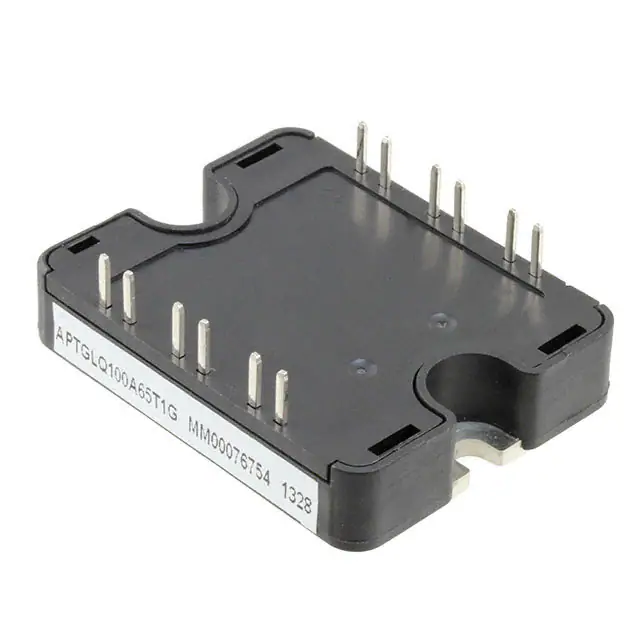

APTGLQ100A65T1G IGBT MODULE 650V 200A 350W SP1 Microchip Technology	3,450	70.69	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	650 V	200 A	350 W	2.3V @ 15V, 100A	100 µA	6 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Through Hole
APTGLQ50H65T1G IGBT MODULE 650V 70A 175W SP1 Microchip Technology	2,670	70.69	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge	650 V	70 A	175 W	2.3V @ 15V, 50A	50 µA	3.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
A2C50S65M2-F IGBT MOD 650V 50A 208W ACEPACK2 STMicroelectronics	3,002	70.94	- + RFQ	Datasheet	Tray	-	Active	Trench Field Stop	Three Phase Inverter	650 V	50 A	208 W	2.3V @ 15V, 50A	100 µA	4.15 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
NXH100B120H3Q0STG IGBT MODULE 1200V 50A 186W PIM22 onsemi	3,001	70.98	- + RFQ	Datasheet	Tray	-	Active	Trench Field Stop	2 Independent	1200 V	50 A	186 W	2.3V @ 15V, 50A	200 µA	9.075 nF @ 20 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
