Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Current-CollectorPulsed(Icm)	Vce(on)(Max)@VgeIc	Power-Max	SwitchingEnergy	InputType	GateCharge	Td(on/off)@25°C	TestCondition	ReverseRecoveryTime(trr)	OperatingTemperature	MountingType
IXGH25N250 IGBT 2500V 60A 250W TO247 IXYS	3,936	48.69	- + RFQ		Tube	-	Active	NPT	2500 V	60 A	200 A	5.2V @ 15V, 75A	250 W	-	Standard	75 nC	-	-	-	-	Through Hole
IXGH30N120B3 DISC IGBT PT-MID FREQUENCY TO-24 IXYS	3,298	51.11	- + RFQ		Tube	GenX3™	Active	PT	1200 V	60 A	150 A	3.5V @ 15V, 30A	300 W	3.47mJ (on), 2.16mJ (off)	Standard	87 nC	16ns/127ns	960V, 30A, 5Ohm, 15V	37 ns	-55°C ~ 150°C (TJ)	Through Hole
IXGA20N250HV DISC IGBT NPT-VERY HI VOLTAGE TO IXYS	2,681	51.85	- + RFQ		Tube	-	Active	-	2500 V	30 A	105 A	3.1V @ 15V, 20A	150 W	-	Standard	53 nC	-	-	-	-55°C ~ 150°C (TJ)	Surface Mount

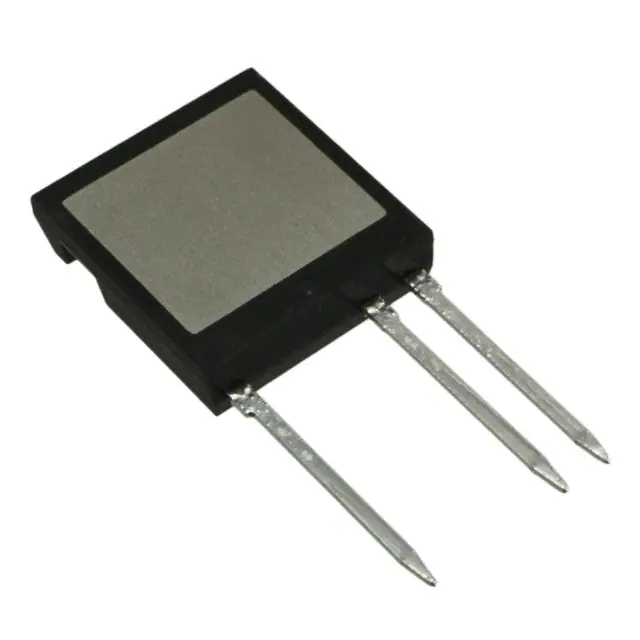

IXBF20N300 IGBT 3000V 34A 150W ISOPLUSI4 IXYS	3,512	52.48	- + RFQ	Datasheet	Tube	BIMOSFET™	Active	-	3000 V	34 A	150 A	3.2V @ 15V, 20A	150 W	-	Standard	105 nC	-	-	1.35 µs	-55°C ~ 150°C (TJ)	Through Hole
MMIX1G320N60B3 MOSFET N-CH IXYS	3,516	53.01	- + RFQ	Datasheet	Tube	GenX3™	Active	PT	600 V	400 A	1000 A	1.5V @ 15V, 100A	1000 W	2.7mJ (on), 5mJ (off)	Standard	585 nC	44ns/250ns	480V, 100A, 1Ohm, 15V	66 ns	-55°C ~ 150°C (TJ)	Surface Mount
IXYA12N250CHV DISC IGBT XPT-HI VOLTAGE TO-263D IXYS	3,043	54.60	- + RFQ		Tube	XPT™	Active	-	2500 V	28 A	80 A	4.5V @ 15V, 12A	310 W	3.56mJ (on), 1.7mJ (off)	Standard	56 nC	12ns/167ns	1250V, 12A, 10Ohm, 15V	16 ns	-55°C ~ 175°C (TJ)	Surface Mount
IXBT32N300HV IGBT 3000V 80A 400W TO268 IXYS	2,668	55.24	- + RFQ	Datasheet	Tube	BIMOSFET™	Active	-	3000 V	80 A	280 A	3.2V @ 15V, 32A	400 W	-	Standard	142 nC	50ns/160ns	1250V, 32A, 2Ohm, 15V	1500 ns	-55°C ~ 150°C (TJ)	Surface Mount
IXGF20N250 IGBT 2500V 23A 100W I4-PAK IXYS	2,212	56.08	- + RFQ	Datasheet	Tube	-	Active	-	2500 V	23 A	105 A	3.1V @ 15V, 20A	100 W	-	Standard	53 nC	-	-	-	-55°C ~ 150°C (TJ)	Through Hole
IXBX75N170A IGBT 1700V 110A 1040W PLUS247 IXYS	3,055	57.14	- + RFQ	Datasheet	Tube	BIMOSFET™	Active	-	1700 V	110 A	300 A	6V @ 15V, 42A	1040 W	3.8mJ (off)	Standard	358 nC	26ns/418ns	1360V, 42A, 1Ohm, 15V	360 ns	-55°C ~ 150°C (TJ)	Through Hole
IXYN300N65A3 DISC IGBT XPT-GENX3 SOT-227B(MIN IXYS	2,638	58.17	- + RFQ		Tube	XPT™, GenX3™	Active	PT	650 V	470 A	1600 A	1.6V @ 15V, 100A	1500 W	7.8mJ (on), 4.7mJ (off)	Standard	565 nC	42ns/190ns	400V, 100A, 1Ohm, 15V	125 ns	-55°C ~ 175°C (TJ)	Chassis Mount
IXBF42N300 IGBT 3000V TO247 IXYS	2,027	58.83	- + RFQ	Datasheet	Tube	BIMOSFET™	Active	-	3000 V	60 A	380 A	3V @ 15V, 42A	240 W	-	Standard	200 nC	72ns/445ns	1500V, 42A, 20Ohm, 15V	1.7 µs	-55°C ~ 150°C (TJ)	Through Hole
MMIX1G120N120A3V1 IGBT 1200V 220A 400W SMPD IXYS	2,222	59.04	- + RFQ	Datasheet	Tube	GenX3™	Active	PT	1200 V	220 A	700 A	2.2V @ 15V, 100A	400 W	10mJ (on), 33mJ (off)	Standard	420 nC	40ns/490ns	960V, 100A, 1Ohm, 15V	700 ns	-55°C ~ 150°C (TJ)	Surface Mount
IXBH14N300HV DISC IGBT BIMSFT VERYHIVOLT TO-2 IXYS	3,028	59.64	- + RFQ		Tube	BIMOSFET™	Active	-	3000 V	38 A	120 A	2.7V @ 15V, 14A	200 W	-	Standard	62 nC	-	-	1.4 µs	-55°C ~ 150°C (TJ)	Through Hole
IXGT25N250HV DISC IGBT NPT-VERY HI VOLTAGE TO IXYS	2,476	60.31	- + RFQ		Tube	-	Active	-	2500 V	60 A	200 A	2.9V @ 15V, 25A	250 W	-	Standard	75 nC	-	-	-	-55°C ~ 150°C (TJ)	Surface Mount
IXBH10N300HV IGBT 3000V 20A 140W TO247AD IXYS	3,294	63.48	- + RFQ	Datasheet	Tube	BIMOSFET™	Active	-	3000 V	34 A	88 A	2.8V @ 15V, 10A	180 W	-	Standard	46 nC	36ns/100ns	960V, 10A, 10Ohm, 15V	1.6 µs	-55°C ~ 150°C (TJ)	Surface Mount
IXXN340N65B4 IGBT MODULE DISC IGBT SOT227B IXYS	3,043	64.07	- + RFQ		Tube	GenX4™, XPT™	Active	PT	650 V	520 A	1200 A	1.7V @ 15V, 160A	1500 W	4.4mJ (on), 2.2mJ (off)	Standard	553 nC	62ns/245ns	400V, 100A, 1Ohm, 15V	65 ns	-55°C ~ 175°C (TJ)	Chassis Mount
IXGT25N250-T/R IXGT25N250 IXYS	3,332	65.88	- + RFQ		Tape & Reel (TR)	-	Active	NPT	2500 V	60 A	200 A	2.9V @ 15V, 25A	250 W	-	Standard	75 nC	68ns/209ns	1250V, 50A, 5Ohm, 15V	233 ns	-55°C ~ 150°C (TJ)	Surface Mount
IXBH32N300HV DISC IGBT BIMSFT-VERYHIVOLT TO-2 IXYS	3,529	67.86	- + RFQ		Tube	BIMOSFET™	Active	-	3000 V	80 A	280 A	3.2V @ 15V, 32A	400 W	-	Standard	142 nC	-	-	-	-55°C ~ 150°C (TJ)	Through Hole
IXG65I3300KN DISC IGBT NPT-VERY HI VOLTAGE IS IXYS	3,652	81.75	- + RFQ		Tube	X2PT™	Active	PT	3300 V	85 A	-	-	-	-	Standard	-	-	-	-	-	Through Hole
IXBA14N300HV REVERSE CONDUCTING IGBT IXYS	3,672	83.97	- + RFQ	Datasheet	Tube	BIMOSFET™	Active	NPT	3000 V	38 A	120 A	2.7V @ 15V, 14A	200 W	-	Standard	62 nC	40ns/166ns	960V, 14A, 20Ohm, 15V	1.4 µs	-55°C ~ 150°C (TJ)	Surface Mount
