| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Function | Type | Inductance | Tolerance | DCResistance(DCR) | Q@Freq | CurrentRating(Amps) | Current-Saturation(Isat) | Frequency-SelfResonant | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AWCCA-26R26H08-C01-BRX 1 COIL 1 LAYER 10UH |
3,250 | 3.69 |
RFQ |
Datasheet |
Box | AWCCA | Not For New Designs | Receiver | 1 Coil, 1 Layer | 10µH | ±10% | 320mOhm | 18.5 @ 100kHz | - | - | - | -25°C ~ 85°C |
|
IWTX47R0EBEB240JF1IWTX-47R0EB-F1 24 5% EB E2 |
3,216 | 3.79 |
RFQ |
Datasheet |
Tray | - | Active | Transmitter | 1 Coil, 1 Layer | 24µH | ±5% | 75mOhm | 200 @ 200kHz | 6A | 20A | - | -40°C ~ 105°C |
|
SWC4242KB120-100RX 1 COIL 1 LAYER 12.5UH |
2,328 | 4.11 |
RFQ |
Datasheet |
Box | SWC | Active | Receiver | 1 Coil, 1 Layer | 12.5µH | ±10% | 240mOhm Max | 20 @ 100kHz | - | - | - | -40°C ~ 85°C |
|
|
IWTX4646DCEB240JF1IWTX-4646DC-F1 24 5% EB E2 |
3,991 | 4.38 |
RFQ |
Datasheet |
Tray | - | Active | Transmitter | 1 Coil, 1 Layer | 24µH | ±5% | 75mOhm | 185 @ 200kHz | 6A | 20A | - | -40°C ~ 105°C |
|
AWCCA-50N50H35-C01-BRX TX 1 COIL 1 LAYER 24UH 5.4A |
2,972 | 4.47 |
RFQ |
Datasheet |
Box | AWCCA-50N50 | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 72mOhm | 160 @ 100kHz | 5.4A | 21A | 3MHz | -25°C ~ 85°C |
|
AWCCA-12R12H11-C01-BRX 1 COIL 1 LAYER 8UH |
2,886 | 0.00 |
RFQ |
Datasheet |
Box | AWCCA | Active | Receiver | 1 Coil, 1 Layer | 8µH | ±10% | 520mOhm | 10 @ 100kHz | - | - | - | -25°C ~ 85°C |
|
AWCCA-18R18H10-C01-BRX 1 COIL 1 LAYER 10.5UH |
3,514 | 0.00 |
RFQ |
Datasheet |
Box | AWCCA | Active | Receiver | 1 Coil, 1 Layer | 10.5µH | ±10% | 330mOhm | 17 @ 100kHz | - | - | - | -25°C ~ 85°C |
|
AWCCA-50N50H30-C21-BRX TX 1 COIL 1 LAYER 6.3UH |
2,911 | 0.00 |
RFQ |
Datasheet |
Box | AWCCA | Active | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 38mOhm | 90 @ 100kHz | - | - | - | -25°C ~ 85°C |
|
1461791001RX 1 COIL 1 LAYER 11.6UH |
2,014 | 0.00 |
RFQ |
Datasheet |
Bulk | NuCurrent, PowerLife, 146179 | Obsolete | Receiver | 1 Coil, 1 Layer | 11.6µH | ±2% | 520mOhm | 23 @ 200kHz | - | - | - | - |
|
IWTX47R0BEEB6R3J11WIRELESS CHARGING COIL |
3,335 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±5% | 38mOhm | 190 @ 200kHz | 7A | 22A | 22MHz | -55°C ~ 105°C |
|

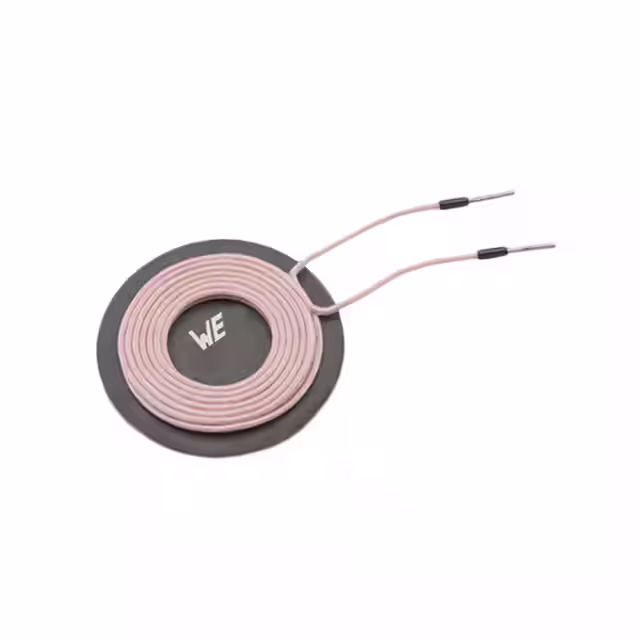

760308101141WE-WPCC WIRELESS POWER CHARGING |
2,635 | 18.28 |
RFQ |
Datasheet |
Bulk | WE-WPCC | Active | Transmitter | 1 Coil, 2 Layer | 10µH | ±10% | 30mOhm Max | 220 @ 125kHz | 9A | 16A | 11MHz | -20°C ~ 105°C |
|

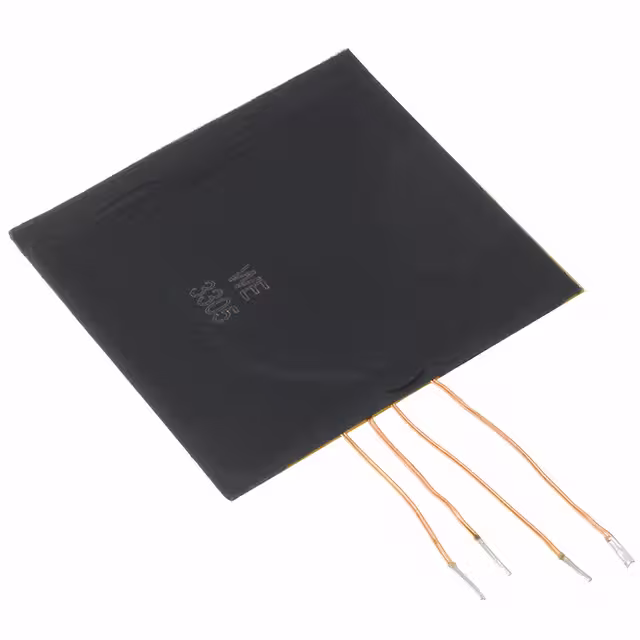

760308103305WE-WPCC WIRELESS POWER CHARGING |
3,092 | 14.24 |
RFQ |
Datasheet |
Tray | WE-WPCC | Active | Receiver | 2 Coil, 1 Layer | 8.8µH, 1.4µH | ±10% | 220mOhm Max, 100mOhm Max | 30 @ 125Khz, 47 @ 125kHz | 2.6A, 5A | 5A, 5A | 22MHz, 16MHz | -20°C ~ 105°C |
|
760308101304TX 1 COIL 1 LAYER 6.3UH 6A |
2,920 | 18.76 |
RFQ |
Datasheet |
Box | WE-WPCC | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 48mOhm Max | 115 @ 125kHz | 6A | 10A | 16MHz | -20°C ~ 105°C |
|
|
AWCCA-RX404012-101RX COIL 1 LAYER 8.0UH |
3,169 | 1.31 |
RFQ |
Tray | AWCCA | Not For New Designs | Receiver | 1 Coil, 1 Layer | 8µH | ±10% | 80mOhm Max | - | - | - | - | - | |
|
|
IWTX5050CZEB6R3KF1WIRELESS CHARGING TRANSMIT COIL |
3,940 | 1.38 |
RFQ |
Datasheet |
Tray | - | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 45mOhm Max | 120 @ 100kHz | 5A | - | - | -40°C ~ 85°C |
|
|
IWAS3010AZEB130KF1WIRELESS CHARGING RECEIVE COIL |
2,194 | 1.59 |
RFQ |
Datasheet |
Tray | - | Active | Receiver | 1 Coil, 1 Layer | 12.9µH | ±10% | 780mOhm Max | 11 @ 100kHz | 800mA | - | - | -40°C ~ 85°C |
|
|
IWTX55R0DZEB8R9KF1WIRELESS CHARGING TRANSMIT COIL |
3,148 | 2.00 |
RFQ |
Datasheet |
Tray | - | Active | Transmitter | 1 Coil, 1 Layer | 8.9µH | ±10% | 55mOhm Max | 98.5 @ 100kHz | 6A | - | - | -40°C ~ 125°C |
|
AWCCA-RX350300-101RX COIL, 1 COIL 25UH |
3,160 | 2.11 |
RFQ |
Datasheet |
Tray | AWCCA | Not For New Designs | Receiver | 1 Coil, 2 Layer | 25µH | ±10% | 170mOhm | 85 @ 100kHz | - | - | - | -25°C ~ 85°C |
|
AWCCA-38R32H09-C01-BRX 1 COIL 1 LAYER 11.1UH 2.1A |
2,357 | 2.31 |
RFQ |
Datasheet |
Box | AWCCA-38R32 | Not For New Designs | Receiver | 1 Coil, 1 Layer | 11.1µH | ±10% | 260mOhm | 22 @ 100kHz | 2.1A | 12A | 11MHz | -25°C ~ 85°C |
|
|
IWTX5555DEEB100KF1WIRELESS CHARGING TRANSMIT COIL |
2,305 | 2.32 |
RFQ |
Datasheet |
Tray | - | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 80mOhm Max | 99 @ 100kHz | 6A | - | - | -40°C ~ 85°C |
