| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Package / Case | Capacitance @ Vr, F | Supplier Device Package | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature - Junction | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-3EJH01HM3/6BDIODE GEN PURP 100V 3A DO221AC |
131 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 2 µA @ 100 V | 100 V | 3A | -65°C ~ 175°C | 930 mV @ 3 A | ||
|
SCS215AGC17DIODE SCHOTTKY 650V 15A TO220AC |
2,866 | 6.07 |
RFQ |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 550pF @ 1V, 1MHz | 0 ns | 300 µA @ 600 V | 650 V | 15A (DC) | 175°C | 1.55 V @ 15 A | ||||
|
ES2DHE3_A/IDIODE GEN PURP 200V 2A DO214AA |
120 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 18pF @ 4V, 1MHz | 20 ns | 10 µA @ 200 V | 200 V | 2A | -55°C ~ 150°C | 900 mV @ 2 A | ||
|
VS-HFA06PB120-N3DIODE GEN PURP 1.2KV 6A TO247AC |
3,854 | 6.10 |
RFQ |
Datasheet |
Tube | HEXFRED® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 80 ns | 5 µA @ 1200 V | 1200 V | 6A | -55°C ~ 150°C | 3 V @ 6 A | ||
;;2.jpg)
|
BYM13-20-E3/96DIODE SCHOTTKY 20V 1A DO213AB |
118 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 110pF @ 4V, 1MHz | - | 500 µA @ 20 V | 20 V | 1A | -55°C ~ 125°C | 500 mV @ 1 A | |||
|
MSC030SDA070BDIODE SCHOTTKY 700V TO-247 |
2,019 | 6.23 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1200pF @ 1V, 1MHz | 0 ns | 200 µA @ 700 V | 700 V | 60A (DC) | -55°C ~ 175°C | 1.8 V @ 30 A | |||
|

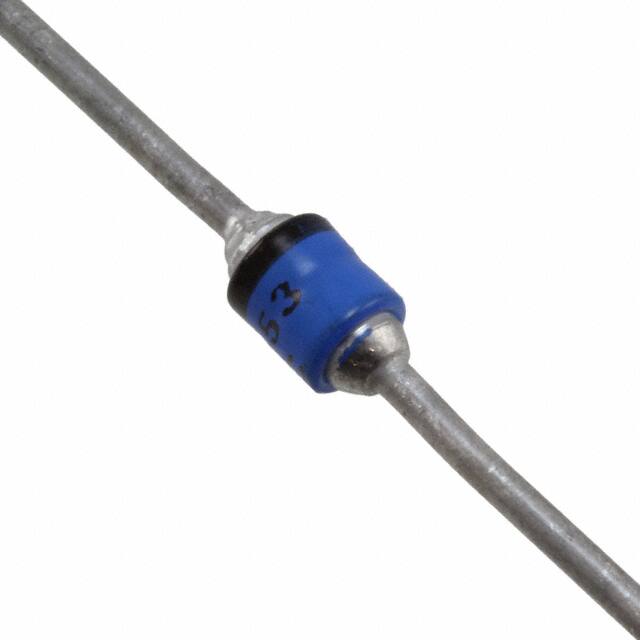

1N5553DIODE GEN PURP 800V 3A AXIAL |
2,599 | 6.37 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 1 µA @ 800 V | 800 V | 3A | -65°C ~ 175°C | 1.2 V @ 9 A | |||
|
C3D10065IDIODE SCHOTTKY 650V 10A TO220-2 |
2,673 | 6.40 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 480pF @ 0V, 1MHz | 0 ns | 50 µA @ 650 V | 650 V | 19A (DC) | -55°C ~ 175°C | - | ||
|
1N2159DO5 40 AMP SILICON RECTFIER |
3,700 | 2.50 |
RFQ |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 500 V | 500 V | 40A | -65°C ~ 200°C | 1.19 V @ 90 A | ||||
|

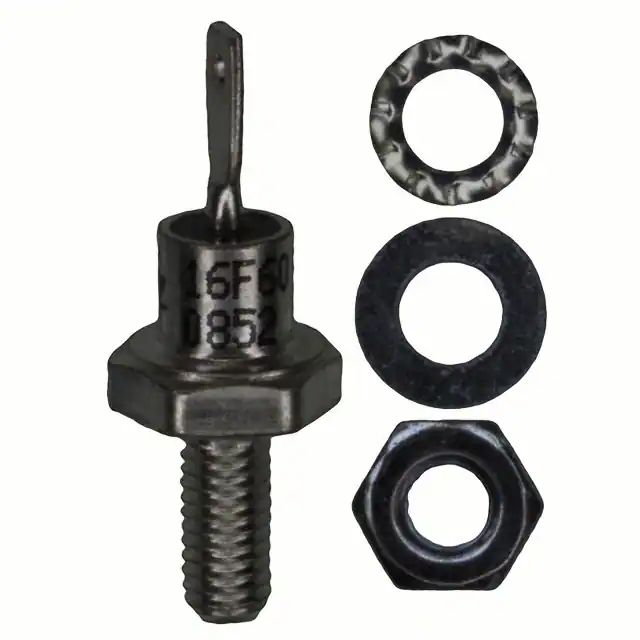

VS-16F60DIODE GEN PURP 600V 16A DO203AA |
3,711 | 6.48 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 12 mA @ 600 V | 600 V | 16A | -65°C ~ 175°C | 1.23 V @ 50 A | |||
|
|
1N1434RDO5 40 AMP SILICON RECTFIER |
2,012 | 2.50 |
RFQ |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | 10 µA @ 50 V | 50 V | 40A | -65°C ~ 200°C | 1.19 V @ 90 A | ||||
|
1N3210DIODE GEN PURP 200V 15A DO5 |
2,023 | 6.59 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 50 V | 200 V | 15A | -65°C ~ 175°C | 1.5 V @ 15 A | |||
|
|
1N2273RDO5 40 AMP SILICON RECTFIER |
2,960 | 2.50 |
RFQ |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | 10 µA @ 100 V | 100 V | 40A | -65°C ~ 200°C | 1.19 V @ 90 A | ||||
|
STPSC20065WDIODE SCHOTTKY 650V 20A DO247 |
3,804 | 6.64 |
RFQ |
Datasheet |
Tube | ECOPACK®2 | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1250pF @ 0V, 1MHz | 0 ns | 300 µA @ 650 V | 650 V | 20A | -40°C ~ 175°C | 1.45 V @ 20 A | ||
|
|
1N2285DO5 40 AMP SILICON RECTFIER |
3,480 | 2.50 |
RFQ |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 600 V | 600 V | 40A | -65°C ~ 200°C | 1.19 V @ 90 A | ||||
|
|
SCS220AGC17DIODE SCHOTTKY 650V 20A TO220AC |
3,002 | 6.69 |
RFQ |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 730pF @ 1V, 1MHz | 0 ns | 400 µA @ 600 V | 650 V | 20A (DC) | 175°C | 1.55 V @ 20 A | ||||
|
IDM02G120C5XTMA1DIODE SCHOTTKY 1200V 2A TO252-2 |
3,595 | 2.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | CoolSiC™+ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 182pF @ 1V, 1MHz | 0 ns | 18 µA @ 1200 V | 1200 V | 2A (DC) | -55°C ~ 175°C | 1.65 V @ 2 A | ||
;;3.jpg)
|
VS-65APF12LHM3DIODES - TO-247-E3 |
2,969 | 6.70 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 480 ns | 100 µA @ 1200 V | 1200 V | 65A | -40°C ~ 150°C | 1.42 V @ 65 A | ||
|
|
60HFR60DO5 60 AMP SILICON RECTFIER AK |
2,764 | 2.95 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 200 µA @ 600 V | 600 V | 60A | -65°C ~ 150°C | 1.3 V @ 60 A | |||
|
VS-65EPF06LHM3DIODES - TO-247-E3 |
2,060 | 6.70 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 180 ns | 100 µA @ 600 V | 600 V | 65A | -40°C ~ 150°C | 1.32 V @ 65 A |
