Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
PC95SP135X65X20 FERRITE CORE SP 1PCS TDK Corporation	3,517	91.78	- + RFQ	Datasheet	Tray	SP	Active	SP	SP 135 x 65 x 20	PC95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)
T60006L2102V080 NANOCRYSTALLINE CORE, 102X76X25 VACUUMSCHMELZE	3,212	0.00	- + RFQ	Datasheet	Box	-	Active	Toroid	-	-	4.256 (108.10mm)	19.1 µH	-	Ungapped	-	-	-	280	247	-	-	Uncoated	1.193 (30.30mm)

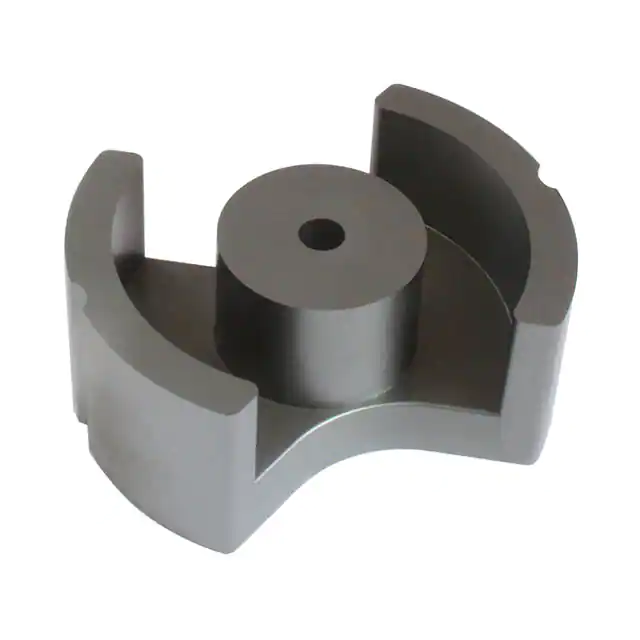

PM87/70-3C94 FERRITE CORE 2PC SET Ferroxcube	3,509	107.21	- + RFQ	Datasheet	Bulk	-	Active	PM	PM 87 x 70	3C94	3.425 (87.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	2.756 (70.00mm)

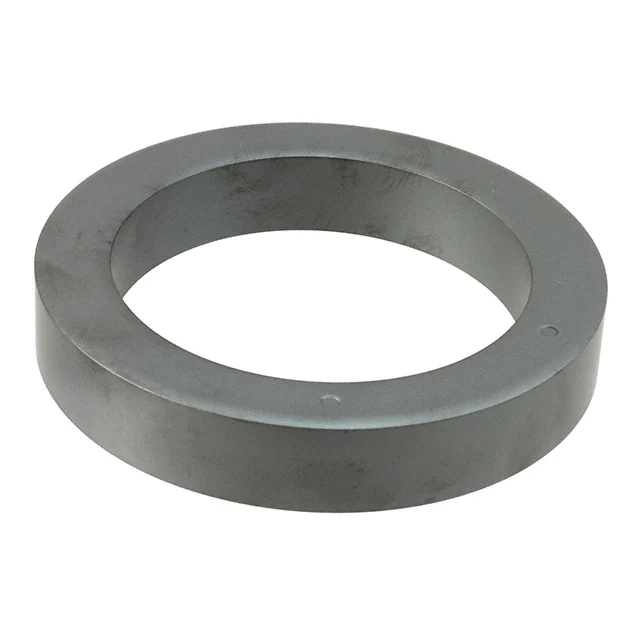

B64290A0705X830 FERRITE CORE TOROID 6.2UH N30 EPCOS - TDK Electronics	3,908	166.86	- + RFQ	Datasheet	Box	T140/103/25	Active	Toroid	R 140 x 103 x 25	N30	5.512 (140.00mm)	6.2 µH	±25%	Ungapped	-	4000	0.82	375.8	458.9	-	172440	Uncoated	0.984 (25.00mm)

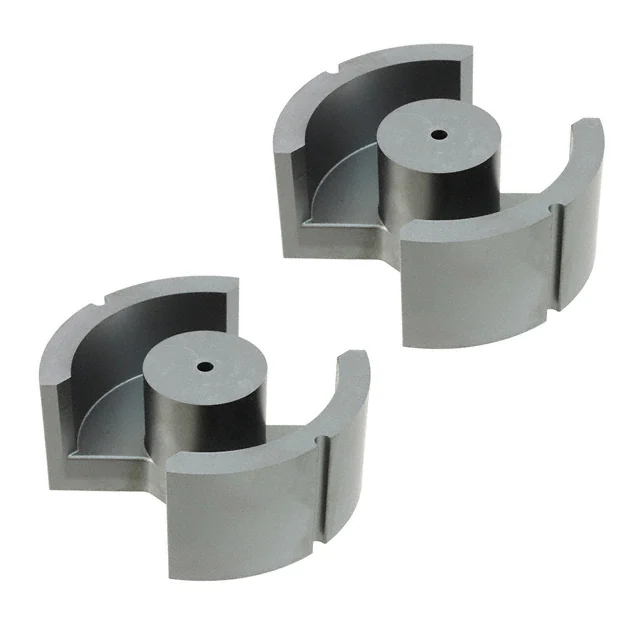

B65733A0000R087 FERRITE CORE PM 16UH N87 2PCS EPCOS - TDK Electronics	3,012	367.33	- + RFQ	Datasheet	Box	PM114/93	Active	PM	PM 114 x 93	N87	4.488 (114.00mm)	16 µH	-20%, +30%	Ungapped	1480	2200	0.116	200	1720	1380	344000	Uncoated	1.831 (46.50mm)
TX14/9/5-3E6 FERRITE CORES ROUND Ferroxcube	3,455	0.64	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 14 x 9 x 5	-	0.561 (14.25mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.207 (5.25mm)
5961007403 FERRITE TOROIDS / FERRITE RINGS Fair-Rite Products Corp.	3,335	0.69	- + RFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PC47EPC10-Z FERRITE CORE EPC 1UH 2PC SET TDK Corporation	3,640	0.73	- + RFQ	Datasheet	Tray	EPC	Active	EPC	EPC 10	PC47	-	1 µH	±25%	Ungapped	-	-	1.89	17.8	9.39	-	167	Uncoated	0.134 (3.40mm)
PC95ER14.5/6-Z FERRITE CORE ER 1.88UH 2PC SET TDK Corporation	2,197	0.81	- + RFQ	Datasheet	Tray	Planar	Active	ER	ER 14.5 x 6	PC95	-	1.88 µH	±25%	Ungapped	-	-	1.08	17.6	19	17.3	333	Uncoated	0.118 (3.00mm)
B66317G0160X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	2,512	0.87	- + RFQ	Datasheet	Box	E25/13/7	Active	E	E 25 x 13 x 7	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
PC47EI12.5-Z EI CORE SMPS TRANSFORMER 1 SET TDK Corporation	2,065	0.87	- + RFQ	Datasheet	Tray	E	Active	E	-	PC47	-	1.2 µH	±25%	Ungapped	-	2500	1.48	21.3	14.4	-	308	Uncoated	0.291 (7.40mm)
PC47EI22-Z EI CORE SMPS TRANSFORMER 1 SET TDK Corporation	3,734	1.02	- + RFQ	Datasheet	Tray	E	Active	E	-	PC47	-	2.4 µH	±25%	Ungapped	-	2500	0.936	39.3	42	-	1650	Uncoated	-

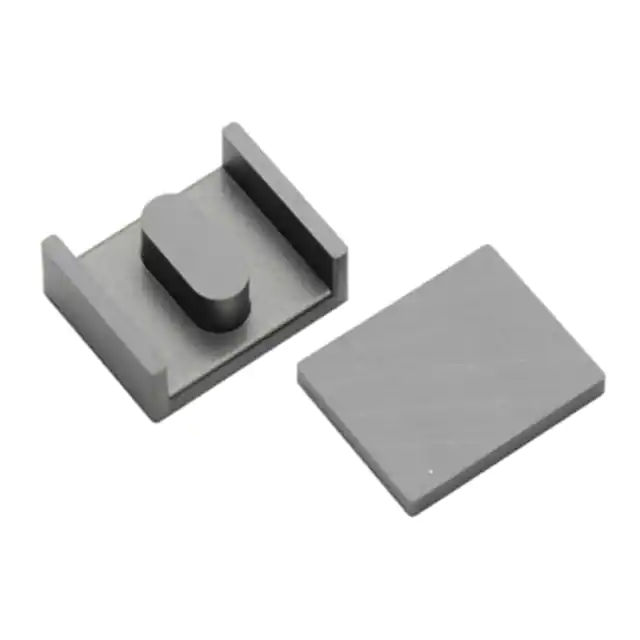

PC95ELT11X4-Z FERRITE CORE ELT 2.4UH 1SET TDK Corporation	2,473	1.11	- + RFQ	Datasheet	Tray	Planar	Active	ELH, PLT	ELT 11 x 4	PC95	-	2.4 µH	±25%	Ungapped	-	-	0.83	16.5	13.7	15.9	226	Uncoated	0.119 (3.02mm)
PC95EI14/5/5-Z FERRITE CORE EI 1.55UH 1SET TDK Corporation	2,240	1.17	- + RFQ	Datasheet	Tray	Planar	Active	HE, PLT	EI 14 x 5 x 5	PC95	-	1.55 µH	±25%	Ungapped	-	-	1.11	15	16.7	15	251	Uncoated	0.197 (5.00mm)
PC95ELT13X4.4-Z FERRITE CORE ELT 3.16UH 1SET TDK Corporation	3,164	1.38	- + RFQ	Datasheet	Tray	Planar	Active	ELH, PLT	ELT 13 x 4.4	PC95	-	3.16 µH	±25%	Ungapped	-	-	0.67	23.1	15.4	22.4	357	Uncoated	0.125 (3.18mm)
B65807J0400A087 FERRITE CORE EPCOS - TDK Electronics	2,399	3.09	- + RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	RM6	Active	RM	RM 6	N87	-	-	-	Gapped	-	2200	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
B65807C0250A048 FERRITE CORE RM 250NH N48 2PCS EPCOS - TDK Electronics	2,331	2.95	- + RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	RM6	Active	RM	RM 6	N48	-	250 nH	±3%	Gapped	171	-	0.86	26.9	31.3	-	840	Uncoated	0.246 (6.25mm)
PC95EIR18/5/12-Z FERRITE CORE EIR 3.69UH 1SET TDK Corporation	2,506	1.65	- + RFQ	Datasheet	Tray	Planar	Active	HER, PLT	EI 18 x 5 x 12	PC95	-	3.69 µH	±25%	Ungapped	-	-	0.6	32.8	19.7	28.3	645	Uncoated	0.197 (5.00mm)
B66483G0000X187 FERRITE CORE EQ N87 1PC EPCOS - TDK Electronics	3,330	1.68	- + RFQ	Datasheet	Box	EQ20/6.3/14	Active	EQ	EQ 20 x 6	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.248 (6.30mm)
EFD12/6/3.5-3F46-S FERRITE CORE 2PC SET Ferroxcube	3,352	2.13	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 12 x 6 x 3.5	3F46	-	-	±25%	Ungapped	657	-	2.5	28.5	11.4	10.7	325	Uncoated	0.244 (6.20mm)
