Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
APTGF15H120T1G IGBT MODULE 1200V 25A 140W SP1 Microsemi Corporation	2,908	- + RFQ	Datasheet	Bulk	-	Obsolete	NPT	Full Bridge Inverter	1200 V	25 A	140 W	3.7V @ 15V, 15A	250 µA	1 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF15H120T3G IGBT MODULE 1200V 25A 140W SP3 Microsemi Corporation	3,748	- + RFQ	Datasheet	Bulk	-	Obsolete	NPT	Full Bridge Inverter	1200 V	25 A	140 W	3.7V @ 15V, 15A	250 µA	1 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF15X120T3G IGBT MODULE 1200V 25A 140W SP3 Microsemi Corporation	2,014	- + RFQ	Datasheet	Bulk	-	Obsolete	NPT	Three Phase Inverter	1200 V	25 A	140 W	3.7V @ 15V, 15A	250 µA	1 nF @ 25 V	Standard	Yes	-	Chassis Mount

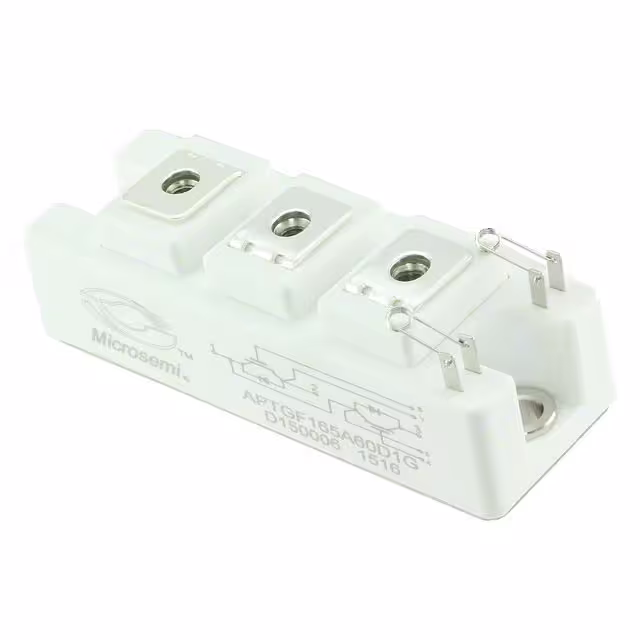

APTGF165A60D1G IGBT MODULE 600V 230A 781W D1 Microsemi Corporation	2,827	- + RFQ	Datasheet	Bulk	-	Obsolete	NPT	Half Bridge	600 V	230 A	781 W	2.45V @ 15V, 200A	250 µA	9 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF165DA60D1G IGBT MODULE 600V 230A 730W D1 Microsemi Corporation	2,091	- + RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	600 V	230 A	730 W	2.5V @ 15V, 200A	500 µA	9 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF165SK60D1G IGBT MODULE 600V 230A 730W D1 Microsemi Corporation	3,977	- + RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	600 V	230 A	730 W	2.5V @ 15V, 200A	500 µA	9 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF180A60TG IGBT MODULE 600V 220A 833W SP4 Microchip Technology	3,610	- + RFQ	Datasheet	Bulk	-	Obsolete	NPT	Half Bridge	600 V	220 A	833 W	2.5V @ 15V, 180A	300 µA	8.6 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF180DA60TG IGBT MODULE 600V 220A 833W SP4 Microsemi Corporation	2,121	- + RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	600 V	220 A	833 W	2.5V @ 15V, 180A	300 µA	8.6 nF @ 25 V	Standard	Yes	-	Chassis Mount

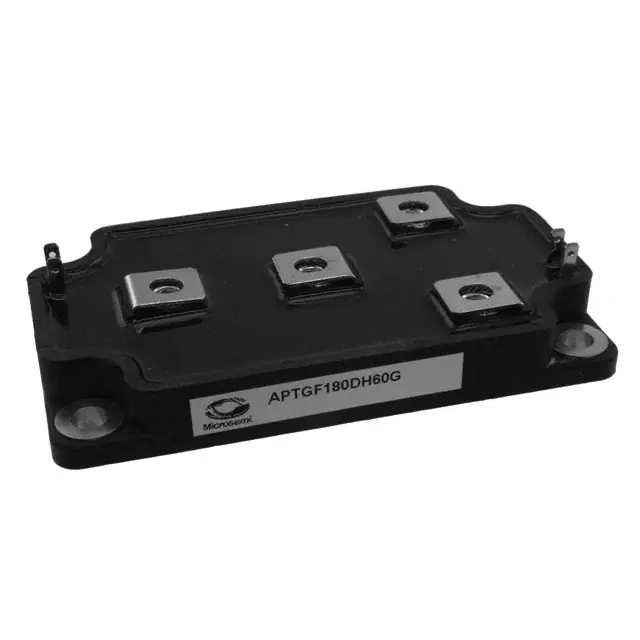

APTGF180DH60G IGBT MODULE 600V 220A 833W SP6 Microsemi Corporation	3,774	- + RFQ	Datasheet	Bulk	-	Obsolete	NPT	Asymmetrical Bridge	600 V	220 A	833 W	2.5V @ 15V, 180A	300 µA	8.6 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF180DU60TG IGBT MODULE 600V 220A 833W SP4 Microsemi Corporation	2,507	- + RFQ	Datasheet	Bulk	-	Obsolete	NPT	Dual, Common Source	600 V	220 A	833 W	2.5V @ 15V, 180A	300 µA	8.6 nF @ 25 V	Standard	Yes	-	Chassis Mount

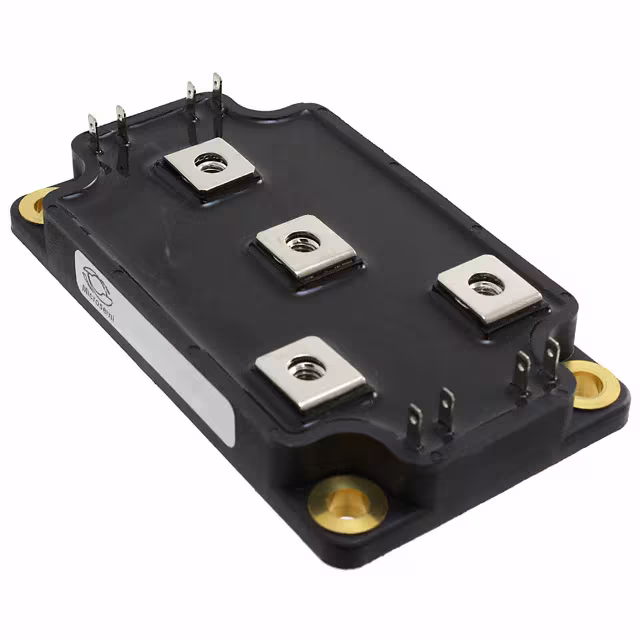

APTGF180H60G IGBT MODULE 600V 220A 833W SP6 Microchip Technology	3,212	- + RFQ	Datasheet	Bulk	-	Obsolete	NPT	Full Bridge Inverter	600 V	220 A	833 W	2.5V @ 15V, 180A	300 µA	8.6 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF180SK60TG IGBT MODULE 600V 220A 833W SP4 Microchip Technology	2,540	- + RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	600 V	220 A	833 W	2.5V @ 15V, 180A	300 µA	8.6 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF200A120D3G IGBT MODULE 1200V 300A 1400W D3 Microsemi Corporation	3,063	- + RFQ		Bulk	-	Obsolete	NPT	Half Bridge	1200 V	300 A	1400 W	3.7V @ 15V, 200A	5 mA	13 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF200DA120D3G IGBT MODULE 1200V 300A 1400W D3 Microsemi Corporation	3,694	- + RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	1200 V	300 A	1400 W	3.7V @ 15V, 200A	5 mA	13 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
APTGF200SK120D3G IGBT MODULE 1200V 300A 1400W D3 Microsemi Corporation	3,281	- + RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	1200 V	300 A	1400 W	3.7V @ 15V, 200A	5 mA	13 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
APTGF200U120DG IGBT MODULE 1200V 275A 1136W SP6 Microsemi Corporation	3,324	- + RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	1200 V	275 A	1136 W	3.7V @ 15V, 200A	500 µA	13.8 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF250A60D3G IGBT MODULE 600V 400A 1250W D3 Microsemi Corporation	2,775	- + RFQ		Bulk	-	Obsolete	NPT	Half Bridge	600 V	400 A	1250 W	2.45V @ 15V, 300A	500 µA	13 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF250DA60D3G IGBT MODULE 600V 400A 1250W D3 Microsemi Corporation	3,904	- + RFQ		Bulk	-	Obsolete	NPT	Single	600 V	400 A	1250 W	2.45V @ 15V, 300A	500 µA	13 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF250SK60D3G IGBT MODULE 600V 400A 1250W D3 Microsemi Corporation	3,195	- + RFQ		Bulk	-	Obsolete	NPT	Single	600 V	400 A	1250 W	2.45V @ 15V, 300A	500 µA	13 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF25A120T1G IGBT MODULE 1200V 40A 208W SP1 Microsemi Corporation	2,262	- + RFQ	Datasheet	Bulk	-	Obsolete	NPT	Half Bridge	1200 V	40 A	208 W	3.7V @ 15V, 25A	250 µA	1.65 nF @ 25 V	Standard	Yes	-	Chassis Mount
