Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

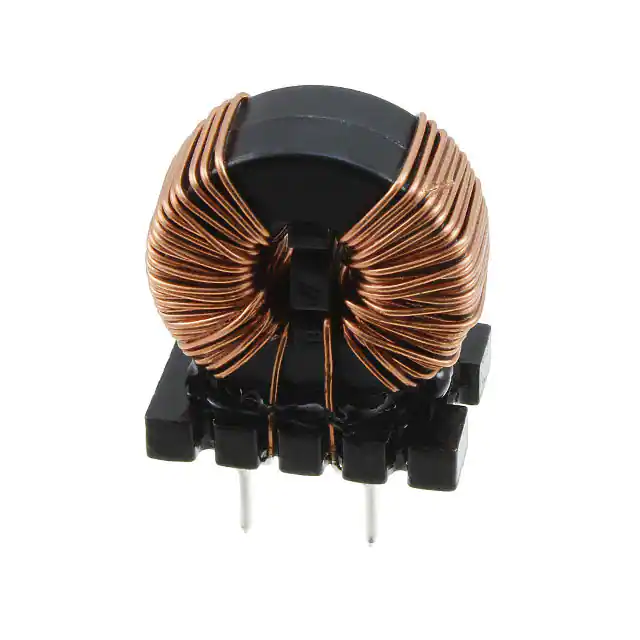

7448040515 CMC 15MH 5A 2LN TH Würth Elektronik	2,096	14.07	- + RFQ	Datasheet	Bulk	WE-CMBNC	Active	Power Line	2	-	15 mH @ 10 kHz	5A	38mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.102 L x 0.748 W (28.00mm x 19.00mm)	1.260 (32.00mm)
744830007215 CMC 700UH 21.5A 2LN TH Würth Elektronik	3,906	14.33	- + RFQ	Datasheet	Tray	WE-CMB HV	Active	Power Line	2	-	700 µH @ 10 kHz	21.5A	3.8mOhm	-	760V	-40°C ~ 125°C	-	-	-	Through Hole	1.673 Dia x 0.906 W (42.50mm x 23.00mm)	1.555 (39.50mm)

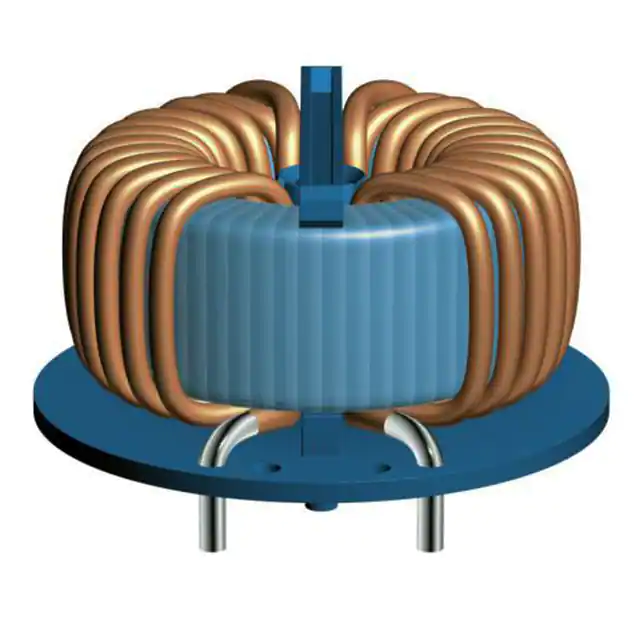

B82726S3223A340 CMC 1.7MH 25A 2LN TH EPCOS - TDK Electronics	2,679	15.34	- + RFQ	Datasheet	Tray	B82726	Active	Power Line	2	-	1.7 mH @ 10 kHz	25A	2.75mOhm (Typ)	-	300V	-40°C ~ 125°C	-	UR	-	Through Hole	2.165 Dia (55.00mm)	1.339 (34.00mm)
B82727E6443A040 CMC 1MH 44A 2LN TH EPCOS - TDK Electronics	2,015	16.11	- + RFQ	Datasheet	Tray	B82727	Active	Power Line	2	-	1 mH @ 100 kHz	44A	1.35mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	UR	-	Through Hole	2.559 L x 1.378 W (65.00mm x 35.00mm)	2.402 (61.00mm)
ACE1V4532-510-R CMC 51UH 200MA 2LN SMD AEC-Q200 Eaton - Electronics Division	3,107	1.01	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACE1V4532	Active	Signal Line	2	2 kOhms @ 10 MHz	51 µH @ 100 kHz	200mA	1Ohm	50V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.118 (3.00mm)
ACE1V4532-220-R CMC 22UH 200MA 2LN SMD AEC-Q200 Eaton - Electronics Division	3,782	0.79	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACE1V4532	Active	Signal Line	2	1 kOhms @ 10 MHz	22 µH @ 100 kHz	200mA	1Ohm	50V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.118 (3.00mm)
DLW32SH220XK2L CMC 22UH 250MA 2LN SMD AEC-Q200 Murata Electronics	3,173	0.59	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DLW32	Not For New Designs	-	2	-	22 µH @ 100 kHz	250mA	500mOhm	80V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.098 (2.50mm)
DLW32SH510XK2L CMC 51UH 200MA 2LN SMD AEC-Q200 Murata Electronics	3,818	0.59	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DLW32	Not For New Designs	-	2	-	51 µH @ 100 kHz	200mA	700mOhm	80V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.098 (2.50mm)
DLW5ATZ450TQ2L CMC 4A 2LN 45 OHM SMD Murata Electronics	3,498	1.34	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DLW5A	Active	Power Line	2	45 Ohms @ 100 MHz	-	4A	13mOhm	50V	-	-40°C ~ 105°C	-	-	-	Surface Mount	0.197 L x 0.142 W (5.00mm x 3.60mm)	0.093 (2.35mm)
RT8132-6-6M0 CMC 6MH 6A 3LN TH Schaffner EMC Inc.	2,167	10.01	- + RFQ	Datasheet	Tray	RT	Active	Power Line	3	-	6 mH @ 100 kHz	6A	27mOhm (Typ)	-	600V	-40°C ~ 100°C	-	-	-	Through Hole	-	1.339 (34.00mm)
B82745S6123N002 CMC 350UH 12A 3LN TH EPCOS - TDK Electronics	2,796	10.20	- + RFQ	Datasheet	Tray	B82745	Active	Power Line	3	-	350 µH @ 100 kHz	12A	3.7mOhm (Typ)	-	440/250V	-40°C ~ 125°C	-	-	-	Through Hole	2.953 Dia (75.00mm)	1.850 (47.00mm)
RT8522-16-4M0 CMC 4MH 16A 2LN TH Schaffner EMC Inc.	2,342	10.91	- + RFQ	Datasheet	Tray	RT	Active	Power Line	2	-	4 mH @ 100 kHz	16A	10mOhm (Typ)	425V	300V	-40°C ~ 100°C	-	-	-	Through Hole	1.969 L x 1.260 W (50.00mm x 32.00mm)	2.047 (52.00mm)
T60405R6126X216 CMC 1.28MH 35MA 2LN 1.3KOHM TH VACUUMSCHMELZE	3,209	11.60	- + RFQ	Datasheet	Box	-	Active	-	2	1.3 kOhms @ 100 kHz	1.28 mH @ 100 kHz	35mA	-	-	-	-40°C ~ 130°C	-	-	-	Through Hole	1.634 L x 0.925 W (41.50mm x 23.50mm)	1.587 (40.30mm)

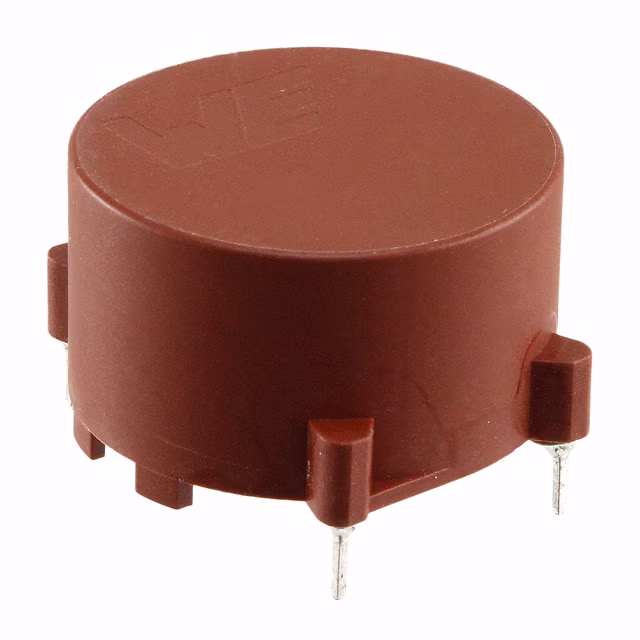

7446821027 CMC 27MH 1A 2LN TH Würth Elektronik	3,019	5.70	- + RFQ	Datasheet	Tray	WE-LF	Active	Power Line	2	-	27 mH @ 10 kHz	1A	640mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.122 L x 1.122 W (28.50mm x 28.50mm)	0.669 (17.00mm)

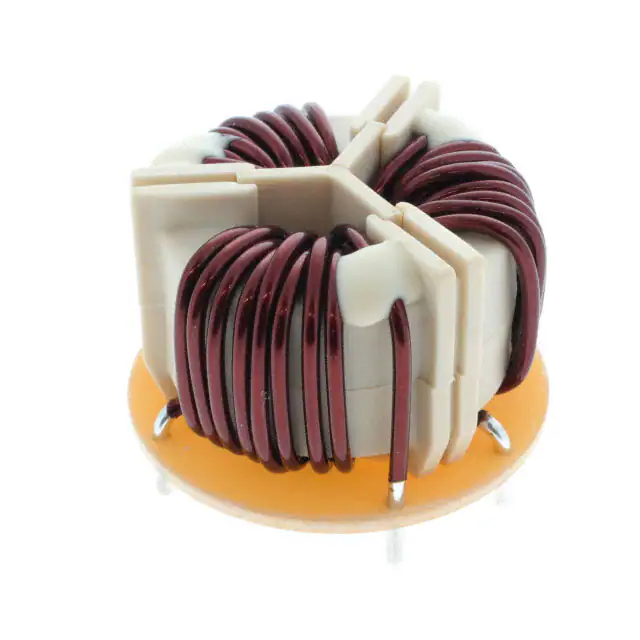

SCF31-150-S1R6A010JH CMC 1MH 15A 3LN TH KEMET	3,466	12.32	- + RFQ	Datasheet	Tray	SCF	Active	Power Line	3	-	1 mH @ 100 kHz	15A	5.4mOhm	500V	500V	25°C ~ 120°C	-	-	-	Through Hole	1.654 Dia (42.00mm)	1.063 (27.00mm)
B82726S2203A020 CMC 1.6MH 20A 2LN TH EPCOS - TDK Electronics	2,275	13.12	- + RFQ	Datasheet	Tray	B82726	Active	Power Line	2	-	1.6 mH @ 10 kHz	20A	4.5mOhm (Typ)	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.969 L x 0.906 W (50.00mm x 23.00mm)	1.929 (49.00mm)
744844471 CMC 470UH 9A 2LN TH Würth Elektronik	2,815	13.13	- + RFQ	Datasheet	Tray	WE-ExB	Active	Power Line	2	-	470 µH @ 10 kHz	9A	16mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.102 L x 0.728 W (28.00mm x 18.50mm)	1.299 (33.00mm)
CM6350R-334 CMC 330UH 1.8A 2LN SMD API Delevan Inc.	2,975	13.34	- + RFQ	Datasheet	Bulk	CM6350R	Active	Power Line	2	-	330 µH @ 10 kHz	1.8A	40mOhm	-	-	-55°C ~ 105°C	-	-	-	Surface Mount	0.360 L x 0.360 W (9.14mm x 9.14mm)	0.210 (5.33mm)
RT8532-20-2M5 CMC 2.5MH 20A 3LN TH Schaffner EMC Inc.	2,229	13.99	- + RFQ	Datasheet	Tray	RT	Active	Power Line	3	-	2.5 mH @ 100 kHz	20A	7mOhm (Typ)	-	600V	-40°C ~ 100°C	-	-	-	Through Hole	2.205 L x 1.457 W (56.00mm x 37.00mm)	2.362 (60.00mm)

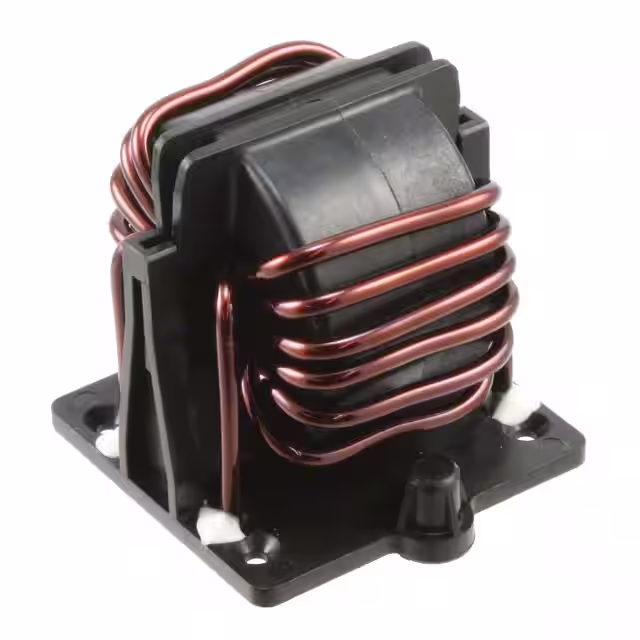

RB6522-16-1M0 CMC 1MH 16A 2LN TH Schaffner EMC Inc.	2,052	16.33	- + RFQ	Datasheet	Bulk	RB	Active	Power Line	2	-	1 mH @ 400 Hz	16A	4.6mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	1.846 L x 1.772 W (46.90mm x 45.00mm)	2.047 (52.00mm)
