Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

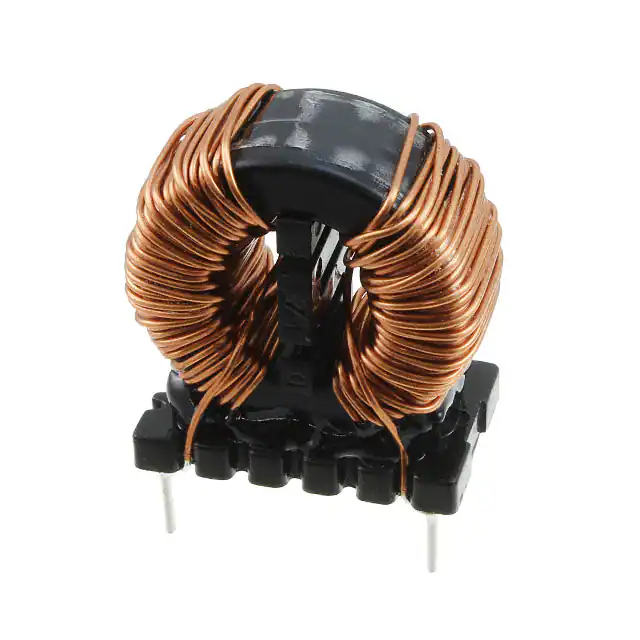

7448050490 CMC 90MH 3.5A 2LN TH Würth Elektronik	3,519	16.65	- + RFQ	Datasheet	Bulk	WE-CMBNC	Active	Power Line	2	-	90 mH @ 10 kHz	3.5A	110mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.299 L x 0.748 W (33.00mm x 19.00mm)	1.535 (39.00mm)

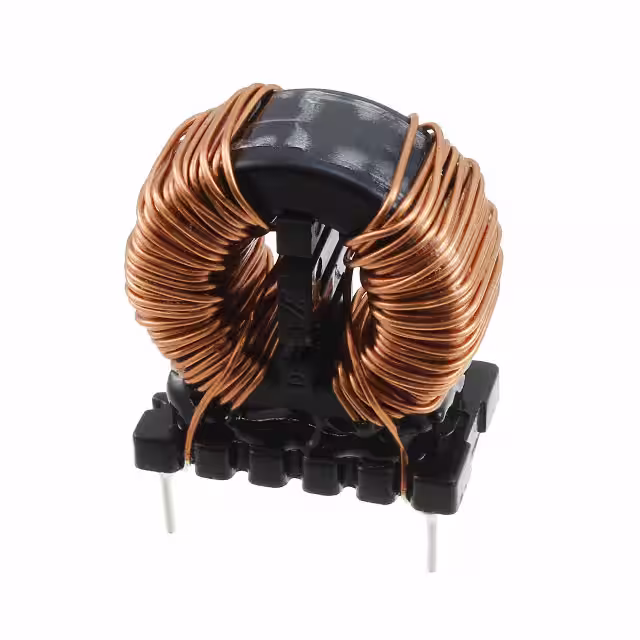

7448050219 CMC 190MH 2A 2LN TH Würth Elektronik	3,334	16.65	- + RFQ	Datasheet	Bulk	WE-CMBNC	Active	Power Line	2	-	190 mH @ 10 kHz	2A	310mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.299 L x 0.748 W (33.00mm x 19.00mm)	1.535 (39.00mm)

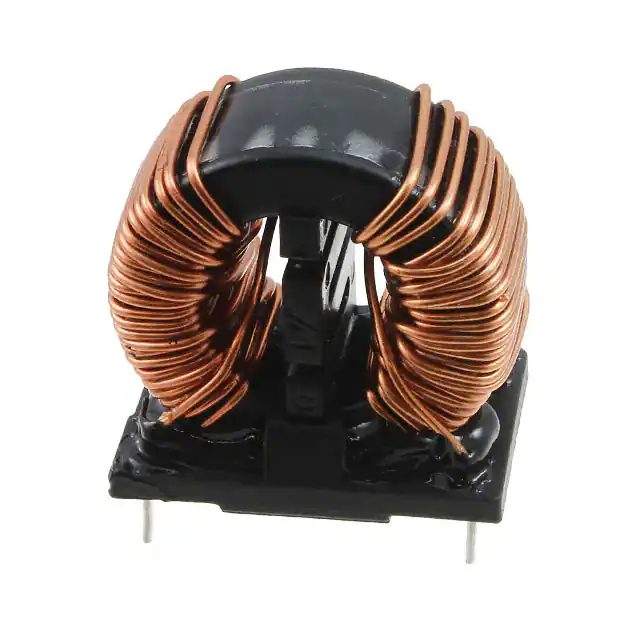

7448050530 CMC 30MH 5A 2LN TH Würth Elektronik	2,513	16.65	- + RFQ	Datasheet	Bulk	WE-CMBNC	Active	Power Line	2	-	30 mH @ 10 kHz	5A	46mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.299 L x 0.906 W (33.00mm x 23.00mm)	1.417 (36.00mm)
TCK-086 CMC 156UH 25A 2LN TH Traco Power	2,565	7.71	- + RFQ	Datasheet	Tube	-	Active	-	2	-	156 µH @ 100 kHz	25A	2.5mOhm	500V	-	-40°C ~ 105°C	-	-	-	Through Hole	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.492 (12.50mm)
744831016164 CMC 1.6MH 16.4A 2LN TH Würth Elektronik	2,606	17.50	- + RFQ	Datasheet	Tray	WE-CMB HV	Active	Power Line	2	-	1.6 mH @ 10 kHz	16.4A	8.5mOhm	-	760V	-40°C ~ 125°C	-	-	-	Through Hole	1.831 Dia x 1.102 W (46.50mm x 28.00mm)	1.752 (44.50mm)
744831034090 CMC 3.4MH 9A 2LN TH Würth Elektronik	3,286	17.50	- + RFQ	Datasheet	Tray	WE-CMB HV	Active	Power Line	2	-	3.4 mH @ 10 kHz	9A	27mOhm	-	760V	-40°C ~ 125°C	-	-	-	Through Hole	1.752 Dia x 1.102 W (44.50mm x 28.00mm)	1.752 (44.50mm)

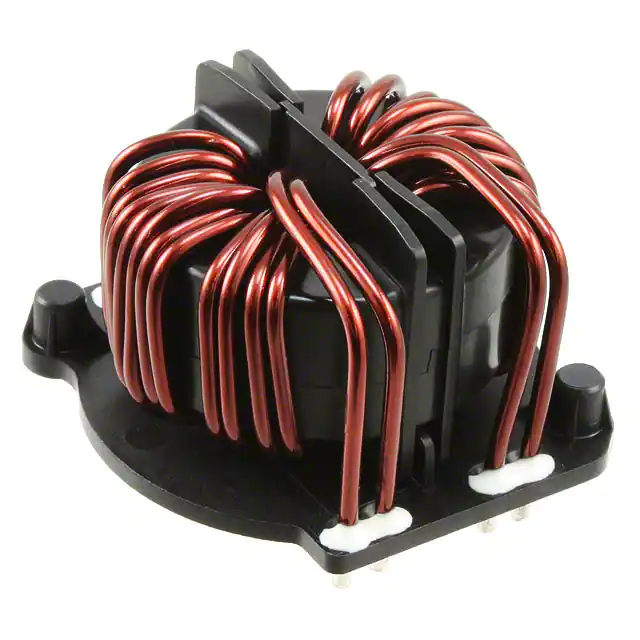

RB6122-50-0M3 CMC 250UH 50A 2LN TH Schaffner EMC Inc.	2,734	19.35	- + RFQ	Datasheet	Bulk	RB	Active	Power Line	2	-	250 µH @ 400 Hz	50A	0.9mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	2.402 L x 2.276 W (61.00mm x 57.80mm)	1.496 (38.00mm)

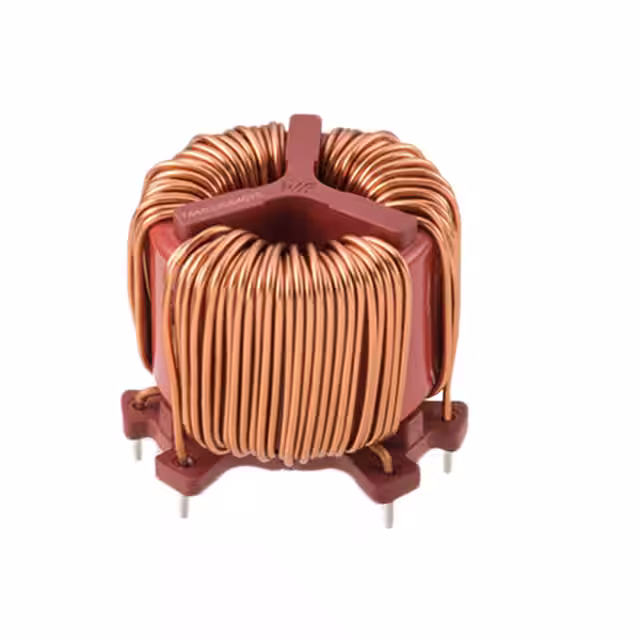

744833052100 CMC 5.2MH 10A 3LN TH Würth Elektronik	2,152	20.75	- + RFQ	Datasheet	Tray	WE-TPB	Active	Power Line	3	-	5.2 mH @ 10 kHz	10A	27mOhm	-	500V	-40°C ~ 125°C	-	-	-	Through Hole	1.850 Dia (47.00mm)	1.535 (39.00mm)
744833011180 CMC 1.1MH 18A 3LN TH Würth Elektronik	3,814	20.75	- + RFQ	Datasheet	Tray	WE-TPB	Active	Power Line	3	-	1.1 mH @ 10 kHz	18A	7mOhm	-	500V	-40°C ~ 125°C	-	-	-	Through Hole	1.850 Dia (47.00mm)	1.535 (39.00mm)
7448261418 CMC 1.8MH 14A 2LN TH Würth Elektronik	2,867	22.16	- + RFQ	Datasheet	Tray	WE-CMB	Active	Power Line	2	-	1.8 mH @ 10 kHz	14A	9.5mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.693 L x 0.925 W (43.00mm x 23.50mm)	1.693 (43.00mm)
7448060535 CMC 35MH 5A 2LN TH Würth Elektronik	2,895	25.80	- + RFQ	Datasheet	Bulk	WE-CMBNC	Active	Power Line	2	-	35 mH @ 10 kHz	5A	90mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.654 L x 1.063 W (42.00mm x 27.00mm)	1.811 (46.00mm)

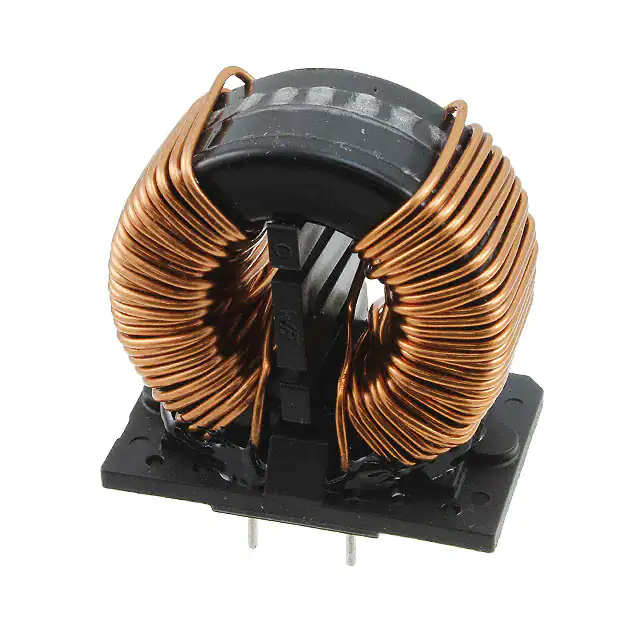

7448060620 CMC 20MH 6A 2LN TH Würth Elektronik	3,872	25.80	- + RFQ	Datasheet	Bulk	WE-CMBNC	Active	Power Line	2	-	20 mH @ 10 kHz	6A	45mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.654 L x 1.063 W (42.00mm x 27.00mm)	1.811 (46.00mm)

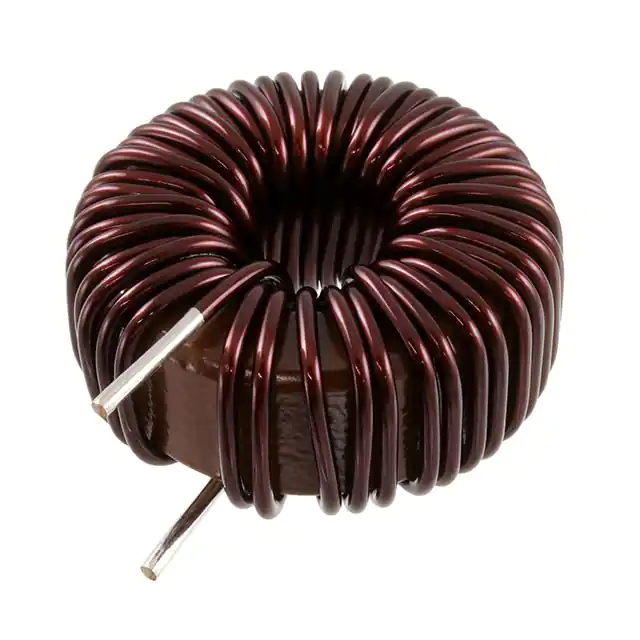

HHBC24W-2R1A0311V CMC 311UH 15A 2LN TH KEMET	2,677	33.06	- + RFQ	Datasheet	Bulk	HHBC	Active	-	2	-	311 µH @ 100 kHz	15A	-	-	-	-40°C ~ 125°C	-	-	-	Through Hole	-	-
744838040400 CMC 4MH 40A 3LN TH Würth Elektronik	2,414	54.50	- + RFQ	Datasheet	Tray	WE-TPBHV	Active	Power Line	3	-	4 mH @ 10 kHz	40A	3.2mOhm	-	760V	-40°C ~ 125°C	-	-	-	Through Hole	2.756 Dia (70.00mm)	1.535 (39.00mm)
744839125095 CMC 125MH 9.5A 3LN TH Würth Elektronik	3,768	54.50	- + RFQ	Datasheet	Tray	WE-TPBHV	Active	Power Line	3	-	125 mH @ 10 kHz	9.5A	47mOhm	-	760V	-40°C ~ 125°C	-	-	-	Through Hole	2.756 Dia (70.00mm)	1.535 (39.00mm)
RFCMF1220100M4T CMC 200MA 2LN 120 OHM SMD Walsin Technology Corporation	3,573	0.15	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	RFCMF	Active	Signal Line	2	120 Ohms @ 100 MHz	-	200mA	2.5Ohm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.047 L x 0.079 W (1.20mm x 2.00mm)	0.047 (1.20mm)
SDCW2012-2-900TF CMC 330MA 2LN 90 OHM SMD Shenzhen Sunlord Electronics Co., Ltd.	2,808	0.41	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SDCW	Active	Signal Line	2	90 Ohms @ 100 MHz	-	330mA	350mOhm	50V	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.079 L x 0.047 W (2.00mm x 1.20mm)	0.055 (1.40mm)
LCFE121002A120TG CMC 100MA 2LN 12 OHM SMD ESD Littelfuse Inc.	2,794	0.45	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LCFE	Active	Signal Line	2	12 Ohms @ 100 MHz	-	100mA	4Ohm	5V	-	-40°C ~ 85°C	-	-	ESD	Surface Mount	0.050 L x 0.039 W (1.27mm x 1.00mm)	0.026 (0.65mm)
PCMF1HDMI2SZ CMC 2LN SMD ESD Nexperia USA Inc.	2,737	0.51	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PCM	Active	Signal Line	2	-	-	-	3Ohm (Typ)	-	-	-40°C ~ 85°C	-	-	ESD	Surface Mount	0.053 L x 0.037 W (1.34mm x 0.95mm)	0.024 (0.60mm)
ACM-31-601M-T CMC 260MA 2LN 600 OHM SMD Abracon LLC	3,261	0.46	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACM-31	Active	Signal Line	2	600 Ohms @ 100 MHz	-	260mA	800mOhm	50V	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.118 L x 0.063 W (3.00mm x 1.60mm)	0.079 (2.00mm)
