Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
ACMS-Q3225C-101-T CMC 100UH 0.15A 2200M Abracon LLC	3,614	2.18	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACMS-Q3225C	Active	Signal Line	2	4 kOhms @ 10 MHz	100 µH @ 100 kHz	150mA	2.2Ohm	80V	-	-40°C ~ 150°C	AEC-Q200	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.100 (2.54mm)

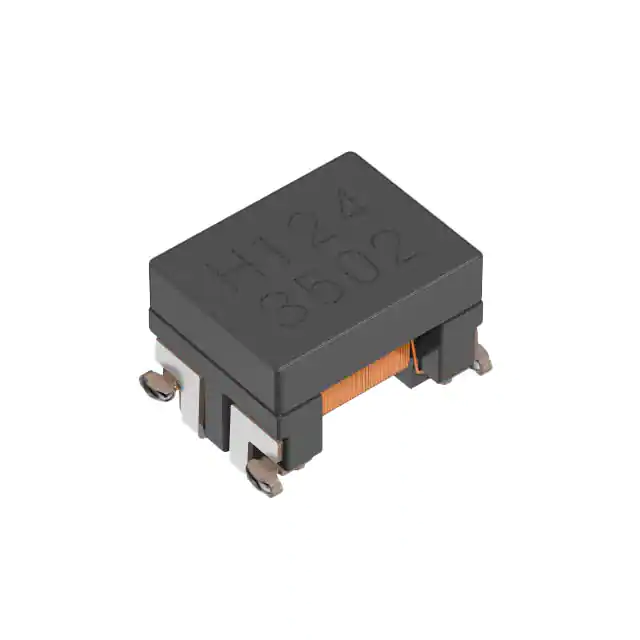

ACT1210G-800-2P-TL10 COMMON MODE FILTERS FOR AUTOMOTI TDK Corporation	2,024	2.48	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACT	Active	Signal Line	2	3.8 kOhms @ 10 MHz	80 µH @ 100 kHz	70mA	2.4Ohm	80V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.098 (2.50mm)
CM0805C221R-10 CMC 300MA 2LN 220 OHM SMD Laird-Signal Integrity Products	3,275	2.35	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM0805	Active	Signal Line	2	220 Ohms @ 100 MHz	-	300mA	400mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.079 L x 0.047 W (2.00mm x 1.20mm)	0.047 (1.20mm)

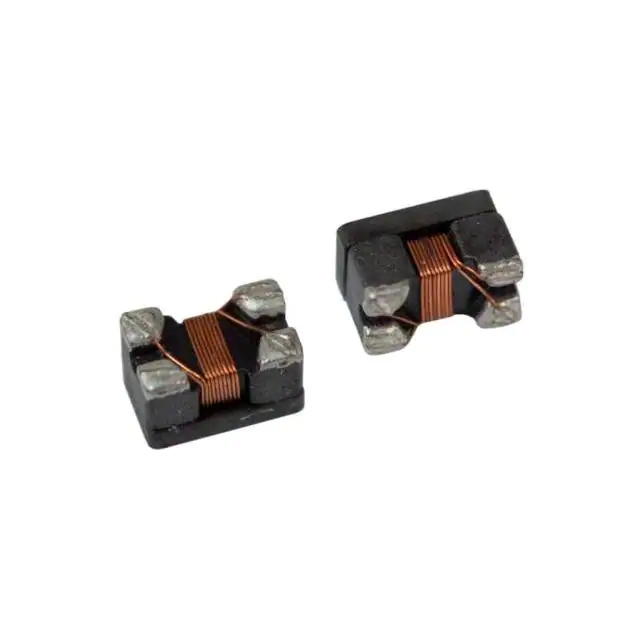

CM1812A204R-1A CAN-BUS COMMON MODE CHOKES Laird-Signal Integrity Products	2,304	2.17	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM	Active	Signal Line	2	-	200 µH @ 100 kHz	100mA	4.5Ohm	50V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.098 (2.50mm)

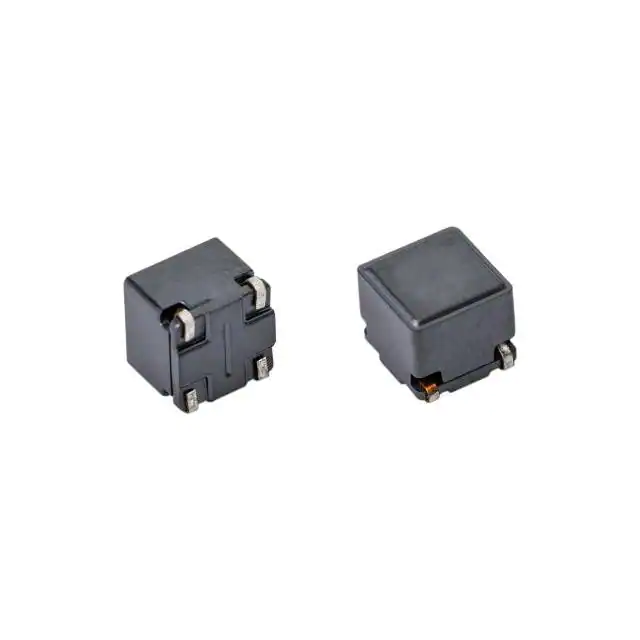

CM6050M101R-10 MINIATURIZED BROADBAND POWER LIN Laird-Signal Integrity Products	3,696	2.42	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM	Active	Power Line	2	100 Ohms @ 10 MHz	-	5.6A	5.2mOhm	80V	-	-55°C ~ 150°C	-	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.098 (2.50mm)
RN242-1-02-33M CMC 33MH 1A 2LN TH Schaffner EMC Inc.	174	4.29	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	33 mH @ 10 kHz	1A	810mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)

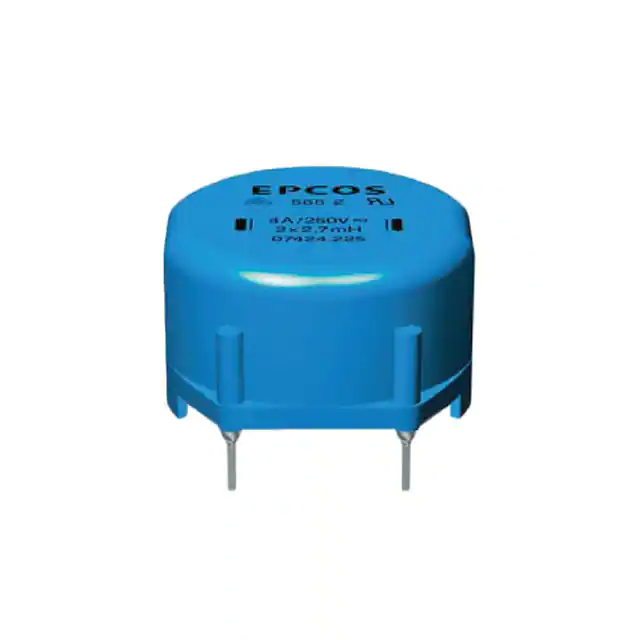

B82723A2602N001 CMC 1MH 6A 2LN TH EPCOS - TDK Electronics	3,569	4.34	- + RFQ	Datasheet	Tray	B82723	Active	Power Line	2	-	1 mH @ 100 kHz	6A	22mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.102 L x 1.063 W (28.00mm x 27.00mm)	0.661 (16.80mm)
B82723A2142N020 CMC 27MH 1.4A 2LN TH EPCOS - TDK Electronics	2,757	4.34	- + RFQ	Datasheet	Tray	B82723	Active	Power Line	2	-	27 mH @ 10 kHz	1.4A	440mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.102 L x 1.063 W (28.00mm x 27.00mm)	0.661 (16.80mm)

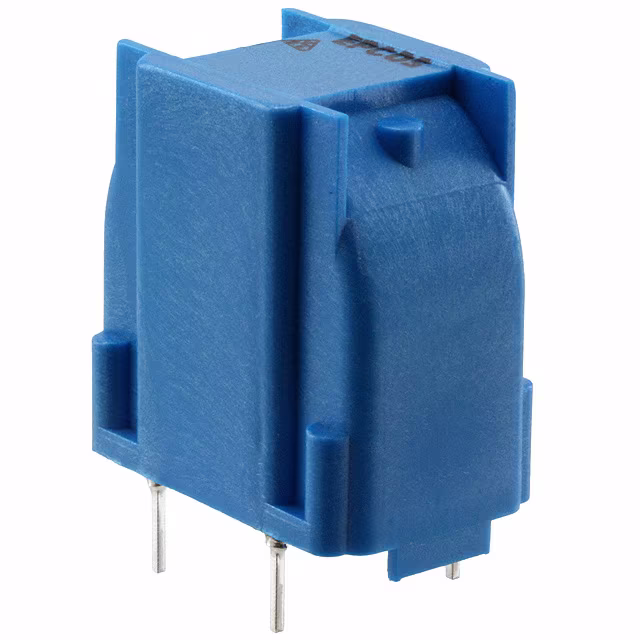

B82723J2102N001 CMC 27MH 1A 2LN TH EPCOS - TDK Electronics	640	4.34	- + RFQ	Datasheet	Tray	B82723	Active	Power Line	2	-	27 mH @ 10 kHz	1A	750mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.102 L x 0.591 W (28.00mm x 15.00mm)	1.201 (30.50mm)
B82723A2802N001 CMC 450UH 8A 2LN TH EPCOS - TDK Electronics	399	4.34	- + RFQ	Datasheet	Tray	B82723	Active	Power Line	2	-	450 µH @ 100 kHz	8A	11mOhm (Typ)	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.102 L x 1.063 W (28.00mm x 27.00mm)	0.661 (16.80mm)

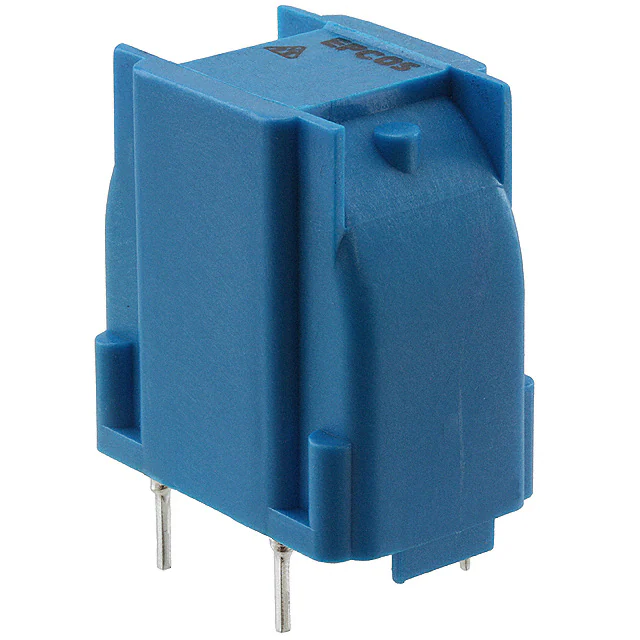

B82723J2202N001 CMC 5.6MH 2A 2LN TH EPCOS - TDK Electronics	388	4.34	- + RFQ	Datasheet	Tray	B82723	Active	Power Line	2	-	5.6 mH @ 10 kHz	2A	160mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.102 L x 0.591 W (28.00mm x 15.00mm)	1.201 (30.50mm)

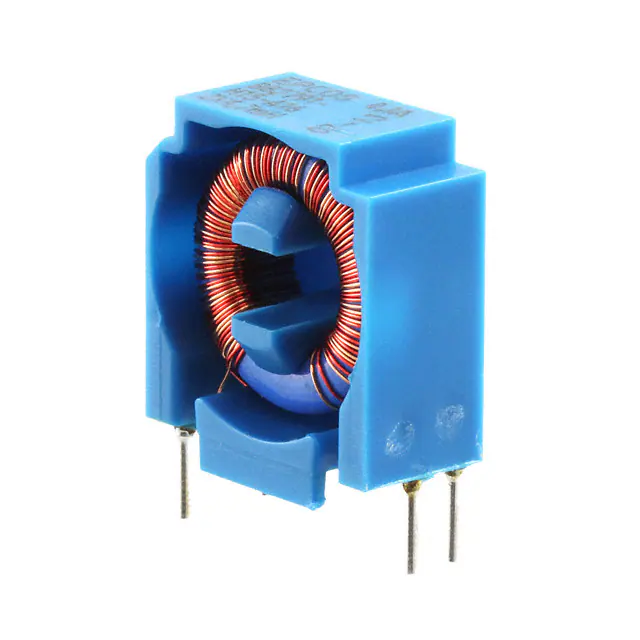

B82791H0015A016 CMC 4.7MH 100MA 2LN TH EPCOS - TDK Electronics	321	4.37	- + RFQ	Datasheet	Tray	B82791	Active	Signal Line	2	-	4.7 mH @ 10 kHz	100mA	850mOhm (Typ)	80V	42V	-40°C ~ 125°C	-	-	-	Through Hole	0.598 L x 0.291 W (15.20mm x 7.40mm)	0.693 (17.60mm)

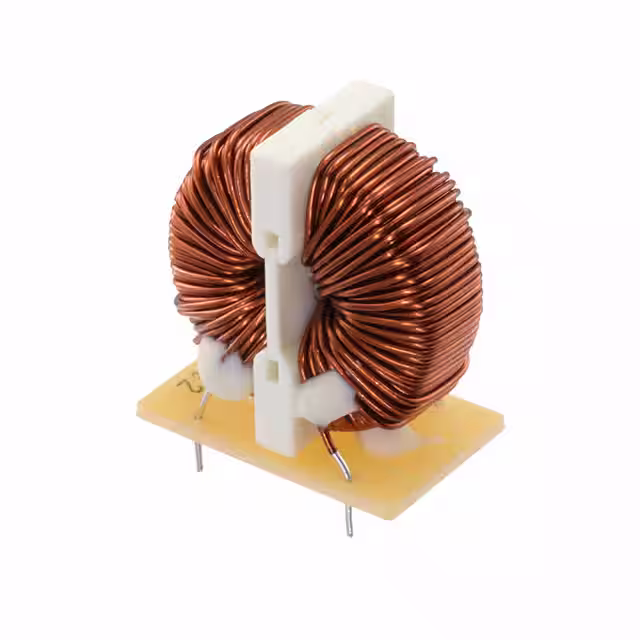

SC-02-05GJ CMC 515UH 2A 2LN TH KEMET	212	4.38	- + RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	515 µH @ 100 kHz	2A	58mOhm	250V	250V	25°C ~ 120°C	-	-	-	Through Hole	0.689 L x 0.689 W (17.50mm x 17.50mm)	0.768 (19.50mm)

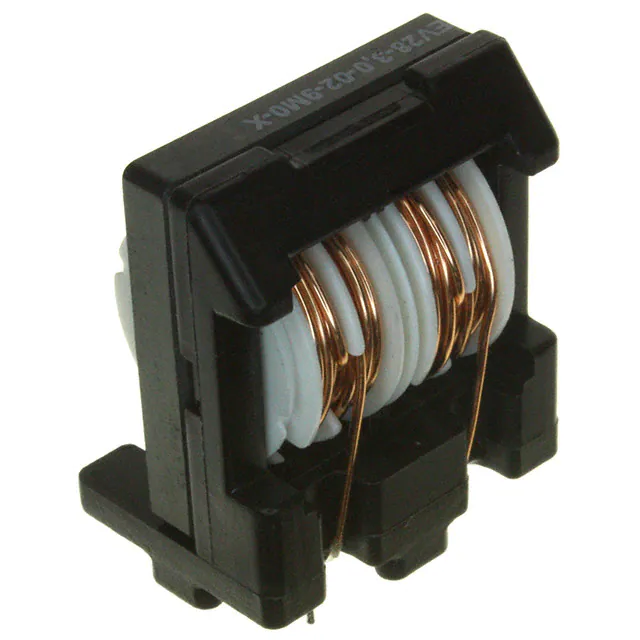

EV28-3.0-02-9M0-X CMC 9MH 3A 2LN TH Schaffner EMC Inc.	357	4.48	- + RFQ	Datasheet	Bulk	EV	Active	Power Line	2	-	9 mH @ 400 Hz	3A	115mOhm	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.150 L x 0.827 W (29.20mm x 21.00mm)	1.406 (35.70mm)
B82734R2202B030 CMC 20MH 2A 2LN TH EPCOS - TDK Electronics	3,078	4.51	- + RFQ	Datasheet	Tray	B82734	Active	Power Line	2	-	20 mH @ 10 kHz	2A	240mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.280 L x 0.827 W (32.50mm x 21.00mm)	1.220 (31.00mm)
B82734W2132B030 CMC 47MH 1.3A 2LN TH EPCOS - TDK Electronics	800	4.51	- + RFQ	Datasheet	Tray	B82734	Active	Power Line	2	-	47 mH @ 10 kHz	1.3A	560mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.280 L x 1.220 W (32.50mm x 31.00mm)	0.854 (21.70mm)
B82734W2262B030 CMC 10MH 2.6A 2LN TH EPCOS - TDK Electronics	796	4.51	- + RFQ	Datasheet	Tray	B82734	Active	Power Line	2	-	10 mH @ 10 kHz	2.6A	130mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.280 L x 1.220 W (32.50mm x 31.00mm)	0.854 (21.70mm)
B82734R2322B030 CMC 6.8MH 3.2A 2LN TH EPCOS - TDK Electronics	406	4.51	- + RFQ	Datasheet	Tray	B82734	Active	Power Line	2	-	6.8 mH @ 10 kHz	3.2A	85mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.280 L x 0.827 W (32.50mm x 21.00mm)	1.220 (31.00mm)
RN142-1-02-33M CMC 33MH 1A 2LN TH Schaffner EMC Inc.	356	4.51	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	33 mH @ 10 kHz	1A	810mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.303 L x 1.280 W (33.10mm x 32.50mm)	0.787 (20.00mm)
SN12-400 CMC 64UH 5A 2LN TH KEMET	346	4.51	- + RFQ		Bulk	SN	Active	Power Line	2	-	64 µH @ 100 kHz	5A	32mOhm	-	-	-25°C ~ 105°C	-	-	-	Through Hole	0.984 Dia x 0.472 W (25.00mm x 12.00mm)	1.043 (26.50mm)
