Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
CMS3-5-R CMC 146UH 3.1A 2LN SMD Eaton - Electronics Division	604	6.30	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	146 µH @ 100 kHz	3.1A	17mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.450 L x 0.450 W (11.43mm x 11.43mm)	0.236 (6.00mm)
B82734W2322B030 CMC 6.8MH 3.2A 2LN TH EPCOS - TDK Electronics	215	4.51	- + RFQ	Datasheet	Tray	B82734	Active	Power Line	2	-	6.8 mH @ 10 kHz	3.2A	85mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.280 L x 1.220 W (32.50mm x 31.00mm)	0.854 (21.70mm)

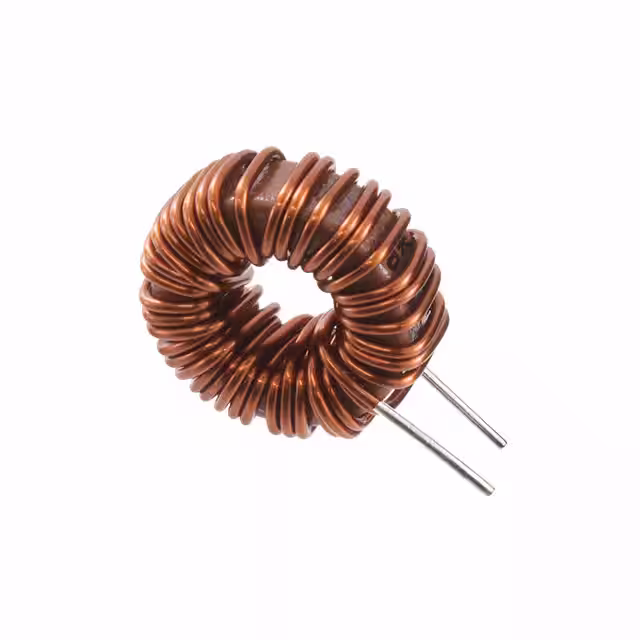

HHBC12-1R0A0051V CMC 51UH 5A 2LN TH KEMET	169	4.60	- + RFQ	Datasheet	Bulk	HHBC	Active	-	2	-	51 µH @ 100 kHz	5A	28mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.024 Dia (26.00mm)	1.024 (26.00mm)

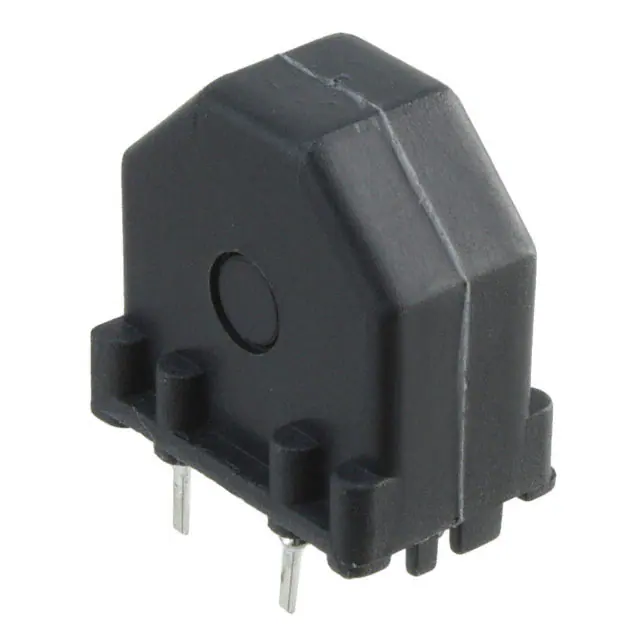

CAV-1.2-10 CMC 10MH 1.2A 2LN TH Talema Group LLC	3,118	4.68	- + RFQ	Datasheet	Tray	CA	Active	Signal Line	2	-	10 mH @ 10 kHz	1.2A	285mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.984 (25.00mm)

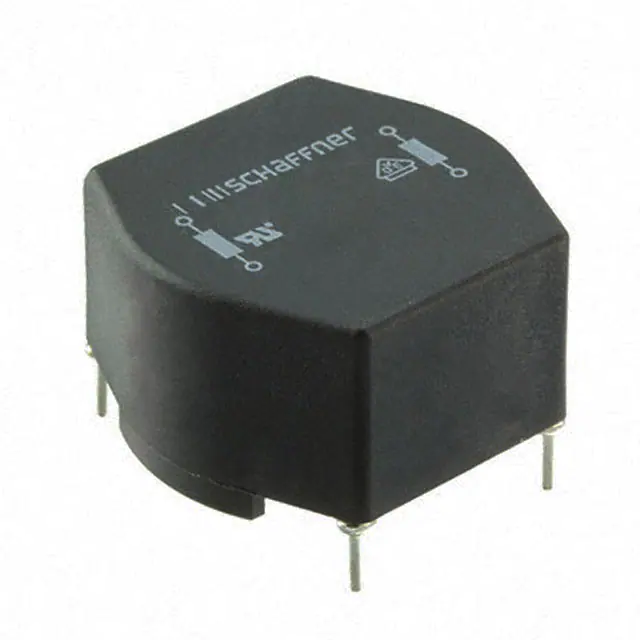

RN143-2-02-10M CMC 10MH 2A 2LN TH Schaffner EMC Inc.	862	4.72	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	10 mH @ 10 kHz	2A	240mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.303 L x 1.280 W (33.10mm x 32.50mm)	0.787 (20.00mm)
SC-05-E45JH CMC 4.5MH 5A 2LN TH KEMET	199	4.75	- + RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	4.5 mH @ 100 kHz	5A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	-	0.827 (21.00mm)
7108-RC CMC 1.7MH 2A 2LN TH Bourns Inc.	397	4.85	- + RFQ	Datasheet	Bulk	7100	Active	-	2	-	1.7 mH @ 1 kHz	2A	60mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	0.700 Dia x 0.550 W (17.78mm x 13.97mm)	0.700 (17.78mm)

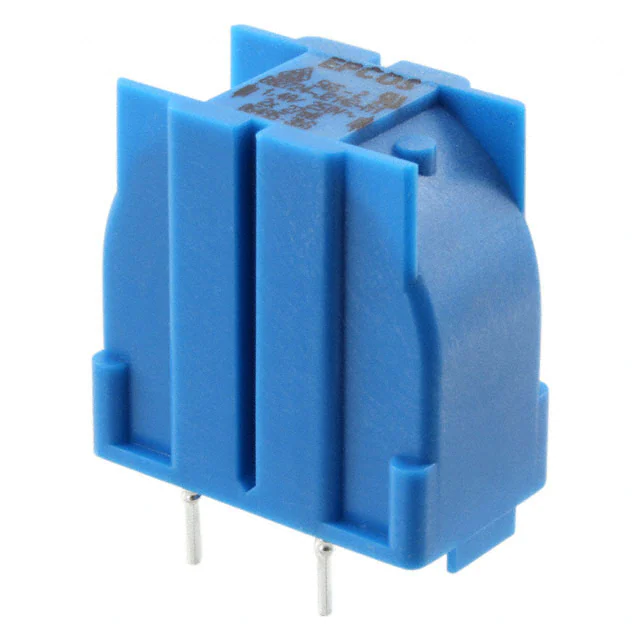

B82724J2142N001 CMC 27MH 1.4A 2LN TH EPCOS - TDK Electronics	2,355	4.95	- + RFQ	Datasheet	Tray	B82724	Active	Power Line	2	-	27 mH @ 10 kHz	1.4A	460mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.232 L x 0.728 W (31.30mm x 18.50mm)	1.307 (33.20mm)

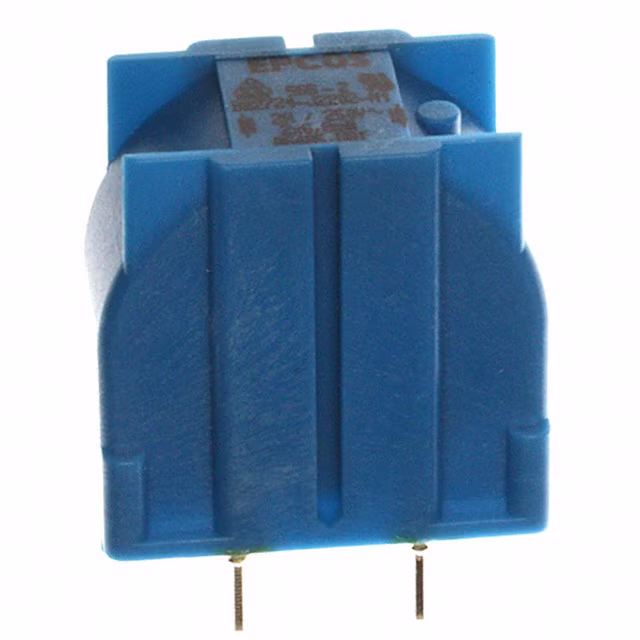

B82724J2202N001 CMC 6.8MH 2A 2LN TH EPCOS - TDK Electronics	2,424	4.95	- + RFQ	Datasheet	Tray	B82724	Active	Power Line	2	-	6.8 mH @ 10 kHz	2A	170mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.232 L x 0.728 W (31.30mm x 18.50mm)	1.307 (33.20mm)
B82724J2602N041 CMC 3.3MH 6A 2LN TH EPCOS - TDK Electronics	480	4.95	- + RFQ	Datasheet	Tray	B82724	Active	Power Line	2	-	3.3 mH @ 10 kHz	6A	25mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.232 L x 0.728 W (31.30mm x 18.50mm)	1.307 (33.20mm)
B82724J2482N020 CMC 3.3MH 4.8A 2LN TH EPCOS - TDK Electronics	476	4.95	- + RFQ	Datasheet	Tray	B82724	Active	Power Line	2	-	3.3 mH @ 10 kHz	4.8A	46mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.232 L x 0.728 W (31.30mm x 18.50mm)	1.307 (33.20mm)
SC-07-10J CMC 1MH 7A 2LN TH KEMET	253	5.01	- + RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	1 mH @ 100 kHz	7A	24mOhm	250V	250V	25°C ~ 120°C	-	-	-	Through Hole	1.339 L x 0.906 W (34.00mm x 23.00mm)	1.299 (33.00mm)

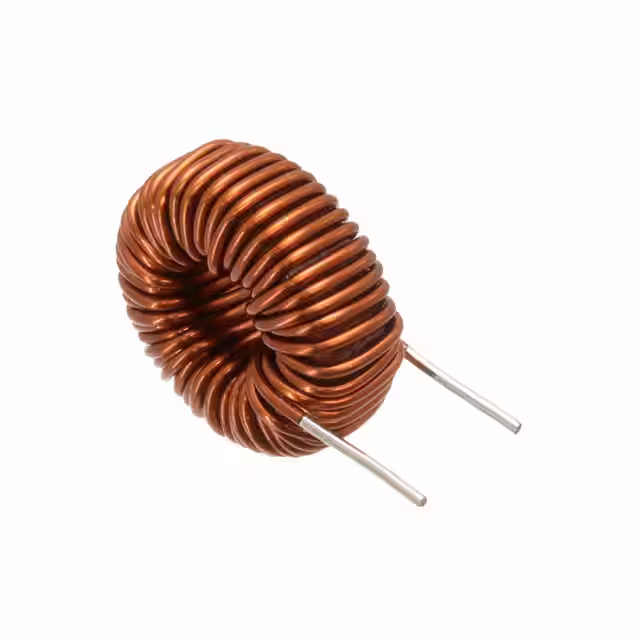

HHBC12-1R0A0080V CMC 80UH 5A 2LN TH KEMET	239	5.01	- + RFQ	Datasheet	Bulk	HHBC	Active	-	2	-	80 µH @ 100 kHz	5A	-	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.039 Dia (26.40mm)	-
DFKH-31-0003 CMC 1.4A 2LN TH Schurter Inc.	145	5.02	- + RFQ	Datasheet	Bulk	DFKH	Active	-	2	-	-	1.4A	470mOhm	-	440V	-25°C ~ 100°C	-	-	-	Through Hole	1.240 L x 0.728 W (31.50mm x 18.50mm)	-

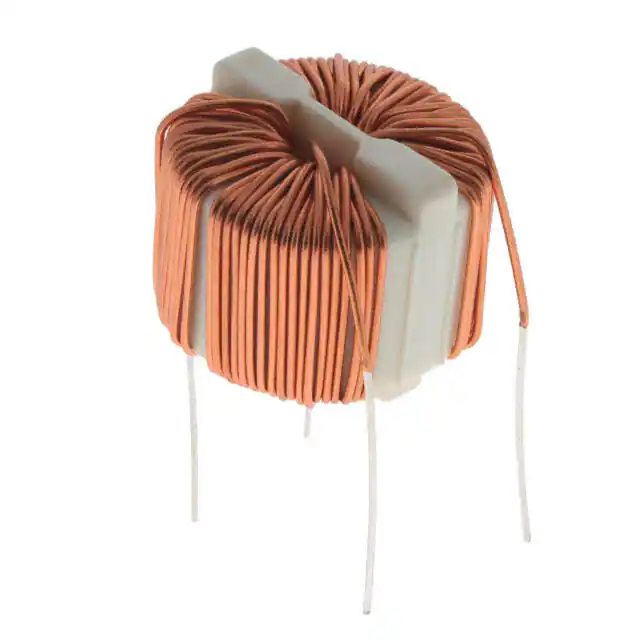

SC-02-E620H CMC 6.2MH 2A 2LN TH KEMET	301	5.17	- + RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	6.2 mH @ 1 kHz	2A	180mOhm	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.063 Dia (27.00mm)	0.787 (20.00mm)
B82724A2202N001 CMC 6.8MH 2A 2LN TH EPCOS - TDK Electronics	762	5.20	- + RFQ	Datasheet	Tray	B82724	Active	Power Line	2	-	6.8 mH @ 10 kHz	2A	170mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.303 L x 1.280 W (33.10mm x 32.50mm)	0.776 (19.70mm)
B82724A2402N001 CMC 3.3MH 4A 2LN TH EPCOS - TDK Electronics	512	5.20	- + RFQ	Datasheet	Tray	B82724	Active	Power Line	2	-	3.3 mH @ 10 kHz	4A	65mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.303 L x 1.280 W (33.10mm x 32.50mm)	0.776 (19.70mm)

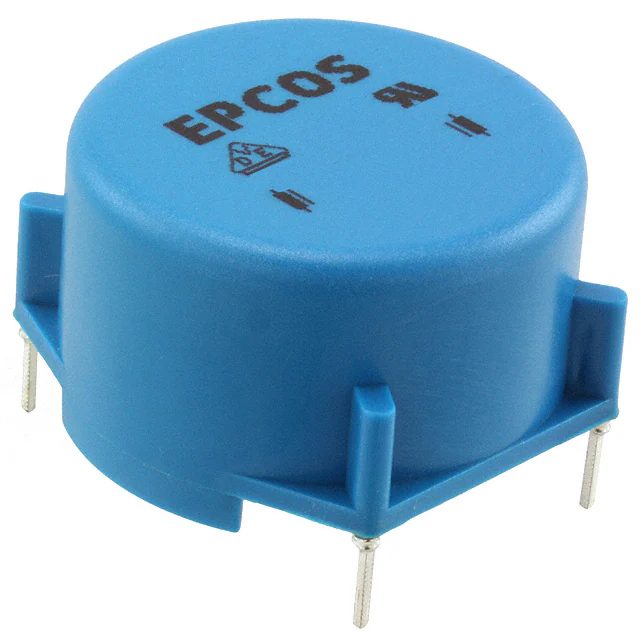

B82724A2142N001 CMC 27MH 1.4A 2LN TH EPCOS - TDK Electronics	178	5.20	- + RFQ	Datasheet	Tray	B82724	Active	Power Line	2	-	27 mH @ 10 kHz	1.4A	460mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.303 L x 1.280 W (33.10mm x 32.50mm)	0.776 (19.70mm)
B82724J2302N021 CMC 12MH 3A 2LN TH EPCOS - TDK Electronics	175	5.20	- + RFQ	Datasheet	Tray	B82724	Active	Power Line	2	-	12 mH @ 10 kHz	3A	125mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.232 L x 0.728 W (31.30mm x 18.50mm)	1.307 (33.20mm)

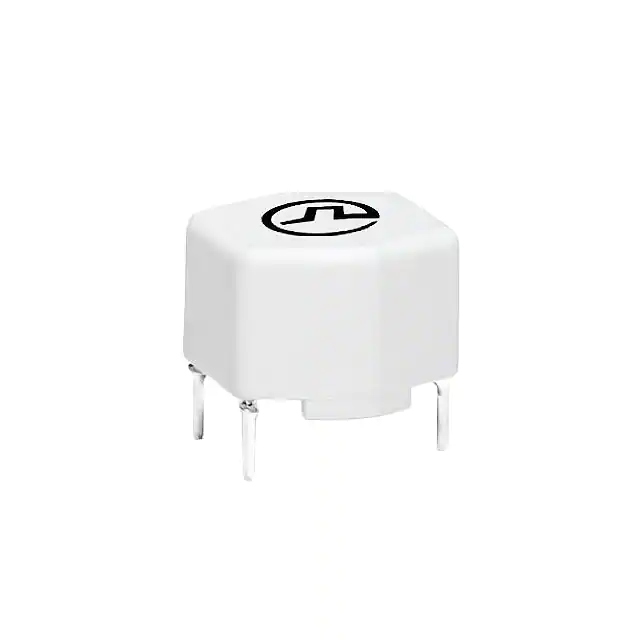

FE2X03-4-3NL CMC 2.5A 2LN TH Pulse Electronics Power	3,052	5.29	- + RFQ	Datasheet	Tube	FE2X	Active	-	2	-	-	2.5A	90mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.902 L x 0.902 W (22.91mm x 22.91mm)	0.606 (15.39mm)
