Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
SC22-025-290J CMC 29MH 2.5A 2LN TH KEMET	183	7.22	- + RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	29 mH @ 10 kHz	2.5A	250mOhm	250V	250V	25°C ~ 120°C	-	-	-	Through Hole	1.181 L x 0.787 W (30.00mm x 20.00mm)	1.142 (29.00mm)

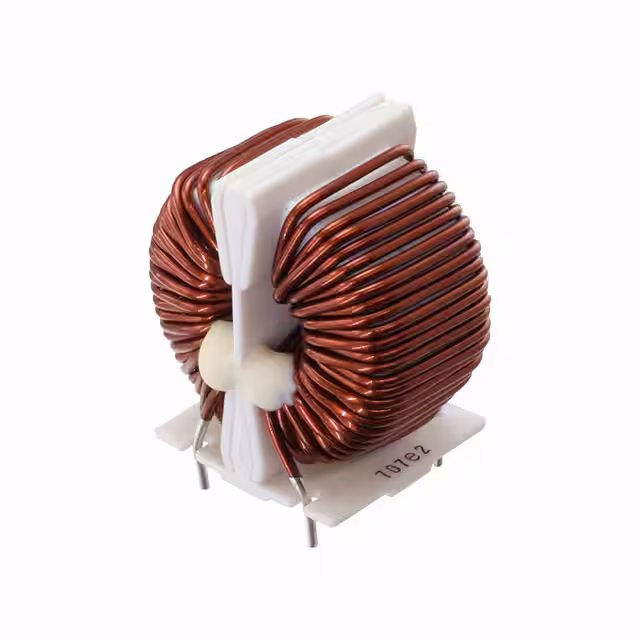

SCR25-070-1R1A070J CMC 7MH 7A 2LN TH KEMET	159	7.26	- + RFQ	Datasheet	Bulk	SCR	Active	Power Line	2	-	7 mH @ 10 kHz	7A	34mOhm	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	-	1.378 (35.00mm)

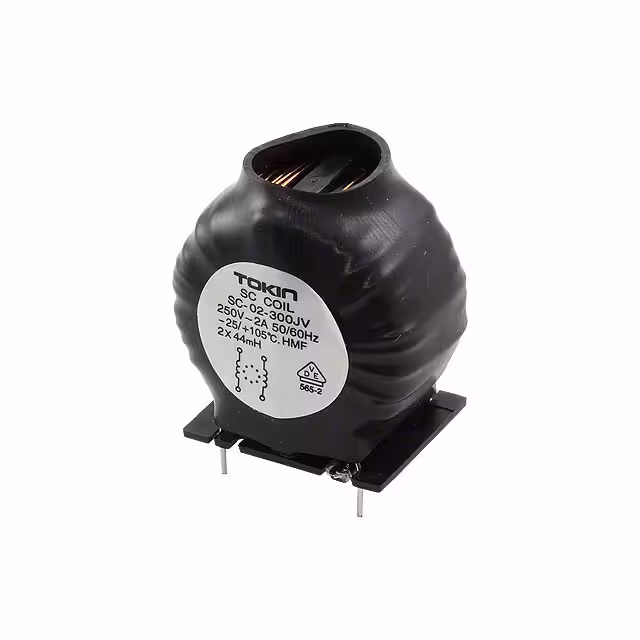

SC-02-300JV CMC 44MH 2A 2LN TH KEMET	160	7.33	- + RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	44 mH @ 16 kHz	2A	300mOhm	250V	250V	-	-	-	-	Through Hole	1.378 Dia x 0.984 W (35.00mm x 25.00mm)	1.575 (40.00mm)

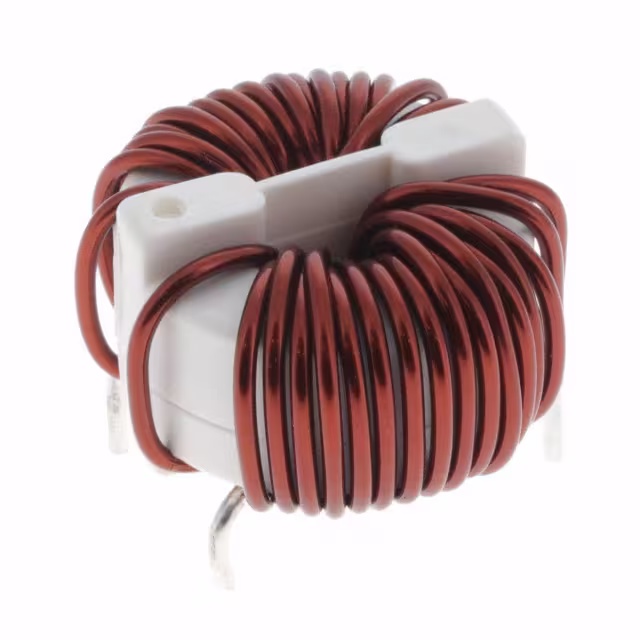

SC22-08-170 CMC 1.7MH 8A 2LN TH KEMET	134	7.35	- + RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	1.7 mH @ 10 kHz	8A	20mOhm	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.181 Dia (30.00mm)	0.748 (19.00mm)
SC-04-E2000 CMC 20.3MH 4A 2LN TH KEMET	200	7.39	- + RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	20.3 mH @ 10 kHz	4A	150mOhm	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.339 Dia (34.00mm)	1.339 (34.00mm)
SC-06-E70JKH CMC 7MH 6A 2LN TH KEMET	118	7.41	- + RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	7 mH @ 10 kHz	6A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.339 L x 1.339 W (34.00mm x 34.00mm)	1.063 (27.00mm)

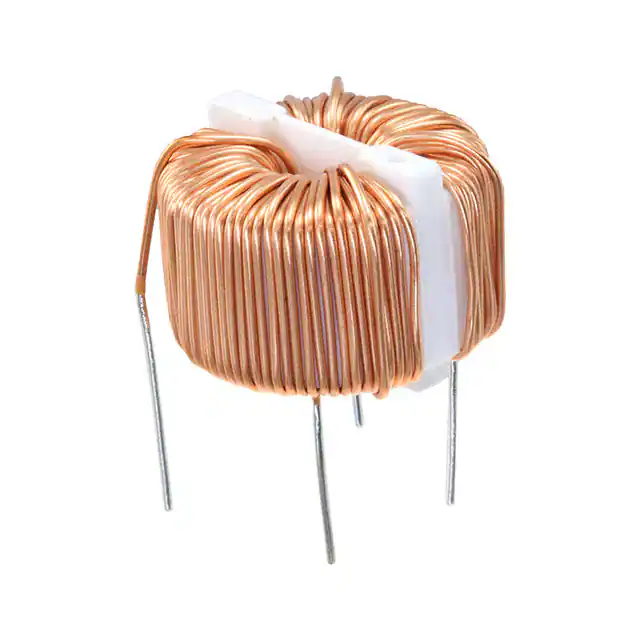

SC-05-803 CMC 8MH 4A 2LN TH KEMET	201	7.57	- + RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	8 mH @ 100 kHz	4A	90mOhm	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	1.339 Dia (34.00mm)	0.906 (23.00mm)
B82724B2602N001 CMC 1MH 6A 2LN TH EPCOS - TDK Electronics	181	7.67	- + RFQ	Datasheet	Tray	B82724	Active	Power Line	2	-	1 mH @ 100 kHz	6A	23mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.323 L x 1.283 W (33.60mm x 32.60mm)	0.984 (25.00mm)
B82725A2802N001 CMC 2.7MH 8A 2LN TH EPCOS - TDK Electronics	625	8.24	- + RFQ	Datasheet	Tray	B82725	Active	Power Line	2	-	2.7 mH @ 10 kHz	8A	22mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.732 L x 1.669 W (44.00mm x 42.40mm)	0.984 (25.00mm)
HCTC-30-2.3 CMC 30MH 2.3A 2LN TH Signal Transformer	418	8.30	- + RFQ	Datasheet	Tray	HCTC	Active	Power Line	2	-	30 mH @ 1 kHz	2.3A	330mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.350 L x 0.600 W (34.29mm x 15.24mm)	1.450 (36.83mm)

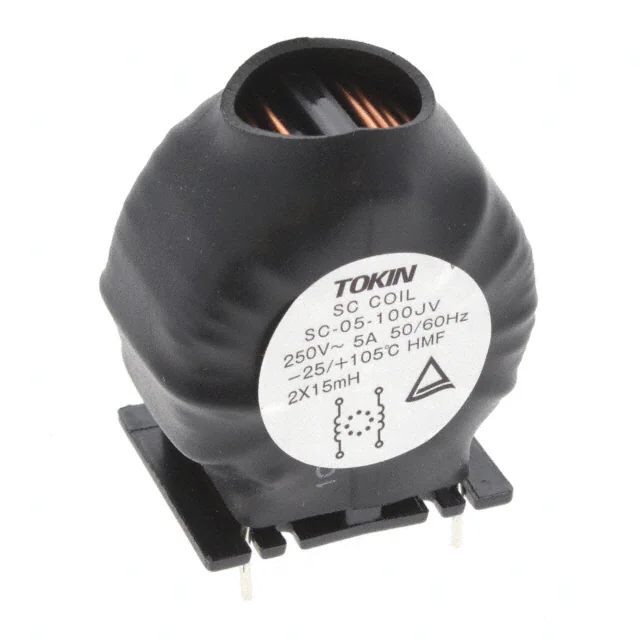

SC-05-100JV CMC 15MH 5A 2LN TH KEMET	2,286	8.34	- + RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	15 mH @ 16 kHz	5A	-	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	1.378 L x 0.984 W (35.00mm x 25.00mm)	1.575 (40.00mm)

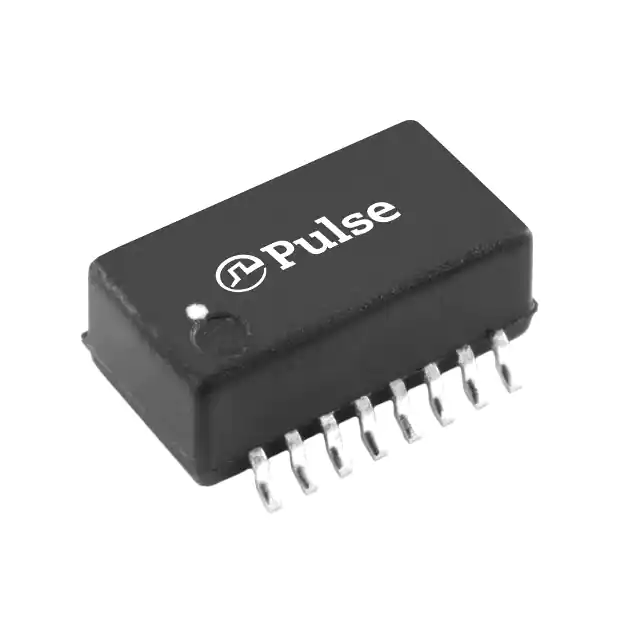

PE-69011NL CMC 8LN SMD Pulse Electronics Network	855	8.36	- + RFQ	Datasheet	Tube	-	Active	Signal Line	8	-	-	-	350mOhm	-	-	-	-	-	-	Surface Mount	0.500 L x 0.275 W (12.70mm x 6.99mm)	0.200 (5.08mm)
SC-07-E042JH CMC 4.2MH 7A 2LN TH KEMET	125	8.50	- + RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	4.2 mH @ 100 kHz	7A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.339 Dia (34.00mm)	1.063 (27.00mm)
HCTC-8-5.6 CMC 8MH 5.6A 2LN TH Signal Transformer	384	8.59	- + RFQ	Datasheet	Tray	HCTC	Active	Power Line	2	-	8 mH @ 1 kHz	5.6A	55mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.350 L x 0.600 W (34.29mm x 15.24mm)	1.450 (36.83mm)
PL8204 CMC 5.6A 2LN SMD iNRCORE, LLC	192	9.11	- + RFQ	Datasheet	Tube	-	Active	Power Line	2	-	-	5.6A	21mOhm	-	-	-55°C ~ 130°C	-	-	-	Surface Mount	0.770 L x 0.670 W (19.56mm x 17.02mm)	0.390 (9.91mm)
PL8209 CMC 1.63A 2LN SMD iNRCORE, LLC	341	9.45	- + RFQ	Datasheet	Tube	-	Active	Power Line	2	-	-	1.63A	110mOhm	-	-	-55°C ~ 130°C	-	-	-	Surface Mount	0.500 L x 0.500 W (12.70mm x 12.70mm)	0.215 (5.46mm)
HCTC-50-2.3 CMC 50MH 2.3A 2LN TH Signal Transformer	292	9.65	- + RFQ	Datasheet	Tray	HCTC	Active	Power Line	2	-	50 mH @ 1 kHz	2.3A	450mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.550 L x 0.600 W (39.37mm x 15.24mm)	1.650 (41.91mm)

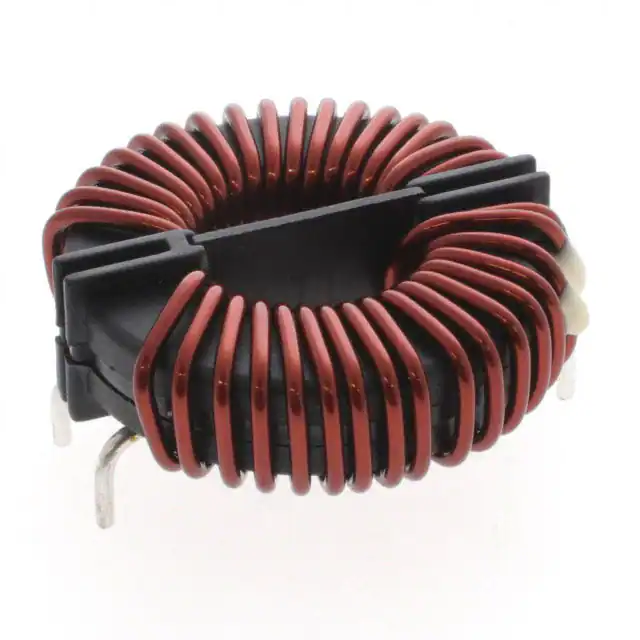

SCR31HA-120-1R3A012H CMC 1.2MH 12A 2LN TH KEMET	129	9.75	- + RFQ	Datasheet	Tray	SCR	Active	Power Line	2	-	1.2 mH @ 10 kHz	12A	9.6mOhm	250V	250V	25°C ~ 120°C	-	-	-	Through Hole	1.535 L x 1.496 W (39.00mm x 38.00mm)	0.610 (15.50mm)
SC-18-05J CMC 500UH 18A 2LN TH KEMET	152	9.84	- + RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	500 µH @ 100 kHz	18A	7mOhm	250V	250V	25°C ~ 105°C	-	-	-	Through Hole	1.732 L x 1.181 W (44.00mm x 30.00mm)	1.732 (44.00mm)
CME375-6 CMC 43.6MH 1.75A 2LN TH ESD Triad Magnetics	141	9.90	- + RFQ	Datasheet	Bulk	CME	Active	Power Line	2	-	43.6 mH @ 10 kHz	1.75A	489mOhm	-	250V	-40°C ~ 80°C	-	CSA, IEC, UL, VDE	ESD	Through Hole	1.500 L x 1.260 W (38.10mm x 32.00mm)	1.180 (29.97mm)
