Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
SS30V-450013 CMC 1.3MH 4.5A 2LN TH KEMET	158	3.85	- + RFQ	Datasheet	Tray	SS	Active	Power Line	2	-	1.3 mH @ 1 kHz	4.5A	60mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.220 L x 0.886 W (31.00mm x 22.50mm)	1.339 (34.00mm)

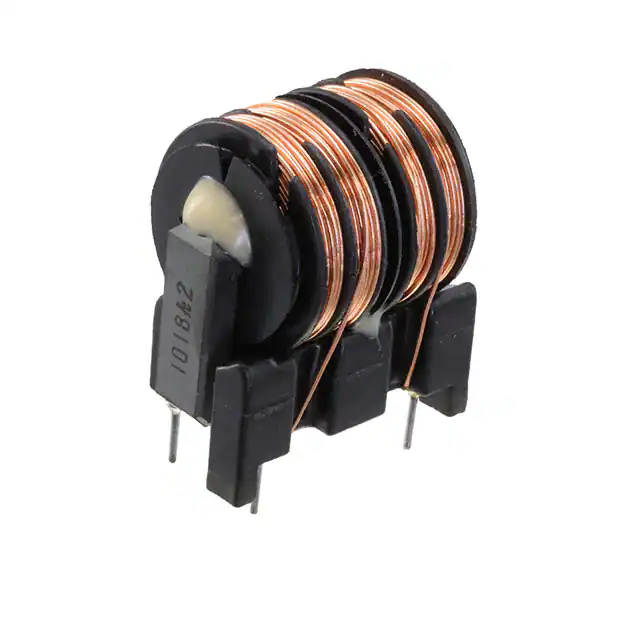

SS30V-100530 CMC 53MH 1A 2LN TH KEMET	103	3.85	- + RFQ	Datasheet	Tray	SS	Active	Power Line	2	-	53 mH @ 1 kHz	1A	1.1Ohm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.220 L x 0.886 W (31.00mm x 22.50mm)	1.339 (34.00mm)
SC-02-E50JKH CMC 5.4MH 2.7A 2LN TH KEMET	301	3.89	- + RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	5.4 mH @ 10 kHz	2.7A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	-	0.669 (17.00mm)

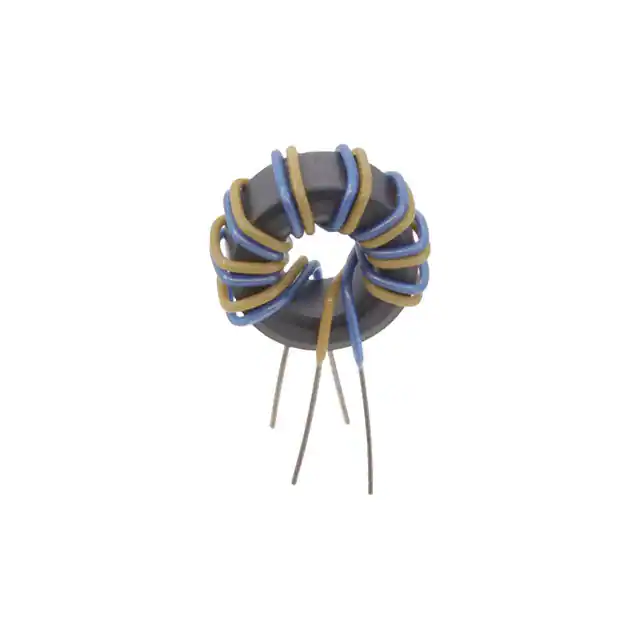

ST-202 CMC, TROID, 600OHM, 40MOHM KEMET	188	3.93	- + RFQ	Datasheet	Tray	ST	Active	-	2	600 Ohms @ 100 MHz	-	1A	40mOhm	50V	-	-20°C ~ 75°C	-	-	-	Through Hole	0.630 Dia (16.00mm)	0.354 (9.00mm)

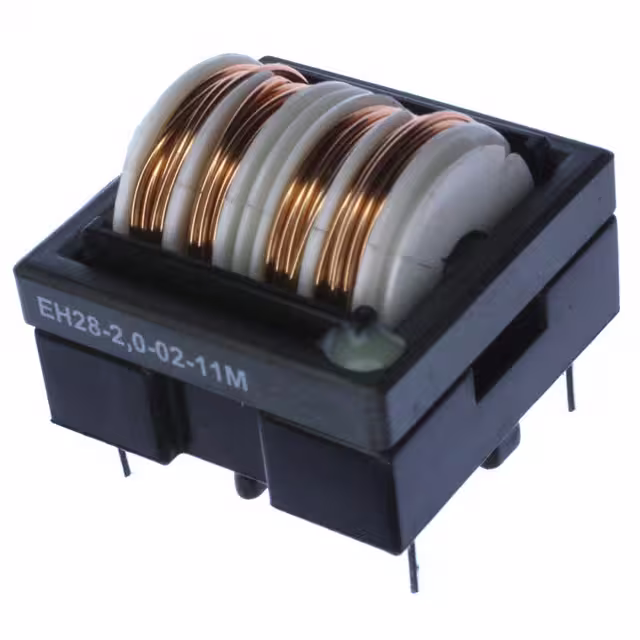

EH28-2.0-02-11M CMC 11MH 2A 2LN TH Schaffner EMC Inc.	338	3.94	- + RFQ	Datasheet	Tray	EH	Active	Power Line	2	-	11 mH @ 10 kHz	2A	162mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.102 L x 1.102 W (28.00mm x 28.00mm)	0.941 (23.90mm)

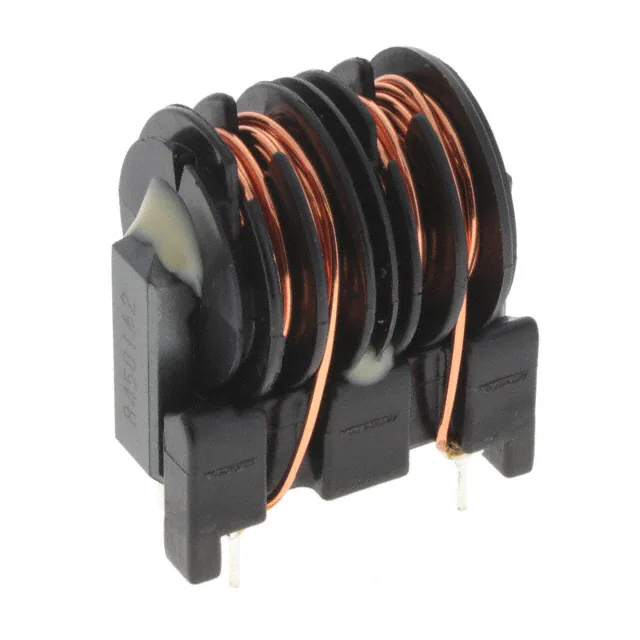

SS30V-R450017 CMC 1.7MH 4.5A 2LN TH KEMET	200	3.94	- + RFQ	Datasheet	Tray	SS	Active	Power Line	2	-	1.7 mH @ 1 kHz	4.5A	60mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.220 L x 0.886 W (31.00mm x 22.50mm)	1.339 (34.00mm)

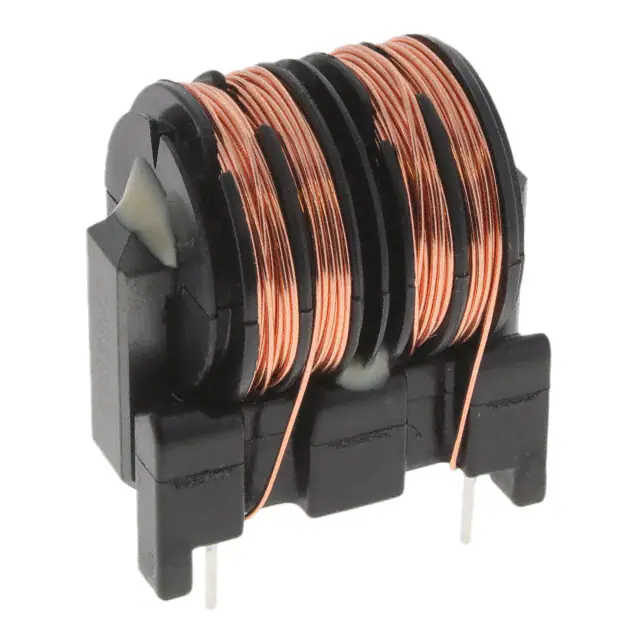

SS30V-R100700 CMC 70MH 1A 2LN TH KEMET	185	3.94	- + RFQ	Datasheet	Tray	SS	Active	Power Line	2	-	70 mH @ 1 kHz	1A	1.1Ohm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.220 L x 0.886 W (31.00mm x 22.50mm)	1.339 (34.00mm)
SS30V-R080960 CMC 96MH 800MA 2LN TH KEMET	171	3.94	- + RFQ	Datasheet	Tray	SS	Active	Power Line	2	-	96 mH @ 1 kHz	800mA	1.5Ohm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.220 L x 0.886 W (31.00mm x 22.50mm)	1.339 (34.00mm)

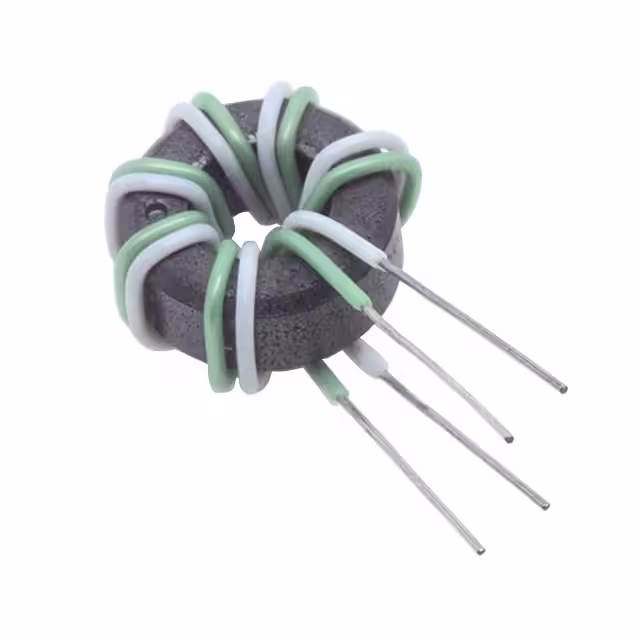

ST-201A CMC, TROID, 1500OHM, 150MOHM KEMET	480	3.95	- + RFQ	Datasheet	Tray	ST	Active	-	2	1.5 kOhms @ 7 MHz	-	200mA	150mOhm	50V	-	-20°C ~ 65°C	-	-	-	Through Hole	0.630 Dia (16.00mm)	0.413 (10.50mm)
SC-02-15JS CMC 1.5MH 2A 2LN TH KEMET	129	4.01	- + RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	1.5 mH @ 1 kHz	2A	-	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	1.142 L x 1.024 W (29.00mm x 26.00mm)	0.472 (12.00mm)

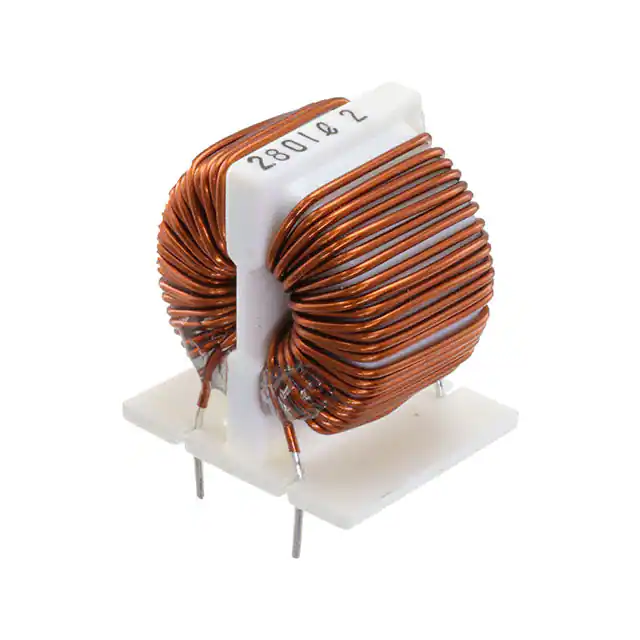

SC-03-28J CMC 2.8MH 3A 2LN TH KEMET	398	4.05	- + RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	2.8 mH @ 10 kHz	3A	55mOhm	250V	250V	25°C ~ 120°C	-	-	-	Through Hole	0.984 L x 0.787 W (25.00mm x 20.00mm)	1.063 (27.00mm)

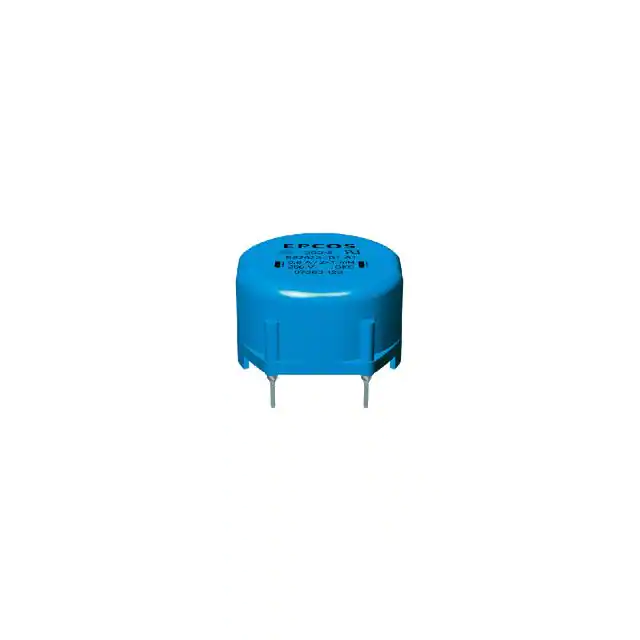

B82623G0001A008 CMC 330UH 1A 2LN TH PFC EPCOS - TDK Electronics	798	4.08	- + RFQ	Datasheet	Tray	B82623	Active	Power Line	2	-	330 µH @ 100 kHz	1A	400mOhm (Typ)	350V	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	PFC	Through Hole	1.102 L x 1.063 W (28.00mm x 27.00mm)	0.740 (18.80mm)

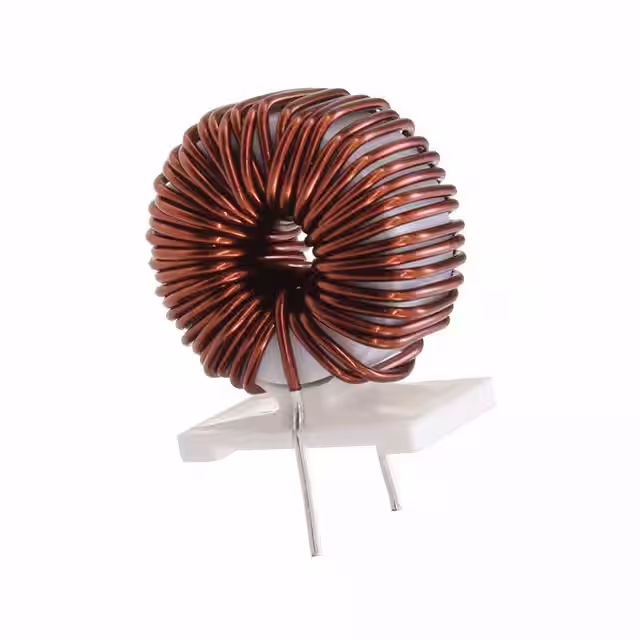

SN10-500J CMC 110UH 3A 2LN TH KEMET	600	4.30	- + RFQ	Datasheet	Bulk	SN	Active	Power Line	2	-	110 µH @ 100 kHz	3A	-	-	-	-25°C ~ 105°C	-	-	-	Through Hole	-	1.024 (26.00mm)

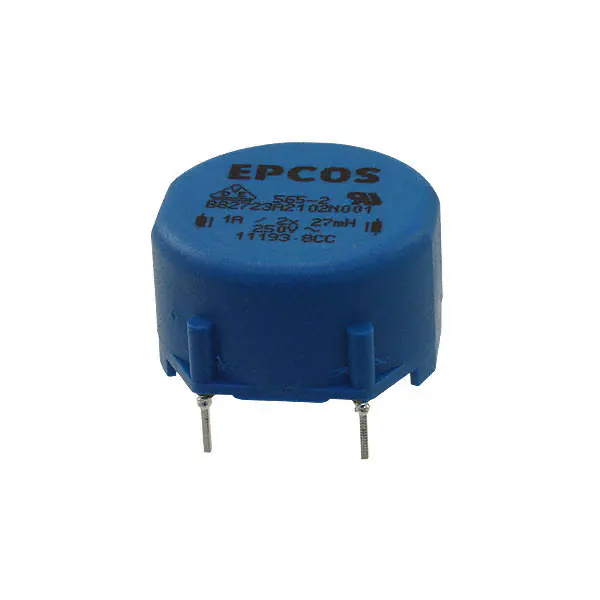

B82723A2102N001 CMC 27MH 1A 2LN TH EPCOS - TDK Electronics	530	4.34	- + RFQ	Datasheet	Tray	B82723	Active	Power Line	2	-	27 mH @ 10 kHz	1A	750mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.102 L x 1.063 W (28.00mm x 27.00mm)	0.661 (16.80mm)
B82723J2802N001 CMC 450UH 8A 2LN TH EPCOS - TDK Electronics	499	4.34	- + RFQ	Datasheet	Tray	B82723	Active	Power Line	2	-	450 µH @ 100 kHz	8A	11mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.102 L x 0.591 W (28.00mm x 15.00mm)	1.201 (30.50mm)

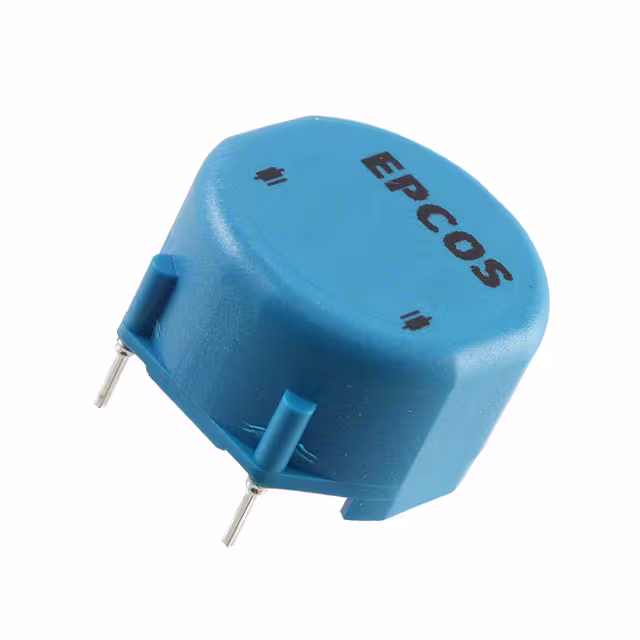

B82723A2202N001 CMC 5.6MH 2A 2LN TH EPCOS - TDK Electronics	379	4.34	- + RFQ	Datasheet	Tray	B82723	Active	Power Line	2	-	5.6 mH @ 10 kHz	2A	160mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.102 L x 1.063 W (28.00mm x 27.00mm)	0.661 (16.80mm)

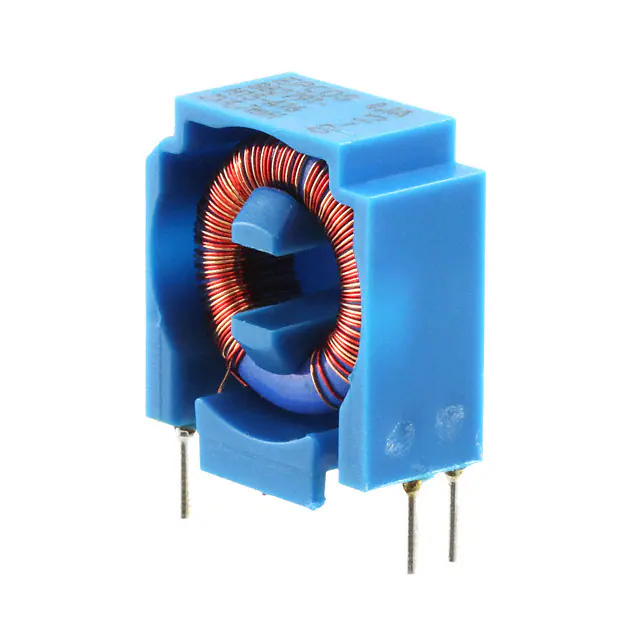

B82791H0015A025 CMC 10MH 100MA 2LN TH EPCOS - TDK Electronics	529	4.37	- + RFQ	Datasheet	Bulk	B82791	Active	Signal Line	2	-	10 mH @ 10 kHz	100mA	1.2Ohm (Typ)	80V	42V	-40°C ~ 125°C	-	-	-	Through Hole	0.598 L x 0.291 W (15.20mm x 7.40mm)	0.693 (17.60mm)
B82734W2142B030 CMC 39MH 1.4A 2LN TH EPCOS - TDK Electronics	760	4.51	- + RFQ	Datasheet	Tray	B82734	Active	Power Line	2	-	39 mH @ 10 kHz	1.4A	460mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.280 L x 1.220 W (32.50mm x 31.00mm)	0.854 (21.70mm)
B82734W2462B030 CMC 3.3MH 4.6A 2LN TH EPCOS - TDK Electronics	748	4.51	- + RFQ	Datasheet	Tray	B82734	Active	Power Line	2	-	3.3 mH @ 10 kHz	4.6A	46mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.280 L x 1.220 W (32.50mm x 31.00mm)	0.854 (21.70mm)
B82734W2232B030 CMC 15MH 2.3A 2LN TH EPCOS - TDK Electronics	633	4.51	- + RFQ	Datasheet	Tray	B82734	Active	Power Line	2	-	15 mH @ 10 kHz	2.3A	185mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.280 L x 1.220 W (32.50mm x 31.00mm)	0.854 (21.70mm)
