Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

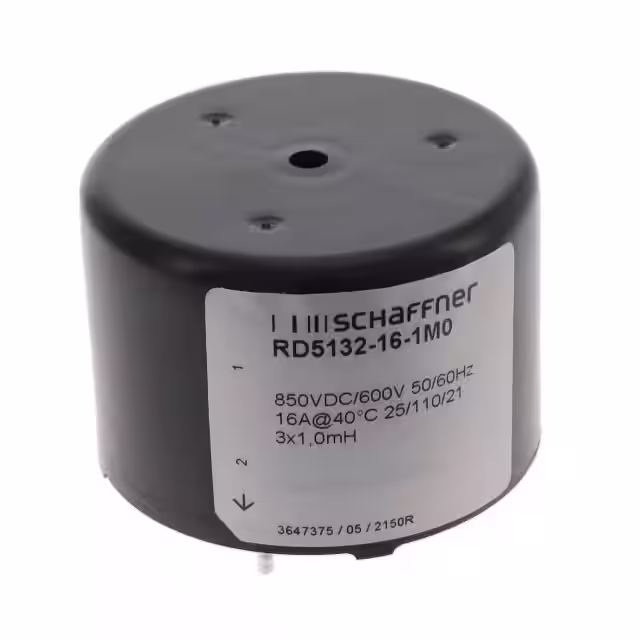

RD5132-16-1M0 CMC 1MH 16A 3LN TH Schaffner EMC Inc.	209	14.54	- + RFQ	Datasheet	Tray	RD	Active	Power Line	3	-	1 mH @ 400 Hz	16A (Typ)	6.9mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	1.969 L x 1.969 W (50.00mm x 50.00mm)	1.398 (35.50mm)
B82726E6203B041 CMC 2.7MH 20A 2LN TH EPCOS - TDK Electronics	424	15.31	- + RFQ	Datasheet	Tray	B82726	Active	Power Line	2	-	2.7 mH @ 10 kHz	20A	4.4mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	UR	-	Through Hole	2.165 L x 1.339 W (55.00mm x 34.00mm)	2.047 (52.00mm)
B82727E6223A040 CMC 3.3MH 22A 2LN TH EPCOS - TDK Electronics	651	15.45	- + RFQ	Datasheet	Tray	B82727	Active	Power Line	2	-	3.3 mH @ 10 kHz	22A	4.6mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	UR	-	Through Hole	1.890 Dia x 1.024 L (48.00mm x 26.00mm)	1.772 (45.00mm)

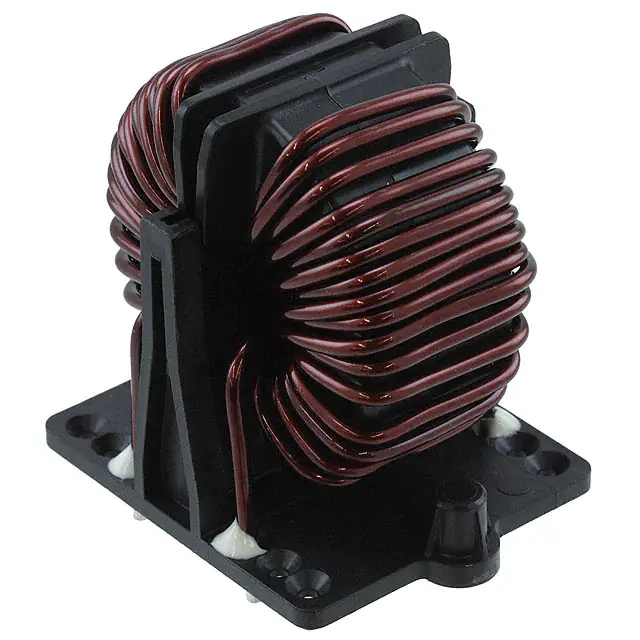

RB8522-16-3M0 CMC 3MH 16A 2LN TH Schaffner EMC Inc.	198	18.66	- + RFQ	Datasheet	Bulk	RB	Active	Power Line	2	-	3 mH @ 400 Hz	16A	8.4mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	1.969 L x 1.709 W (50.00mm x 43.40mm)	2.283 (58.00mm)

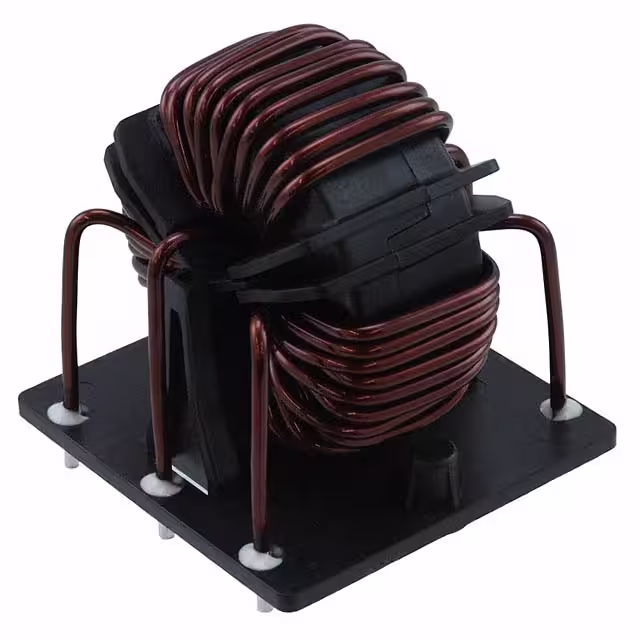

RB8532-16-1M3 CMC 1.3MH 16A 3LN TH Schaffner EMC Inc.	277	20.08	- + RFQ	Datasheet	Bulk	RB	Active	Power Line	3	-	1.3 mH @ 1 kHz	16A	5.7mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	2.283 L x 2.165 W (58.00mm x 55.00mm)	2.283 (58.00mm)

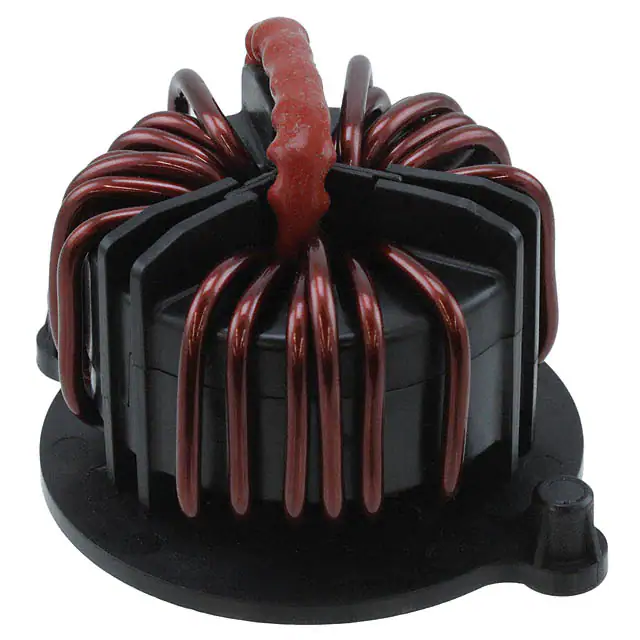

RB6132-25-0M5 CMC 470UH 25A 3LN TH Schaffner EMC Inc.	112	20.44	- + RFQ	Datasheet	Bulk	RB	Active	Power Line	3	-	470 µH @ 400 Hz	25A	2.4mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	2.315 L x 2.276 W (58.80mm x 57.80mm)	1.890 (48.00mm)
RB6532-36-0M4 CMC 420UH 36A 3LN TH Schaffner EMC Inc.	201	26.17	- + RFQ	Datasheet	Bulk	RB	Active	Power Line	3	-	420 µH @ 400 Hz	36A	4.2mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	2.441 L x 2.283 W (62.00mm x 58.00mm)	2.756 (70.00mm)

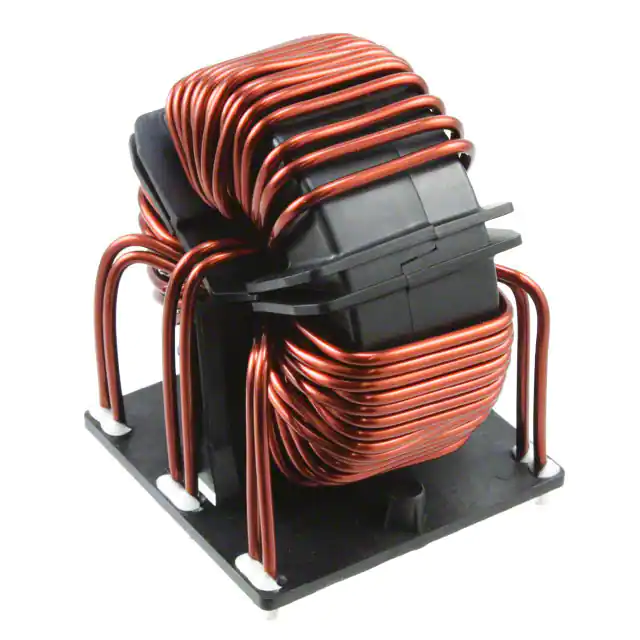

RB8532-36-0M8 CMC 830UH 36A 3LN TH Schaffner EMC Inc.	540	34.15	- + RFQ	Datasheet	Bulk	RB	Active	Power Line	3	-	830 µH @ 400 Hz	36A	2.3mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	2.992 L x 2.480 W (76.00mm x 63.00mm)	3.228 (82.00mm)
SRF2012-161YA CMC 350MA 2LN 160 OHM SMD Bourns Inc.	3,226	0.44	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SRF2012A	Active	-	2	160 Ohms @ 100 MHz	-	350mA	350mOhm	50V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.079 L x 0.047 W (2.00mm x 1.20mm)	0.055 (1.40mm)
ACE1V2012-361-R CMC 280MA 2LN 360OHM SMD AECQ200 Eaton - Electronics Division	3,209	0.72	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACE1V2012	Active	Signal Line	2	360 Ohms @ 100 MHz	-	280mA	400mOhm	50V	-	-40°C ~ 105°C	AEC-Q200	-	-	Surface Mount	0.079 L x 0.047 W (2.00mm x 1.20mm)	0.055 (1.40mm)
ACE1V2012-121-R CMC 370MA 2LN 120OHM SMD AECQ200 Eaton - Electronics Division	2,366	0.81	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACE1V2012	Active	Signal Line	2	120 Ohms @ 100 MHz	-	370mA	300mOhm	50V	-	-40°C ~ 105°C	AEC-Q200	-	-	Surface Mount	0.079 L x 0.047 W (2.00mm x 1.20mm)	0.055 (1.40mm)
PCMF2USB3B/CZ CMC 4LN SMD ESD Nexperia USA Inc.	2,204	0.82	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PCM	Active	Signal Line	4	-	-	-	3Ohm (Typ)	-	-	-40°C ~ 85°C	-	-	ESD	Surface Mount	0.062 L x 0.046 W (1.57mm x 1.17mm)	0.024 (0.60mm)
TCM0403R-900-2P-T210 CMC 35MA 2LN SMD TDK Corporation	3,921	1.10	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	TCM-R	Not For New Designs	Signal Line	2	-	-	35mA	3.5Ohm	5V	-	-25°C ~ 85°C	-	-	-	Surface Mount	0.018 L x 0.012 W (0.45mm x 0.30mm)	0.010 (0.25mm)

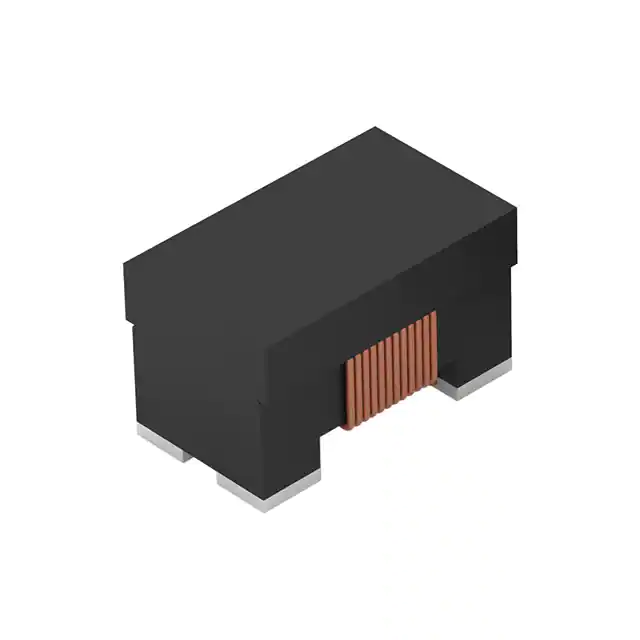

784231061 WE-CNSA SMT COMMON MODE LINE FIL Würth Elektronik	2,996	0.91	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-CNSA	Active	Signal Line	2	67 Ohms @ 100 MHz	-	400mA	250mOhm	50V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.079 L x 0.047 W (2.00mm x 1.20mm)	0.055 (1.40mm)
B82793C0253N201 CMC 25UH 800MA 2LN SMD AEC-Q200 EPCOS - TDK Electronics	3,214	2.54	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82793	Active	Signal Line	2	-	25 µH @ 100 kHz	800mA	110mOhm (Typ)	80V	42V	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.280 L x 0.236 W (7.10mm x 6.00mm)	0.189 (4.80mm)

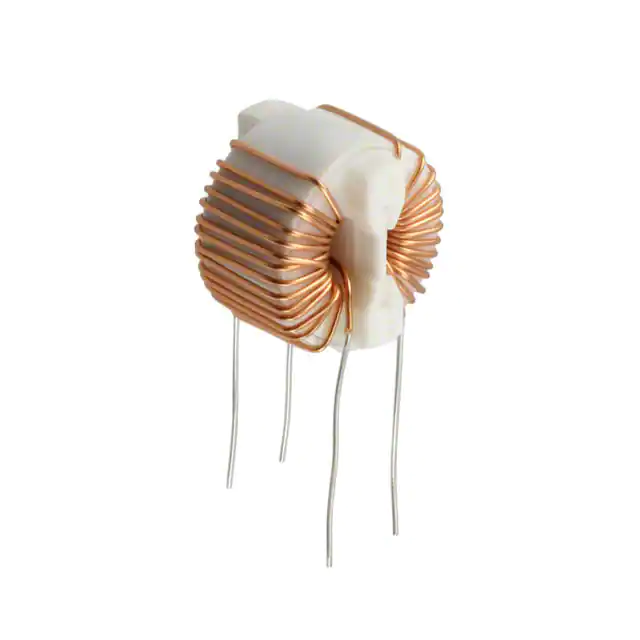

SC-01-10G CMC 1MH 1A 2LN TH KEMET	3,082	1.71	- + RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	1 mH @ 100 kHz	1A	70mOhm	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	0.689 Dia x 0.551 W (17.50mm x 14.00mm)	0.689 (17.50mm)

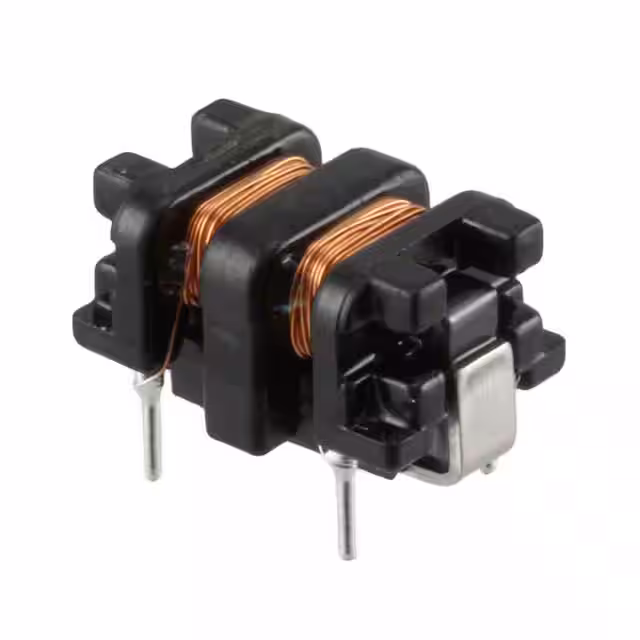

SU7VC-05011 CMC 1.1MH 500MA 2LN TH KEMET	3,768	2.18	- + RFQ	Datasheet	Bulk	SU	Active	Power Line	2	-	1.1 mH @ 1 kHz	500mA	840mOhm	-	125V	-25°C ~ 120°C	-	-	-	Through Hole	0.591 L x 0.394 W (15.00mm x 10.00mm)	0.335 (8.50mm)
DKFP-G22G-D5J0 CMC 500MA 2LN TH Schurter Inc.	112	2.58	- + RFQ	Datasheet	Bulk	DKFP	Active	-	2	-	-	500mA	3.1Ohm	-	250V	-40°C ~ 125°C	-	UR	-	Through Hole	1.339 L x 1.299 W (34.00mm x 33.00mm)	-

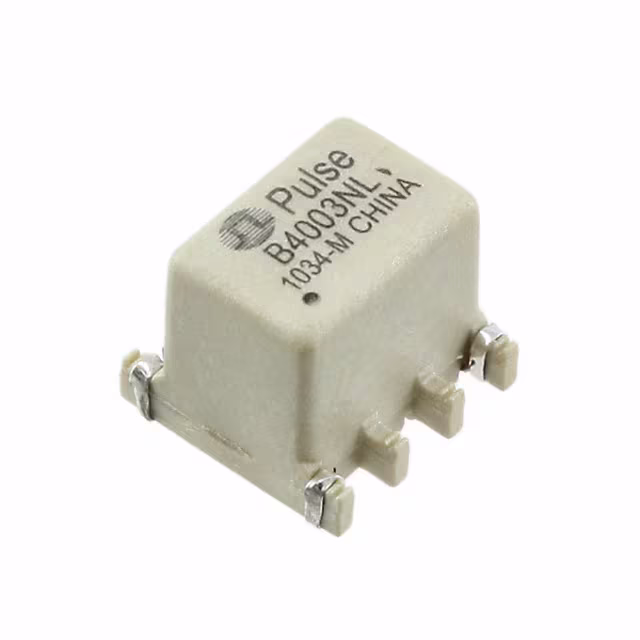

B4003NLT CMC 2LN SMD Pulse Electronics Network	3,593	4.64	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Signal Line	2	-	-	-	1Ohm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.355 L x 0.345 W (9.02mm x 8.76mm)	0.300 (7.62mm)
B82730G3401A020 CMC 15MH 400MA 2LN TH EPCOS - TDK Electronics	2,661	2.63	- + RFQ	Datasheet	Tray	B82730	Active	Power Line	2	-	15 mH @ 10 kHz	400mA	2.4Ohm (Typ)	-	300V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.650 L x 0.591 W (16.50mm x 15.00mm)	0.472 (12.00mm)
