Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E18/4/10/R-3F36-A160-P PLANAR E CORES Ferroxcube	3,301	0.55	- + RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
E18/4/10/R-3F36-A250-P PLANAR E CORES Ferroxcube	3,628	0.55	- + RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
E18/4/10/R-3F46-A160-P PLANAR E CORES Ferroxcube	2,238	0.55	- + RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
E18/4/10/R-3F46-A250-P PLANAR E CORES Ferroxcube	2,304	0.55	- + RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
B65839A0100J030 FERRITE CORE EPCOS - TDK Electronics	2,810	0.56	- + RFQ	Datasheet	Box	EP7	Active	EP	EP 7	N30	-	-	-	Gapped	-	4300	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65839A0250J030 FERRITE CORE EPCOS - TDK Electronics	3,135	0.56	- + RFQ	Datasheet	Box	EP7	Active	EP	EP 7	N30	-	-	-	Gapped	-	4300	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
ER11/2.5/6-3C95-S PLANAR ER CORES 2PC SET Ferroxcube	3,245	0.56	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 11 x 2.5 x 6	3C95	-	-	±25%	Ungapped	-	-	1.23	14.7	11.9	10.3	174	Uncoated	0.236 (6.00mm)
4052251111 52 ROD Fair-Rite Products Corp.	2,821	0.56	- + RFQ	Datasheet	Bulk	-	Active	ROD	-	52	-	-	-	Ungapped	-	250	-	-	-	-	-	Uncoated	-
EFD25/13/9-3F36-A160 EFD CORES Ferroxcube	2,368	0.56	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 25 x 13 x 9	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)
EFD25/13/9-3F36-A250 EFD CORES Ferroxcube	3,380	0.56	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 25 x 13 x 9	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)
EFD25/13/9-3F46-A160 EFD CORES Ferroxcube	3,794	0.56	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 25 x 13 x 9	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)
EFD25/13/9-3F46-A250 EFD CORES Ferroxcube	2,829	0.56	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 25 x 13 x 9	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)

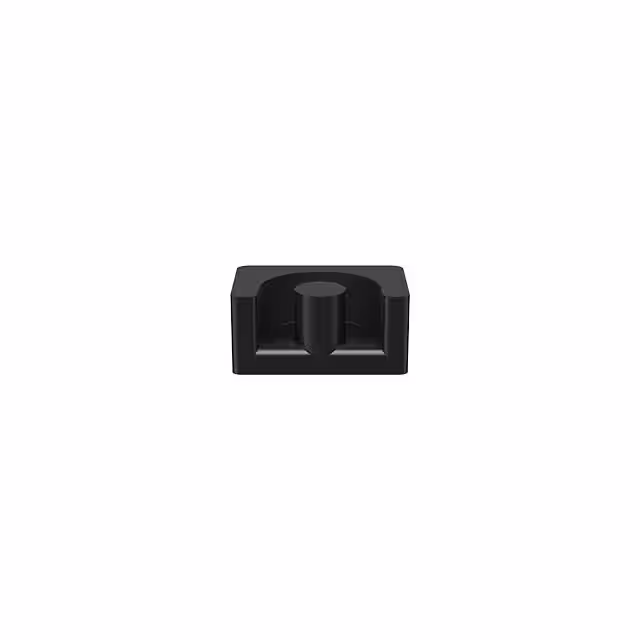

B65855B0000R092 FERRITE CORE EPCOS - TDK Electronics	2,762	0.56	- + RFQ	Datasheet	Box	EP6	Active	EP	EP 5	N92	-	-	-	-	-	1500	3.149	9.73	3.09	2.3	30	Uncoated	0.112 (2.85mm)
RM6S/I-3C94 RM CORES 2PC SET Ferroxcube	3,325	0.56	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 6	3C94	-	-	±25%	Ungapped	1360	-	0.784	29.2	37	31.2	1090	Uncoated	0.488 (12.40mm)
PLT20/14/2/S-3F36 EQ CORES Ferroxcube	2,340	0.56	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 20 x 14 x 2	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.551 (14.00mm)
PLT20/14/2/S-3F46 EQ CORES Ferroxcube	3,726	0.56	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 20 x 14 x 2	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.551 (14.00mm)
E14/3.5/5-4F1-A40-E PLANAR E CORES Ferroxcube	3,608	0.57	- + RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	-	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
E14/3.5/5-4F1-A40-P PLANAR E CORES Ferroxcube	2,862	0.57	- + RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	-	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
B65855A0000R092 FERRITE CORE EPCOS - TDK Electronics	3,485	0.57	- + RFQ	Datasheet	Box	EP5	Active	EP	EP 5	N92	-	350 nH	-20%, +30%	Ungapped	880	1500	3.149	9.73	3.09	2.3	30	Uncoated	0.112 (2.85mm)
ETD34/17/11-3C94-G1000 ER AND ETD CORES Ferroxcube	2,840	0.57	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
