Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
ETD34/17/11-3C95 ER AND ETD CORES Ferroxcube	2,381	0.58	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
B66319G0500X127 FERRITE CORE EPCOS - TDK Electronics	2,854	0.58	- + RFQ	Datasheet	Box	E30/15/7	Active	E	E 30 x 15 x 7	N27	-	-	-	Gapped	-	2000	1.12	67	60	49	4000	Uncoated	0.598 (15.20mm)
B66319G1000X127 FERRITE CORE EPCOS - TDK Electronics	3,129	0.58	- + RFQ	Datasheet	Box	E30/15/7	Active	E	E 30 x 15 x 7	N27	-	-	-	Gapped	-	2000	1.12	67	60	49	4000	Uncoated	0.598 (15.20mm)
B66319G1200X127 FERRITE CORE EPCOS - TDK Electronics	3,081	0.58	- + RFQ	Datasheet	Box	E30/15/7	Active	E	E 30 x 15 x 7	N27	-	-	-	Gapped	-	2000	1.12	67	60	49	4000	Uncoated	0.598 (15.20mm)
EFD25/13/9-3C95 EFD CORES Ferroxcube	2,020	0.58	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 25 x 13 x 9	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)
EFD25/13/9-3C95-A160 EFD CORES Ferroxcube	2,856	0.58	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 25 x 13 x 9	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)
EFD25/13/9-3C95-A250 EFD CORES Ferroxcube	2,220	0.58	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 25 x 13 x 9	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)
EP10-3F36 EP AND EPX CORES 2PC SET Ferroxcube	2,531	0.58	- + RFQ	Datasheet	Bulk	-	Active	EP	EP 10	3F36	-	-	±25%	Ungapped	-	-	1.7	19.3	11.3	8.55	215	Uncoated	0.402 (10.20mm)
EP10-3F46 EP AND EPX CORES 2PC SET Ferroxcube	3,997	0.58	- + RFQ	Datasheet	Bulk	-	Active	EP	EP 10	3F46	-	-	±25%	Ungapped	-	-	1.7	19.3	11.3	8.55	215	Uncoated	0.402 (10.20mm)
B66417G0000X195 FERRITE CORE EPCOS - TDK Electronics	2,390	0.59	- + RFQ	Datasheet	Box	EFD20/10/7	Active	EFD	EFD 20 x 10 x 7	N95	-	-	-	-	-	3000	1.52	47	31	31	1460	Uncoated	0.394 (10.00mm)
E22/6/16-3C95 PLANAR E CORES Ferroxcube	3,958	0.59	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
EFD30/15/9-3C90-A250 EFD CORES Ferroxcube	2,620	0.59	- + RFQ		Bulk	-	Active	EFD	EFD 30 x 15 x 9	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
EFD30/15/9-3C90-A315 EFD CORES Ferroxcube	3,227	0.59	- + RFQ		Bulk	-	Active	EFD	EFD 30 x 15 x 9	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
EFD30/15/9-3C90-A630 EFD CORES Ferroxcube	2,275	0.59	- + RFQ		Bulk	-	Active	EFD	EFD 30 x 15 x 9	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
PLT22/16/2.5/S-3C97 PLANAR E CORES Ferroxcube	3,694	0.59	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 22 x 16 x 2.5	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.114 (2.90mm)
B65857A0000R057 FERRITE CORE EPX 2.6UH T57 2PCS EPCOS - TDK Electronics	3,644	0.59	- + RFQ	Datasheet	Box	EPX7/9	Active	EPX	EPX 7 x 9	T57	-	2.6 µH	-20%, +30%	Ungapped	1890	4000	0.91	15.7	17.2	13.9	270	Uncoated	0.148 (3.75mm)
E32/16/9-3F36-G500 E CORES Ferroxcube	3,137	0.59	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 16 x 9	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)

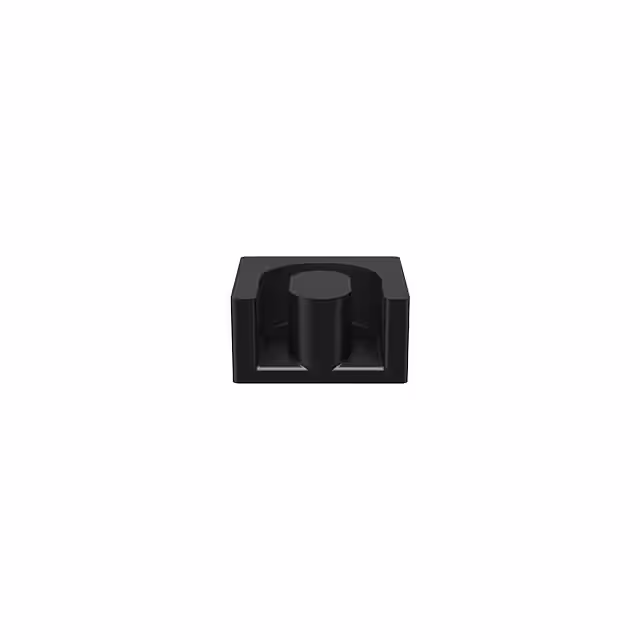

B65857C0000R057 FERRITE CORE EPX 2.4UH T57 2PCS EPCOS - TDK Electronics	2,755	0.59	- + RFQ	Datasheet	Box	EPX9/9	Active	EPX	EPX 9 x 9	T57	-	2.4 µH	-20%, +30%	Ungapped	2070	4000	1.09	19	17.5	13.9	333	Uncoated	0.187 (4.75mm)
ETD34/17/11-3C90-G2200 ER AND ETD CORES Ferroxcube	2,362	0.59	- + RFQ		Bulk	-	Active	ETD	ETD 34 x 17 x 11	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
ETD34/17/11-3C96-G200 ER AND ETD CORES Ferroxcube	3,547	0.59	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
