Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E22/6/16-3C92-A160-E PLANAR E CORES Ferroxcube	2,377	0.62	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3C92-A160-P PLANAR E CORES Ferroxcube	3,644	0.62	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
RM6S/I-3C96 RM CORES 2PC SET Ferroxcube	3,087	0.62	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 6	3C96	-	-	±25%	Ungapped	1470	-	0.784	29.2	37	31.2	1090	Uncoated	0.488 (12.40mm)
ETD34/17/11-3C96-G1000 ER AND ETD CORES Ferroxcube	2,506	0.62	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
ETD34/17/11-3C96-G500 ER AND ETD CORES Ferroxcube	3,267	0.62	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
ETD34/17/11-3F36 ER AND ETD CORES Ferroxcube	2,817	0.62	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
ETD34/17/11-3F46 ER AND ETD CORES Ferroxcube	2,283	0.62	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
E34/14/9-3F36-G500 E CORES Ferroxcube	2,964	0.62	- + RFQ	Datasheet	Bulk	-	Active	E	E 34 x 14 x 9	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.555 (14.10mm)
ER9.5/2.5/5-3C96-A100-S PLANAR ER CORES 2PC SET Ferroxcube	3,972	0.62	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 9.5 x 2.5 x 5	3C96	-	100 nH	±5%	Gapped	133	-	1.67	14.2	8.47	7.6	120	Uncoated	-
PLT25/18/2-3F36 EQ CORES Ferroxcube	2,966	0.63	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 25 x 18 x 2	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	-
PLT25/18/2-3F46 EQ CORES Ferroxcube	2,917	0.63	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 25 x 18 x 2	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	-
EFD30/15/9-3C95 EFD CORES Ferroxcube	3,686	0.63	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 30 x 15 x 9	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
E22/6/16-3C97 PLANAR E CORES Ferroxcube	3,677	0.63	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3F36 PLANAR E CORES Ferroxcube	3,330	0.63	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3F46 PLANAR E CORES Ferroxcube	3,619	0.63	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3C96-A160-E PLANAR E CORES Ferroxcube	2,105	0.63	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3C96-A160-P PLANAR E CORES Ferroxcube	3,665	0.63	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
ETD34/17/11-3C95-G1000 ER AND ETD CORES Ferroxcube	2,014	0.63	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
ETD34/17/11-3C95-G500 ER AND ETD CORES Ferroxcube	3,072	0.63	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)

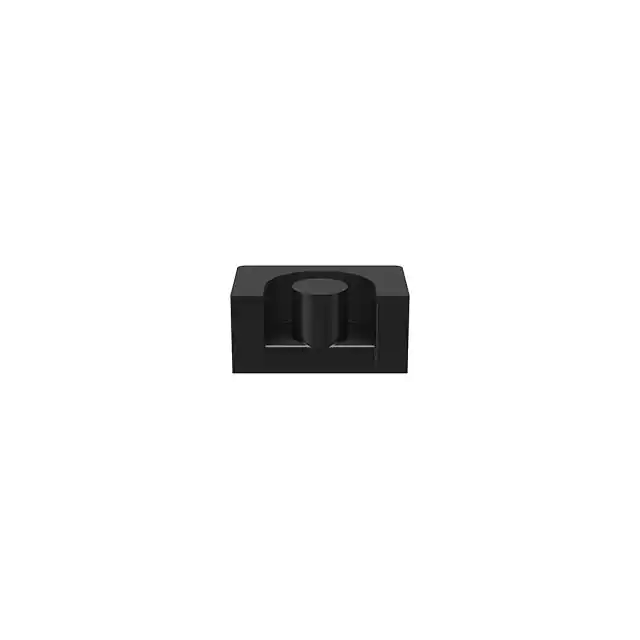

B65843A0000R065 FERRITE CORE EP 4UH T65 2PCS EPCOS - TDK Electronics	3,318	0.63	- + RFQ	Datasheet	Box	EP13	Active	EP	EP 13	T65	-	4 µH	-20%, +30%	Ungapped	3950	5200	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
