Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E22/6/16/R-3C90-A400-P PLANAR E CORES Ferroxcube	2,211	0.65	- + RFQ		Bulk	-	Active	E	E 22 x 6 x 16	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16/R-3C90-A630-P PLANAR E CORES Ferroxcube	2,169	0.65	- + RFQ		Bulk	-	Active	E	E 22 x 6 x 16	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
ER35W/21/11-3C94 ER AND ETD CORES Ferroxcube	2,210	0.65	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 35 x 21 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.823 (20.90mm)
RM5/ILP-3F36 RM CORES 2PC SET Ferroxcube	2,545	0.65	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 5	3F36	-	-	±25%	Ungapped	-	-	0.71	17.5	24.5	18.1	430	Uncoated	0.307 (7.80mm)
B66319G0250X187 FERRITE CORE EPCOS - TDK Electronics	2,095	0.65	- + RFQ	Datasheet	Box	E30/15/7	Active	E	E 30 x 15 x 7	N87	-	-	-	Gapped	-	2200	1.12	67	60	49	4000	Uncoated	0.598 (15.20mm)
B66319G0800X187 FERRITE CORE EPCOS - TDK Electronics	2,839	0.65	- + RFQ	Datasheet	Box	E30/15/7	Active	E	E 30 x 15 x 7	N87	-	-	-	Gapped	-	2200	1.12	67	60	49	4000	Uncoated	0.598 (15.20mm)
B66319G1000X187 FERRITE CORE EPCOS - TDK Electronics	3,910	0.65	- + RFQ	Datasheet	Box	E30/15/7	Active	E	E 30 x 15 x 7	N87	-	-	-	Gapped	-	2200	1.12	67	60	49	4000	Uncoated	0.598 (15.20mm)

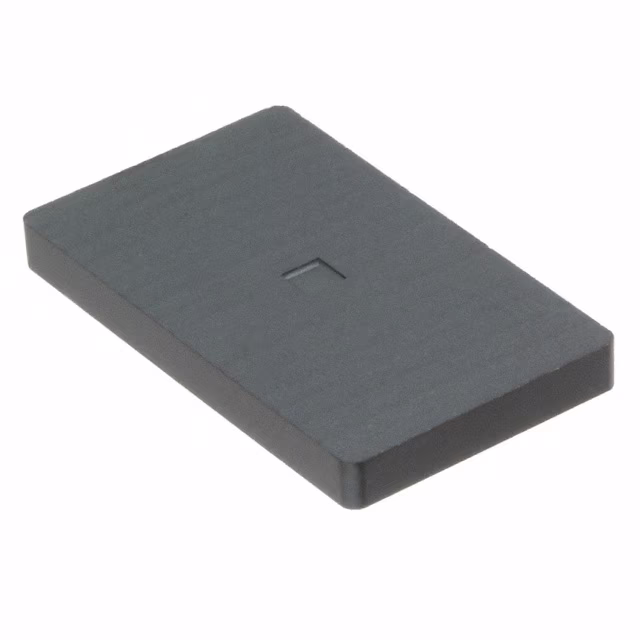

B66479P0000X197 FERRITE CORE I N97 1PC EPCOS - TDK Electronics	3,035	0.65	- + RFQ	Datasheet	Box	I13/9/1	Active	I	I 13 x 1	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.043 (1.10mm)
EP7-3F36 EP AND EPX CORES 2PC SET Ferroxcube	3,444	0.65	- + RFQ	Datasheet	Bulk	-	Active	EP	EP 7	3F36	-	-	±25%	Ungapped	-	-	1.45	15.5	10.7	8.55	165	Uncoated	0.295 (7.50mm)
EP7-3F46 EP AND EPX CORES 2PC SET Ferroxcube	2,116	0.65	- + RFQ	Datasheet	Bulk	-	Active	EP	EP 7	3F46	-	-	±25%	Ungapped	-	-	1.45	15.5	10.7	8.55	165	Uncoated	0.295 (7.50mm)
EQ20/R-3F36 EQ CORES Ferroxcube	2,246	0.65	- + RFQ	Datasheet	Bulk	-	Active	EQ	EQ 20	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.551 (14.00mm)
EQ20/R-3F46 EQ CORES Ferroxcube	2,885	0.65	- + RFQ	Datasheet	Bulk	-	Active	EQ	EQ 20	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.551 (14.00mm)
E22/6/16-3C97-A250-E PLANAR E CORES Ferroxcube	3,685	0.66	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3C97-A250-P PLANAR E CORES Ferroxcube	3,771	0.66	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3C97-A400-E PLANAR E CORES Ferroxcube	3,799	0.66	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3C97-A400-P PLANAR E CORES Ferroxcube	3,682	0.66	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3F36-A250-E PLANAR E CORES Ferroxcube	3,014	0.66	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3F36-A250-P PLANAR E CORES Ferroxcube	2,023	0.66	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3F36-A400-E PLANAR E CORES Ferroxcube	3,073	0.66	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3F36-A400-P PLANAR E CORES Ferroxcube	3,294	0.66	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
