Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
ER9.5/2.5/5-3C95-A100-S PLANAR ER CORES 2PC SET Ferroxcube	3,376	0.63	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 9.5 x 2.5 x 5	3C95	-	100 nH	±5%	Gapped	133	-	1.67	14.2	8.47	7.6	120	Uncoated	-
E34/14/9-3C92-G200 E CORES Ferroxcube	2,925	0.63	- + RFQ	Datasheet	Bulk	-	Active	E	E 34 x 14 x 9	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.555 (14.10mm)
E34/14/9-3C92-G500 E CORES Ferroxcube	2,496	0.63	- + RFQ	Datasheet	Bulk	-	Active	E	E 34 x 14 x 9	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.555 (14.10mm)
ER35/21/11-3C94-G1000 ER AND ETD CORES Ferroxcube	3,708	0.64	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 35 x 21 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.815 (20.70mm)
ER35/21/11-3C94-G500 ER AND ETD CORES Ferroxcube	3,049	0.64	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 35 x 21 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.815 (20.70mm)
E14/3.5/5/R-4F1 PLANAR E CORES Ferroxcube	2,120	0.64	- + RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	-	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
U25/20/13-3C94 U AND UR CORES Ferroxcube	3,455	0.64	- + RFQ	Datasheet	Bulk	-	Active	U	U 25 x 20 x 13	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.772 (19.60mm)
E22/6/16-3C95-A160-E PLANAR E CORES Ferroxcube	2,916	0.64	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3C95-A160-P PLANAR E CORES Ferroxcube	2,212	0.64	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)

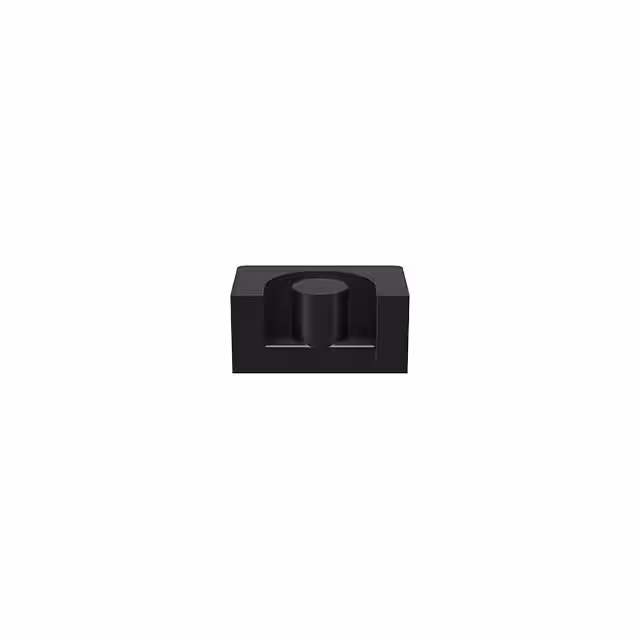

B65839A0100A045 FERRITE CORE EP 100NH N45 2PCS EPCOS - TDK Electronics	2,315	0.64	- + RFQ	Datasheet	Box	EP7	Active	EP	EP 7	N45	-	100 nH	±3%	Gapped	121	3800	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65839A0160J045 FERRITE CORE EP 160NH N45 2PCS EPCOS - TDK Electronics	2,938	0.64	- + RFQ	Datasheet	Box	EP7	Active	EP	EP 7	N45	-	160 nH	±5%	Gapped	194	3800	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65839A0200C045 FERRITE CORE EP 200NH N45 2PCS EPCOS - TDK Electronics	3,746	0.64	- + RFQ	Datasheet	Box	EP7	Active	EP	EP 7	N45	-	200 nH	±6%	Gapped	243	3800	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B66281W0160H187 FERRITE CORE EPCOS - TDK Electronics	3,916	0.64	- + RFQ		Box	ELP14/3.5/5	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-

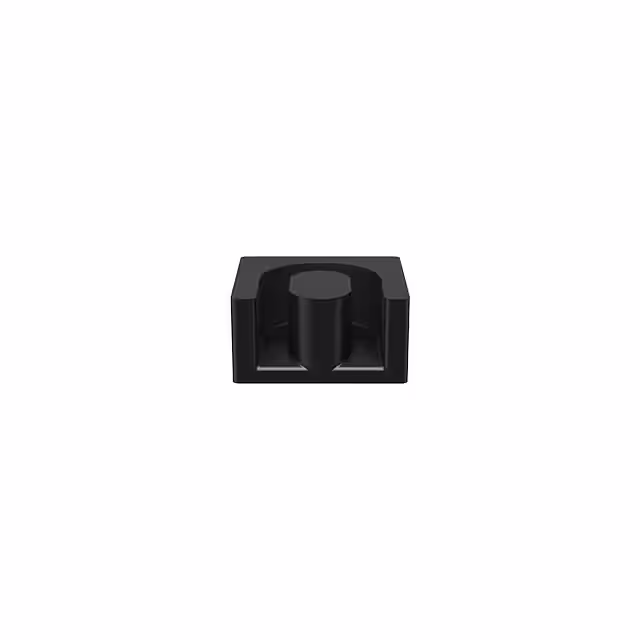

B65857C0000R045 FERRITE CORE EPX 2.4UH N45 2PCS EPCOS - TDK Electronics	2,342	0.65	- + RFQ	Datasheet	Box	EPX9/9	Active	EPX	EPX 9 x 9	N45	-	2.4 µH	-20%, +30%	Ungapped	2070	3800	1.09	19	17.5	13.9	333	Uncoated	0.187 (4.75mm)
EFD30/15/9-3C96-A250 EFD CORES Ferroxcube	3,962	0.65	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 30 x 15 x 9	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
ETD34/17/11-3C97-G200 ER AND ETD CORES Ferroxcube	2,783	0.65	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
ETD34/17/11-3F36-G200 ER AND ETD CORES Ferroxcube	2,027	0.65	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
ETD34/17/11-3F46-G200 ER AND ETD CORES Ferroxcube	3,790	0.65	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
B65857A0000Y038 FERRITE CORE EPX 9UH T38 2PCS EPCOS - TDK Electronics	2,866	0.65	- + RFQ	Datasheet	Box	EPX7/9	Active	EPX	EPX 7 x 9	T38	-	9 µH	-30%, +40%	Ungapped	6540	2300	0.91	15.7	17.2	13.9	270	Uncoated	0.148 (3.75mm)
E22/6/16/R-3C90-A315-P PLANAR E CORES Ferroxcube	2,962	0.65	- + RFQ		Bulk	-	Active	E	E 22 x 6 x 16	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
