Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
ETD34/17/11-3C97-G500 ER AND ETD CORES Ferroxcube	2,268	0.67	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
ETD34/17/11-3F36-G1000 ER AND ETD CORES Ferroxcube	2,683	0.67	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
ETD34/17/11-3F36-G500 ER AND ETD CORES Ferroxcube	2,614	0.67	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
ETD34/17/11-3F46-G1000 ER AND ETD CORES Ferroxcube	3,018	0.67	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
ETD34/17/11-3F46-G500 ER AND ETD CORES Ferroxcube	3,250	0.67	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
ER11/2.5/6-3C96-A100-S PLANAR ER CORES 2PC SET Ferroxcube	3,197	0.67	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 11 x 2.5 x 6	3C96	-	100 nH	±4%	Gapped	98	-	1.23	14.7	11.9	10.3	174	Uncoated	0.236 (6.00mm)
B65926A0000X033 FERRITE CORES EPCOS - TDK Electronics	2,232	0.67	- + RFQ		Box	PS14/5	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
RM6S/I-3F36 RM CORES 2PC SET Ferroxcube	3,571	0.67	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 6	3F36	-	-	±25%	Ungapped	-	-	0.784	29.2	37	31.2	1090	Uncoated	0.488 (12.40mm)
RM6S/I-3F46 RM CORES 2PC SET Ferroxcube	3,157	0.67	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 6	3F46	-	-	±25%	Ungapped	-	-	0.784	29.2	37	31.2	1090	Uncoated	0.488 (12.40mm)
B64290L0632X072 FERRITE CORE EPCOS - TDK Electronics	3,074	0.67	- + RFQ	Datasheet	Box	TX20/10/7	Active	Toroid	-	N72	-	-	-	Gapped	-	2500	-	-	-	-	-	Epoxy	-
B65841A0100A087 FERRITE CORE EP 100NH N87 2PCS EPCOS - TDK Electronics	3,898	0.67	- + RFQ	Datasheet	Box	EP10	Active	EP	EP 10	N87	-	100 nH	±3%	Gapped	135	2200	1.7	19.2	11.3	8.5	217	Uncoated	0.205 (5.20mm)
B65841A0160J087 FERRITE CORE EP 160NH N87 2PCS EPCOS - TDK Electronics	2,270	0.67	- + RFQ	Datasheet	Box	EP10	Active	EP	EP 10	N87	-	160 nH	±5%	Gapped	216	2200	1.7	19.2	11.3	8.5	217	Uncoated	0.205 (5.20mm)

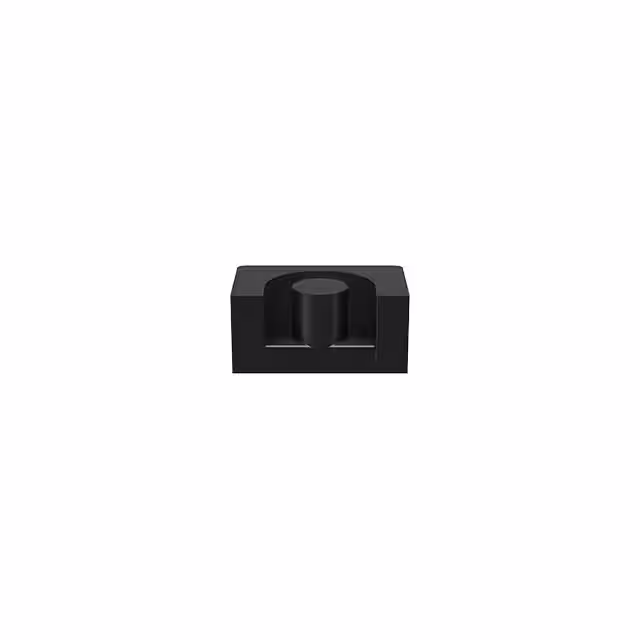

B65841A0250E087 FERRITE CORE EP 250NH N87 2PCS EPCOS - TDK Electronics	3,653	0.67	- + RFQ	Datasheet	Box	EP10	Active	EP	EP 10	N87	-	250 nH	±7%	Gapped	338	2200	1.7	19.2	11.3	8.5	217	Uncoated	0.205 (5.20mm)
E22/6/16-3C97-A160-E PLANAR E CORES Ferroxcube	3,455	0.67	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3C97-A160-P PLANAR E CORES Ferroxcube	2,316	0.67	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
EFD30/15/9-3C95-A160 EFD CORES Ferroxcube	3,216	0.68	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 30 x 15 x 9	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
RM5/I-3C95 RM CORES 2PC SET Ferroxcube	3,133	0.68	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 5	3C95	-	-	±25%	Ungapped	-	-	0.935	23.2	24.8	18.1	574	Uncoated	0.421 (10.40mm)
B65931J0000X033 FERRITE CORES EPCOS - TDK Electronics	2,017	0.68	- + RFQ		Box	PS5.6/1.7	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
E22/6/16/R-3C96 PLANAR E CORES Ferroxcube	2,685	0.68	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
ER35W/21/11-3C94-G200 ER AND ETD CORES Ferroxcube	3,372	0.68	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 35 x 21 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.823 (20.90mm)
