Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
ER35W/21/11-3C94-G1000 ER AND ETD CORES Ferroxcube	2,900	0.70	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 35 x 21 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.823 (20.90mm)
ER35W/21/11-3C94-G500 ER AND ETD CORES Ferroxcube	3,800	0.70	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 35 x 21 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.823 (20.90mm)
E35/18/10-3C95 E CORES Ferroxcube	2,298	0.70	- + RFQ	Datasheet	Bulk	-	Active	E	E 35 x 18 x 10	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.689 (17.50mm)
EP13-3F36 EP AND EPX CORES 2PC SET Ferroxcube	2,090	0.70	- + RFQ	Datasheet	Bulk	-	Active	EP	EP 13	3F36	-	-	±25%	Ungapped	-	-	1.24	24.2	19.5	14.9	472	Uncoated	0.354 (9.00mm)
EP13-3F46 EP AND EPX CORES 2PC SET Ferroxcube	3,555	0.70	- + RFQ	Datasheet	Bulk	-	Active	EP	EP 13	3F46	-	-	±25%	Ungapped	-	-	1.24	24.2	19.5	14.9	472	Uncoated	0.354 (9.00mm)
PQ20/16-3C94 PQ CORES 2PC SET Ferroxcube	3,504	0.71	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 20 x 16	3C94	-	-	±25%	Ungapped	-	-	0.607	37.6	61.9	59.1	2330	Uncoated	0.638 (16.20mm)

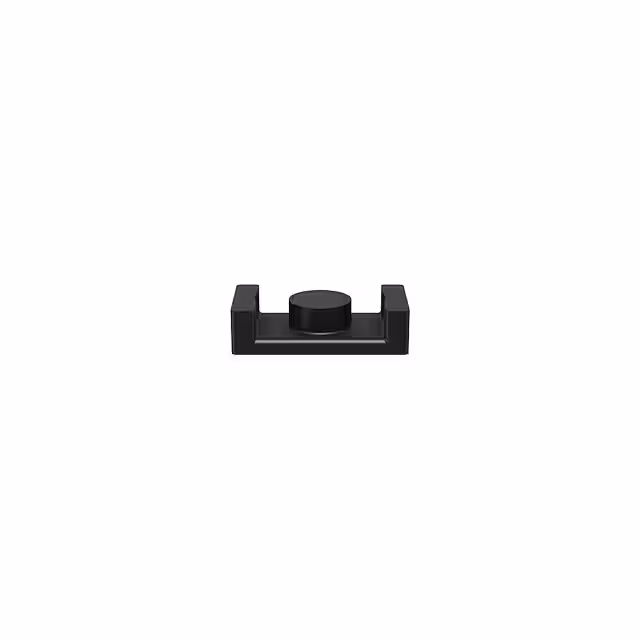

B65525J0100A087 FERRITE CORE EPCOS - TDK Electronics	2,856	0.71	- + RFQ	Datasheet	Box	ER11/2.5/6	Active	ER	ER 11 x 5	N87	-	-	-	Gapped	-	2200	1.1	14.1	12.4	10.3	174	Uncoated	0.098 (2.50mm)
B65525J0250C087 FERRITE CORE EPCOS - TDK Electronics	3,768	0.71	- + RFQ	Datasheet	Box	ER11/2.5/6	Active	ER	ER 11 x 5	N87	-	-	-	Gapped	-	2200	1.1	14.1	12.4	10.3	174	Uncoated	0.098 (2.50mm)
ER14.5/3/7-3C96-S PLANAR ER CORES 2PC SET Ferroxcube	2,272	0.71	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 14.5 x 3 x 7	3C96	-	-	±25%	Ungapped	-	-	1.08	19	17.6	17.3	333	Uncoated	0.268 (6.80mm)
E22/6/16/R-3C95-A250-P PLANAR E CORES Ferroxcube	2,054	0.71	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16/R-3C95-A400-P PLANAR E CORES Ferroxcube	3,456	0.71	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
RM5/I-3F36 RM CORES 2PC SET Ferroxcube	3,117	0.71	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 5	3F36	-	-	±25%	Ungapped	-	-	0.935	23.2	24.8	18.1	574	Uncoated	0.421 (10.40mm)
RM5/I-3F46 RM CORES 2PC SET Ferroxcube	3,216	0.71	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 5	3F46	-	-	±25%	Ungapped	-	-	0.935	23.2	24.8	18.1	574	Uncoated	0.421 (10.40mm)
B65803J0160A087 FERRITE CORE EPCOS - TDK Electronics	2,730	0.72	- + RFQ	Datasheet	Box	-	Not For New Designs	RM	RM 4	N87	-	-	-	-	-	2200	1.7	22	13	11.3	286	Uncoated	0.413 (10.50mm)
EPX9-3C96 EP AND EPX CORES 2PC SET Ferroxcube	2,000	0.72	- + RFQ	Datasheet	Bulk	-	Active	EPX	-	3C96	-	-	±25%	Ungapped	-	-	1.15	18.7	16.3	14.5	304	Uncoated	0.374 (9.50mm)
ROD10/50-3C90 FERRITE ROD Ferroxcube	3,812	0.72	- + RFQ	Datasheet	Bulk	-	Active	ROD	ROD 10 x 50	3C90	0.394 (10.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
RM6S/I-3C90-A63 RM CORES 2PC SET Ferroxcube	3,059	0.72	- + RFQ		Bulk	-	Active	RM	RM 6	3C90	-	-	±3%	Gapped	40	-	0.784	29.2	37	31.2	1090	Uncoated	0.488 (12.40mm)
E18/4/10-4F1-A100-E PLANAR E CORES Ferroxcube	3,860	0.72	- + RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	-	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
E18/4/10-4F1-A100-P PLANAR E CORES Ferroxcube	2,122	0.72	- + RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	-	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
B66421G0000X192 FERRITE CORE EPCOS - TDK Electronics	3,029	0.72	- + RFQ	Datasheet	Box	EFD25/13/9	Active	EFD	EFD 25 x 13 x 9	N92	-	-	-	-	-	1500	0.98	57	58	57	3310	Uncoated	0.492 (12.50mm)
