Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E22/6/16/R-3F36-A250-P PLANAR E CORES Ferroxcube	3,137	0.76	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16/R-3F36-A400-P PLANAR E CORES Ferroxcube	3,956	0.76	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16/R-3F46-A250-P PLANAR E CORES Ferroxcube	2,368	0.76	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16/R-3F46-A400-P PLANAR E CORES Ferroxcube	3,974	0.76	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
5977001301 77 TOROID Fair-Rite Products Corp.	2,765	0.76	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	77	1.000 (25.40mm)	-	±25%	Ungapped	-	2000	-	62	30.8	-	1900	Uncoated	0.250 (6.35mm)
6698212021 98 PQ CORE SET Fair-Rite Products Corp.	3,905	0.77	- + RFQ	Datasheet	Bulk	-	Active	PQ	-	-	-	-	±25%	Ungapped	-	2400	72	45.2	62.5	60.8	2526	Uncoated	-
B65523J0000Y038 FERRITE CORE ER 4.5UH T38 2PCS EPCOS - TDK Electronics	3,229	0.77	- + RFQ	Datasheet	Box	ER9.5	Active	ER	ER 9.5 x 5	T38	-	4.5 µH	-30%, +40%	Ungapped	5680	10000	1.54	13.6	8.81	-	120	Uncoated	0.098 (2.50mm)
E35/18/10-3C95-G500 E CORES Ferroxcube	2,430	0.77	- + RFQ	Datasheet	Bulk	-	Active	E	E 35 x 18 x 10	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.689 (17.50mm)
EFD10/5/3-3C90-S EFD CORES 2PC SET Ferroxcube	2,461	0.77	- + RFQ		Bulk	-	Active	EFD	EFD 10 x 5 x 3	3C90	-	-	±25%	Ungapped	1510	-	3.29	23.7	7.2	6.5	171	Uncoated	0.216 (5.50mm)
B65855A0000Y038 FERRITE CORE EP 2UH T38 2PCS EPCOS - TDK Electronics	3,018	0.77	- + RFQ	Datasheet	Box	EP5	Active	EP	EP 5	T38	-	2 µH	-30%, +40%	Ungapped	5000	2300	3.14	9.73	3.09	2.3	30	Uncoated	0.112 (2.85mm)
EFD15/8/5-3C96-S EFD CORES 2PC SET Ferroxcube	3,707	0.77	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 15 x 8 x 5	3C96	-	-	±25%	Ungapped	1520	-	2.27	34	15	12.2	510	Uncoated	0.295 (7.50mm)
RM5/ILP-3F36-A100 RM CORES 2PC SET Ferroxcube	3,481	0.77	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 5	3F36	-	100 nH	±3%	Gapped	57	-	0.935	17.5	24.5	18.1	430	Uncoated	0.421 (10.40mm)
RM5/ILP-3F36-A160 RM CORES 2PC SET Ferroxcube	2,283	0.77	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 5	3F36	-	160 nH	±3%	Gapped	91	-	0.935	17.5	24.5	18.1	430	Uncoated	0.421 (10.40mm)
ER14.5/3/7-3F36-S PLANAR ER CORES 2PC SET Ferroxcube	2,972	0.77	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 14.5 x 3 x 7	3F36	-	-	±25%	Ungapped	-	-	1.08	19	17.6	17.3	333	Uncoated	0.268 (6.80mm)
ER14.5/3/7-3F46-S PLANAR ER CORES 2PC SET Ferroxcube	2,012	0.77	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 14.5 x 3 x 7	3F46	-	-	±25%	Ungapped	-	-	1.08	19	17.6	17.3	333	Uncoated	0.268 (6.80mm)
ER14.5/3/7-3C97-S PLANAR ER CORES 2PC SET Ferroxcube	3,141	0.77	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 14.5 x 3 x 7	3C97	-	-	±25%	Ungapped	-	-	1.08	19	17.6	17.3	333	Uncoated	0.268 (6.80mm)
PQ20/16-3C96 PQ CORES 2PC SET Ferroxcube	3,673	0.77	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 20 x 16	3C96	-	-	±25%	Ungapped	-	-	0.607	37.6	61.9	59.1	2330	Uncoated	0.638 (16.20mm)

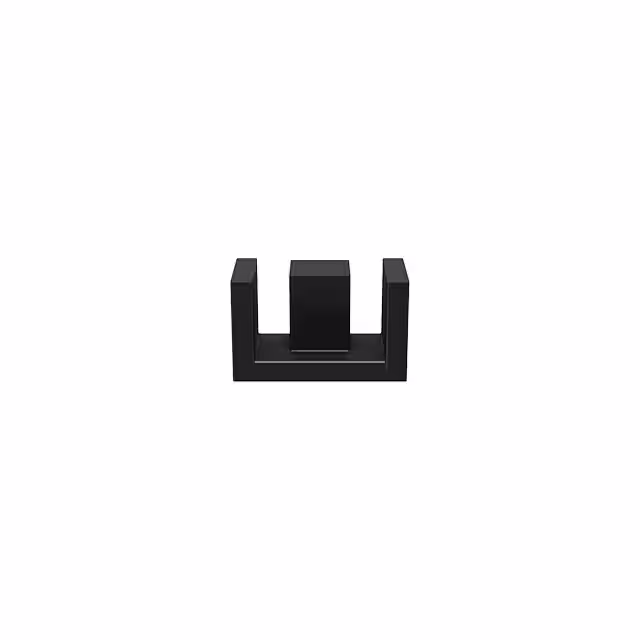

B66408G0000X187 FERRITE CORE EV N87 1PC EPCOS - TDK Electronics	2,939	0.77	- + RFQ	Datasheet	Box	EV25/13/13	Active	EV	EV 25 x 13 x 13	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
ROD12/40-3C90 FERRITE ROD Ferroxcube	3,675	0.78	- + RFQ	Datasheet	Bulk	-	Active	ROD	ROD 12 x 40	3C90	0.472 (12.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
ETD39/20/13-3C94-G1000 ER AND ETD CORES Ferroxcube	3,560	0.78	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 39 x 20 x 13	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.780 (19.80mm)
