Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
ETD39/20/13-3C94-G500 ER AND ETD CORES Ferroxcube	2,777	0.78	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 39 x 20 x 13	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.780 (19.80mm)
RM4/ILP-3C90 RM CORES 2PC SET Ferroxcube	3,201	0.78	- + RFQ		Bulk	-	Active	RM	RM 4	3C90	-	-	-	Ungapped	-	-	1.19	17.3	14.5	11.3	251	Uncoated	0.307 (7.80mm)
B66281G0000X192 FERRITE CORE ELP N92 1PC EPCOS - TDK Electronics	3,677	0.78	- + RFQ	Datasheet	Box	ELP14/3.5/5	Active	ELP	ELP 14 x 3.5 x 5	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
B65525J0140A087 FERRITE CORE EPCOS - TDK Electronics	2,780	0.78	- + RFQ	Datasheet	Box	ER11/2.5/6	Active	ER	ER 11 x 5	N87	-	-	-	Gapped	-	2200	1.1	14.1	12.4	10.3	174	Uncoated	0.098 (2.50mm)
B65935D0000X033 FERRITE CORE EPCOS - TDK Electronics	2,868	0.78	- + RFQ		Box	PS9.4/3.5	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PQ20/20-3C94 PQ CORES 2PC SET Ferroxcube	2,000	0.78	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 20 x 20	3C94	-	-	±25%	Ungapped	-	-	0.731	45.7	62.6	59.1	2850	Uncoated	0.795 (20.20mm)
EFD15/8/5-3C95-S EFD CORES 2PC SET Ferroxcube	3,398	0.79	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 15 x 8 x 5	3C95	-	-	±25%	Ungapped	2070	-	2.27	34	15	12.2	510	Uncoated	0.295 (7.50mm)
B64290A0618X087 FERRITE CORE TOROID 2.36UH N87 EPCOS - TDK Electronics	2,989	0.79	- + RFQ	Datasheet	Box	T25.3/14.8/15	Active	Toroid	R 25.3 x 14.8 x 10	N87	0.996 (25.30mm)	2.36 µH	±25%	Ungapped	-	2200	1.17	60.07	51.26	-	3079	Uncoated	0.394 (10.00mm)
E35/18/10-3F36-G200 E CORES Ferroxcube	2,751	0.79	- + RFQ	Datasheet	Bulk	-	Active	E	E 35 x 18 x 10	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.689 (17.50mm)

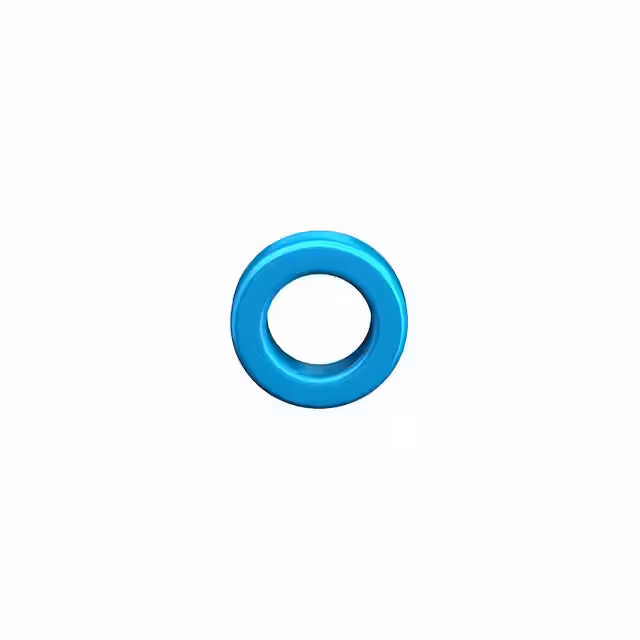

B64290L0719X065 FERRITE CORE TOROID 3.93UH T65 EPCOS - TDK Electronics	2,787	0.79	- + RFQ	Datasheet	Box	TX22/14/7.9	Active	Toroid	-	T65	0.917 (23.30mm)	3.93 µH	±30%	Ungapped	-	5200	1.66	54.2	32.6	-	1763	Epoxy	0.354 (9.00mm)
E36/21/12-3C94-G200 E CORES Ferroxcube	3,681	0.79	- + RFQ	Datasheet	Bulk	-	Active	E	E 36 x 21 x 12	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.856 (21.75mm)
ETD39/20/13-3C95 ER AND ETD CORES Ferroxcube	2,047	0.79	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 39 x 20 x 13	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.780 (19.80mm)
B65961C0000X033 FERRITE CORE EPCOS - TDK Electronics	3,190	0.79	- + RFQ		Box	PCH11/2.8	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B66283U0160J187 FERRITE CORE EPCOS - TDK Electronics	3,811	0.79	- + RFQ		Box	ELP18/4/10	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
B66283U0250K187 FERRITE CORE EPCOS - TDK Electronics	3,483	0.79	- + RFQ		Box	ELP18/4/10	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
B66283U0315K187 FERRITE CORE EPCOS - TDK Electronics	3,981	0.79	- + RFQ		Box	ELP18/4/10	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
B66283W0315D187 FERRITE CORE EPCOS - TDK Electronics	3,456	0.79	- + RFQ		Box	ELP18/4/10	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
E22/6/16/R-3C97-A160-P PLANAR E CORES Ferroxcube	3,336	0.79	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16/R-3F36-A160-P PLANAR E CORES Ferroxcube	2,314	0.79	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16/R-3F46-A160-P PLANAR E CORES Ferroxcube	3,560	0.79	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
