Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65839A0125B038 FERRITE CORE EPCOS - TDK Electronics	2,809	0.68	- + RFQ	Datasheet	Box	EP7	Active	EP	EP 7	T38	-	-	-	Gapped	-	10000	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65839A0160J038 FERRITE CORE EP 160NH T38 2PCS EPCOS - TDK Electronics	3,925	0.68	- + RFQ	Datasheet	Box	EP7	Active	EP	EP 7	T38	-	160 nH	±5%	Gapped	194	2300	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65839A0250E038 FERRITE CORE EP 250NH T38 2PCS EPCOS - TDK Electronics	3,202	0.68	- + RFQ	Datasheet	Box	EP7	Active	EP	EP 7	T38	-	250 nH	±7%	Gapped	303	2300	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65839A0063A038 FERRITE CORE EP 63NH T38 2PCS EPCOS - TDK Electronics	2,231	0.68	- + RFQ	Datasheet	Box	EP7	Active	EP	EP 7	T38	-	63 nH	±3%	Gapped	76	2300	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65857C0000Y038 FERRITE CORE EPX 8UH T38 2PCS EPCOS - TDK Electronics	3,552	0.68	- + RFQ	Datasheet	Box	EPX9/9	Active	EPX	EPX 9 x 9	T38	-	8 µH	-30%, +40%	Ungapped	6910	2300	1.09	19	17.5	13.9	333	Uncoated	0.187 (4.75mm)
E22/6/16-3F36-A160-E PLANAR E CORES Ferroxcube	3,064	0.68	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3F36-A160-P PLANAR E CORES Ferroxcube	2,665	0.68	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3F46-A160-E PLANAR E CORES Ferroxcube	2,135	0.68	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3F46-A160-P PLANAR E CORES Ferroxcube	2,680	0.68	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
ER11/2.5/6-3C95-A100-S PLANAR ER CORES 2PC SET Ferroxcube	2,996	0.68	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 11 x 2.5 x 6	3C95	-	100 nH	±4%	Gapped	98	-	1.23	14.7	11.9	10.3	174	Uncoated	0.236 (6.00mm)
B66310G0000X197 FERRITE CORES EPCOS - TDK Electronics	2,937	0.68	- + RFQ	Datasheet	Box	E20/10/11	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
6298230121 98 RM CORE Fair-Rite Products Corp.	3,700	0.69	- + RFQ	Datasheet	Bulk	-	Active	RM	-	-	-	-	±25%	Ungapped	-	2400	67	40.3	60	55.4	2419	Uncoated	0.323 (8.20mm)
EPX7-3C96 EP AND EPX CORES 2PC SET Ferroxcube	3,689	0.69	- + RFQ	Datasheet	Bulk	-	Active	EPX	-	3C96	-	-	±25%	Ungapped	-	-	0.931	15.4	16.5	14.5	255	Uncoated	0.354 (9.00mm)
B66300G0000X101 FERRITE CORE EPCOS - TDK Electronics	3,344	0.69	- + RFQ	Datasheet	Box	E6.3	Active	E	E 6 x 3	K1	-	-	-	-	-	80	3.7	12.2	3.3	2.6	40.3	Uncoated	0.114 (2.90mm)

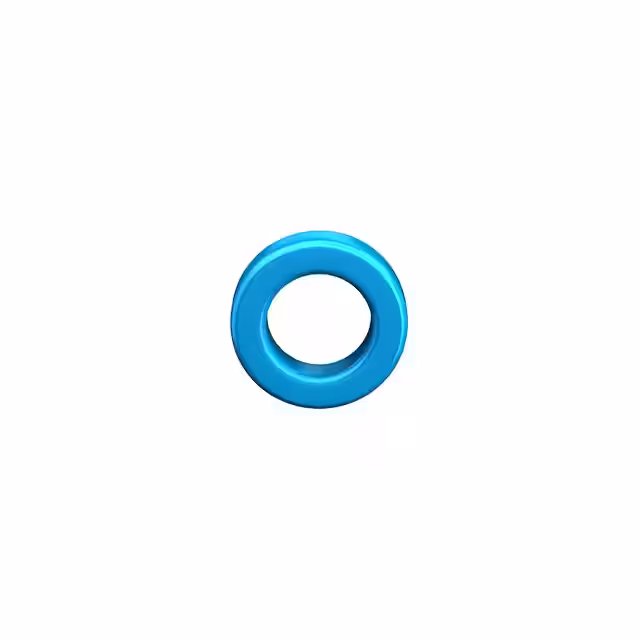

B64290L0632X065 FERRITE CORE TOROID 5.05UH T65 EPCOS - TDK Electronics	3,654	0.69	- + RFQ	Datasheet	Box	TX20/10/7	Active	Toroid	-	T65	0.835 (21.20mm)	5.05 µH	±30%	Ungapped	-	5200	1.3	43.55	33.63	-	1465	Epoxy	0.319 (8.10mm)
E22/6/16/R-3C92-A250-P PLANAR E CORES Ferroxcube	2,237	0.69	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16/R-3C92-A400-P PLANAR E CORES Ferroxcube	2,225	0.69	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
B65803J0040A087 FERRITE CORE EPCOS - TDK Electronics	2,413	0.69	- + RFQ	Datasheet	Box	-	Not For New Designs	RM	RM 4	N87	-	-	-	-	-	2200	1.7	22	13	11.3	286	Uncoated	0.413 (10.50mm)
EFD30/15/9-3F36-A160 EFD CORES Ferroxcube	3,391	0.69	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 30 x 15 x 9	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
EFD30/15/9-3F36-A250 EFD CORES Ferroxcube	3,714	0.69	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 30 x 15 x 9	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
