Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E22/6/16-3C96-A250-E PLANAR E CORES Ferroxcube	2,415	0.60	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3C96-A250-P PLANAR E CORES Ferroxcube	3,918	0.60	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3C96-A400-E PLANAR E CORES Ferroxcube	2,346	0.60	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3C96-A400-P PLANAR E CORES Ferroxcube	3,977	0.60	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
RM5/I-3C94 RM CORES 2PC SET Ferroxcube	2,847	0.60	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 5	3C94	-	-	±25%	Ungapped	-	-	0.935	23.2	24.8	18.1	574	Uncoated	0.421 (10.40mm)
B65935J0000X033 FERRITE CORE EPCOS - TDK Electronics	2,302	0.61	- + RFQ		Box	PS9.4/2.8	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B65978A0000X022 FERRITE CORES EPCOS - TDK Electronics	2,971	0.61	- + RFQ		Box	PCH14/5.95	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B66319G0100X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3,950	0.61	- + RFQ	Datasheet	Box	E30/15/7	Active	E	E 30 x 15 x 7	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.598 (15.20mm)
ER35/21/11-3C94-G200 ER AND ETD CORES Ferroxcube	2,836	0.61	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 35 x 21 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.815 (20.70mm)
B66319G0180X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	2,331	0.61	- + RFQ	Datasheet	Box	E30/15/7	Active	E	E 30 x 15 x 7	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.598 (15.20mm)
B66319G0200X187 FERRITE CORE EPCOS - TDK Electronics	3,147	0.61	- + RFQ	Datasheet	Box	E30/15/7	Active	E	E 30 x 15 x 7	N87	-	-	-	Gapped	-	2200	1.12	67	60	49	4000	Uncoated	0.598 (15.20mm)
RM6S/ILP-3F36 RM CORES 2PC SET Ferroxcube	2,742	0.61	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 6	3F36	-	-	±25%	Ungapped	-	-	0.58	21.8	37.5	31.2	820	Uncoated	0.354 (9.00mm)
B65839A0000R045 FERRITE CORE EP 1.5UH N45 2PCS EPCOS - TDK Electronics	2,267	0.61	- + RFQ	Datasheet	Box	EP7	Active	EP	EP 7	N45	-	1.5 µH	-20%, +30%	Ungapped	1820	3800	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)

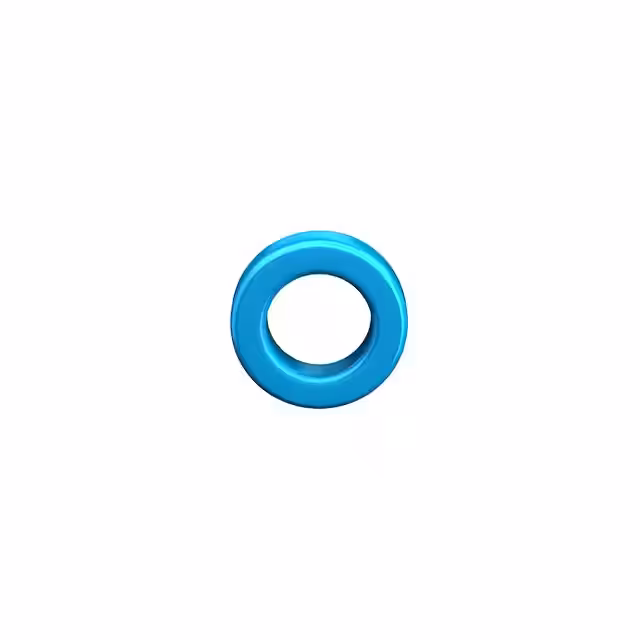

B64290L0697X087 FERRITE CORE TOROID 2.95UH N87 EPCOS - TDK Electronics	3,111	0.61	- + RFQ	Datasheet	Box	TX18/5.9/5.9	Active	Toroid	-	N87	0.768 (19.50mm)	2.95 µH	±25%	Ungapped	-	2200	0.94	31.03	33.14	-	1029	Epoxy	0.264 (6.70mm)
E22/6/16-3C95-A250-E PLANAR E CORES Ferroxcube	2,753	0.61	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3C95-A250-P PLANAR E CORES Ferroxcube	2,432	0.61	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3C95-A400-E PLANAR E CORES Ferroxcube	3,901	0.61	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E22/6/16-3C95-A400-P PLANAR E CORES Ferroxcube	2,209	0.61	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
ER9.5/2.5/5-3C92-A100-S PLANAR ER CORES 2PC SET Ferroxcube	3,341	0.61	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 9.5 x 2.5 x 5	3C92	-	100 nH	±5%	Gapped	133	-	1.67	14.2	8.47	7.6	120	Uncoated	-
B66433G0000X187 ER 28/17/11 N87 2400 +30%-20% EPCOS - TDK Electronics	2,080	0.62	- + RFQ		Box	ER28/17/11	Active	-	ER 28 x 17 x 11	N87	-	-	-20%, +30%	-	-	-	0.88	75	85.4	77	6400	Uncoated	0.449 (11.40mm)
