Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
ER48/18/18-3C94-G1000 ER AND ETD CORES Ferroxcube	3,388	1.15	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 35 x 21 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.823 (20.90mm)
ER48/18/18-3C94-G500 ER AND ETD CORES Ferroxcube	2,029	1.15	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 35 x 21 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.823 (20.90mm)
B66381G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,979	1.15	- + RFQ	Datasheet	Box	E40/16/12	Active	E	E 40 x 16 x 12	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.650 (16.50mm)
RM7/I-3C95-A160 RM CORES 2PC SET Ferroxcube	3,810	1.15	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 7	3C95	-	160 nH	±3%	Gapped	87	-	0.68	30	44.1	39.6	1325	Uncoated	0.528 (13.40mm)
RM7/I-3C95-A250 RM CORES 2PC SET Ferroxcube	3,115	1.15	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 7	3C95	-	250 nH	±3%	Gapped	135	-	0.68	30	44.1	39.6	1325	Uncoated	0.528 (13.40mm)
RM4/I-3F36-A100 RM CORES 2PC SET Ferroxcube	2,141	1.16	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 4	3F36	-	100 nH	±3%	Gapped	134	-	1.69	23.3	13.8	11.5	322	Uncoated	0.421 (10.40mm)
RM4/I-3F36-A63 RM CORES 2PC SET Ferroxcube	3,364	1.16	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 4	3F36	-	63 nH	±3%	Gapped	85	-	1.69	23.3	13.8	11.5	322	Uncoated	0.421 (10.40mm)
RM4/I-3F46-A100 RM CORES 2PC SET Ferroxcube	2,394	1.16	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 4	3F46	-	100 nH	±3%	Gapped	134	-	1.69	23.3	13.8	11.5	322	Uncoated	0.421 (10.40mm)
RM4/I-3F46-A63 RM CORES 2PC SET Ferroxcube	3,877	1.16	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 4	3F46	-	63 nH	±3%	Gapped	85	-	1.69	23.3	13.8	11.5	322	Uncoated	0.421 (10.40mm)
PLT38/25/3.8-3C92 PLANAR E CORES Ferroxcube	2,206	1.16	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 38 x 25 x 3.8	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.150 (3.81mm)
B65843P0250J038 FERRITE CORE EPO 250NH T38 2PCS EPCOS - TDK Electronics	3,398	1.17	- + RFQ	Datasheet	Box	EP13/LP	Active	EPO	EPO 13	T38	-	250 nH	±5%	Gapped	266	2300	1.34	25.8	19.3	14.9	498	Uncoated	0.256 (6.50mm)
ETD44/22/15-3F36-G200 ER AND ETD CORES Ferroxcube	2,372	1.17	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 44 x 22 x 15	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.878 (22.30mm)
B65531D0000R030 FERRITE CORE P 3.5NH N30 2PCS EPCOS - TDK Electronics	3,667	1.17	- + RFQ	Datasheet	Box	P11/7	Active	P (Pot Core)	P 11 x 7	N30	0.445 (11.30mm)	3.5 nH	-20%, +30%	Ungapped	2560	4300	1	15.9	15.9	-	253	Uncoated	0.130 (3.30mm)
E42/21/15-3C92-G500 E CORES Ferroxcube	3,217	1.18	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 21 x 15	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
PLT38/25/3.8-3C96 PLANAR E CORES Ferroxcube	3,086	1.19	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 38 x 25 x 3.8	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.150 (3.81mm)
RM7/I-3C95-A100 RM CORES 2PC SET Ferroxcube	3,780	1.19	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 7	3C95	-	100 nH	±3%	Gapped	54	-	0.68	30	44.1	39.6	1325	Uncoated	0.528 (13.40mm)
ER23/3.6/13-3C95-S PLANAR ER CORES Ferroxcube	3,640	1.20	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 23 x 3.6 x 13	3C95	-	-	±25%	Ungapped	1880	-	0.53	26.6	50.2	50	1340	Uncoated	0.142 (3.60mm)

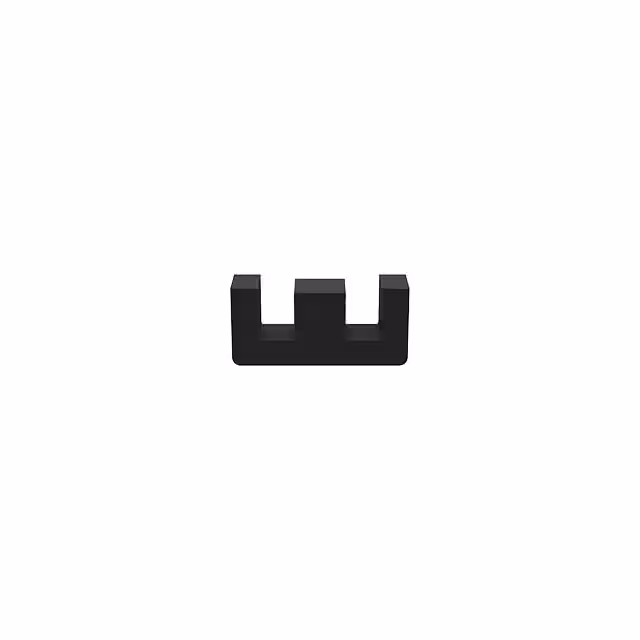

B66233G0000X197 FERRITE CORE EPCOS - TDK Electronics	2,859	1.20	- + RFQ	Datasheet	Box	E32/16/11	Active	E	E 32 x 16 x 11	N97	-	3 µH	-20%, +30%	Ungapped	1820	2300	0.76	74	97	95	7187	Uncoated	0.646 (16.40mm)
9495111002 95 E CORE SET Fair-Rite Products Corp.	3,376	1.20	- + RFQ	Datasheet	Bulk	-	Active	E	-	95	-	-	±25%	Ungapped	-	3000	56	66.5	119	112	7900	Uncoated	0.551 (14.00mm)
P11/7-3C90 P CORES 2PC SET Ferroxcube	2,305	1.20	- + RFQ		Bulk	-	Active	P	P 11 x 7	3C90	0.437 (11.10mm)	1.7 µH	±25%	Ungapped	1300	-	0.956	15.5	16.2	13.2	251	Uncoated	0.256 (6.50mm)
