Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
TX102/66/15-3E27 FERRITE CORES ROUND Ferroxcube	3,924	26.46	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	3E27	4.031 (102.40mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.602 (15.30mm)
E100/60/28-3C95-G2000 E CORES Ferroxcube	3,803	26.57	- + RFQ	Datasheet	Bulk	-	Active	E	E 100 x 60 x 28	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	2.339 (59.40mm)
B65684A0000R049 FERRITE CORE EPCOS - TDK Electronics	3,244	26.82	- + RFQ	Datasheet	Box	PM62/49	Active	PM	PM 62 x 49	N49	2.441 (62.00mm)	-	-	-	-	1500	0.191	109	570	470	62000	Uncoated	0.965 (24.50mm)

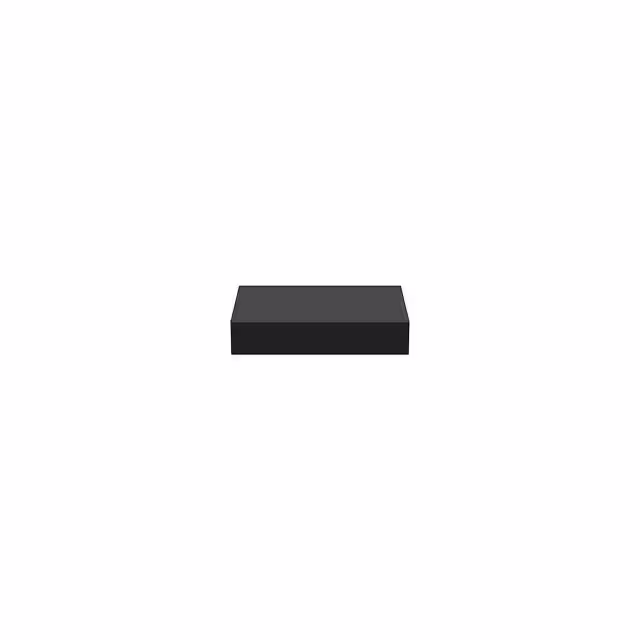

B67410A0201X195 QU150/100/5 N95 EPCOS - TDK Electronics	2,809	27.01	- + RFQ	Datasheet	Box	QU150/100/5	Active	-	-	N95	-	-	-	Ungapped	-	3000	-	-	-	-	-	Uncoated	0.197 (5.00mm)
B65694A0250A027 FERRITE CORES EPCOS - TDK Electronics	2,313	28.84	- + RFQ		Box	PM62/38	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
B64290A0043X010 R58.3/32/18 EPCOS - TDK Electronics	3,137	29.75	- + RFQ	Datasheet	Box	T58/32/18	Active	Toroid	R 58.3 x 32 x 18	K10	2.295 (58.30mm)	1.5 µH	±25%	Ungapped	-	700	0.58	134	230	-	30710	Uncoated	0.709 (18.00mm)
U120/80/20-3C90 U AND UR CORES Ferroxcube	2,749	30.20	- + RFQ		Bulk	-	Active	U	-	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	-
B64290L0696X830 FERRITE CORES EPCOS - TDK Electronics	2,333	30.85	- + RFQ	Datasheet	Bulk	TX68/48/13	Active	Toroid	R 68.0 × 48.0 × 13.0	N30	-	-	±25%	Ungapped	-	4300	1.39	178.6	128.7	-	22980	Epoxy	-
B64290L0696X065 FERRITE CORE TOROID 4.5UH T65 EPCOS - TDK Electronics	3,418	31.59	- + RFQ	Datasheet	Box	TX68/48/13	Active	Toroid	-	T65	2.756 (70.00mm)	4.5 µH	±30%	Ungapped	-	5000	1.39	178.6	128.7	-	22980	Epoxy	0.559 (14.20mm)
B65691K1000A048 FERRITE CORES EPCOS - TDK Electronics	2,092	31.72	- + RFQ	Datasheet	Box	P59/36	Active	P (Pot Core)	-	N48	2.335 (59.30mm)	-	±3%	Gapped	144	-	0.181	88	485	445	42680	Uncoated	1.402 (35.60mm)
B65691K0100A048 FERRITE CORES EPCOS - TDK Electronics	2,205	31.72	- + RFQ	Datasheet	Box	P59/36	Active	P (Pot Core)	-	N48	2.335 (59.30mm)	-	±3%	Gapped	14	-	0.181	88	485	445	42680	Uncoated	1.402 (35.60mm)
B65691K6500K048 FERRITE CORES EPCOS - TDK Electronics	2,750	31.72	- + RFQ	Datasheet	Box	P59/36	Active	P (Pot Core)	-	N48	2.335 (59.30mm)	-	±3%	Gapped	940	-	0.181	88	485	445	42680	Uncoated	1.402 (35.60mm)
U101/76/30-3C90 U AND UR CORES Ferroxcube	3,133	32.25	- + RFQ	Datasheet	Bulk	-	Active	U	U 101 x 76 x 30	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	2.992 (76.00mm)
B65621J0000R001 FERRITE CORE EPCOS - TDK Electronics	3,418	32.29	- + RFQ	Datasheet	Box	P41/25	Active	-	P 41 x 25	K1	1.614 (41.00mm)	-	-	-	-	80	0.264	60.4	229	201	13832	Uncoated	0.492 (12.50mm)
B67345B0003X095 U93/76/16 N95 4100 +30% -20% EPCOS - TDK Electronics	3,689	32.80	- + RFQ	Datasheet	Box	U93/76/16	Active	U	U 93 x 76 x 16	N95	-	4.1 µH	-20%, +30%	Ungapped	2578	-	0.79	354	448	448	159000	Uncoated	0.839 (21.30mm)
TX107/65/18-3C90 FERRITE CORES ROUND Ferroxcube	2,192	34.95	- + RFQ		Bulk	-	Active	Toroid	TX 107 x 65 x 18	3C90	4.228 (107.40mm)	-	±25%	Ungapped	-	-	0.7	259	370	-	96000	Epoxy	0.720 (18.30mm)
B64290L0730X065 FERRITE CORE TOROID 6.28UH T65 EPCOS - TDK Electronics	3,894	37.27	- + RFQ	Datasheet	Box	TX87/54.3/13.5	Active	Toroid	-	T65	3.516 (89.30mm)	6.28 µH	±30%	Ungapped	-	5000	0.99	213.9	216.7	-	46360	Epoxy	0.573 (14.80mm)

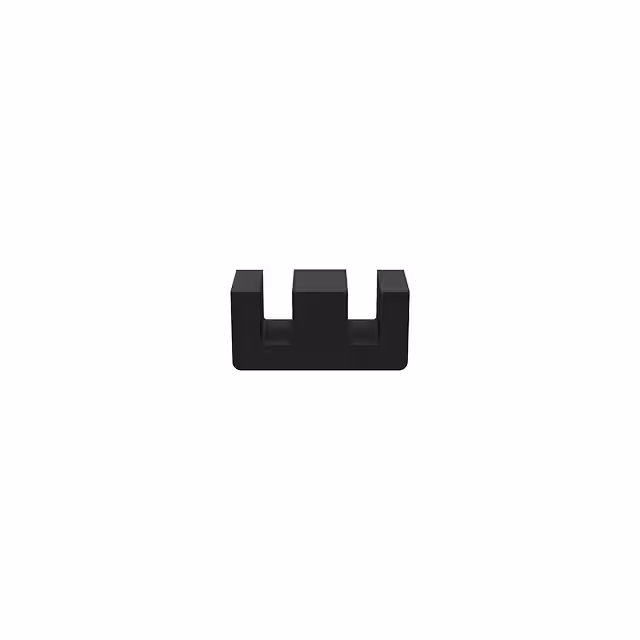

B66894G0000X187 FERRITE CORES EPCOS - TDK Electronics	2,895	37.34	- + RFQ	Datasheet	Bulk	E100/60/28	Active	E	E 100/60/28	N87	-	-	-20%, +30%	Ungapped	1930	-	0.373	274	735	690	201390	Uncoated	2.339 (59.40mm)
TX107/65/18-3E25 FERRITE CORES ROUND Ferroxcube	2,792	37.84	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B65945B0000X022 FERRITE CORE EPCOS - TDK Electronics	3,275	38.33	- + RFQ		Box	PCH70/13	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
