Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
TX107/65/18-3C11 FERRITE CORES ROUND Ferroxcube	2,000	38.44	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 107 x 65 x 18	3C11	4.228 (107.40mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.720 (18.30mm)
T102/66/15-3C94 FERRITE CORES ROUND Ferroxcube	3,718	38.58	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	3C94	4.016 (102.00mm)	-	±25%	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
T107/65/25-3C90 FERRITE CORES ROUND Ferroxcube	2,176	42.73	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	3C90	4.213 (107.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.984 (25.00mm)
B66894G0000X195 FERRITE CORES EPCOS - TDK Electronics	2,877	43.59	- + RFQ	Datasheet	Bulk	E100/60/28	Active	E	E 100/60/28	N97	-	-	-20%, +30%	Ungapped	2520	-	0.373	274	735	690	201390	Uncoated	2.339 (59.40mm)
T60006L2090V173 NANOCRYSTALLINE CORE, 90X60X20 VACUUMSCHMELZE	3,860	0.00	- + RFQ	Datasheet	Box	-	Active	Toroid	-	-	3.756 (95.40mm)	32.5 µH	-	Ungapped	-	-	-	236	228	-	-	Uncoated	0.972 (24.70mm)

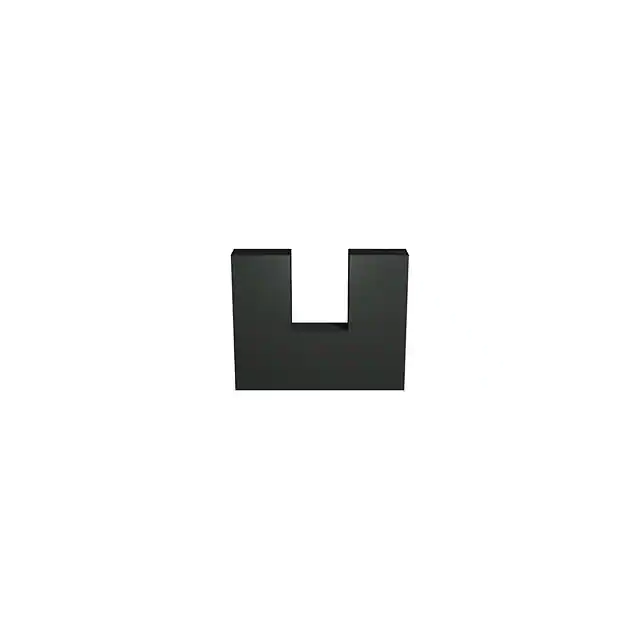

B67345B0003X087 FERRITE CORE U N87 1PC EPCOS - TDK Electronics	2,669	44.28	- + RFQ	Datasheet	Box	U93/76/16	Active	U	U 93 x 76 x 16	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	2.992 (76.00mm)
B64290L0084X065 FERRITE CORE TOROID 6.5UH T65 EPCOS - TDK Electronics	3,765	44.61	- + RFQ	Datasheet	Box	TX102/66/15	Active	Toroid	-	T65	4.126 (104.80mm)	6.5 µH	±30%	Ungapped	-	5000	0.96	255.3	267.2	-	68220	Epoxy	0.650 (16.50mm)
B65691K0045A048 FERRITE CORES EPCOS - TDK Electronics	2,817	44.99	- + RFQ	Datasheet	Box	P59/36	Active	P (Pot Core)	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B64290A0084X065 FERRITE CORE TOROID 6.5UH T65 EPCOS - TDK Electronics	2,790	46.14	- + RFQ	Datasheet	Box	T102/66/15	Active	Toroid	R 102 x 65.8 x 15	T65	4.016 (102.00mm)	6.5 µH	±30%	Ungapped	-	5000	0.96	255.3	267.2	-	68220	Uncoated	0.591 (15.00mm)
B67345B0010X087 FERRITE CORE U N87 1PC EPCOS - TDK Electronics	3,500	46.44	- + RFQ	Datasheet	Box	U93/76/20	Active	U	U 93 x 76 x 20	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	2.992 (76.00mm)
T107/65/25-3C11 FERRITE CORES ROUND Ferroxcube	3,129	46.70	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	3C11	4.213 (107.00mm)	-	-	Ungapped	-	-	0.504	259	514	-	133000	Uncoated	0.984 (25.00mm)
B64290A0730X010 R87/54.3/13.5 K10 TOROID 900 +25 EPCOS - TDK Electronics	3,144	46.87	- + RFQ	Datasheet	Box	T87/54.3/13.5	Active	Toroid	R 87 x 54.3 x 13.5	K10	3.425 (87.00mm)	900 nH	±25%	Ungapped	-	700	0.99	213.9	216.7	-	46360	Uncoated	0.531 (13.50mm)

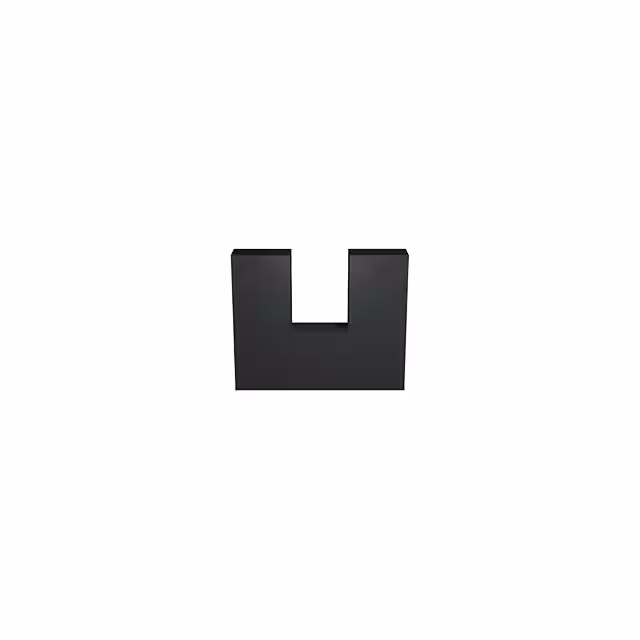

B67345B0010X027 FERRITE CORE U N27 1PC EPCOS - TDK Electronics	2,335	52.27	- + RFQ	Datasheet	Box	U93/76/20	Active	U	U 93 x 76 x 20	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	2.992 (76.00mm)
B64290A0084X035 FERRITE CORE EPCOS - TDK Electronics	2,242	59.21	- + RFQ	Datasheet	Box	T102/66/15	Active	Toroid	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-

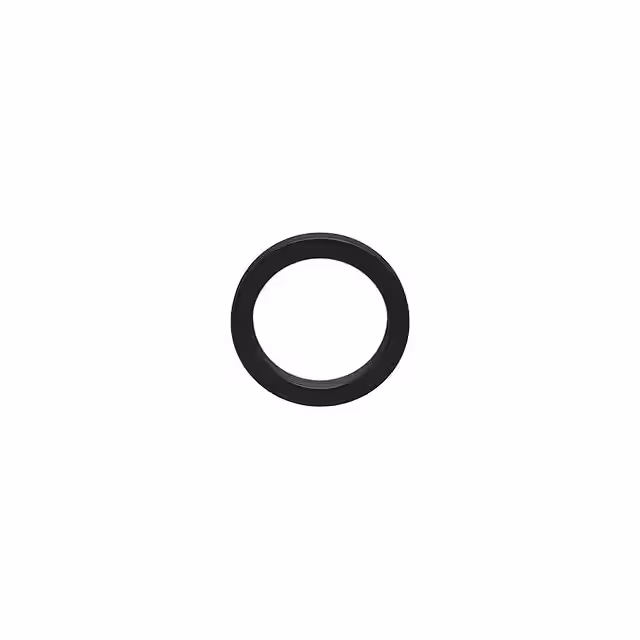

B64290L0084X038 FERRITE CORE EPCOS - TDK Electronics	2,207	60.12	- + RFQ	Datasheet	Box	TX102/66/15	Active	Toroid	-	T38	-	-	-	Gapped	-	10000	-	-	-	-	-	Epoxy	-
B64290A0084X049 FERRITE CORE EPCOS - TDK Electronics	2,306	60.14	- + RFQ	Datasheet	Box	T102/66/15	Active	Toroid	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
P66/56-3C95 P CORES 2PC SET Ferroxcube	2,912	64.22	- + RFQ	Datasheet	Bulk	-	Active	P	P 66 x 56	3C95	2.610 (66.29mm)	-	±25%	Ungapped	-	-	0.172	123	717	591	88200	Uncoated	2.256 (57.30mm)
B65686A0630A027 FERRITE CORE PM 630NH N27 2PCS EPCOS - TDK Electronics	3,640	77.31	- + RFQ	Datasheet	Box	PM74/59	Active	PM	PM 74 x 59	N27	2.913 (74.00mm)	630 nH	±3%	Gapped	81	2000	0.162	128	790	630	101000	Uncoated	1.161 (29.50mm)
B65696L0000R027 FERRITE CORES EPCOS - TDK Electronics	3,466	78.47	- + RFQ		Box	P70/42	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
T60004L2130W630 NANOCRYSTALLINE CORE, 130X100X25 VACUUMSCHMELZE	2,408	83.40	- + RFQ	Datasheet	Box	-	Active	Toroid	-	-	5.295 (134.50mm)	25.4 µH	-	Ungapped	-	-	-	361	274	-	-	Epoxy	1.122 (28.50mm)
