Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B66363Q0150K187 ETD39/20/13-N87-DG150 EPCOS - TDK Electronics	157	3.09	- + RFQ	Datasheet	Bulk	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N87	-	150 nH	±10%	Distributed Gapped	-	-	0.74	92.2	125	123	11500	Uncoated	0.504 (12.80mm)
B66363Q0100K187 ETD39/20/13-N87-DG100 EPCOS - TDK Electronics	2,972	3.09	- + RFQ	Datasheet	Bulk	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N87	-	100 nH	±10%	Distributed Gapped	-	-	0.74	92.2	125	123	11500	Uncoated	0.504 (12.80mm)

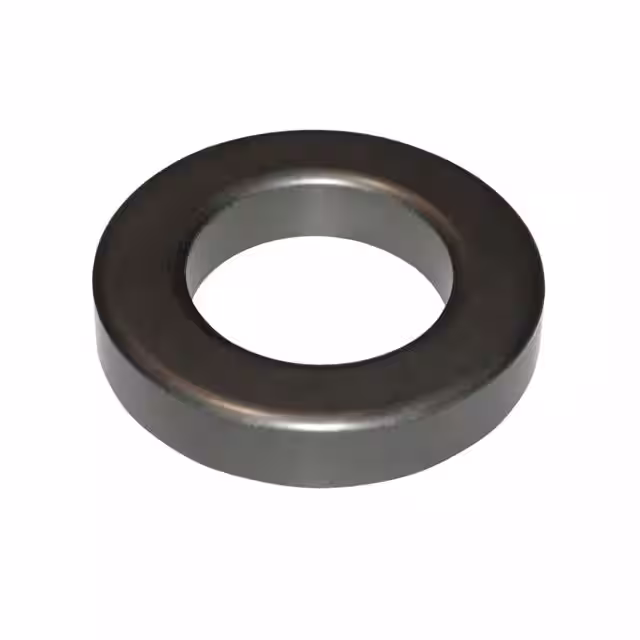

TX32/19/13-3E27 FERRITE CORES ROUND Ferroxcube	3,940	3.84	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 32 x 19 x 13	3E27	1.281 (32.55mm)	-	±25%	Ungapped	5500	-	0.99	76	76.5	-	5820	Epoxy	0.528 (13.40mm)

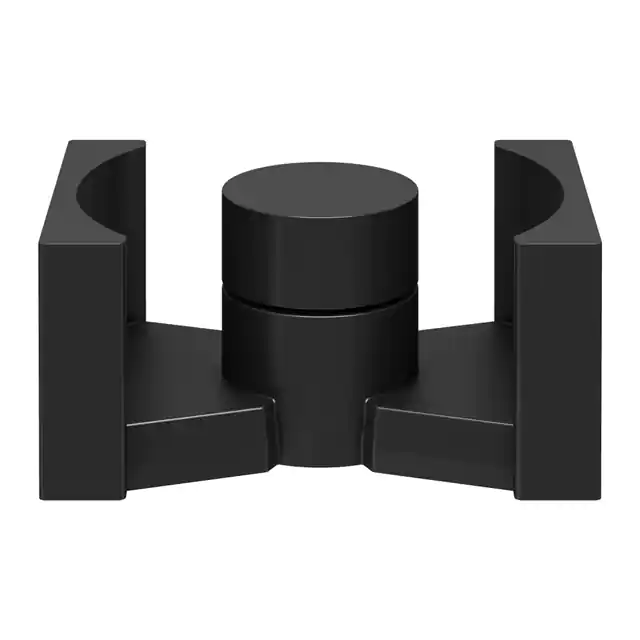

6698353621 98 PQ CORE SET Fair-Rite Products Corp.	100	4.26	- + RFQ	Datasheet	Bulk	-	Active	PQ	-	-	-	-	±25%	Ungapped	-	2400	48.2	88.2	183	161.7	16130	Uncoated	0.685 (17.40mm)
B66372B1000T001 CF-E70/33/32-1S EPCOS - TDK Electronics	3,654	5.92	- + RFQ	Datasheet	Bulk	E70/33/32	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5975003821 75 TOROID Fair-Rite Products Corp.	3,937	6.15	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	75	2.472 (62.80mm)	6.85 µH	-30%, +25%	Ungapped	-	5000	0.91627	145	158	-	22800	Plastic	0.539 (13.70mm)
B66367Q0250K187 ETD49/25/16-N87-DG250 EPCOS - TDK Electronics	3,997	6.26	- + RFQ	Datasheet	Bulk	ETD49/25/16	Active	ETD	ETD 49 x 25 x 16	N87	-	250 nH	±10%	Distributed Gapped	-	-	0.54	114	211	209	24100	Uncoated	0.657 (16.70mm)
B66367Q0100K187 ETD49/25/16-N87-DG100 EPCOS - TDK Electronics	2,692	6.26	- + RFQ	Datasheet	Bulk	ETD49/25/16	Active	ETD	ETD 49 x 25 x 16	N87	-	100 nH	±10%	Distributed Gapped	-	-	0.54	114	211	209	24100	Uncoated	0.657 (16.70mm)
B66335Q0250K187 E55/28/21-N87-DG250 EPCOS - TDK Electronics	3,325	7.03	- + RFQ	Datasheet	Bulk	E55/28/21	Active	E	E 55 x 28 x 21	N87	-	250 nH	±10%	Distributed Gapped	-	-	0.35	124	354	351	43900	Uncoated	0.827 (21.00mm)
B65879Q0150K097 PQ32/30-N97-DG150 2=1PC EPCOS - TDK Electronics	2,307	7.13	- + RFQ		Bulk	PQ32/30	Active	PQ	-	N95	-	100 nH	±10%	Distributed Gapped	-	-	0.441	67.8	153.8	127.5	10440	Uncoated	0.598 (15.19mm)
B65879Q0100K097 PQ32/30-N97-DG100 2=1PC EPCOS - TDK Electronics	2,162	7.13	- + RFQ		Bulk	PQ32/30	Active	PQ	-	N95	-	100 nH	±10%	Distributed Gapped	-	-	0.441	67.8	153.8	127.5	10440	Uncoated	0.598 (15.19mm)
B64290L0022X037 FERRITE CORE TOROID 7UH T37 EPCOS - TDK Electronics	2,672	7.66	- + RFQ	Datasheet	Box	TX42/26/13	Active	Toroid	-	T37	1.717 (43.60mm)	7 µH	±25%	Ungapped	-	6000	1.08	103	95.75	-	9862	Epoxy	0.535 (13.60mm)
LRF251515MKCX NANOCRYSTALLINE CORE, 25X15X15 United Chemi-Con	2,961	8.19	- + RFQ	Datasheet	Bulk	FL-V	Active	Toroid	-	-	1.114 (28.30mm)	38.1 µH	-	Ungapped	-	-	-	-	63	-	-	Uncoated	-
B66344Q0400K187 E55/28/25-N87-DG400 EPCOS - TDK Electronics	3,557	8.83	- + RFQ	Datasheet	Tray	E55/28/25	Active	E	E 55 x 28 x 25	N87	-	400 nH	±10%	Distributed Gapped	-	-	0.3	124	420	420	52100	Uncoated	0.984 (25.00mm)
B66344Q0250K187 E55/28/25-N87-DG250 EPCOS - TDK Electronics	2,345	8.83	- + RFQ	Datasheet	Tray	E55/28/25	Active	E	E 55 x 28 x 25	N87	-	250 nH	±10%	Distributed Gapped	-	-	0.3	124	420	420	52100	Uncoated	0.984 (25.00mm)
B66344Q0100K187 E55/28/25-N87-DG100 EPCOS - TDK Electronics	3,850	8.83	- + RFQ	Datasheet	Tray	E55/28/25	Active	E	E 55 x 28 x 25	N87	-	100 nH	±10%	Distributed Gapped	-	-	0.3	124	420	420	52100	Uncoated	0.984 (25.00mm)
B65879Q0150K095 PQ32/30-N95-DG150 EPCOS - TDK Electronics	2,589	9.18	- + RFQ	Datasheet	Bulk	PQ32/30	Active	PQ	PQ 32 x 30	N95	-	150 nH	±10%	Distributed Gapped	-	3000	0.441	67.8	153.8	127.5	10440	Uncoated	0.597 (15.17mm)
5977003821 77 TOROID PLASTIC COATED Fair-Rite Products Corp.	3,779	9.49	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	77	2.472 (62.80mm)	2.95 µH	-30%, +25%	Ungapped	-	2000	0.9136	144	157	-	22797	Plastic	0.539 (13.70mm)
B66387Q0250K187 E65/32/27-N87-DG250 EPCOS - TDK Electronics	3,047	10.87	- + RFQ	Datasheet	Bulk	E65/32/27	Active	E	E 65 x 32 x 27	N87	-	250 nH	±10%	Distributed Gapped	-	2200	0.27	147	535	529	78600	Uncoated	1.291 (32.80mm)
TX51/32/19-3C94 FERRITE CORES ROUND Ferroxcube	2,496	11.85	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 51 x 32 x 19	3C94	2.069 (52.55mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.783 (19.90mm)
