Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

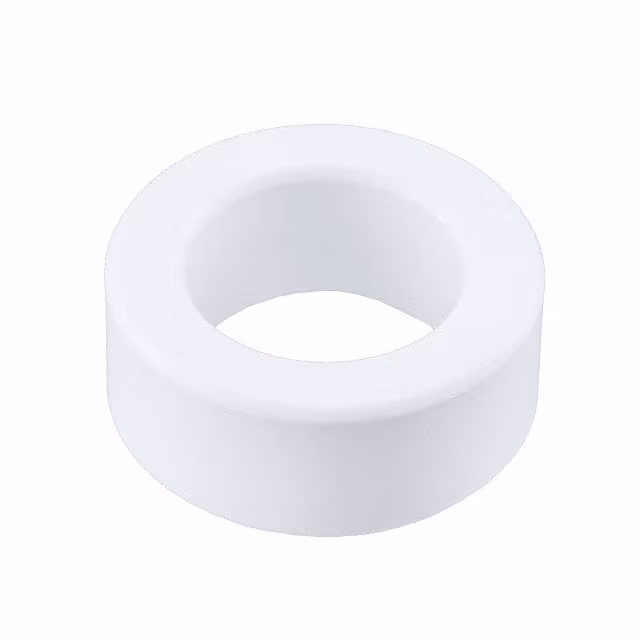

TX29/19/15-3E12 FERRITE CORES ROUND Ferroxcube	3,064	3.02	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 29 x 19 x 15	-	1.179 (29.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.632 (16.05mm)
B66363G1000X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	239	3.34	- + RFQ	Datasheet	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)

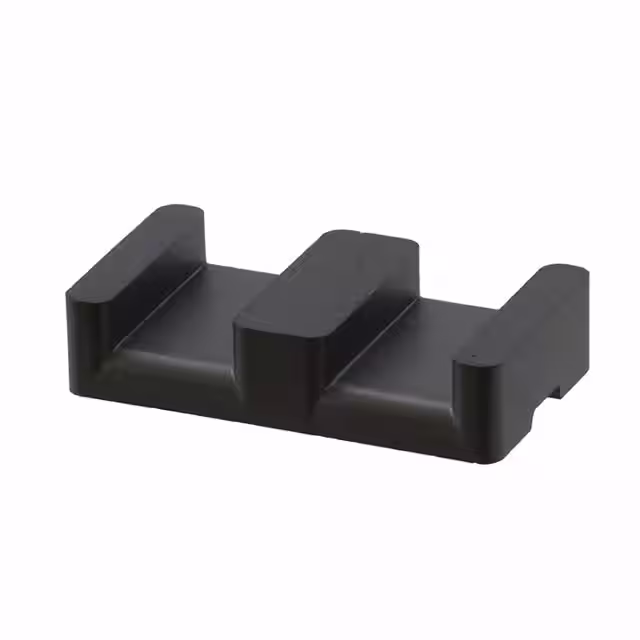

B66457G0000X197 FERRITE CORE ELP N97 1PC EPCOS - TDK Electronics	3,893	3.40	- + RFQ	Datasheet	Tray	ELP32/6/20	Active	ELP	ELP 32 x 6 x 20	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
B66329G1000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	287	3.69	- + RFQ	Datasheet	Box	E42/21/20	Active	E	E 42 x 21 x 20	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)

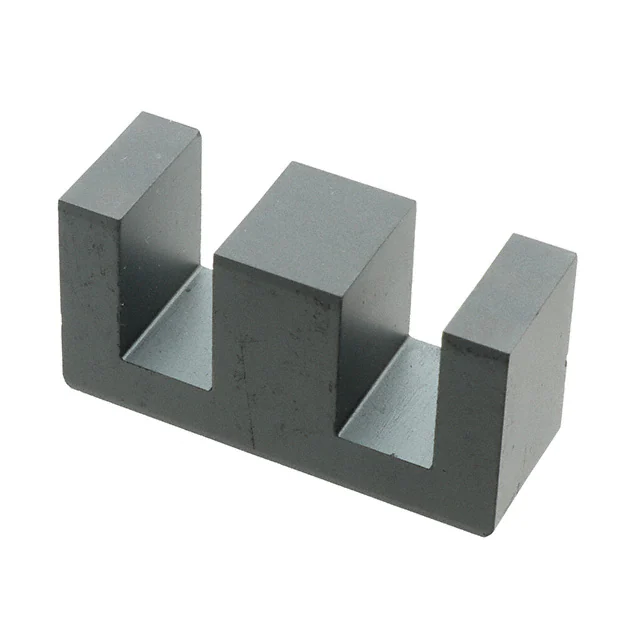

B66325G0000X130 FERRITE CORE E N30 1PC EPCOS - TDK Electronics	129	4.24	- + RFQ	Datasheet	Box	E42/21/15	Active	E	E 42 x 21 x 15	N30	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)
B66501G0000X192 FERRITE CORE ER N92 1PC EPCOS - TDK Electronics	195	4.70	- + RFQ	Datasheet	Box	ER32/5/21	Active	ER	ER 32 x 5 x 21	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.201 (5.10mm)
5695302021 95 POT CORE SET Fair-Rite Products Corp.	2,164	4.70	- + RFQ	Datasheet	Bulk	-	Active	PS	-	95	1.181 (30.00mm)	-	±25%	Ungapped	-	3000	35.6	45.3	127	-	5750	Uncoated	-
TX40/24/16-3E10-M FERRITE CORES ROUND Ferroxcube	3,293	5.43	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 40 x 24 x 16	-	1.640 (41.65mm)	-	±30%	Ungapped	10000	-	0.769	96.3	125	-	12100	Epoxy	0.673 (17.10mm)
B66335G1500X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,173	6.10	- + RFQ	Datasheet	Box	E55/28/21	Active	E	E 55 x 28 x 21	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)
TX42/26/18-3E27-M7 FERRITE CORES ROUND Ferroxcube	3,643	6.53	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 42 x 26 x 18	3E27	1.697 (43.15mm)	-	±25%	Ungapped	7000	-	0.769	103	134	-	13810	Epoxy	0.736 (18.70mm)
TX40/24/16-3E6 FERRITE CORES ROUND Ferroxcube	3,456	7.35	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 40 x 24 x 16	-	1.640 (41.65mm)	-	±30%	Ungapped	10000	-	0.769	96.3	125	-	12100	Epoxy	0.673 (17.10mm)

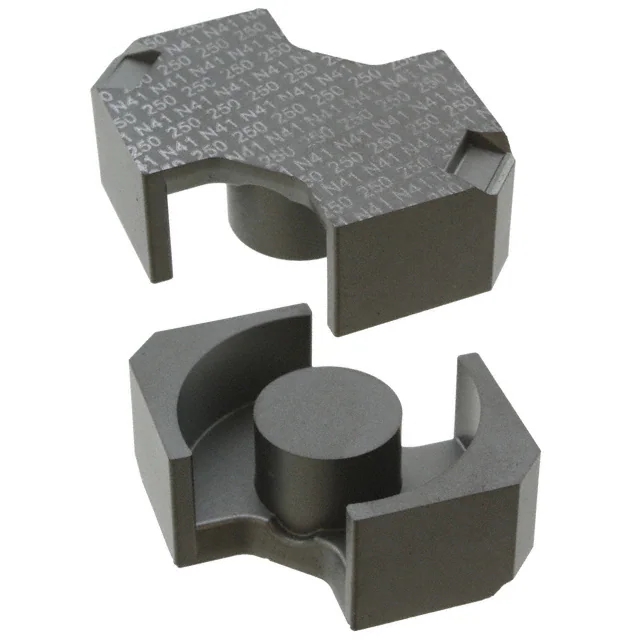

B65815E0250A041 FERRITE CORE RM 250NH N41 2PCS EPCOS - TDK Electronics	2,443	7.69	- + RFQ	Datasheet	Box	RM12	Active	RM	RM 12	N41	-	250 nH	±3%	Gapped	78	2800	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)
TX42/26/18-3E27 FERRITE CORES ROUND Ferroxcube	3,319	8.07	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 42 x 26 x 18	3E27	1.697 (43.15mm)	-	±25%	Ungapped	5500	-	0.769	103	134	-	13810	Epoxy	0.736 (18.70mm)
TX42/26/18-3E65 FERRITE CORES ROUND Ferroxcube	3,821	8.43	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 42 x 26 x 18	-	1.697 (43.15mm)	-	±25%	Ungapped	5200	-	0.769	103	134	-	13810	Epoxy	0.736 (18.70mm)
B66395G2000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	3,492	8.59	- + RFQ	Datasheet	Box	ETD54/28/19	Active	ETD	ETD 54 x 28 x 19	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)

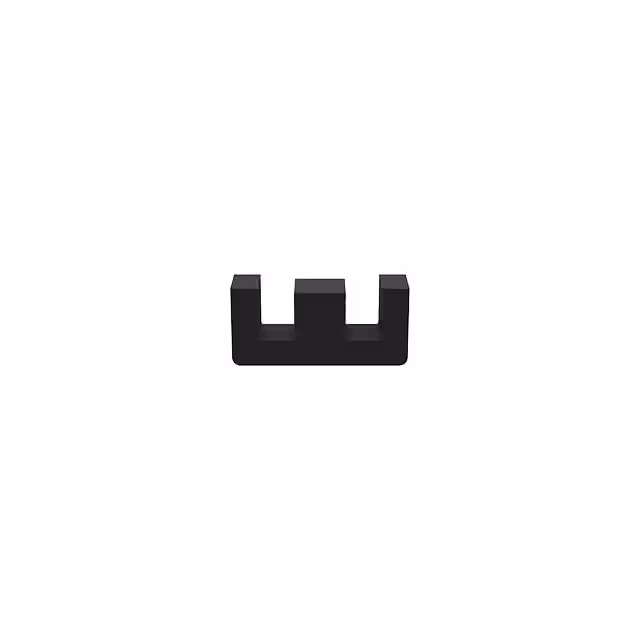

B66344G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,682	8.85	- + RFQ	Datasheet	Box	E55/28/25	Active	E	E 55 x 28 x 25	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)
B64290L0659X065 FERRITE CORE TOROID 8.2UH T65 EPCOS - TDK Electronics	2,148	9.62	- + RFQ	Datasheet	Box	TX40/24/16	Active	Toroid	-	T65	1.646 (41.80mm)	8.2 µH	±30%	Ungapped	-	5000	0.77	96.29	125.3	125.3	12070	Epoxy	0.677 (17.20mm)

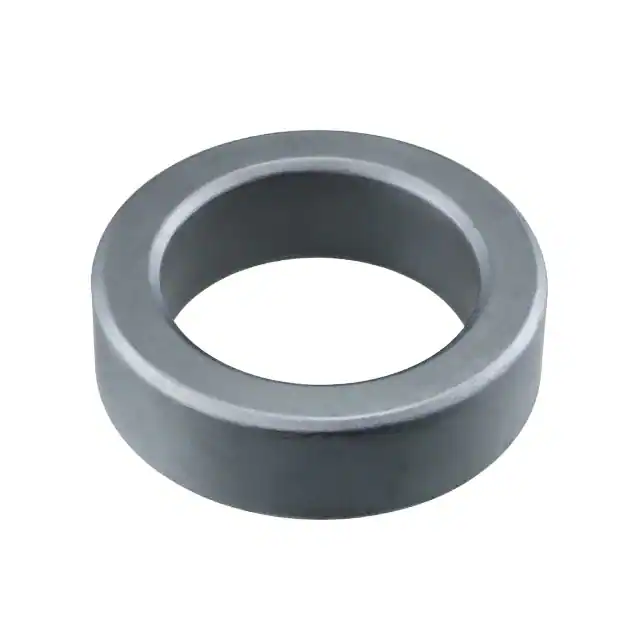

T58/41/18-3C90 FERRITE CORES ROUND Ferroxcube	2,217	10.31	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	3C90	2.295 (58.30mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.693 (17.60mm)
PM50/39-3C94 FERRITE CORE 2PC SET Ferroxcube	3,172	30.38	- + RFQ	Datasheet	Bulk	-	Active	PM	PM 50 x 39	3C94	1.969 (50.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	1.535 (39.00mm)
T102/66/15-3E27 FERRITE CORES ROUND Ferroxcube	3,881	40.38	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	3E27	4.016 (102.00mm)	-	±25%	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
