Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

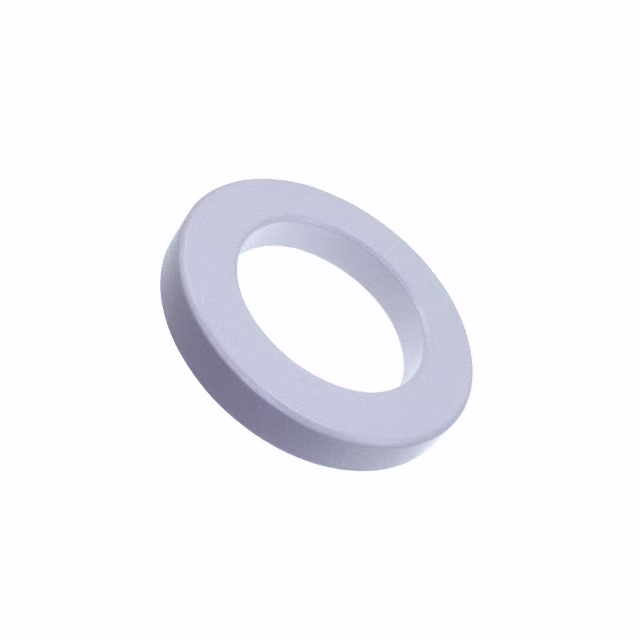

TX102/66/15-3C11 FERRITE CORES ROUND Ferroxcube	3,068	44.10	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	3C11	4.031 (102.40mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.602 (15.30mm)
HF60T80X20X50 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	3,052	46.98	- + RFQ	Datasheet	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.787 (20.00mm)
E100/60/28-3C92 FERRITE CORE Ferroxcube	3,942	47.27	- + RFQ	Datasheet	Bulk	-	Active	E	E 100 x 60 x 28	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	2.339 (59.40mm)
TX107/65/18-3C94 FERRITE CORES ROUND Ferroxcube	3,572	49.15	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 107 x 65 x 18	3C94	4.228 (107.40mm)	-	±25%	Ungapped	-	-	0.7	259	370	-	96000	Epoxy	0.720 (18.30mm)
B65691K0000R048 FERRITE CORES EPCOS - TDK Electronics	2,390	49.48	- + RFQ	Datasheet	Box	P59/36	Active	P (Pot Core)	-	N48	2.335 (59.30mm)	-	-20%, +30%	Ungapped	1800	-	0.181	88	485	445	42680	Uncoated	1.402 (35.60mm)
B64290L0730X037 FERRITE CORE TOROID 7UH T37 EPCOS - TDK Electronics	2,453	50.91	- + RFQ	Datasheet	Box	TX87/54.3/13.5	Active	Toroid	-	T37	3.516 (89.30mm)	7 µH	±25%	Ungapped	-	5500	0.99	213.9	216.7	-	46360	Epoxy	0.573 (14.80mm)
T107/65/25-3C94 FERRITE CORES ROUND Ferroxcube	3,777	59.87	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	3C94	4.213 (107.00mm)	-	-	Ungapped	-	-	0.504	259	514	-	133000	Uncoated	0.984 (25.00mm)
B64290A0699X010 R63/38/25 EPCOS - TDK Electronics	2,346	60.69	- + RFQ	Datasheet	Box	T63/38/25	Active	Toroid	R 63 x 38 x 25	K10	2.480 (63.00mm)	1.8 µH	±25%	Ungapped	-	700	0.5	152.1	305.9	-	46530	Uncoated	0.984 (25.00mm)

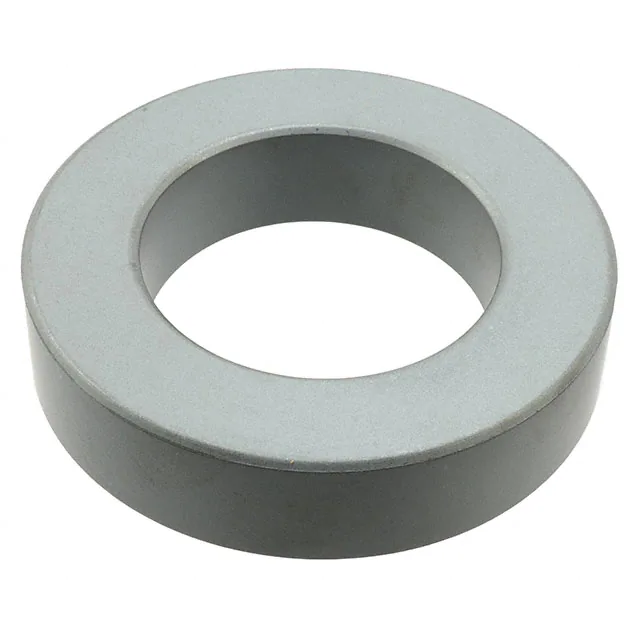

T107/65/25-3E27 FERRITE CORES ROUND Ferroxcube	2,785	62.55	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	3E27	4.213 (107.00mm)	-	-	Ungapped	-	-	0.504	259	514	-	133000	Uncoated	0.984 (25.00mm)
HF90T104X20X80 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	2,626	73.71	- + RFQ	Datasheet	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.787 (20.00mm)
PM74/59-3C94 FERRITE CORE 2PC SET Ferroxcube	3,094	78.76	- + RFQ	Datasheet	Bulk	-	Active	PM	PM 74 x 59	3C94	2.913 (74.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	2.323 (59.00mm)

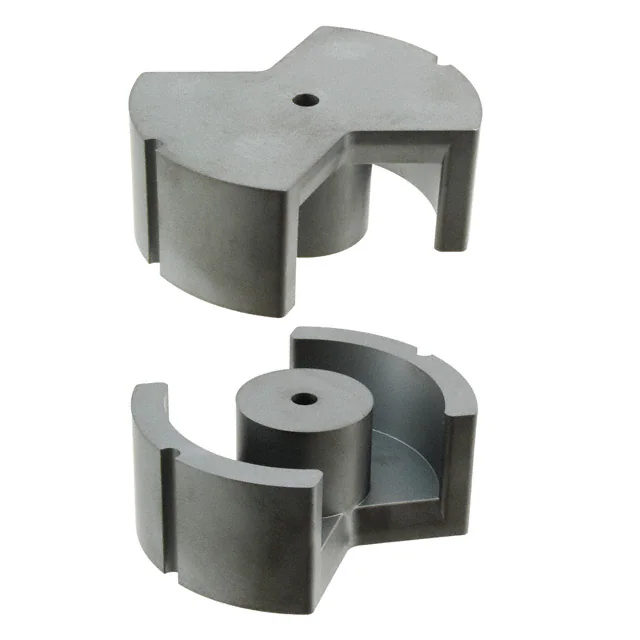

B65686A0000R027 FERRITE CORE PM 10UH N27 2PCS EPCOS - TDK Electronics	3,555	83.57	- + RFQ	Datasheet	Box	PM74/59	Active	PM	PM 74 x 59	N27	2.913 (74.00mm)	10 µH	-20%, +30%	Ungapped	1290	2000	0.162	128	790	630	101000	Uncoated	1.161 (29.50mm)
TX140/106/25-3C94 FERRITE CORES ROUND Ferroxcube	2,600	107.23	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 140 x 106 x 25	3C94	5.528 (140.40mm)	-	±20%	Ungapped	-	2300	0.903	382	422	-	161100	Epoxy	0.996 (25.30mm)
B65713A0000R087 FERRITE CORE PM 12UH N87 2PCS EPCOS - TDK Electronics	2,083	110.44	- + RFQ	Datasheet	Box	PM87/70	Active	PM	PM 87 x 70	N87	3.425 (87.00mm)	12 µH	-20%, +30%	Ungapped	1530	2200	0.16	146	910	700	133000	Uncoated	1.378 (35.00mm)

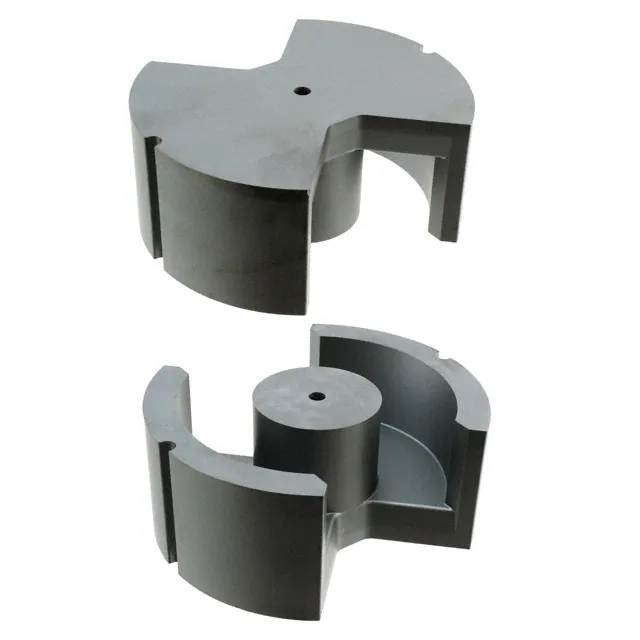

B65733A0000R027 FERRITE CORE PM 16UH N27 2PCS EPCOS - TDK Electronics	3,055	352.05	- + RFQ	Datasheet	Tray	PM114/93	Active	PM	PM 114 x 93	N27	4.488 (114.00mm)	16 µH	-20%, +30%	Ungapped	1480	2000	0.116	200	1720	1380	344000	Uncoated	1.831 (46.50mm)
B66307G0060X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	474	0.73	- + RFQ	Datasheet	Box	E16/8/5	Active	E	E 16 x 8 x 5	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.323 (8.20mm)
TX16/9.1/4.7-3E65 FERRITE CORES ROUND Ferroxcube	649	0.90	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 16 x 9.1 x 4.7	-	0.635 (16.13mm)	-	±30%	Ungapped	-	10500	2.53	37.2	14.7	-	548	Epoxy	0.195 (4.95mm)
B66317G1000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	351	0.95	- + RFQ	Datasheet	Box	E25/13/7	Active	E	E 25 x 13 x 7	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
B66483P0000X187 FERRITE CORE I N87 1PC EPCOS - TDK Electronics	920	1.00	- + RFQ	Datasheet	Box	I20/2.3/14	Active	I	I 20 x 2	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.091 (2.30mm)
TX20/10/7-3E65 FERRITE CORES ROUND Ferroxcube	620	1.31	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 20 x 10 x 7	-	0.797 (20.25mm)	-	±30%	Ungapped	-	10000	1.3	43.6	33.6	-	1465	Epoxy	0.291 (7.40mm)
