Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
ETD49/25/16-3C94 FERRITE CORE Ferroxcube	970	2.87	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 49 x 25 x 16	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.972 (24.70mm)
B65807J0250A041 FERRITE CORE RM 250NH N41 2PCS EPCOS - TDK Electronics	104	2.89	- + RFQ	Datasheet	Box	RM6	Active	RM	RM 6	N41	-	250 nH	±3%	Gapped	155	2800	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
PLT38/25/3.8-3F36 FERRITE CORE Ferroxcube	786	2.92	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 38 x 25 x 3.8	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.150 (3.81mm)
B66457G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	965	2.94	- + RFQ	Datasheet	Box	ELP32/6/20	Active	ELP	ELP 32 x 6 x 20	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
B65807J0250A048 FERRITE CORE RM 250NH N48 2PCS EPCOS - TDK Electronics	539	2.95	- + RFQ	Datasheet	Strip	RM6	Active	RM	RM 6	N48	-	250 nH	±3%	Gapped	171	-	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
B65803P0160J087 FERRITE CORE EPCOS - TDK Electronics	120	2.95	- + RFQ	Datasheet	Box	RM4/LP	Active	RM	RM 4 LP	N87	-	-	-	Gapped	-	2200	1.2	17.3	14.5	11.3	251	Uncoated	0.154 (3.90mm)

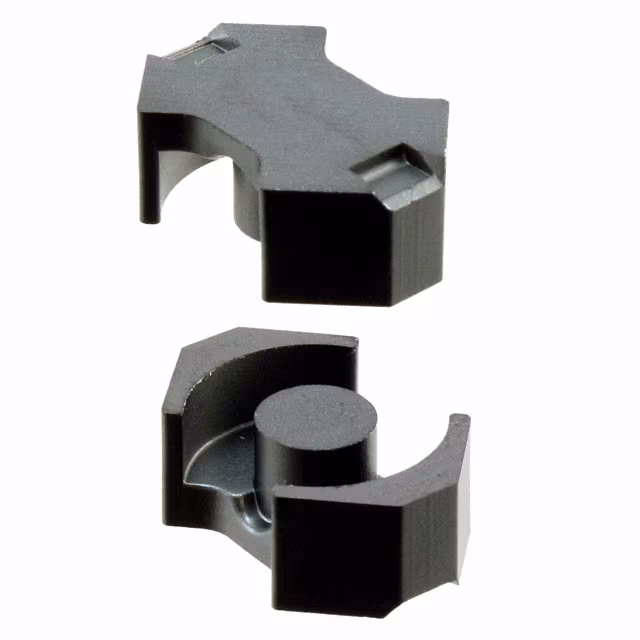

B65805J0160A087 FERRITE CORE RM 160NH N87 2PCS EPCOS - TDK Electronics	2,190	2.96	- + RFQ	Datasheet	Box	RM5	Active	RM	RM 5	N87	-	160 nH	±3%	Gapped	118	-	0.93	22.1	23.8	18	526	Uncoated	0.207 (5.25mm)
B66363G1000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	304	2.97	- + RFQ	Datasheet	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)
B66363G0200X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	293	2.97	- + RFQ	Datasheet	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)
B65819J0000R030 FERRITE CORE RM 5UH N30 2PCS EPCOS - TDK Electronics	101	2.99	- + RFQ	Datasheet	Box	RM7	Active	RM	RM 7	N30	-	5 µH	-20%, +30%	Ungapped	2810	4300	0.7	30.4	43	39	1310	Uncoated	0.265 (6.75mm)

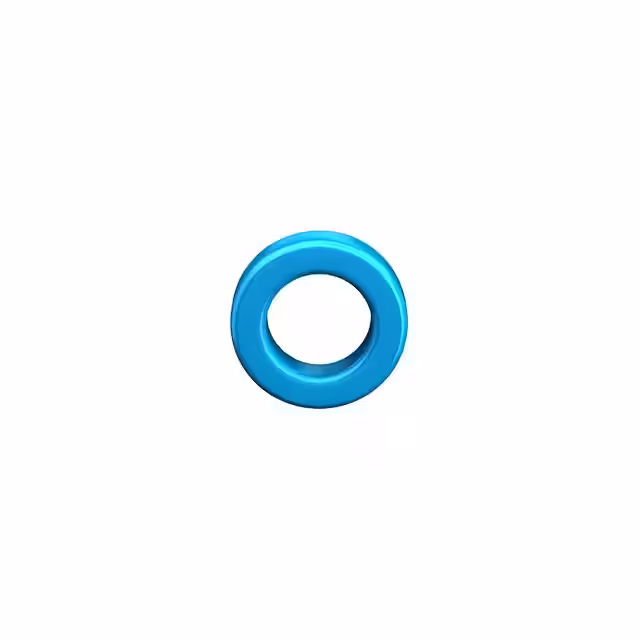

B64290L0651X038 FERRITE CORE TOROID 12UH T38 EPCOS - TDK Electronics	974	3.02	- + RFQ	Datasheet	Box	TX22/14/13	Active	Toroid	-	T38	0.917 (23.30mm)	12 µH	±30%	Ungapped	-	10000	1.05	54.15	51.15	-	2789	Epoxy	0.543 (13.80mm)
B66484K0000X197 FERRITE CORE I N97 1PC EPCOS - TDK Electronics	861	3.02	- + RFQ	Datasheet	Box	I25/3/15	Active	I	I 25 x 3 x 15	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)

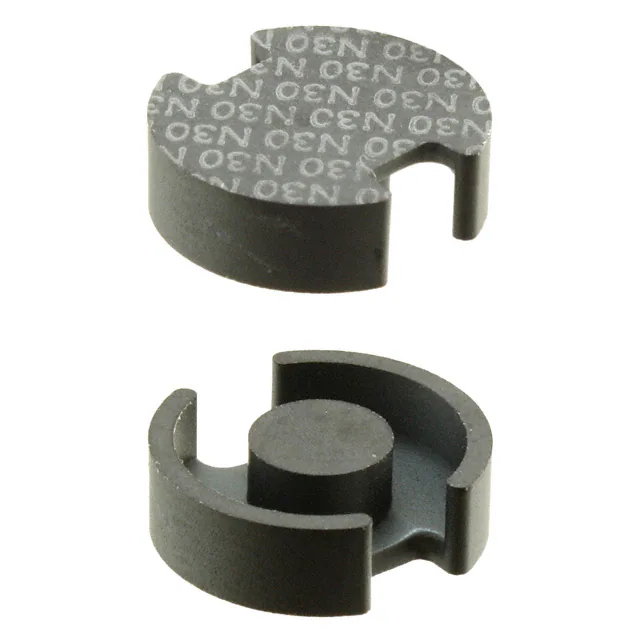

B65541W0000R030 FERRITE CORE P 4.6UH N30 2PCS EPCOS - TDK Electronics	421	3.02	- + RFQ	Datasheet	Box	P14/8	Active	P (Pot Core)	P 14 x 8	N30	0.563 (14.30mm)	4.6 µH	-20%, +30%	Ungapped	2680	4300	0.73	21	28.7	23.6	603	Uncoated	0.167 (4.25mm)
P26/16/I-3C91 FERRITE CORE 2PC SET Ferroxcube	297	3.03	- + RFQ	Datasheet	Bulk	-	Active	P (Pot Core)	P 26 x 16	3C91	1.004 (25.50mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.638 (16.20mm)
TX36/23/10-3E27 FERRITE CORES ROUND Ferroxcube	615	3.04	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 36 x 23 x 10	3E27	1.463 (37.15mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.430 (10.92mm)
B66484K0000X149 FERRITE CORE I N49 1PC EPCOS - TDK Electronics	487	3.08	- + RFQ	Datasheet	Box	I25/3/15	Active	I	I 25 x 3 x 15	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)

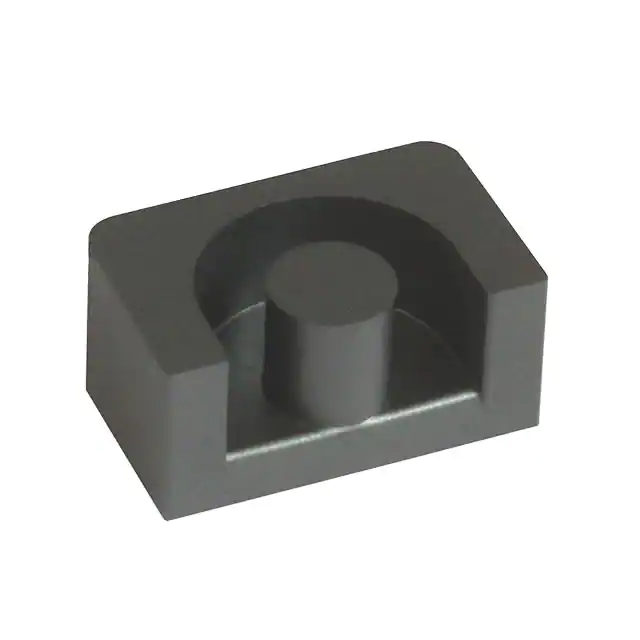

EP20-3C96 FERRITE CORE 2PC SET Ferroxcube	726	3.14	- + RFQ	Datasheet	Bulk	-	Active	EP	EP 20	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.843 (21.40mm)

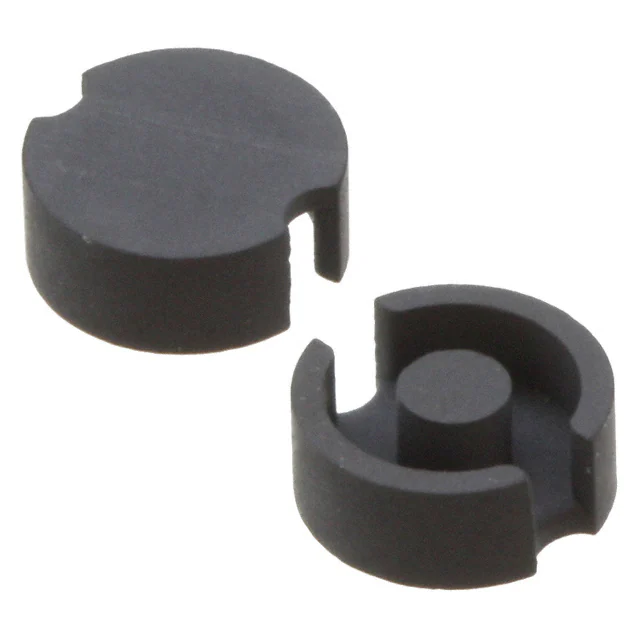

B65491C0000Y030 FERRITE CORE P 500NH N30 2PCS EPCOS - TDK Electronics	473	3.18	- + RFQ	Datasheet	Box	P3.3/2.6	Active	P (Pot Core)	P 3.3 x 2.6	N30	0.132 (3.35mm)	500 nH	-30%, +40%	Ungapped	1480	4300	3.72	5.1	1.37	-	7	Uncoated	0.051 (1.29mm)

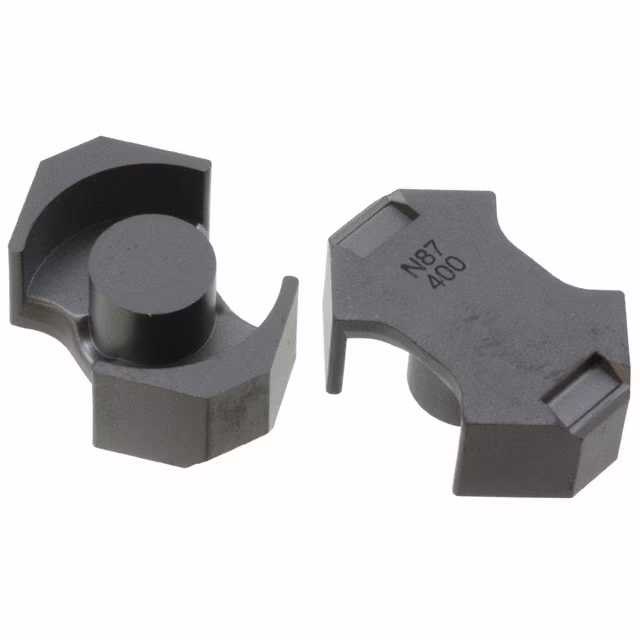

B65811J0400A087 FERRITE CORE RM 400NH N87 2PCS EPCOS - TDK Electronics	751	3.28	- + RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N87	-	400 nH	±3%	Gapped	189	2200	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)

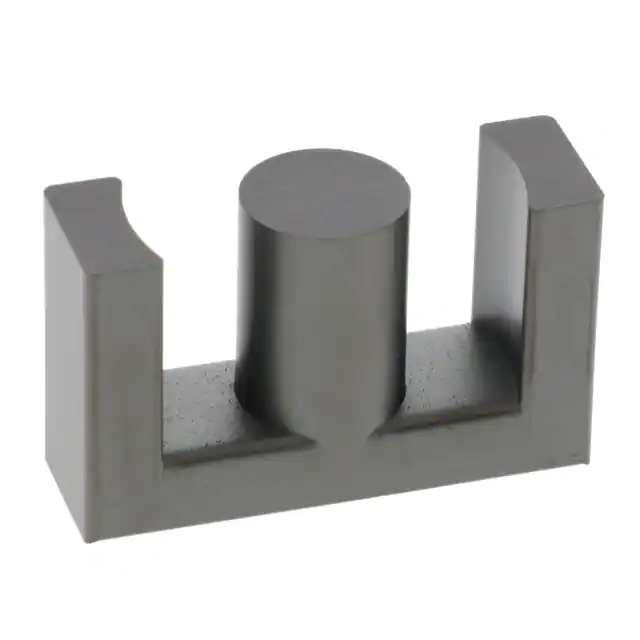

9595354202 95 EER CORE SET Fair-Rite Products Corp.	129	3.43	- + RFQ	Datasheet	Bulk	-	Active	EER	-	95	-	-	±25%	Ungapped	-	3000	82	91.1	111	100	10140	Uncoated	-
