Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
TX25/15/13-3E12 FERRITE CORES ROUND Ferroxcube	403	2.56	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 13	-	1.007 (25.95mm)	-	±30%	Ungapped	12000	-	0.97	60.1	62.1	-	3740	Epoxy	0.539 (13.70mm)

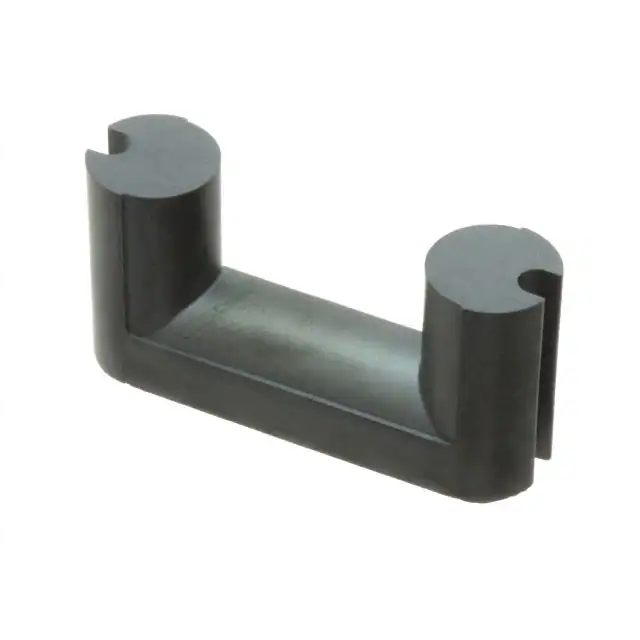

9277010002 77 U CORE Fair-Rite Products Corp.	659	2.62	- + RFQ	Datasheet	Bulk	-	Active	U	-	77	-	-	-	Ungapped	-	2000	118	116	98	-	11300	Uncoated	0.812 (20.63mm)
B66455G0000X608 ELP22/6/16-PC200 EPCOS - TDK Electronics	735	2.66	- + RFQ	Datasheet	Box	ELP22/6/16	Active	ELP	ELP 22 x 6 x 16	PC200	-	2100 nH	±25%	Ungapped	640	800	0.41	32.5	78.3	77.9	2540	Uncoated	0.224 (5.70mm)
ER32/6/25-3C92 FERRITE CORE Ferroxcube	640	2.68	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 32 x 6 x 25	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.236 (6.00mm)
TX29/19/7.6-3C94 FERRITE CORES ROUND Ferroxcube	146	2.73	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 29 x 19 x 7.6	3C94	0.640 (16.25mm)	-	±25%	Ungapped	2300	-	2.06	73.2	35.5	-	2600	Epoxy	0.258 (6.55mm)
B66285G0000X192 FERRITE CORE ELP N92 1PC EPCOS - TDK Electronics	117	2.73	- + RFQ	Datasheet	Box	ELP22/6/16	Active	ELP	ELP 22 x 6 x 16	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
5980001001 80 TOROID Fair-Rite Products Corp.	332	2.74	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	-	-	350 nH	±25%	Ungapped	-	550	198	73	37	-	2700	Uncoated	0.295 (7.49mm)

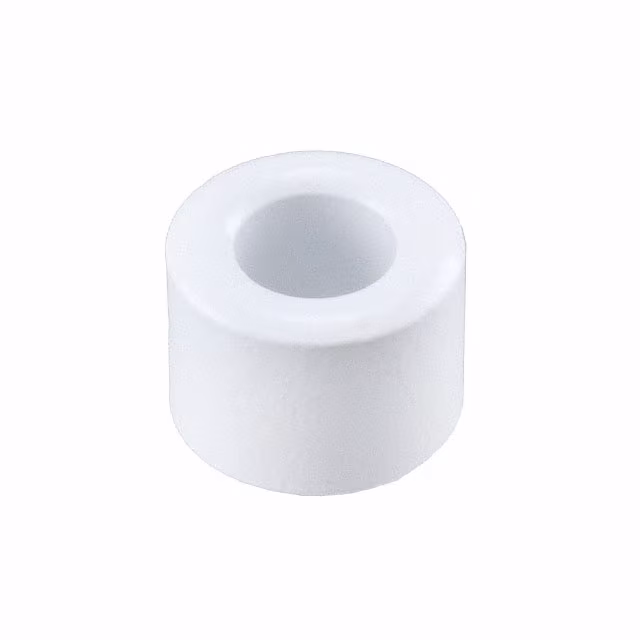

TX26/15/20-3C90 FERRITE CORES ROUND Ferroxcube	133	2.74	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 26 x 15 x 10	3C90	1.061 (26.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.827 (21.00mm)
TX29/19/15-3E65 FERRITE CORES ROUND Ferroxcube	921	2.76	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 29 x 19 x 15	-	1.179 (29.95mm)	-	±25%	Ungapped	5200	-	0.98	73.2	73.9	-	5410	Epoxy	0.632 (16.05mm)
TX36/23/10-3C94 FERRITE CORES ROUND Ferroxcube	547	2.76	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 36 x 23 x 10	3C94	1.463 (37.15mm)	-	±25%	Ungapped	2300	-	1.38	89.7	64.9	-	5820	Epoxy	0.430 (10.92mm)
B66285G0000X197 FERRITE CORE ELP N97 1PC EPCOS - TDK Electronics	418	2.76	- + RFQ	Datasheet	Box	ELP22/6/16	Active	ELP	ELP 22 x 6 x 16	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
TX29/19/15-3E6 FERRITE CORES ROUND Ferroxcube	2,974	2.76	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 29 x 19 x 15	-	1.179 (29.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.632 (16.05mm)
B65807J0000R041 FERRITE CORE RM 3.1UH N41 2PCS EPCOS - TDK Electronics	513	2.77	- + RFQ	Datasheet	Box	RM6	Active	RM	RM 6	N41	-	3.1 µH	-20%, +30%	Ungapped	1930	2800	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
B66482K0000X197 FERRITE CORE I N97 1PC EPCOS - TDK Electronics	853	2.79	- + RFQ	Datasheet	Tray	I23/2/13	Active	I	I 23 x 2 x 13	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.083 (2.10mm)
B66482K0000X149 FERRITE CORE I N49 1PC EPCOS - TDK Electronics	811	2.79	- + RFQ	Datasheet	Box	I23/2/13	Active	I	I 23 x 2 x 13	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.083 (2.10mm)
B66483G0000X192 FERRITE CORE EQ N92 1PC EPCOS - TDK Electronics	232	2.80	- + RFQ	Datasheet	Box	EQ20/6.3/14	Active	EQ	EQ 20 x 6	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.248 (6.30mm)
B66455G0000X149 FERRITE CORE ELP N49 1PC EPCOS - TDK Electronics	334	2.82	- + RFQ	Datasheet	Box	ELP22/6/16	Active	ELP	ELP 22 x 6 x 16	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
ETD44/22/15-3C97 FERRITE CORE Ferroxcube	777	2.84	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 44 x 22 x 15	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.878 (22.30mm)
B66285K0000X149 FERRITE CORE I N49 EPCOS - TDK Electronics	734	2.85	- + RFQ	Datasheet	Tray	I22/2.5/16	Active	I	I 22 x 2.5 x 16	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)

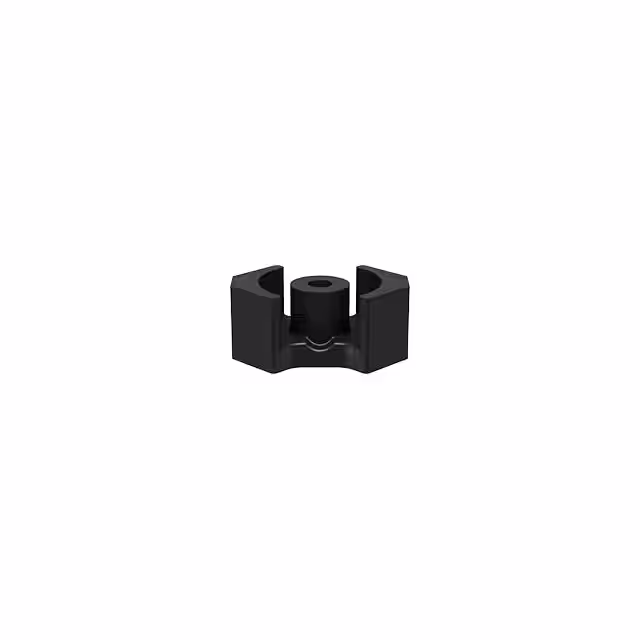

B65811D0630J048 FERRITE CORE RM 630NH N48 2PCS EPCOS - TDK Electronics	250	5.15	- + RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	RM8	Active	RM	RM 8	N48	-	630 nH	±5%	Gapped	338	-	0.68	35.1	52	-	1825	Uncoated	0.324 (8.25mm)
