Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B66423U0250K187 FERRITE CORE EFD N87 1PC EPCOS - TDK Electronics	619	1.52	- + RFQ	Datasheet	Box	EFD30/15/9	Active	EFD	EFD 30 x 15 x 9	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
4077374711 77 SOLID ROD Fair-Rite Products Corp.	965	1.53	- + RFQ	Datasheet	Bulk	-	Active	ROD	-	77	0.372 (9.45mm)	-	-	Ungapped	-	2000	-	-	-	-	-	Uncoated	-

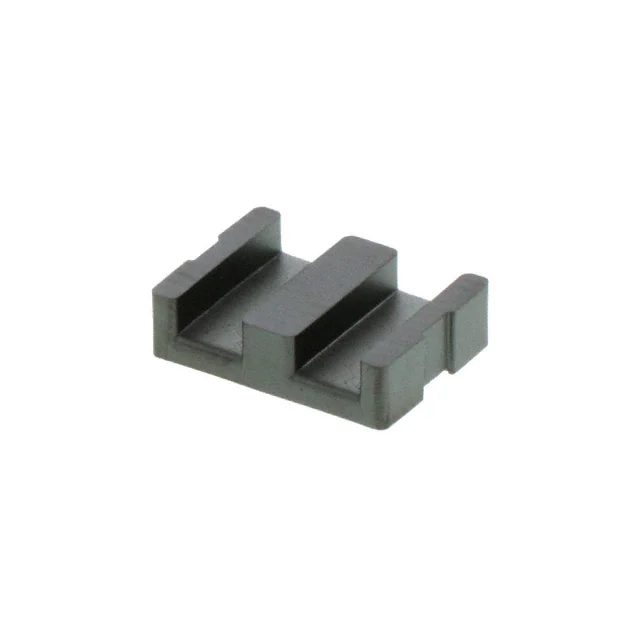

7895400321 95 PLANAR EI CORE SET Fair-Rite Products Corp.	589	1.53	- + RFQ	Datasheet	Bulk	-	Active	Planar E/I	-	95	-	-	±25%	Ungapped	-	3000	33	26.1	79	79	2060	Uncoated	0.224 (5.70mm)

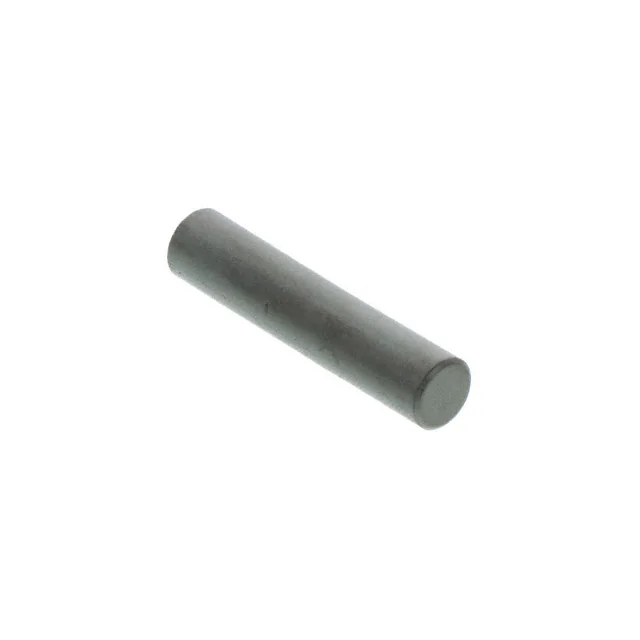

4077312911 77 ROD Fair-Rite Products Corp.	741	1.54	- + RFQ	Datasheet	Bulk	-	Active	ROD	-	77	0.315 (8.00mm)	-	-	Ungapped	29	2000	-	25	7.07	-	-	Uncoated	-
TX20/10/7-3E12 FERRITE CORES ROUND Ferroxcube	572	1.55	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 20 x 10 x 7	-	0.797 (20.25mm)	-	±30%	Ungapped	-	-	1.3	43.6	33.6	-	1465	Epoxy	0.291 (7.40mm)

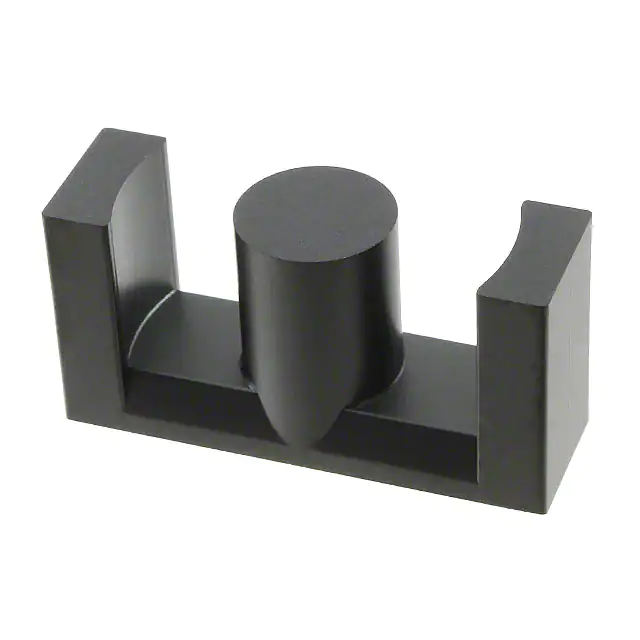

B66361G0000X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	948	1.58	- + RFQ	Datasheet	Box	ETD34/17/11	Active	ETD	ETD 34 x 17 x 11	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.689 (17.50mm)
TX29/19/7.6-3E10-M FERRITE CORES ROUND Ferroxcube	184	1.58	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 29 x 19 x 7.6	-	0.640 (16.25mm)	-	±30%	Ungapped	10000	-	2.06	73.2	35.5	-	2600	Epoxy	0.258 (6.55mm)
P11/7/I-3C91 FERRITE CORE 2PC SET Ferroxcube	453	1.60	- + RFQ	Datasheet	Bulk	-	Active	P (Pot Core)	P 11 x 7	3C91	0.437 (11.10mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.260 (6.60mm)
B65513J0000R608 ER14.5/6-PC200 EPCOS - TDK Electronics	412	1.63	- + RFQ	Datasheet	Bulk	ER14.5	Active	ER	ER 14.5 x 6	PC200	-	-	-20%, +30%	Ungapped	640	800	1.08	19	17.6	17.3	334	Uncoated	0.116 (2.95mm)
TX22/14/13-3C94 FERRITE CORES ROUND Ferroxcube	205	1.65	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 22 x 14 x 13	3C94	0.880 (22.35mm)	-	±20%	Ungapped	-	2300	1.07	54.2	50.9	-	2750	Epoxy	0.510 (12.95mm)
B66229G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	559	1.66	- + RFQ	Datasheet	Box	E32/16/9	Active	E	E 32 x 16 x 9	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)

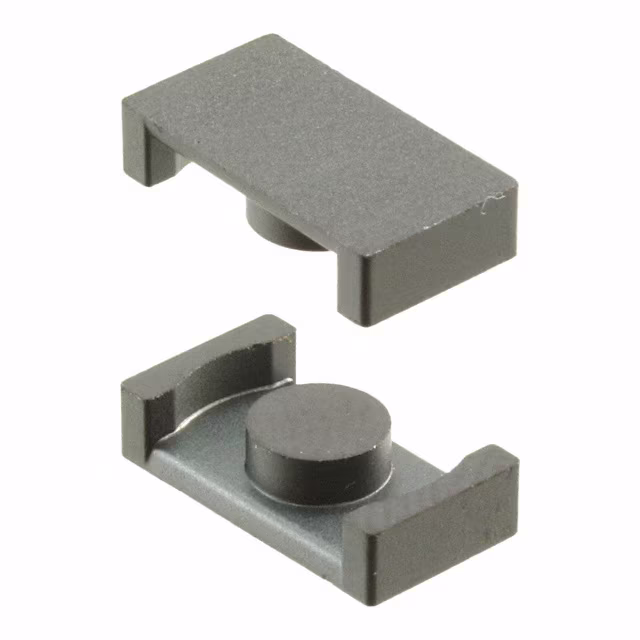

B65525J0000Y038 FERRITE CORE ER 6.4UH T38 2PCS EPCOS - TDK Electronics	843	1.71	- + RFQ	Datasheet	Box	ER11/5	Active	ER	ER 11 x 5	T38	-	6.4 µH	-30%, +40%	Ungapped	5600	10000	1.1	14.1	12.4	-	174	Uncoated	0.098 (2.50mm)
PC95EIR14/4.5/9-Z FERRITE CORE EIR 2.8UH 1SET TDK Corporation	129	1.71	- + RFQ	Datasheet	Tray	Planar	Active	HER, PLT	EIR 14 x 4.5 x 9	PC95	-	2.8 µH	±25%	Ungapped	-	-	0.68	22.7	15.4	21.2	349	Uncoated	0.177 (4.50mm)

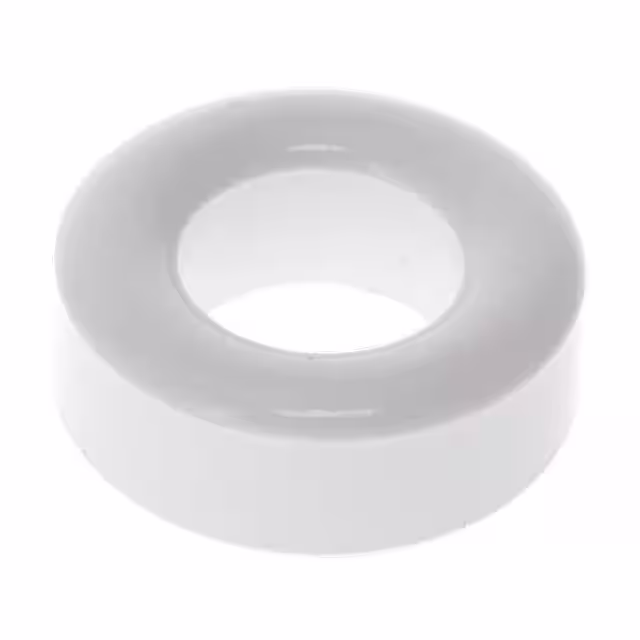

TX26/15/10-3E10-M FERRITE CORES ROUND Ferroxcube	393	1.73	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 26 x 15 x 10	-	1.061 (26.95mm)	-	±30%	Ungapped	10000	-	1.08	60.1	55.9	-	3360	Epoxy	0.429 (10.90mm)

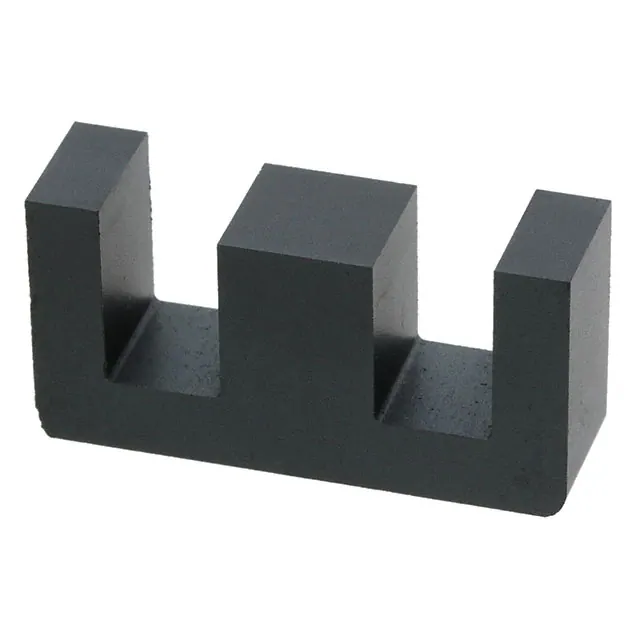

B66229G1000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	918	1.74	- + RFQ	Datasheet	Box	E32/16/9	Active	E	E 32 x 16 x 9	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)
B66358G0500X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	804	1.74	- + RFQ	Datasheet	Box	ETD29/16/10	Active	ETD	ETD 29 x 16 x 10	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.630 (16.00mm)

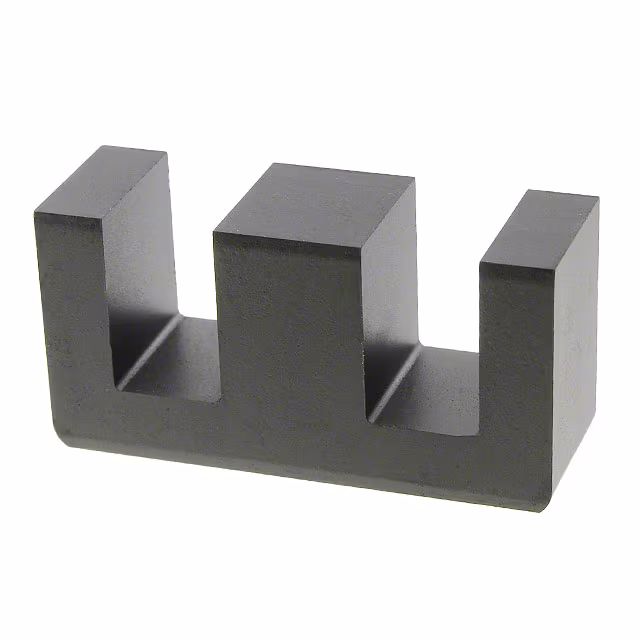

B66233G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	105	1.76	- + RFQ	Datasheet	Box	E32/16/11	Active	E	E 32 x 16 x 11	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)

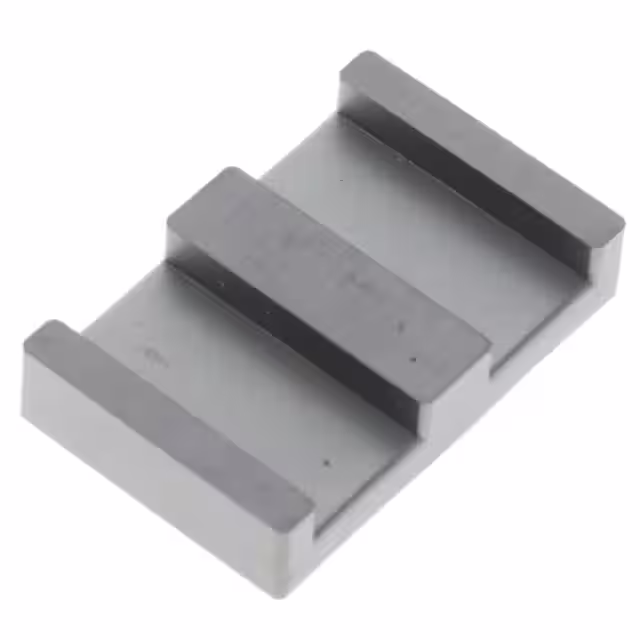

7878400421 78 PLANAR EI CORE SET Fair-Rite Products Corp.	348	1.78	- + RFQ	Datasheet	Bulk	-	Active	E	-	78	-	-	±25%	Ungapped	-	2300	27	35.2	130	129	4570	Uncoated	0.250 (6.35mm)

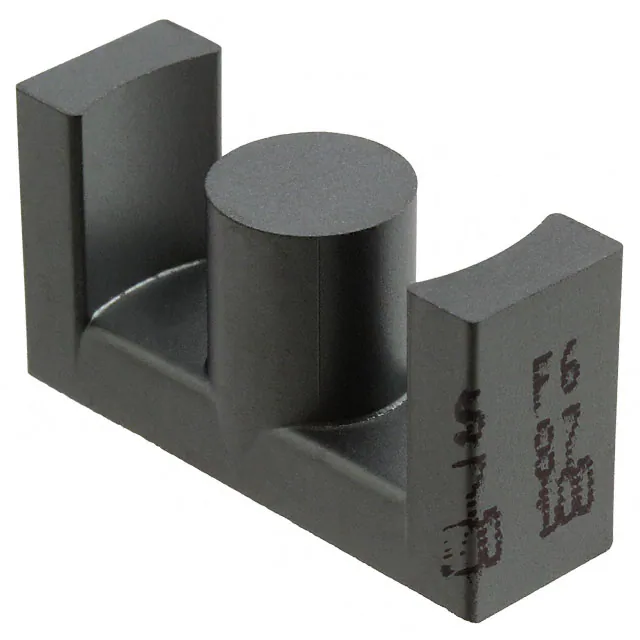

B66358G1000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	886	1.79	- + RFQ	Datasheet	Box	ETD29/16/10	Active	ETD	ETD 29 x 16 x 10	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.630 (16.00mm)
B66480G0000X187 FERRITE CORE ER N87 1PC EPCOS - TDK Electronics	356	1.79	- + RFQ	Datasheet	Box	ER18/3/10	Active	ER	ER 18 x 3 x 10	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.124 (3.15mm)
