Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

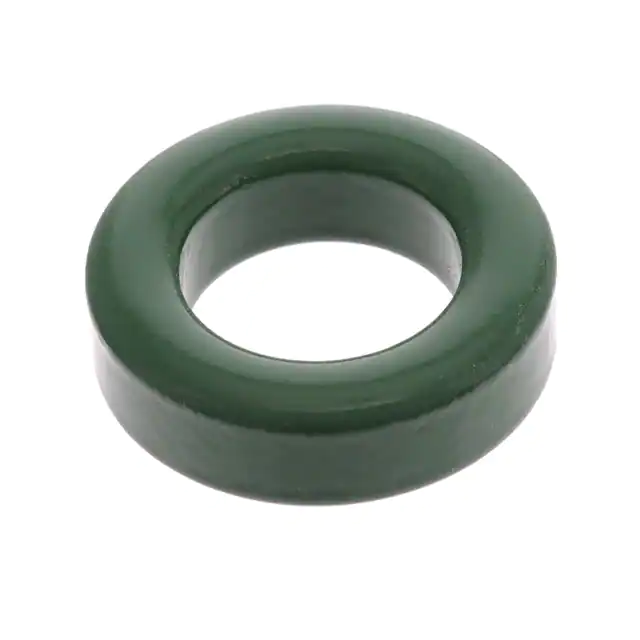

5961001821 61 TOROID PLASTIC COATED Fair-Rite Products Corp.	316	1.42	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	61	0.906 (23.00mm)	75 nH	±25%	Ungapped	-	125	2.0692	54.2	26.2	-	1416	Plastic	0.280 (7.11mm)
5977001401 77 TOROID Fair-Rite Products Corp.	557	1.47	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	77	1.000 (25.40mm)	-	±25%	Ungapped	-	2000	-	62	41	-	2520	Uncoated	0.320 (8.13mm)
EP13-3C96 FERRITE CORE 2PC SET Ferroxcube	515	1.51	- + RFQ	Datasheet	Bulk	-	Active	EP	EP 13	3C96	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.512 (13.00mm)
B65513J0000R087 FERRITE CORE ER 1.5UH N87 2PCS EPCOS - TDK Electronics	962	1.52	- + RFQ	Datasheet	Box	ER14.5	Active	ER	ER 14.5 x 6	N87	-	1.5 µH	-20%, +30%	Ungapped	1250	2200	1.1	19	17.6	-	333	Uncoated	0.116 (2.95mm)

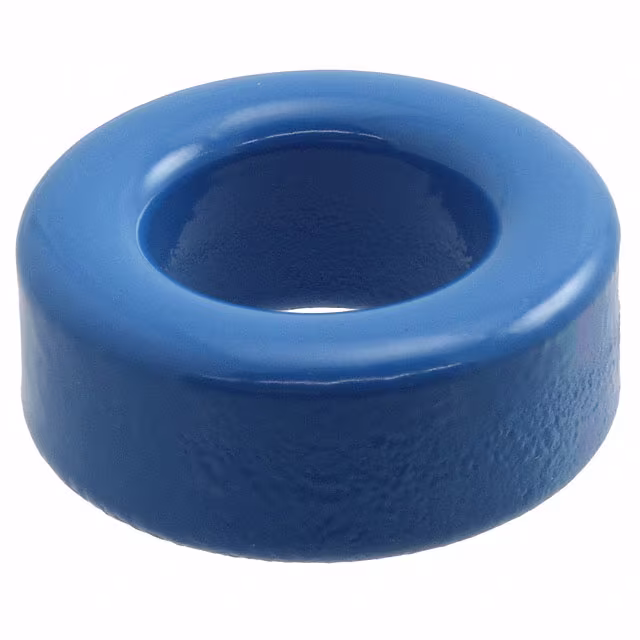

B64290L0632X087 FERRITE CORE TOROID 2.13UH N87 EPCOS - TDK Electronics	694	1.54	- + RFQ	Datasheet	Box	TX20/10/7	Active	Toroid	-	N87	0.835 (21.20mm)	2.13 µH	±25%	Ungapped	-	2200	1.3	43.55	33.63	-	1465	Epoxy	0.319 (8.10mm)

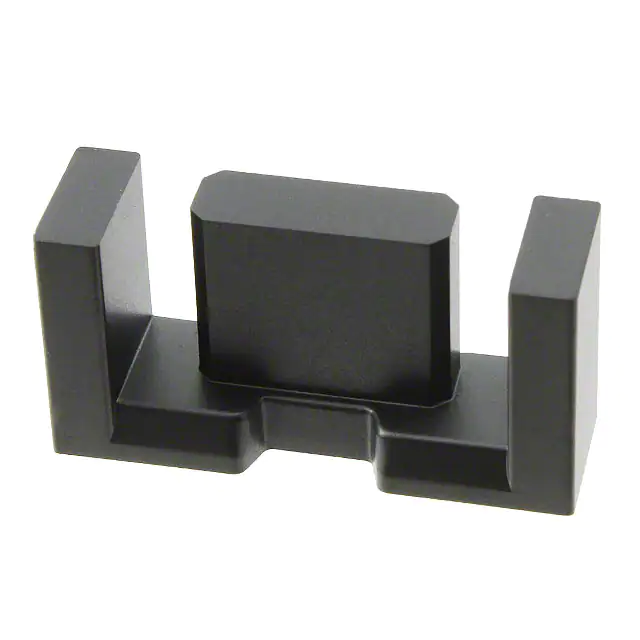

B66423G0000X187 FERRITE CORE EFD N87 1PC EPCOS - TDK Electronics	625	1.55	- + RFQ	Datasheet	Box	EFD30/15/9	Active	EFD	EFD 30 x 15 x 9	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
B64290A0618X830 FERRITE CORE TOROID 4.6UH N30 EPCOS - TDK Electronics	434	1.56	- + RFQ	Datasheet	Bulk	T25.3/14.8/15	Active	Toroid	R 25.3 x 14.8 x 10	N30	0.996 (25.30mm)	4.62 µH	±25%	Ungapped	-	4300	1.17	60.07	51.26	-	3079	Uncoated	0.394 (10.00mm)
TX22/14/13-3C90 FERRITE CORES ROUND Ferroxcube	497	1.65	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 22 x 14 x 13	3C90	0.880 (22.35mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.510 (12.95mm)

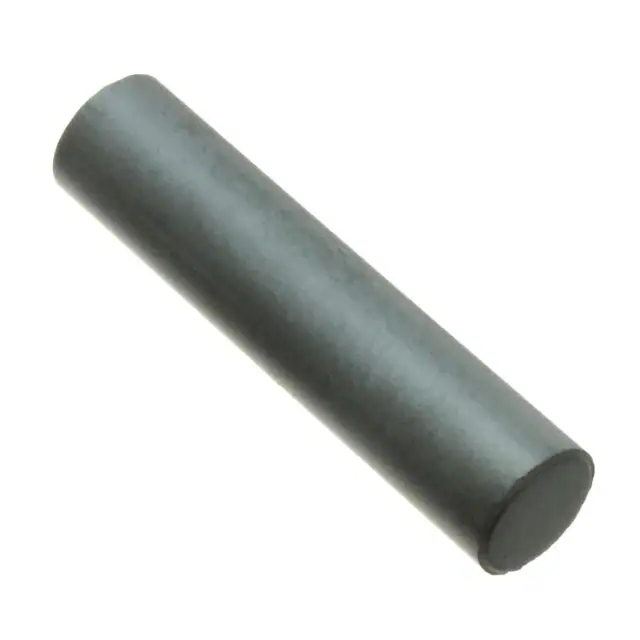

4077375411 77 SOLID ROD Fair-Rite Products Corp.	255	1.65	- + RFQ	Datasheet	Bulk	-	Active	ROD	-	77	0.374 (9.50mm)	-	-	Ungapped	29	2000	-	25	7.07	-	-	Uncoated	-
3061990901 61 ROD Fair-Rite Products Corp.	791	1.66	- + RFQ	Datasheet	Tray	-	Active	ROD	-	61	0.236 (6.00mm)	-	-	Ungapped	22	125	-	-	28.3	-	-	Uncoated	-
5943001601 43 TOROID Fair-Rite Products Corp.	680	1.69	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	43	-	-	±20%	Ungapped	-	800	-	76	47	-	3530	Uncoated	-
PLT32/20/3.2/R-3F4 FERRITE CORE Ferroxcube	682	1.87	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 32 x 20 x 3.2	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.125 (3.18mm)
3078990911 78 ROD Fair-Rite Products Corp.	234	1.87	- + RFQ	Datasheet	Bulk	-	Active	ROD	-	78	0.315 (8.00mm)	-	-	Ungapped	20	2300	-	-	50.3	-	-	Uncoated	-
PQ20/16-3C97 FERRITE CORE 2PC SET Ferroxcube	636	1.91	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 20 x 16	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.638 (16.20mm)
PQ20/16-3F36 FERRITE CORE 2PC SET Ferroxcube	414	1.91	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 20 x 16	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.638 (16.20mm)
9277024002 77 U CORE Fair-Rite Products Corp.	756	1.95	- + RFQ	Datasheet	Bulk	-	Active	U	-	77	-	-	-	Ungapped	-	2000	112	93	83	-	7700	Uncoated	0.729 (18.60mm)

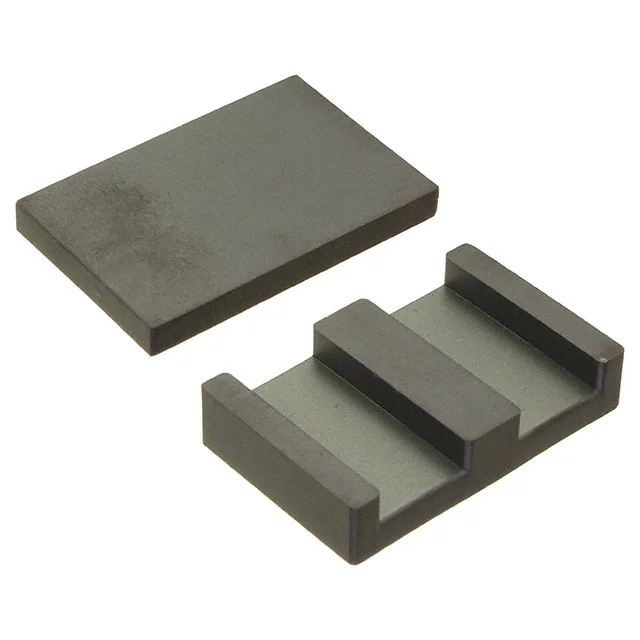

7895400421 95 PLANAR EI CORE SET Fair-Rite Products Corp.	2,075	1.99	- + RFQ	Datasheet	Bulk	-	Active	Planar E/I	-	95	-	8.7 µH	±25%	Ungapped	-	3000	27	35.2	130	129	4570	Uncoated	0.250 (6.35mm)
4061375411 61 ROD Fair-Rite Products Corp.	146	2.08	- + RFQ	Datasheet	Bulk	-	Active	ROD	-	61	0.374 (9.50mm)	-	-	Ungapped	-	125	-	-	-	-	-	Uncoated	-
E32/6/20/R-3C95 FERRITE CORE Ferroxcube	846	2.23	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
5975001401 75 TOROID Fair-Rite Products Corp.	710	2.24	- + RFQ	Datasheet	Tray	-	Active	Toroid	-	75	1.000 (25.40mm)	-	±20%	Ungapped	-	5000	-	62	41	-	2520	Uncoated	0.320 (8.13mm)
