Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65883A0000R092 FERRITE CORE PQ 3.2UH N92 2PCS EPCOS - TDK Electronics	109	13.39	- + RFQ	Datasheet	Box	PQ40/40	Active	PQ	PQ 40 x 40	N92	-	3.2 µH	-20%, +30%	Ungapped	1250	1500	0.49	92.5	188.3	159.9	17430	Uncoated	0.783 (19.90mm)
PQ50/35-3C95 FERRITE CORE 2PC SET Ferroxcube	323	17.33	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 50 x 35	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.378 (35.00mm)
FINFE.13 FERRITE CORE 31X32X33MM Enerdoor	200	13.64	- + RFQ	Datasheet	Bulk	FINFE	Active	-	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.299 (33.00mm)

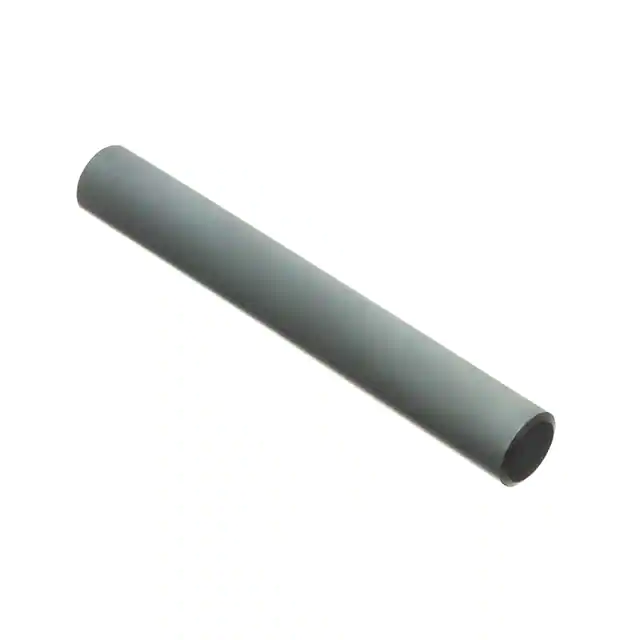

4078377511 78 ROD Fair-Rite Products Corp.	2,269	2.71	- + RFQ	Datasheet	Bulk	-	Active	ROD	-	78	0.374 (9.50mm)	-	-	Ungapped	29	2300	-	25	7.07	-	-	Uncoated	-

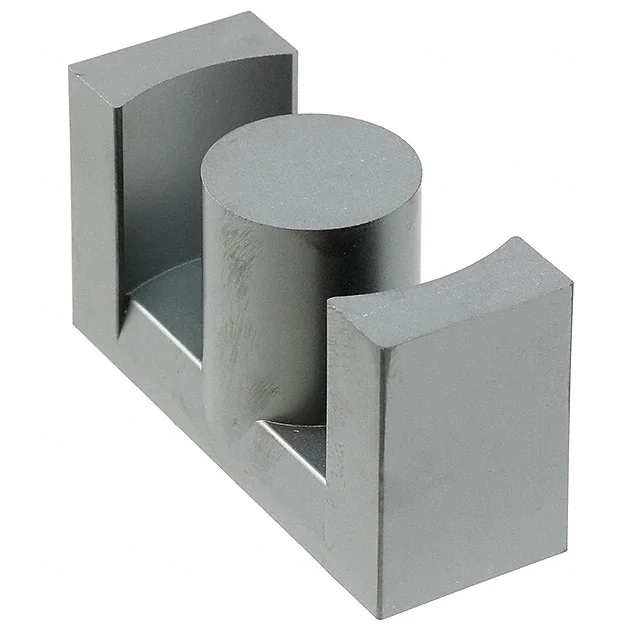

B66397G0000X197 FERRITE CORE ETD N97 1PC EPCOS - TDK Electronics	3,778	11.15	- + RFQ	Datasheet	Box	ETD59/31/22	Active	ETD	ETD 59 x 31 x 22	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.228 (31.20mm)
T60006L2080V140 NANOCRYSTALLINE CORE, 80X50X20 VACUUMSCHMELZE	3,275	41.00	- + RFQ	Datasheet	Box	-	Active	Toroid	-	-	3.378 (85.80mm)	94 µH	-	Ungapped	-	-	-	204	228	-	-	Uncoated	1.004 (25.50mm)

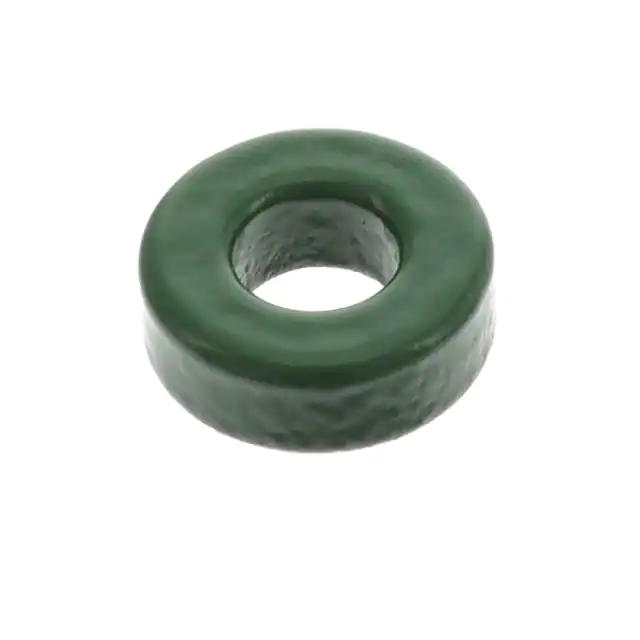

5943000221 43 TOROID PLASTIC COATED Fair-Rite Products Corp.	459	0.42	- + RFQ	Datasheet	Box	-	Active	Toroid	-	43	0.402 (10.20mm)	350 nH	-25%, +20%	Ungapped	-	800	2.8549	20.7	7.25	-	150	Plastic	0.150 (3.81mm)
TX14/9/5-3C94 FERRITE CORES ROUND Ferroxcube	237	0.58	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 14 x 9 x 5	3C94	0.561 (14.25mm)	-	±30%	Ungapped	-	-	2.84	35	12.3	-	430	Epoxy	0.207 (5.25mm)

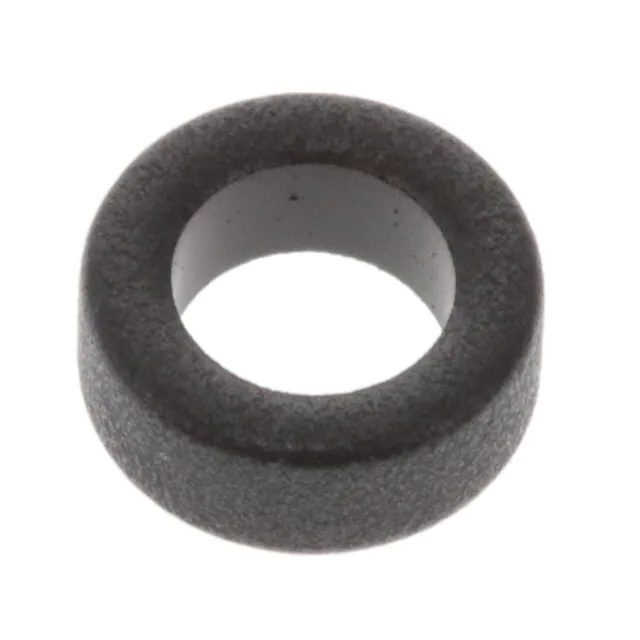

B64290P0037X049 FERRITE CORE EPCOS - TDK Electronics	113	0.79	- + RFQ	Datasheet	Box	TC6.3/3.8/2.5	Active	Toroid	R 6.3 x 3.8 x 2.5	N49	0.248 (6.30mm)	330 nH	±25%	Gapped	-	1500	4.97	15.21	3.06	-	46.5	Parylene	0.098 (2.50mm)

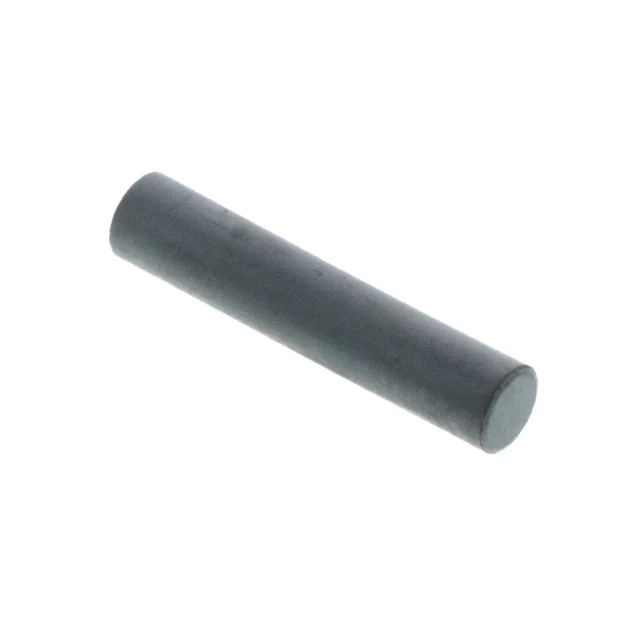

4052235211 52 ROD Fair-Rite Products Corp.	306	0.91	- + RFQ	Datasheet	Box	-	Active	ROD	-	52	0.236 (6.00mm)	-	-	Ungapped	29	250	-	25	7.07	-	-	Uncoated	-

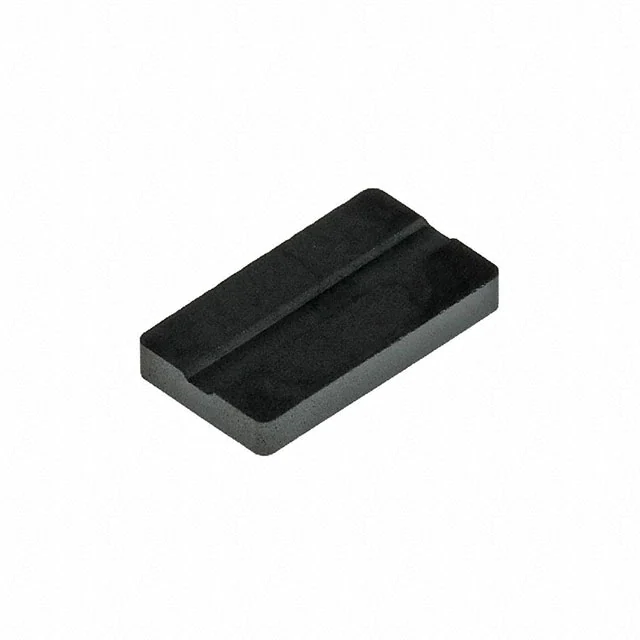

PLT18/10/2/S-3F46 FERRITE CORE Ferroxcube	737	0.97	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 18 x 10 x 2	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.094 (2.40mm)
E14/3.5/5/R-3F36 FERRITE CORE Ferroxcube	685	0.97	- + RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
B66413G0000X197 FERRITE CORE EFD N97 1PC EPCOS - TDK Electronics	128	0.98	- + RFQ	Datasheet	Box	EFD15/8/5	Active	EFD	EFD 15 x 8 x 5	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.295 (7.50mm)

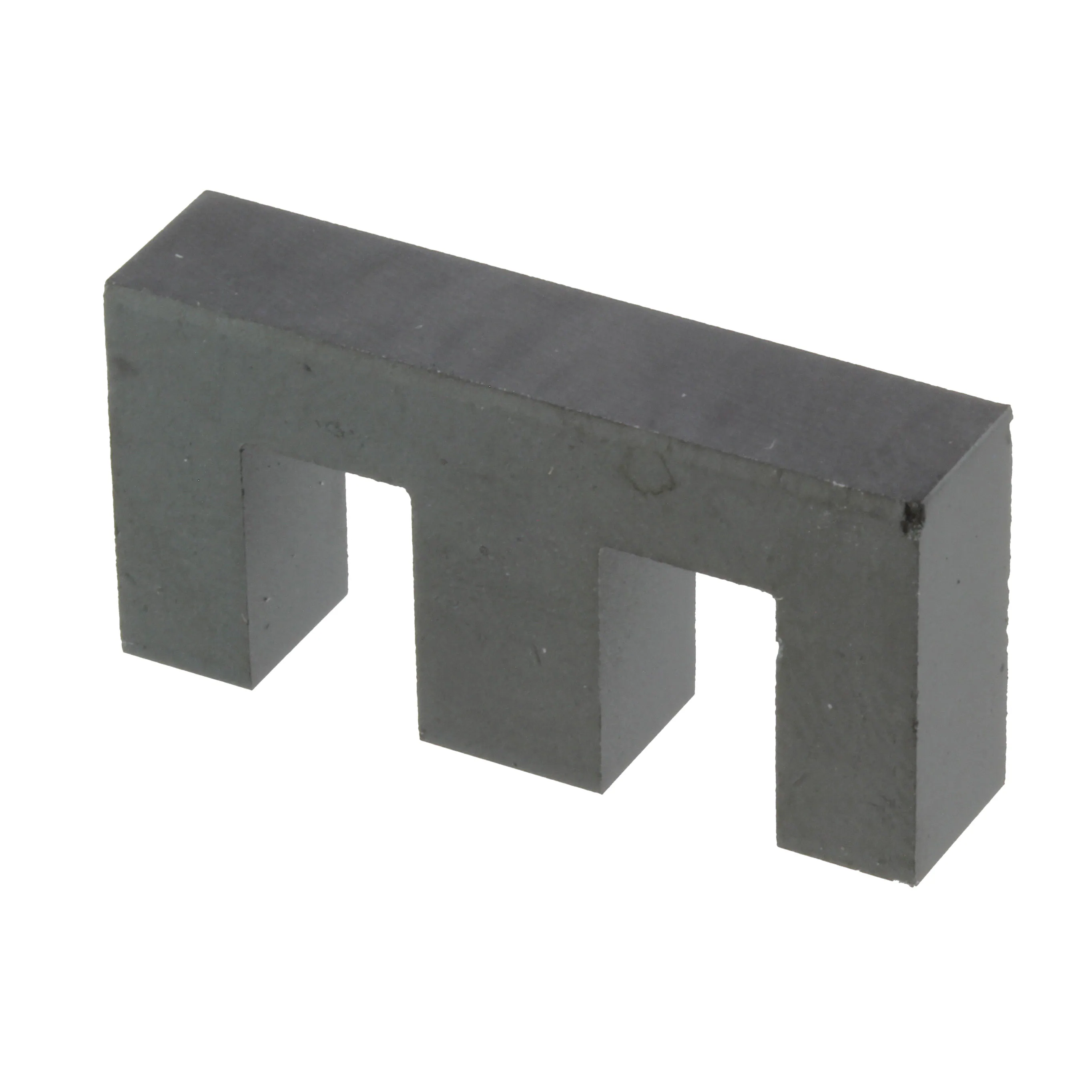

B66319G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	676	1.06	- + RFQ	Datasheet	Box	E30/15/7	Active	E	E 30 x 15 x 7	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.598 (15.20mm)
B66281G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	436	1.12	- + RFQ	Datasheet	Box	ELP14/3.5/5	Active	ELP	ELP 14 x 3.5 x 5	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
TX22/14/6.4-3C94 FERRITE CORES ROUND Ferroxcube	115	1.14	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 22 x 14 x 6.4	3C94	0.880 (22.35mm)	-	±20%	Ungapped	-	2300	2.2	54.2	24.8	-	1340	Epoxy	0.265 (6.75mm)
5943001301 43 TOROID Fair-Rite Products Corp.	465	1.20	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	43	1.000 (25.40mm)	-	±20%	Ungapped	-	800	-	62	30.8	-	1900	Uncoated	0.250 (6.35mm)

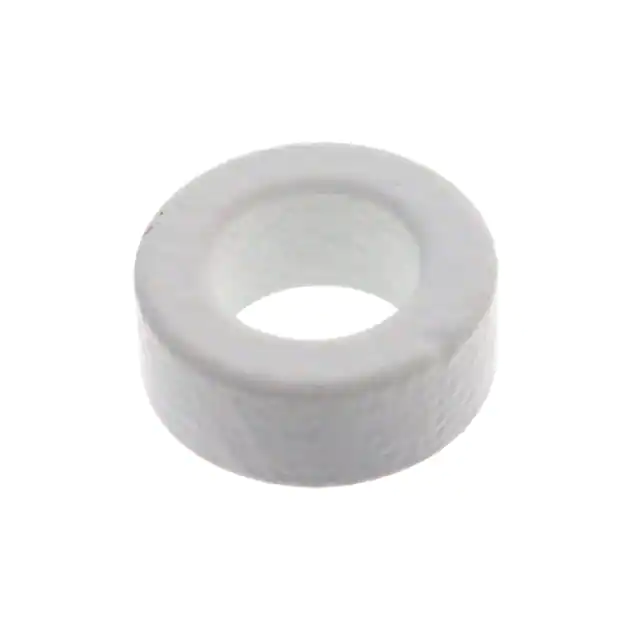

5961004921 61 TOROID PLASTIC COATED Fair-Rite Products Corp.	2,179	1.29	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Toroid	-	61	0.665 (16.90mm)	80 nH	±25%	Ungapped	-	125	1.937	38.5	19.9	-	766	Plastic	0.280 (7.11mm)
B64290P0037X001 FERRITE CORE TOROID 20NH K1 EPCOS - TDK Electronics	114	1.36	- + RFQ	Datasheet	Box	TC6.3/3.8/2.5	Active	Toroid	-	K1	0.249 (6.32mm)	20 nH	±25%	Ungapped	-	80	4.97	15.21	3.06	-	46.5	Parylene	0.099 (2.52mm)
4061266011 61 SOLID ROD Fair-Rite Products Corp.	759	1.39	- + RFQ	Datasheet	Bulk	-	Active	ROD	-	61	0.250 (6.35mm)	-	-	Ungapped	-	125	-	-	-	-	-	Uncoated	-
